DHK Electric Chain Hoist 1T–10T 380V

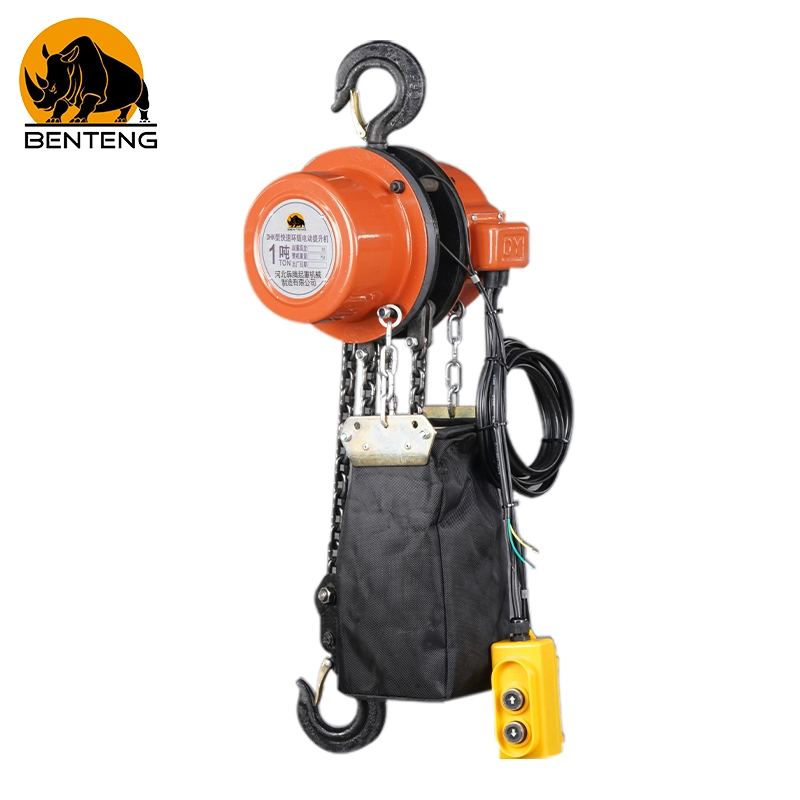

DHK Electric Chain Hoist Description

DHK Electric Chain Hoist is a specialized, heavy-duty material handling engine engineered for large-span collaborative hoisting and high-load industrial applications. Designed around a 380V/50Hz industrial electrical standard, this robust heavy duty electric hoist combines precision motor ratings (0.5 kW to 1.1 kW) with controlled lifting speeds (1 m/min to 3 m/min), balancing exceptional load stability with operational safety.

As a certified China hoist supplier, we manufacture the DHK series across rated lifting capacities from 1 Ton to 10 Ton (with experimental test loads up to 12.5 Ton). Featuring an innovative double sprocket drive mechanism and a thickened protective steel casing, this series serves as an essential lifting system for high-rise climbing formwork, storage tank erection, bridge segment positioning, and heavy plant assembly.

Core Advantages & Product Features

• Double Sprocket Drive System: Features a dual sprocket guidance structure that prevents chain reversal, reduces chain binding, and ensures ultra-smooth chain travel during heavy lifts.

• Thickened Protective Casing: Heavy-duty outer metal housing provides high structural rigidity, protecting internal drive gearing against job-site collisions and severe weather.

• Manganese Steel Anti-Detachment Hook: Drop-forged manganese steel safety hooks rotate 360 degrees without cracking, equipped with spring latches to prevent accidental sling slippage.

• Sensitive Industrial Remote Control: High-response pendant controller allows precise micro-positioning and rapid emergency stop execution for elevated safety margins.

• High Synchronization Accuracy: Controlled low-speed hoisting mechanics ensure smooth, shake-free vertical travel when multiple units are linked for synchronized group lifting.

Product Specifications

model	lifting capacity	Experimental load	voltage	power	increase speed	increase height
DHK1	1T	1.25T	380V/50HZ	0.5KW	3M/MIN	3-12M
DHK2	2T	2.5T	380V/50HZ	0.8KW	2.5M/MIN	3-12M
DHK3	3T	3.75T	380V/50HZ	1.1KW	2M/MIN	3-12M
DHK5	5T	6.25T	380V/50HZ	1.1KW	2M/MIN	3-12M
DHK10	10T	12.5T	380V/50HZ	1.1KW	1M/MIN	3-12M

Industrial Applications Across Complex Environments

The DHK electric chain hoist delivers high-stability material handling across versatile infrastructure and heavy manufacturing sectors:

• Infrastructure & Large Engineering: Synchronized perimeter lifting of petroleum storage tanks, climbing scaffolding in high-rise building construction, bridge deck segment hoisting, and high-speed rail bay maintenance.

• Automotive & Machinery Assembly: Precision alignment of vehicle chassis, engine blocks, and agricultural equipment on high-frequency assembly lines.

• Power Plants & Metallurgy: Handling high-temperature castings in foundry bays and lifting heavy boiler maintenance components during power station turnarounds.

• Logistics & Material Handling: Station-to-station cargo stacking, container loading/unloading, and monorail transfer in medium to large industrial warehouses.

• Special & Harsh Field Environments: Adaptable for field power transmission base installation, deep shaft mining repairs, and chemical plant maintenance with optional explosion-proof / dustproof configurations.

Products Details

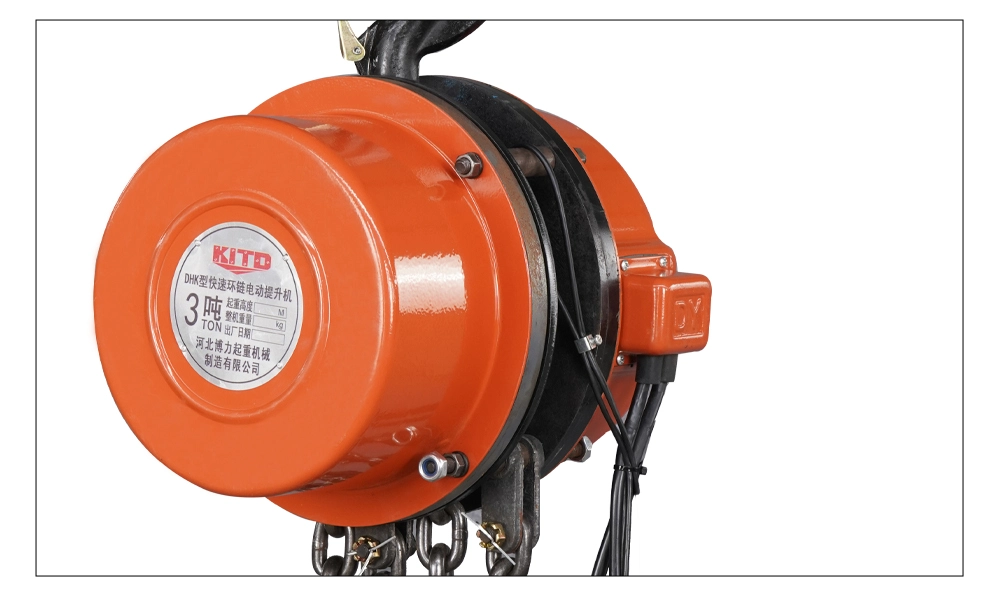

Thickened casing is sturdy and more durable

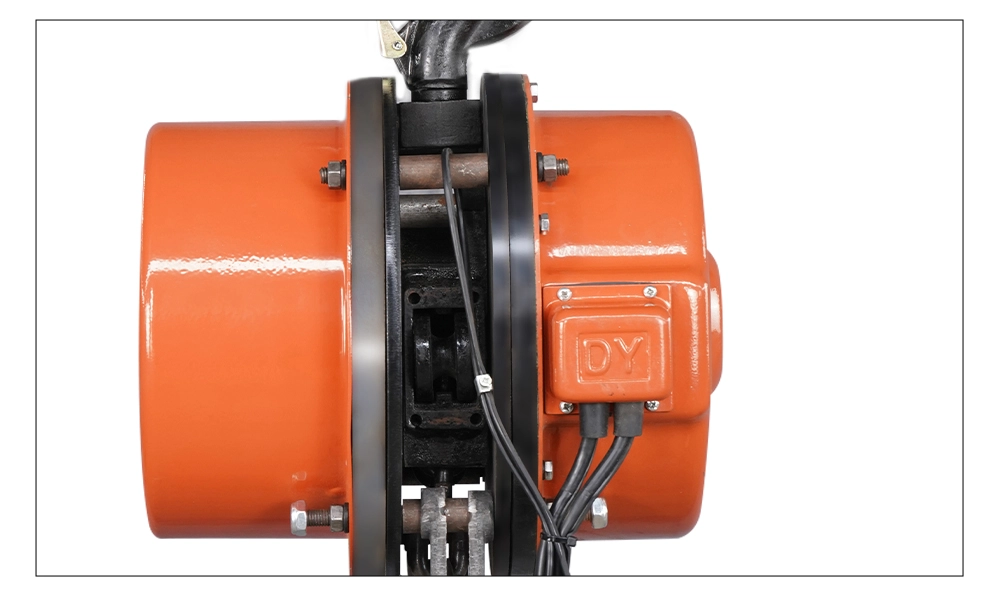

Double sprocket, the chain is less likely to reverse and runs more smoothly

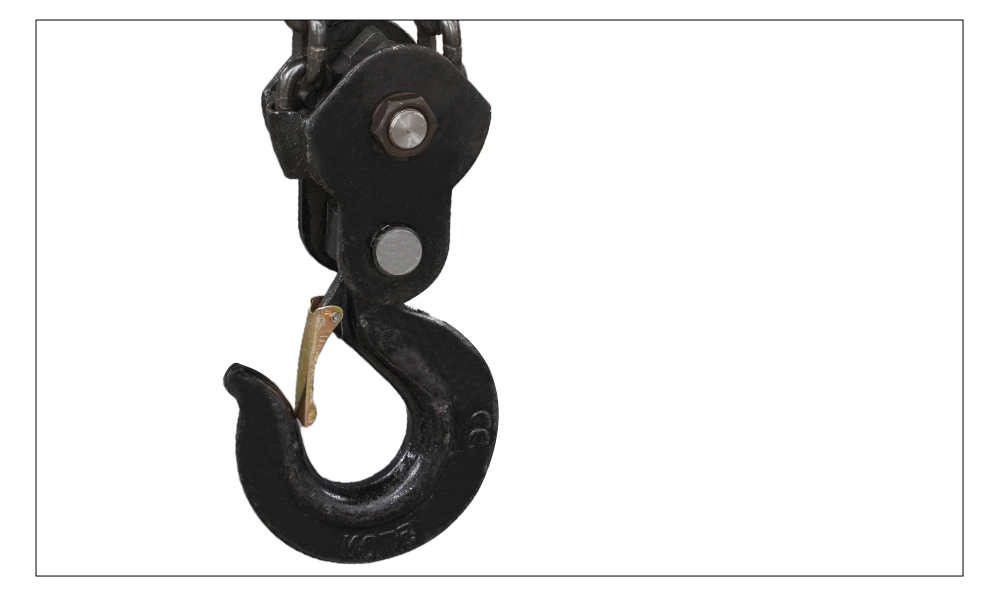

Manganese steel hook is sturdy and resistant to detachment

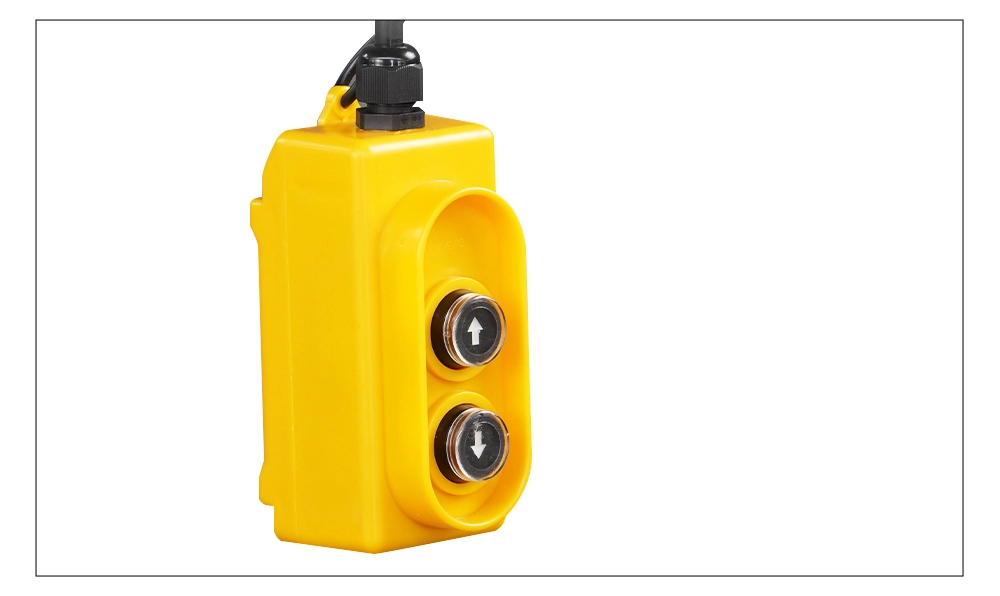

Industrial grade remote control is more sensitive to control

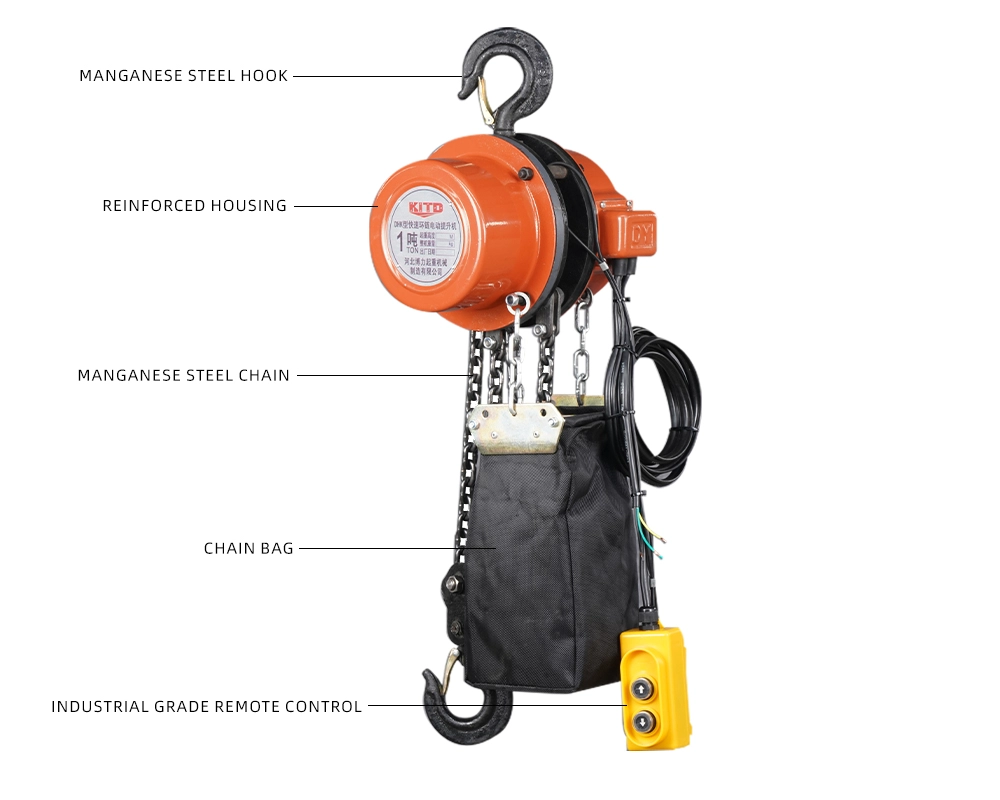

Internal Structure

B2B Customization & System Integration

We provide complete OEM engineering packages for crane manufacturers, site contractors, and equipment distributors seeking a reliable motorized chain hoist setup:

• Group Control Master Box Integration: Multi-channel centralized control systems for simultaneous multi-point synchronous lifting with master emergency cutoff.

• Custom Environmental Protection: Explosion-proof (EX), IP65 waterproof, and anti-corrosion coatings for marine, mining, and petrochemical facilities.

• Global Power Adaptability: Configurable for 220V, 380V, 415V, 440V, and 480V 3-phase regional electrical grids.

Quality Compliance & Factory Inspection

• 125% Overload Proof Testing: Every DHK hoist is tested with experimental static proof loads up to 125% of rated capacity before factory dispatch.

• ISO9001 & CE Certified: Manufactured in full compliance with international machinery safety standards and quality management protocols.

• Complete Technical Manuals: Exported with official factory proof test certificates, CE compliance documentation, and comprehensive spare parts lists.

Frequently Asked Questions

Q1: What are the specific benefits of the double sprocket design in the DHK hoist?

A: The double sprocket system provides dual-point engagement with the load chain, which prevents chain twist, drastically reduces chain wear, and guarantees smoother vertical motion under heavy loads.

Q2: Can the DHK series be used for synchronized group lifting of large storage tanks?

A: Yes. The DHK series is specifically engineered with uniform lifting speeds and high stability, making it ideal for multi-point synchronized tank jacking and climbing scaffolding operations.

Q3: Are custom lifting heights above 12 meters available?

A: Yes. We offer fully customized Grade 80 alloy load chains and high-capacity chain containers to support vertical lifting heights up to 30 meters or more for specialized construction projects.
