Dual-Mode Drill Powered Hoist 125kg–2000kg

Drill Powered Hoist Description

Drill Powered Hoist from Benteng Hoist is an innovative, dual-mode lifting solution engineered to maximize versatility and minimize equipment acquisition costs. By eliminating the need for an expensive, heavy dedicated drive motor, this ingenious unit is designed to directly connect with standard handheld electric drills available on the market as its power source. This unique adaptability saves procurement budgets while offering the best of both worlds: rapid electrical hoisting for high-speed productivity and manual override capability for exact, millimeter-precise load positioning.

Weighing as little as 3.5 kg with an ultra-compact casing footprint, this lightweight hand chain hoist can be easily transported in technician toolkits or service vehicles. Whether deployed for remote grid maintenance, rooftop solar panel installation, or tight-space mechanical repairs, this versatile hand hoist delivers reliable, unpowered-independent lifting performance wherever standard electricity is unavailable.

Structural Advantages of Drill-Powered Series

• Universal Electric Drill Compatibility: Attaches seamlessly to standard handheld power drills, transforming existing shop tools into a robust lifting motor and slashing equipment setup costs.

• Dual-Mode Efficiency (Electric + Manual): Utilizes drill torque for rapid lifting and lowering to minimize operator fatigue, while allowing instant switching to manual mode for fine load placement.

• Ultra-Lightweight & Portable Build: Ranging from a featherlight 3.5 kg net weight (BX0125), making it exceptionally easy to carry up ladders, onto scaffolding, or into remote field sites.

• Cost-Effective Field Deployment: Ideal for contractors and service crews needing powered lifting speed without investing in bulky, expensive electric hoist setups.

• Robust Load & Safety Engineering: Equipped with high-strength alloy chains and reliable internal braking mechanisms to ensure secure load holding during both powered and manual operation.

Product Specifications

Item	Unit	BX0125	BX025	BX050	BX100	BX200
Rated Lifting Capacity	kg	125	250	500	1000	2000
Standard Lift	mm	4×12	5×12	6×18	8×24	8×24
Number of Chain Falls	-	1	1	1	1	2
Motor Speed	r/min	1400	1400	1400	1400	1400
Lifting Speed	m/min	2.72	1.2	1.2	0.72	0.36
Rated Pulling Force	N	52	60	72	80	85
Test Load	kg	187.5	375	750	1500	3000
Net Weight	kg	3.5	6.6	9.3	14.8	23
Gross Weight	kg	4.5	7.6	10.5	16.2	25
Packing Size	cm	24×12.5×12.5	27.5×14.5×15.5	28×17×18.5	31×17.5×22	31×17.5×22
Extra Weight per 1m of Extra Lift	kg/m	0.341	0.541	0.77	1.36	2.72
Dimension a	mm	132	151	151	200	200
Dimension b	mm	30	35	44	49	49
Dimension c	mm	20	27	27	33	33
Dimension d	mm	48	55	55	76	76
Dimension e	mm	332	339	339	380	380
Dimension Hmin	mm	262	318	318	421	450

Primary Application Scenarios

The drill powered hoist provides exceptional adaptability and labor-saving efficiency across specialized multi-industry tasks:

• Outdoor Construction and Emergency Repair: Suitable for hoisting pole-mounted equipment during power grid maintenance, lifting pipes or small equipment for municipal emergency repairs, and handling tasks such as installing photovoltaic modules or repairing small construction machinery in the field. It operates without a fixed power supply—driven simply by a power drill—making it highly adaptable to off-grid environments.

• Home Renovation and Small-Scale Projects: Ideal for lifting outdoor AC units, cabinetry, and large bathroom fixtures during home renovations, or hoisting large stone slabs to upper floors in villa projects. It is also suitable for installing signage and shelving in small-to-medium commercial spaces; its mobility eliminates the need for heavy lifting machinery, thereby reducing construction costs.

• Equipment Maintenance and Repair: Useful for the maintenance and replacement of small-to-medium factory equipment, temporary cargo shifting and stacking in warehouses, and the precise positioning of heavy components (such as engines) during shipbuilding or automotive repairs. It can be quickly deployed and uses power drill torque to rapidly execute lifting tasks, effectively meeting sporadic maintenance and repair needs.

Products Details

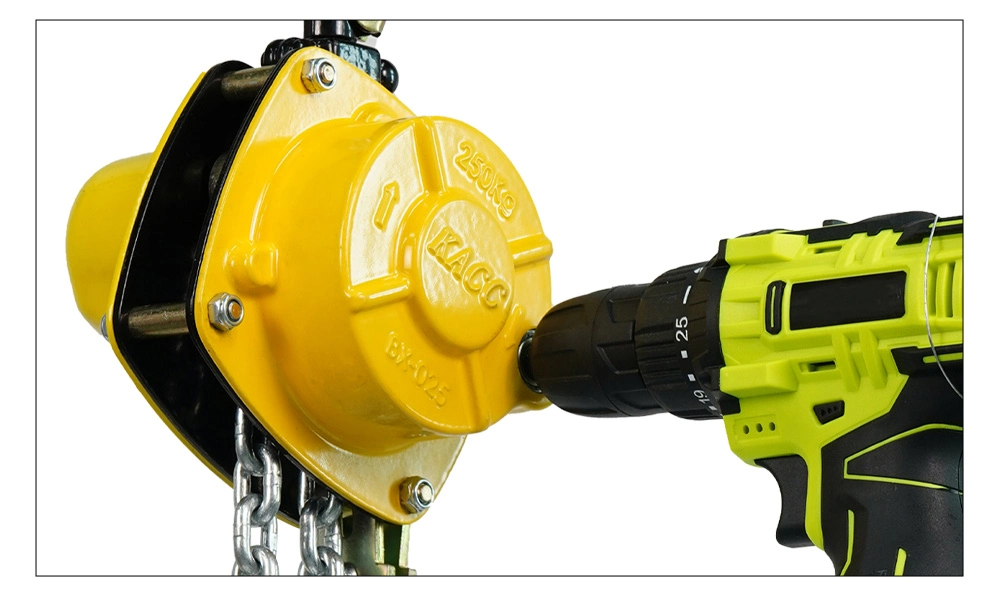

Streamlined card slot design, smooth and non chain jamming

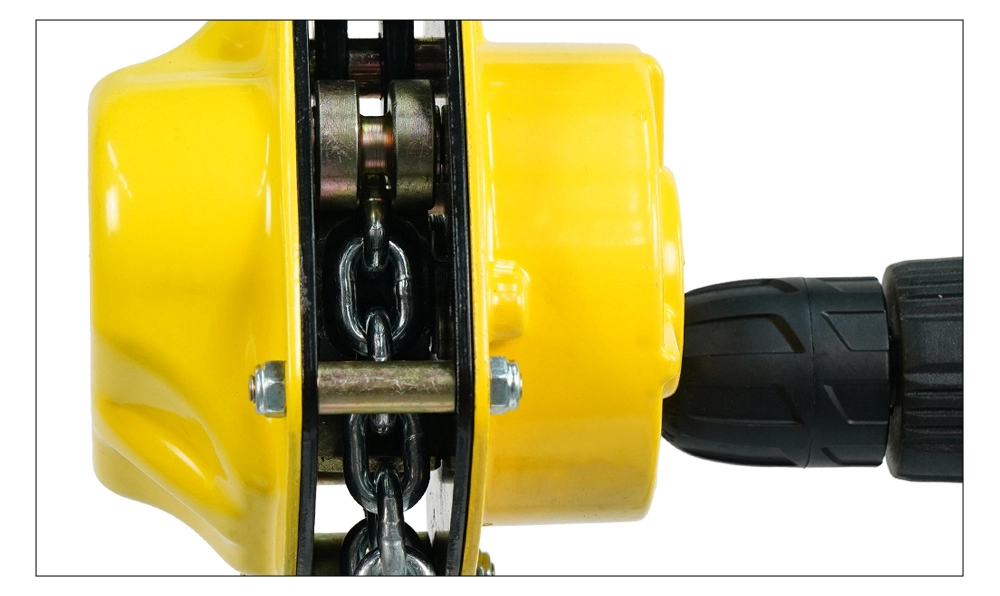

Alloy steel casing effectively protects the internal structure

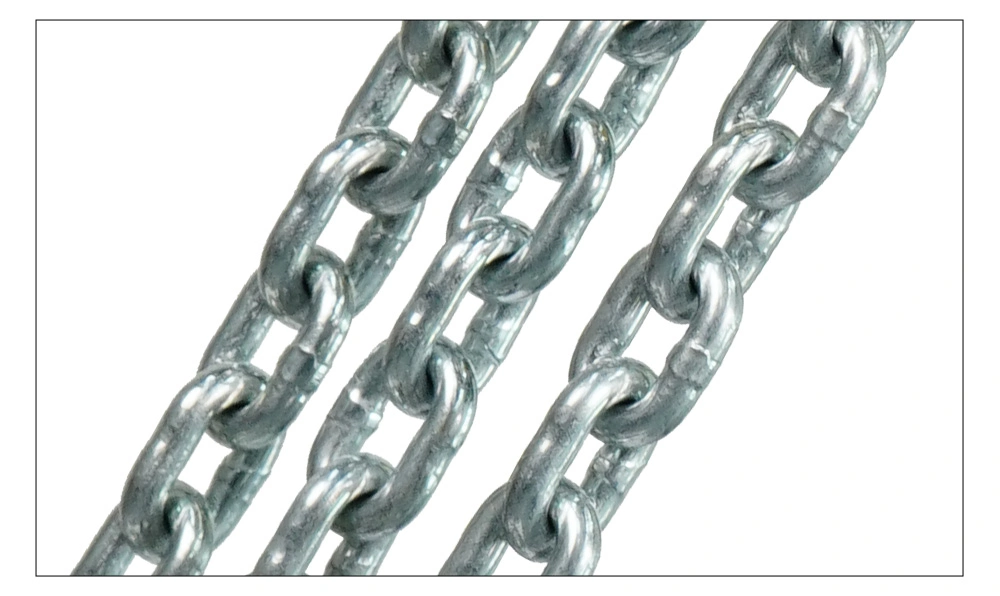

Galvanized high-strength chain is sturdy and durable

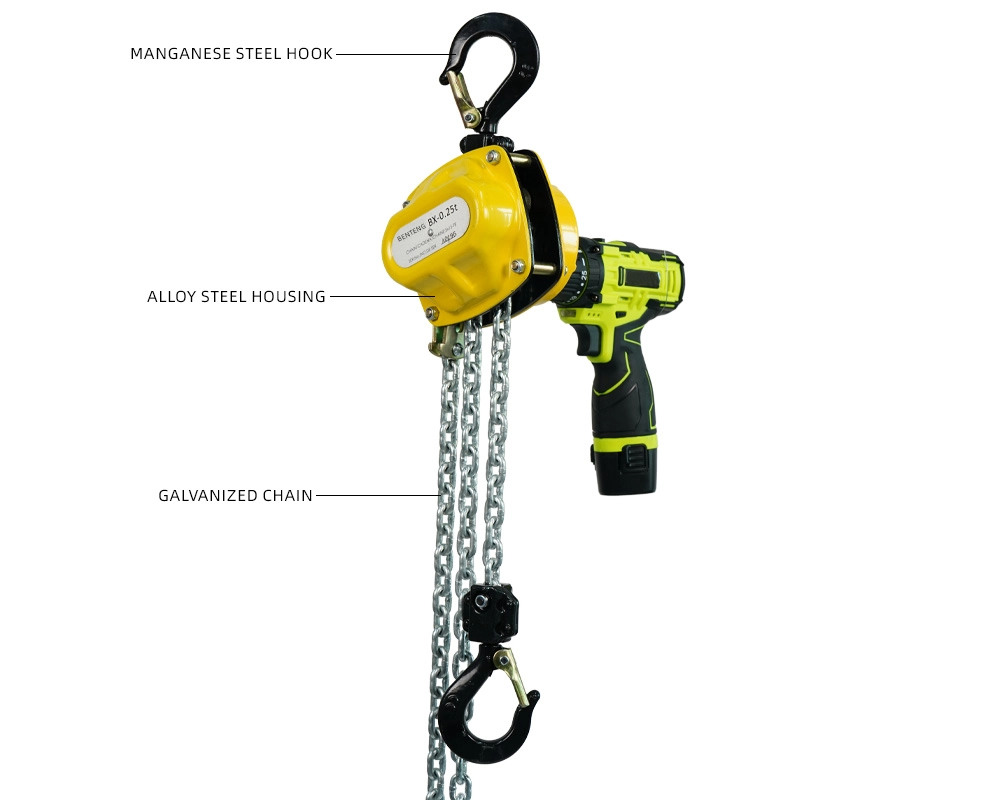

Internal Structure

• Manganese Steel Hook: Drop-forged top and bottom manganese steel hooks designed to yield gradually under extreme overloads rather than suffer sudden brittle fracture.

• Alloy Steel Housing: Rugged, precision-formed alloy steel outer casing enclosing internal gear systems to protect against physical collisions, dust, and job-site wear.

• Galvanized Chain: High-tensile, corrosion-resistant galvanized load chain engineered for smooth sprocket travel, rust prevention, and long-term durability.

• Dual-Mode Power Interface: Specially engineered drill drive socket enabling seamless connection with standard handheld power drills for rapid motorized operation.

Quality & Safety Control Standards

As a professional manufacturer of specialized lifting gear, Benteng Hoist enforces strict testing protocols on every BX series unit:

• 100% Dynamic Load Proof Testing: Each drill-driven hoist is tested under 150% of its rated capacity prior to export packaging.

• Dual-Mode Drive Verification: Both power-drill coupling interfaces and manual hand-chain engagement mechanisms are tested for seamless switching and secure holding.

• Component Metallurgy Checks: High-tensile alloy load chains and drop-forged hooks undergo rigorous hardness inspections to guarantee safety under field conditions.

B2B Customization & Wholesale Services

Benteng Hoist offers full OEM manufacturing and private-label distribution solutions for global tool distributors, hardware importers, and rental fleets:

• Custom Lift Heights: Flexible chain lengths produced according to exact project requirements (e.g., extended lifts for multi-story installations).

• Private Labeling & Custom Packaging: Customized housing colors, laser-etched nameplates, and reinforced export cartons.

• Accessory Bundling: Option to supply matched drill drive adapters and professional rigging slings as a complete kit.

Frequently Asked Questions

Q1: What kind of power drill is required to operate this hoist?

A: The hoist is designed to connect directly with the vast majority of standard handheld electric drills available on the market running at standard operating speeds (approx. 1400 r/min motor compatibility).

Q2: Can the hoist still be operated manually if the drill battery runs out?

A: Yes! It features a dual-mode design allowing operators to switch instantly to manual mode, ensuring work can continue smoothly without reliance on electrical power.

Q3: What lifting capacities are available in the BX series?

A: The drill-powered hoist series covers working load limits ranging from 125 kg (0.125 Ton) up to 2 Tons (2000 kg).

Q4: Is the unit heavy to carry around to different job sites?

A: Not at all. With a starting net weight of only 3.5 kg for the 125kg model, it is exceptionally lightweight and compact, making it ideal for mobile service technicians and field contractors.
