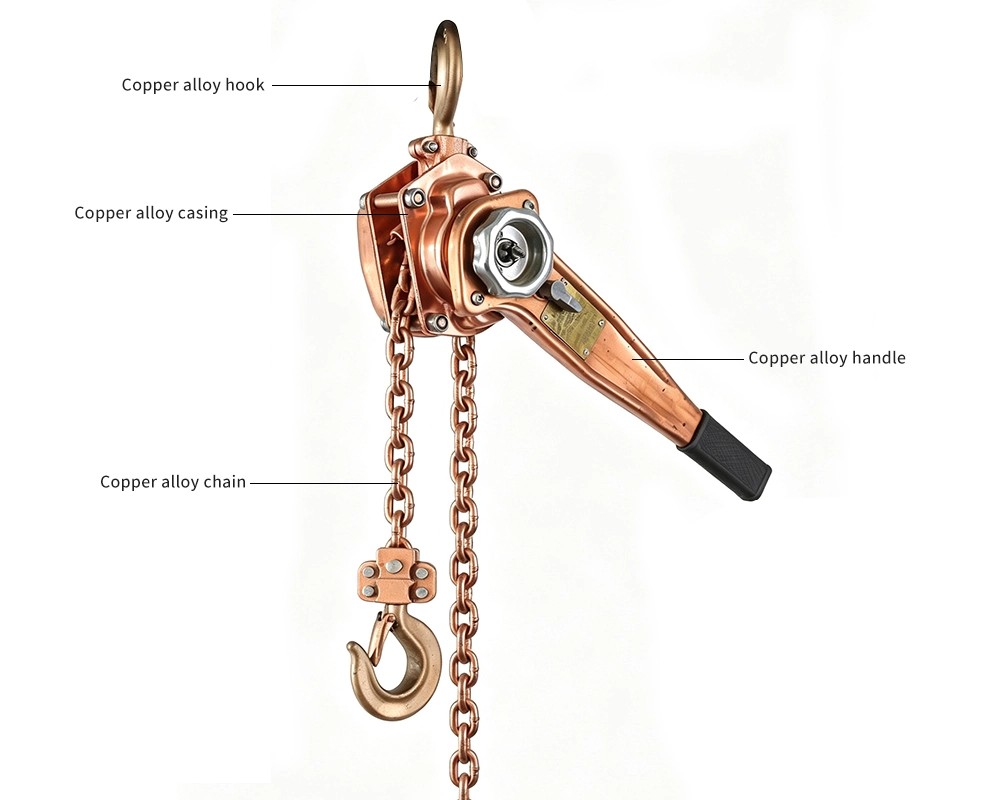

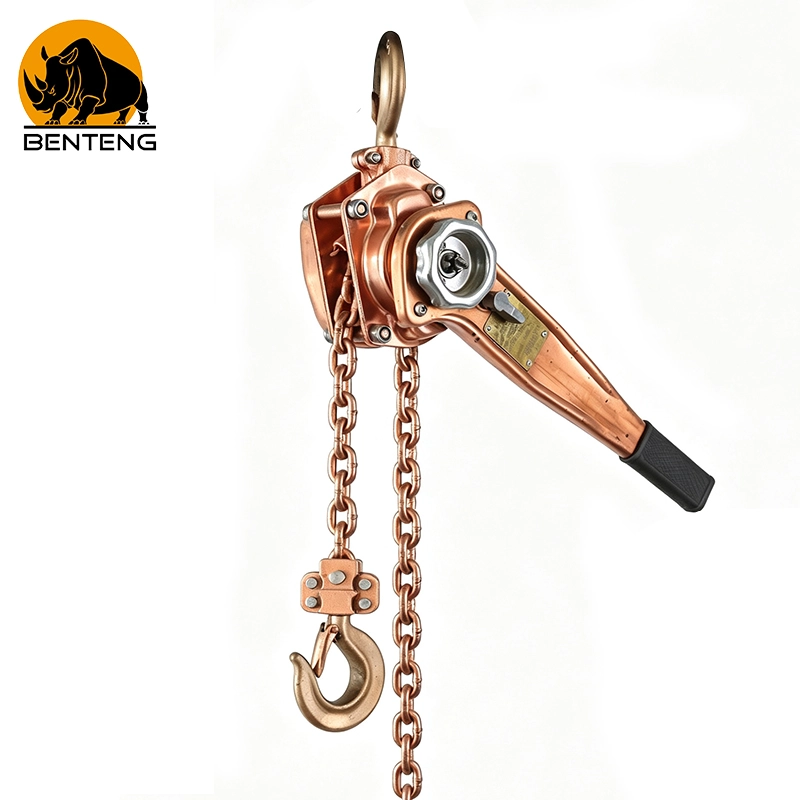

Explosion Proof Lever Hoist
Product Description
The product achieves the lifting, traction, positioning, and tightening of heavy objects by manually pulling the operating lever, without the need for power drive, effectively avoiding the generation of electric sparks, and is suitable for industrial sites with high safety requirements. This product adopts high-strength alloy steel chains, explosion-proof components, and precision transmission structures, which have the advantages of strong load-bearing capacity, smooth operation, and reliable braking. The lightweight and portable design allows it to adapt to small spaces and complex environments for work
Product Application
Explosion Proof Lever Hoist are widely used in industrial environments that require high safety and explosion-proof requirements. They are suitable for lifting, pulling, tightening heavy objects, and equipment installation operations in flammable, explosive, and hazardous areas. Due to its explosion-proof design, there is no need for electric drive, which can effectively reduce the risk of sparks generated during operation and ensure the safety of personnel and equipment.
The main usage scenarios include:
- Petrochemical industry: used for equipment lifting, pipeline installation, and maintenance operations in refineries, chemical plants, and oil and gas storage areas.
- Mining and underground engineering: suitable for equipment handling, material lifting, and maintenance work in special environments such as mines and tunnels.
- Ship manufacturing and maintenance: used for installing internal equipment, adjusting components, and towing heavy objects on ships.
- Explosion proof workshop and manufacturing factory: applied in scenarios such as mechanical equipment installation, mold adjustment, and production line maintenance.
- Warehouse logistics and engineering construction: suitable for lifting and adjusting the position of goods in areas without power or temporary work.
- With its characteristics of safety, explosion resistance, easy operation, and portability, explosion-proof hand cranked hoists are particularly suitable for reliable lifting operations in complex and high-risk environments.
Product advantages
- High safety and explosion-proof performance
- The structure is sturdy and durable, made of high-strength alloy steel material
- Flexible and convenient operation, using manual lever operation method
- A transmission system with strong load-bearing capacity and optimized design, as well as a reliable braking device
Product Specifications
| Product Model | 0.75T | 1T | 1.5T | 2T | 3T | 6T | 9T |
| Rated Capacity (T) | 0.75 | 1 | 1.5 | 2 | 3 | 6 | 9 |
| Standard Lifting Height (m) | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 |
| Test Load (kN) | 11 | 15 | 22.5 | 30 | 37.5 | 75 | 112.5 |
| Minimum Distance Between Two Hooks (mm) | 285 | 285 | 315 | 315 | 340 | 380 | 475 |
| Lever Force (N) | 140 | 150 | 210 | 260 | 320 | 340 | 360 |
| Number of Load Chains | 1 | 1 | 1 | 1 | 1 | 2 | 3 |
| Load Chain Round Steel Diameter (mm) | 6 | 6 | 8 | 8 | 10 | 10 | 10 |
| Net Weight (kg) | 7 | 7 | 11 | 11 | 20 | 30 | 47 |
| Gross Weight (kg) | 8 | 8 | 12 | 12 | 22.5 | 34 | 50 |
| Packing Size (cm) | 36×13×16 | 36×13×16 | 50×14×19 | 50×14×19 | 54×17×21 | 54×18×21 | 82×32×15 |
| Additional Weight per 1m Height Increase (kg) | 0.8 | 0.8 | 1.4 | 1.4 | 2.2 | 4.4 | 6.6 |
Products Details

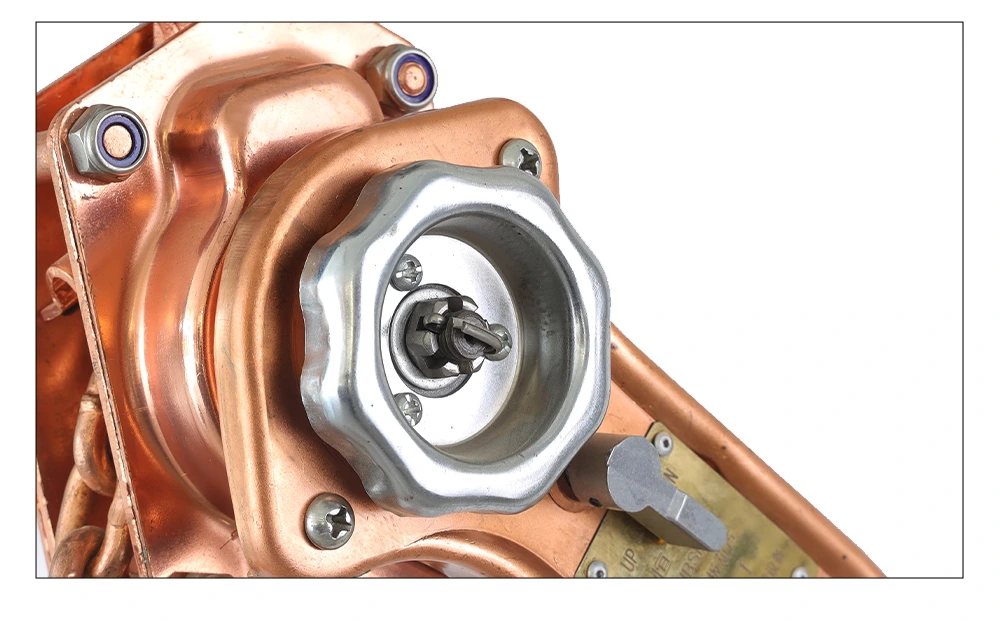

Adjust the chain smoothly and hand chain wheel arbitrarily

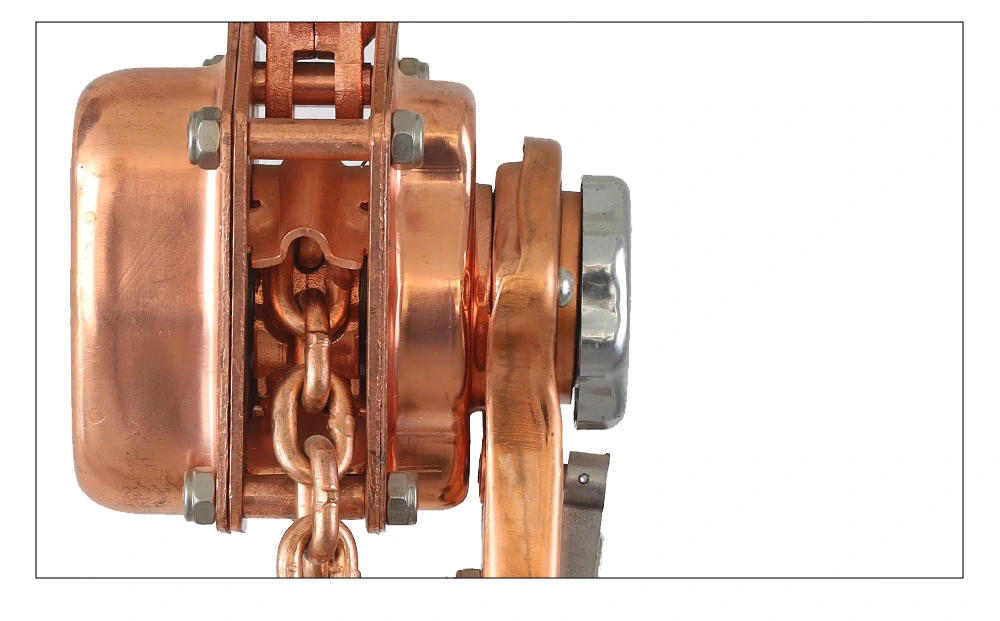

The streamlined card slot design makes the chain smoother

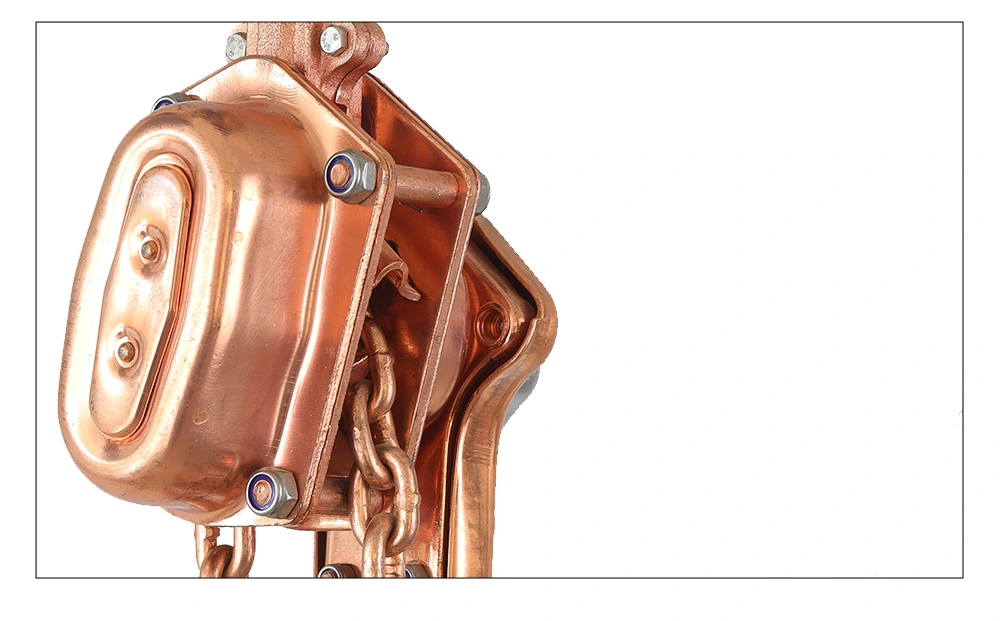

Copper alloy thickened shell effectively protects internal structure

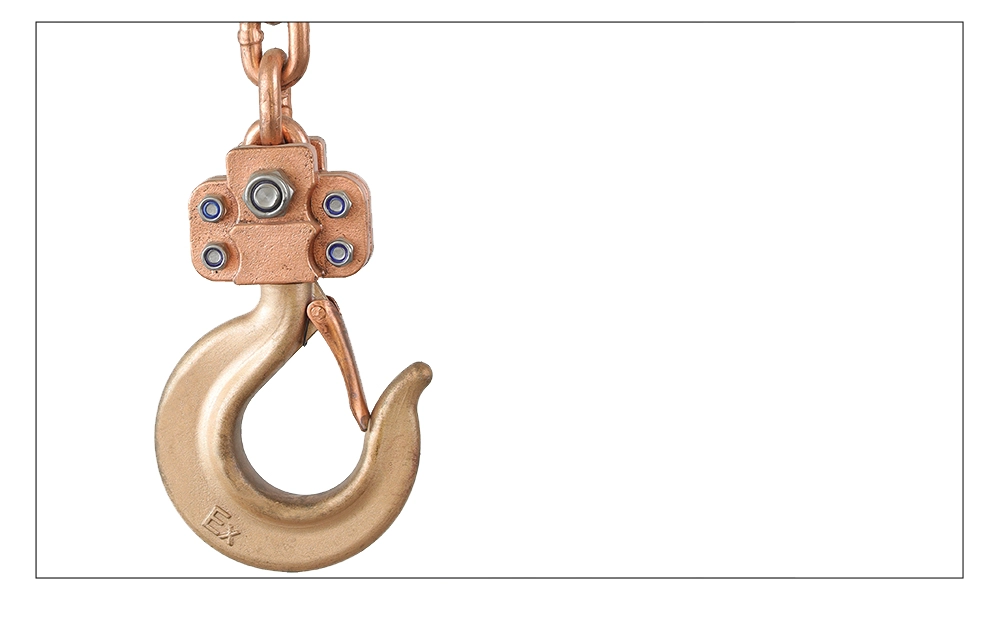

Copper alloy hook is safe and does not fall off
Internal structure
