Hand Crank Winch

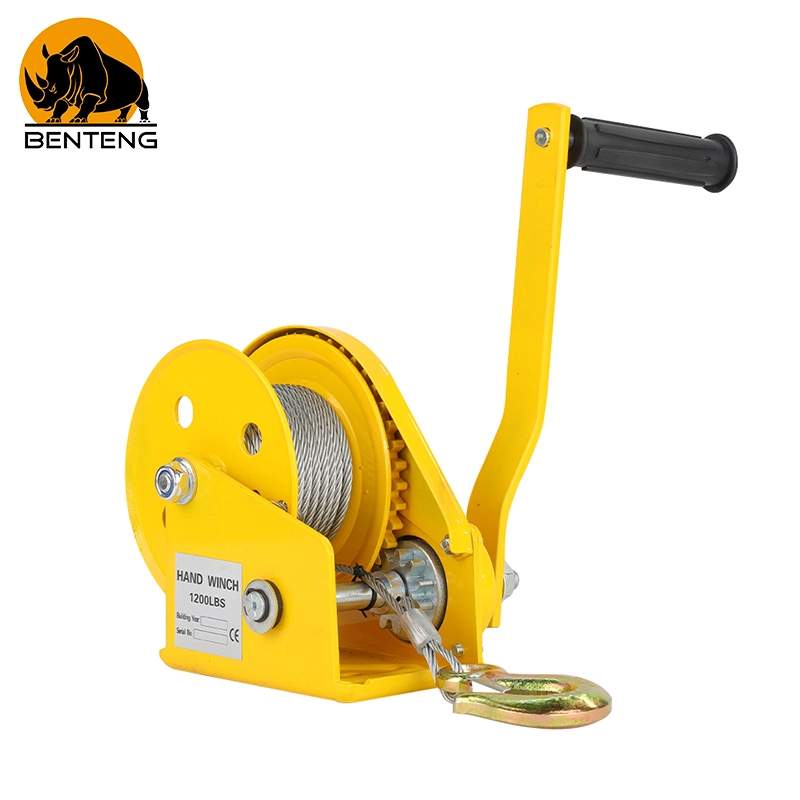

Hand Crank Winch Description

The hand crank winch is designed for reliable manual pulling, lifting, and positioning of heavy loads in environments where electric or hydraulic power is unavailable. Constructed with a high-strength steel frame, this durable winch features a precision gear transmission system and self-locking brake mechanism to provide stable operation and enhanced safety during load handling.

With a compact structure and portable design, the hand crank winch is easy to install, operate, and maintain for various industrial applications. It supports both steel wire rope and webbing configurations, allowing flexible use according to different load requirements. For applications requiring different manual traction solutions, our hand operated winch range provides reliable options for industrial pulling, positioning, and material handling tasks.

Its excellent wear resistance, strong pulling capability, and dependable braking performance make it a practical solution for field operations, equipment installation, industrial maintenance, and emergency handling.

Product Advantages

Durable Steel Construction

Manufactured from high-strength steel, the reinforced body provides excellent durability and reliable performance in demanding working environments.

Safe Self-Locking Mechanism

The integrated braking system helps maintain load stability during operation, reducing the risk of unexpected movement and improving workplace safety.

Easy Manual Operation

The ergonomic hand crank design allows smooth operation without requiring electrical power, making it suitable for flexible field applications.

Portable and Low Maintenance

With a compact structure and simple mechanical design, the winch is easy to transport, install, and maintain while reducing long-term maintenance costs.

Flexible Rope Options

The hand crank winch can be configured with steel wire rope or webbing according to different application requirements, providing adaptable solutions for various pulling and securing tasks.

Product Specifications

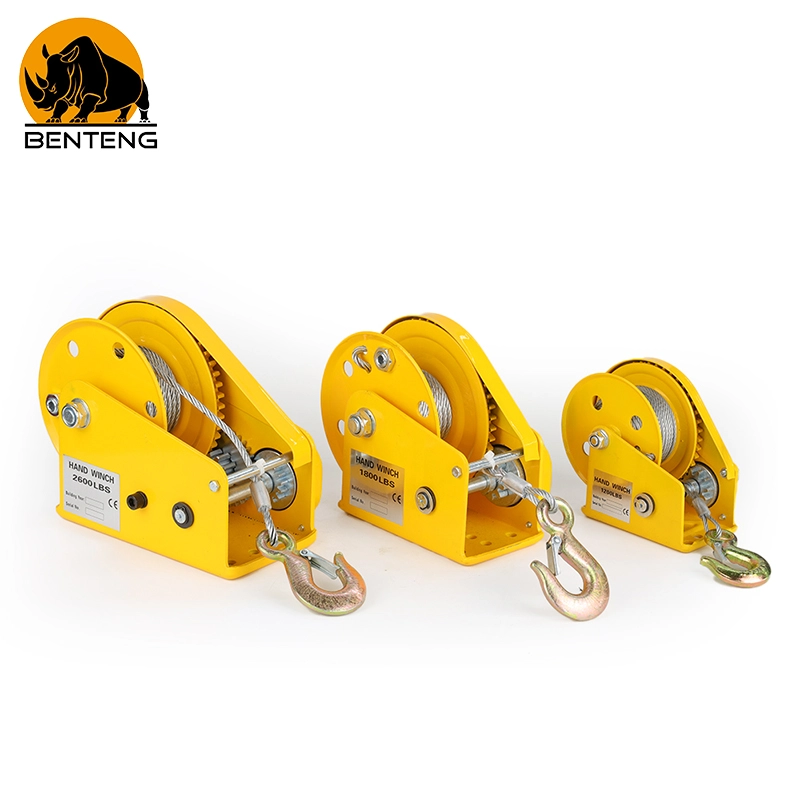

MODEL	1200LB	1800LB	2600LB
RATED LOAD CAPACITY (T)	1200	1800	2600
RATED LOAD (KN)	8	12	17.5
SPEED RATIO	4:1	4:1	8:1
HAND FORCE (N)	180	190	190
MAIN DIMENSIONS
A	Φ48	Φ60	Φ75
B	Φ134	Φ180	Φ180
C	51	60	63
D	157	190	209
E	Φ27	Φ27	Φ27
F	273	288	307
G	110	110	110
H	156	203	216
J	136	195	220
R	250	280	280
NET WEIGHT (EXCLUDING STEEL WIRE ROPE)	4.0 (WITH BEARINGS 4.3)	8.0	10.3

Product Application

The hand crank winch is widely used for manual pulling, positioning, and load control across multiple industries, including:

Industrial Equipment Installation

The winch is suitable for:

• Machinery relocation
• Equipment positioning
• Component adjustment
• Heavy load pulling

It provides flexible support during factory maintenance and equipment installation where precise manual control is required.

Construction and Engineering Projects

In construction and industrial environments, hand crank winches are commonly used for:

• Material handling
• Equipment installation
• Structural adjustment
• Remote site operations

Vehicle Recovery and Outdoor Operations

Due to its portable design and independent operation, the hand crank winch is suitable for:

• Vehicle recovery
• Trailer towing
• Off-road applications
• Outdoor exploration

Marine and Warehouse Handling

It can also assist with:

• Ship docking
• Cargo positioning
• Equipment securing
• Warehouse material movement

When integrated with professional lifting winch equipment, hand crank winches can provide flexible solutions for manual lifting and heavy-duty handling requirements.

Because it does not require electricity or external power sources, the hand crank winch is especially suitable for remote areas, outdoor environments, and workplaces with limited power availability.

Products Details

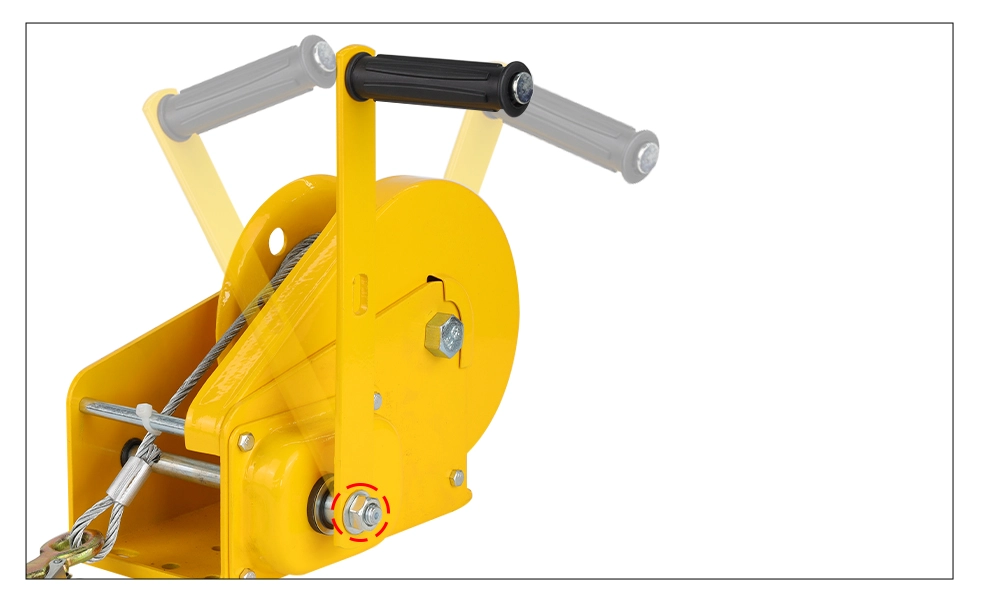

Bidirectional self-locking device

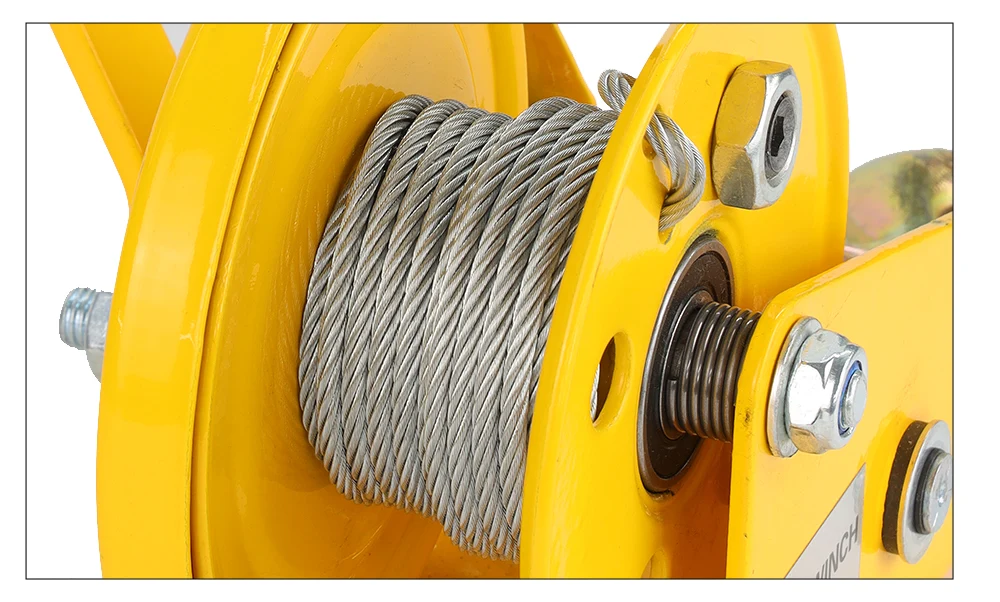

Torsion Resistance Solid wire rope

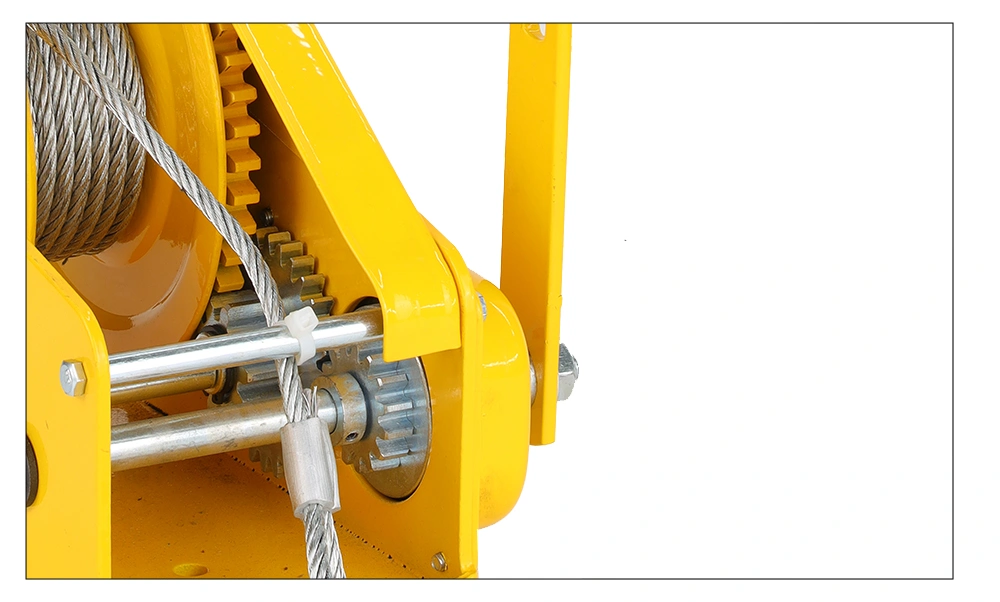

High Temperature Quenching gear

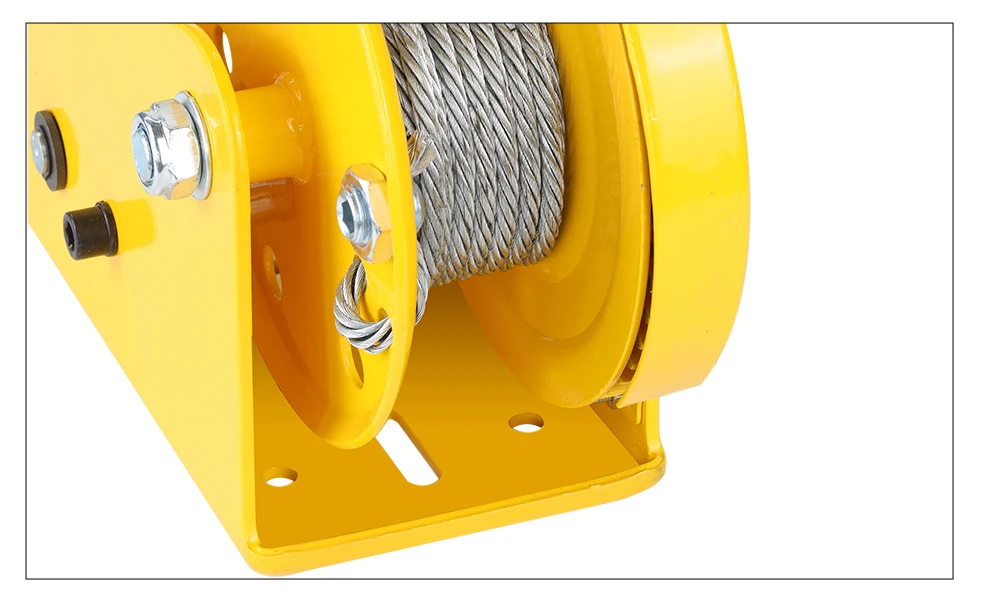

Thickened base Fixed for greater stability and safety

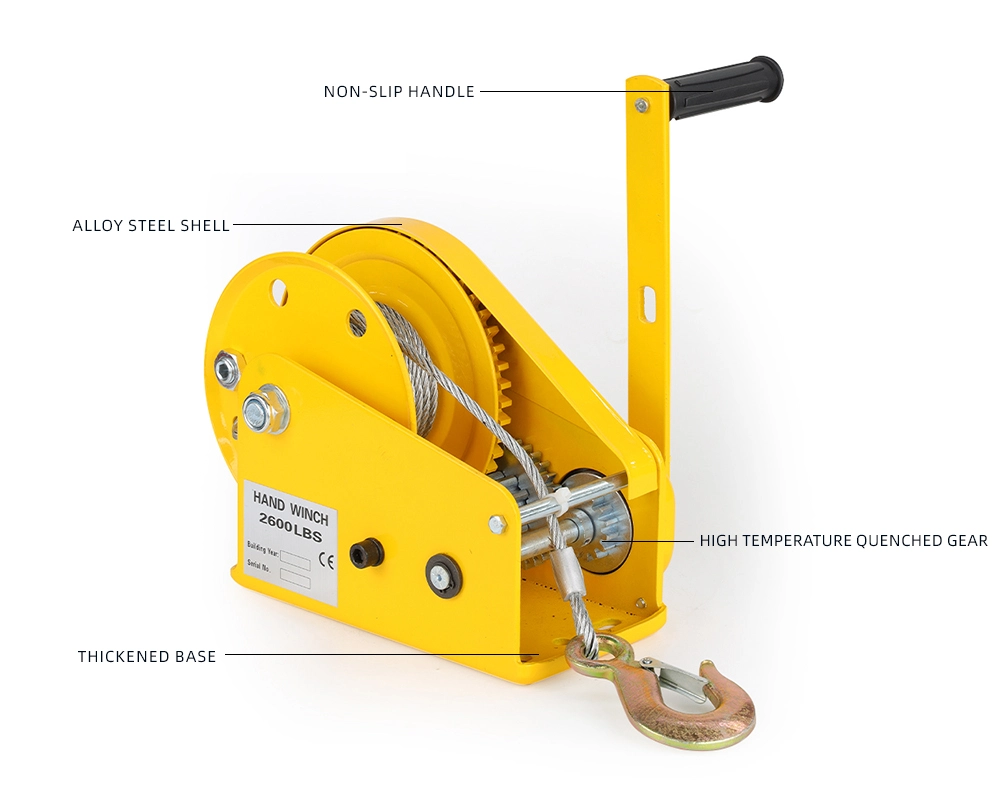

Key Structural Features & Product Highlights

• Non-Slip Ergonomic Handle: Designed with a secure, textured non-slip grip to ensure comfortable operation, reduce hand fatigue, and maximize pulling leverage during heavy manual hoisting tasks.

• High-Strength Alloy Steel Shell: Encased in a robust, thickened alloy steel housing built to resist heavy impacts, corrosion, and wear in demanding industrial environments.

• High-Temperature Quenched Gear: Precision-engineered with high-temperature quenched gears that deliver exceptional wear resistance, smooth power transmission, and long-term operational durability under high loads.

• Thickened Mounting Base: Features a solid, reinforced base with pre-drilled anchoring slots to ensure maximum stability and secure installation during heavy-duty pulling and lifting operations.

---

How to Choose the Right Hand Crank Winch?

Selecting the correct hand crank winch depends on several important factors:

FAQ

What is a hand crank winch used for?

A hand crank winch is used for manual pulling, lifting, positioning, and securing heavy loads without requiring electricity or hydraulic power.

What is the difference between a hand crank winch and an electric winch?

A hand crank winch operates manually, making it more portable and suitable for remote areas or applications where power sources are unavailable.

Can a hand crank winch be used for lifting operations?

Yes. Depending on the capacity and working conditions, it can be used for controlled lifting, pulling, and positioning tasks.

What type of rope can be used with a hand crank winch?

The winch can be equipped with steel wire rope or webbing based on different load requirements and application environments.
