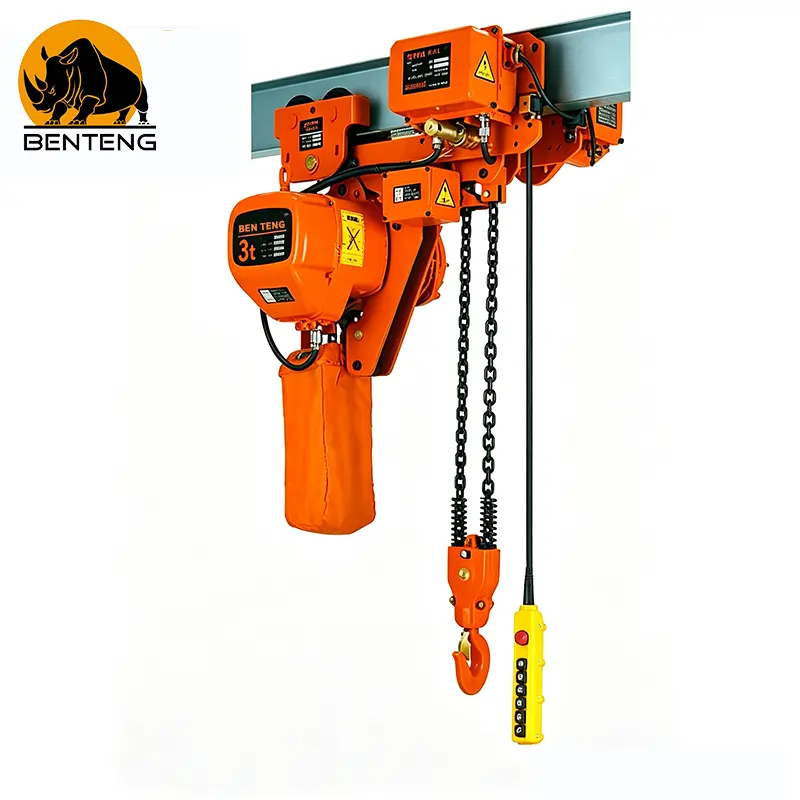

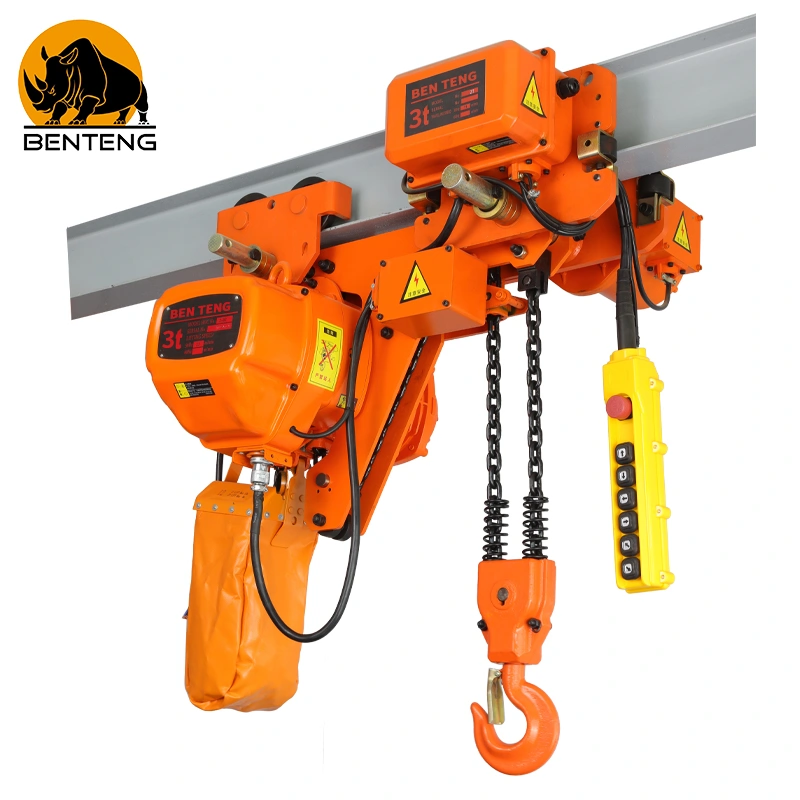

HHBB Electric Chain Hoist Low Headroom
Product Description
The electric chain hoist is a high-performance, lightweight, and compact lifting device. Featuring a compact design, it is characterized by its small size, low weight, smooth operation, ease of use, and safety and reliability. The unit utilizes a high-strength alloy steel lifting chain, a precision gear transmission system, and a high-efficiency motor; it offers stable lifting speeds and precise positioning, making it capable of meeting the demands of frequent lifting and continuous operation.
Product Application
Electric chain hoists are widely used in sectors such as factory workshops, warehousing and logistics, machinery manufacturing, automotive production, equipment installation, construction, bridge engineering, shipbuilding, power maintenance, and production lines. They are suitable for lifting, transporting, loading/unloading, and precisely positioning various heavy loads. These hoists can be paired with monorail trolleys, electric travel trolleys, jib cranes, gantry frames, and single- or double-girder cranes to meet both stationary and mobile lifting requirements. Characterized by smooth operation, flexible handling, precise positioning, and high efficiency, Kito electric chain hoists are particularly well-suited for frequent lifting, continuous operation, and space-constrained environments. They effectively boost productivity and reduce manual labor intensity, making them ideal lifting equipment for industrial manufacturing, equipment installation, warehousing, and engineering construction.
Product advantages
- Deep technology accumulation and stable operation
- Exquisite craftsmanship and materials; highly durable
- Comprehensive safety protection design
Product Specification
| Model | Capacity (ton) | Lifting Speed (m/min) | Motor Power (kW) | Rotating Speed (r/min) | Power Supply | Spec Load Chain (mm) |
| HHBB0.5-01 | 0.5T (Single chain) | 7.2 | 1.1 | 1440 | 3-phase 380V 50HZ | 6.3 |
| HHBB01-01 | 1T (Single chain) | 6.8 | 1.5 | 1440 | 3-phase 380V 50HZ | 7.1 |
| HHBB01-02 | 1T (Twin chain) | 3.6 | 1.1 | 1440 | 3-phase 380V 50HZ | 6.3 |
| HHBB02-01 | 2T (Single chain) | 6.6 | 3 | 1440 | 3-phase 380V 50HZ | 10 |
| HHBB02-02 | 2T (Twin chain) | 3.4 | 1.5 | 1440 | 3-phase 380V 50HZ | 7.1 |
| HHBB03-01 | 3T (Single chain) | 5.6 | 3 | 1440 | 3-phase 380V 50HZ | 11.2 |
| HHBB03-02 | 3T (Twin chain) | 4.4 | 3 | 1440 | 3-phase 380V 50HZ | 10 |
| HHBB05-02 | 5T (Twin chain) | 2.8 | 3 | 1440 | 3-phase 380V 50HZ | 11.2 |
| HHBB7.5-03 | 7.5T (Triple chain) | 1.8 | 3 | 1440 | 3-phase 380V 50HZ | 11.2 |

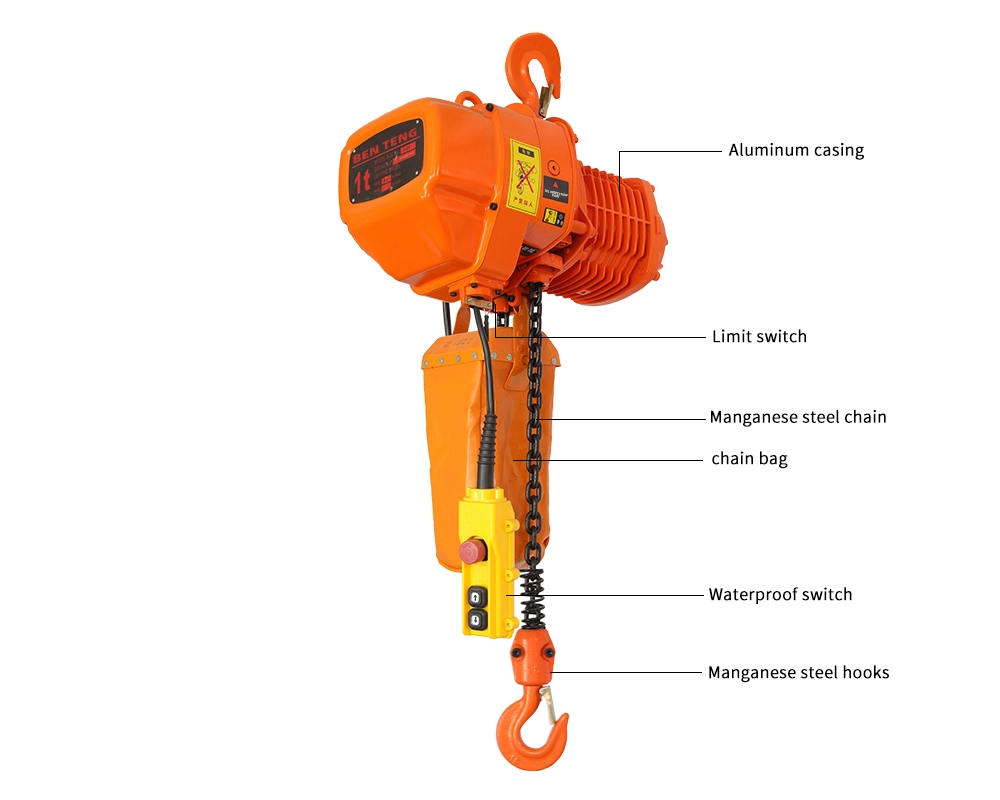

Products Details

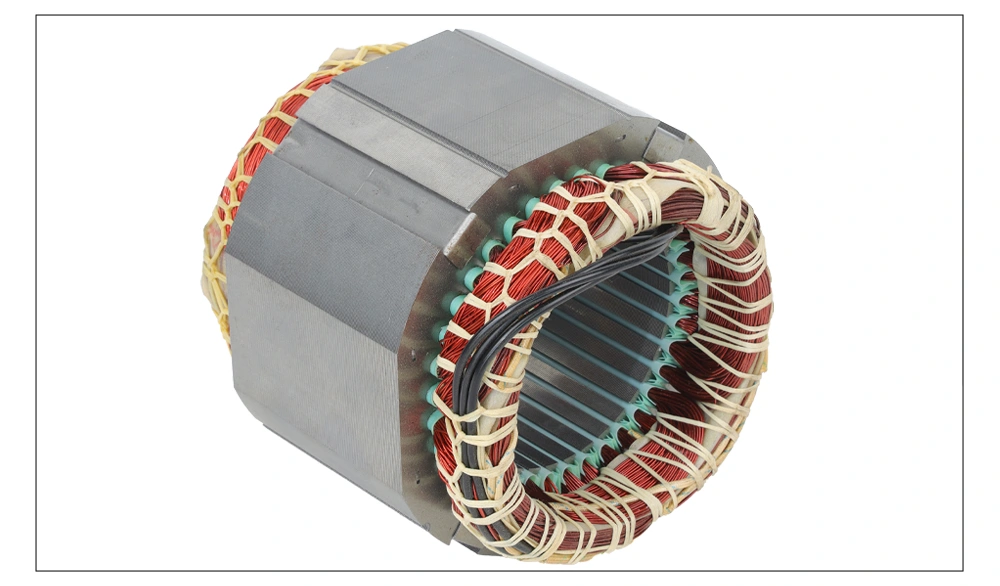

The powerful pure copper motor can operate continuously without burning out.

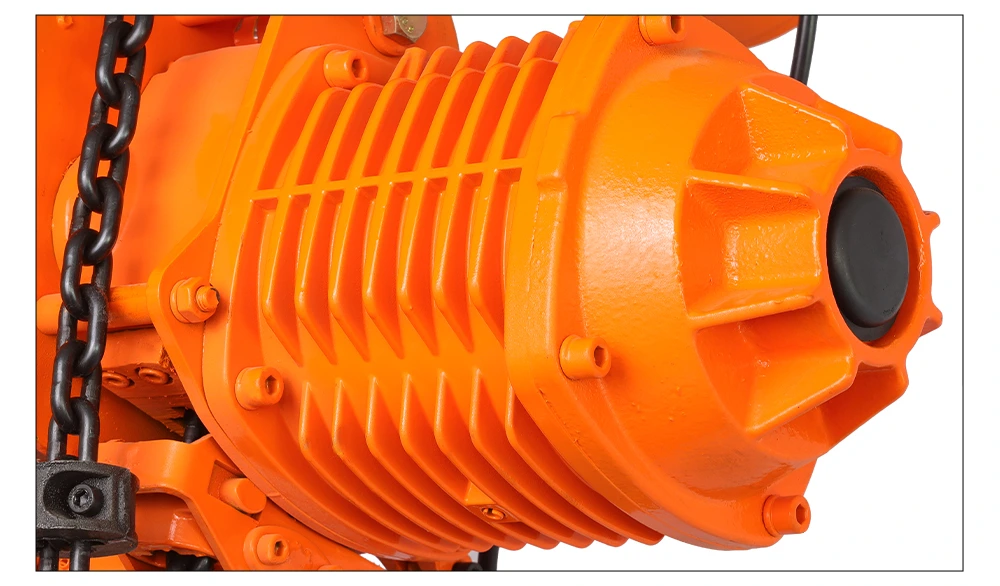

Aerospace-grade aluminum casing for rapid heat dissipation

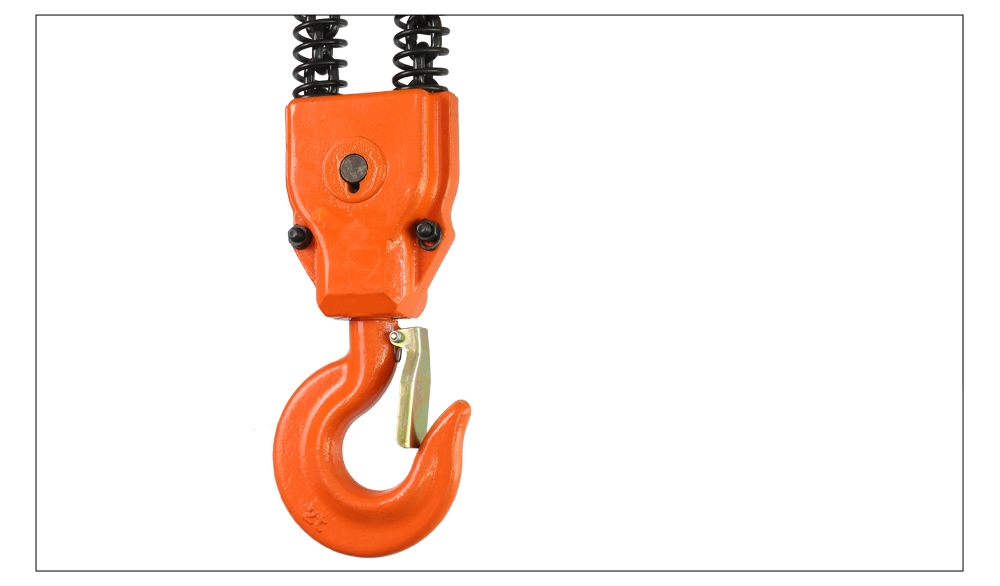

Manganese steel hooks do not break or deform

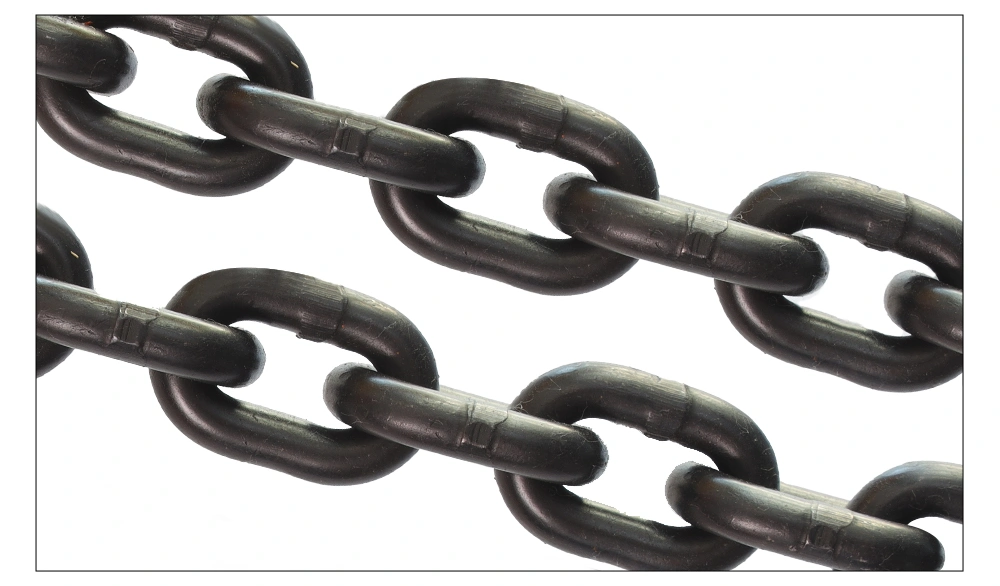

G80 chain, strong tension is not easy to break, quenching heat treatment, small wear, corrosion resistance
Internal structure
