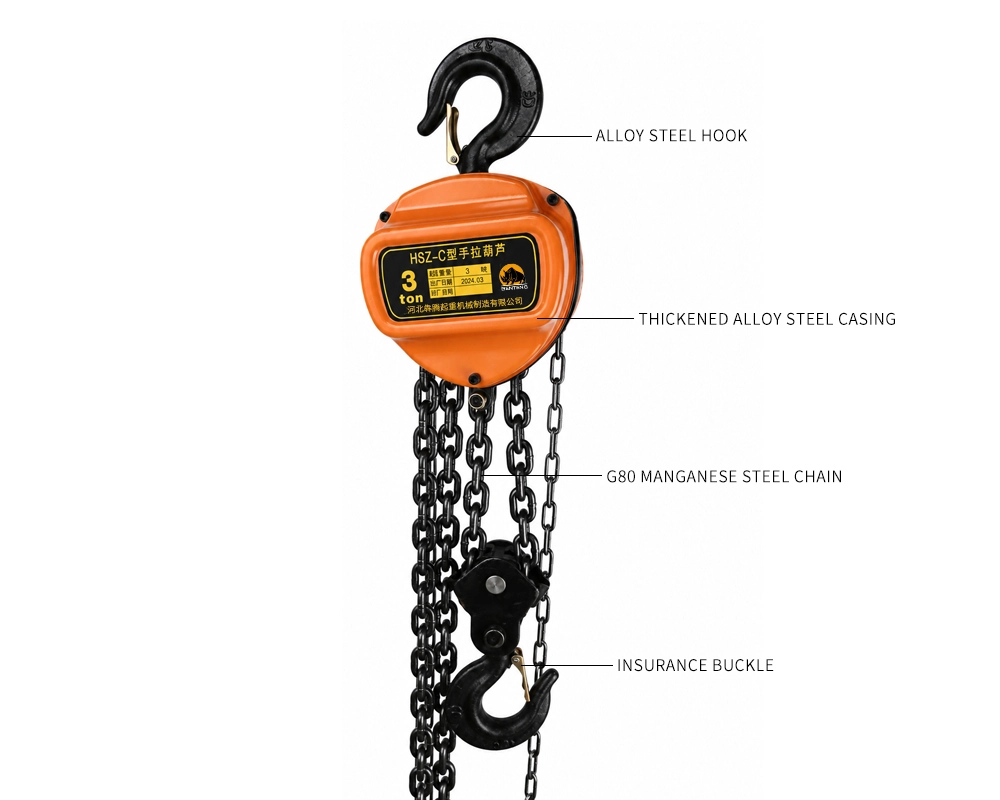

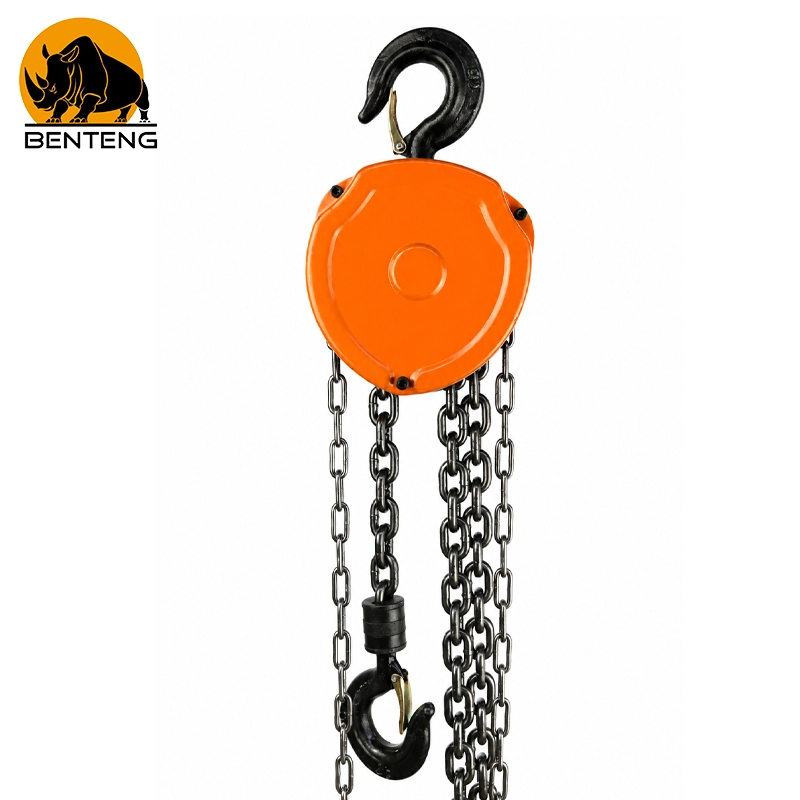

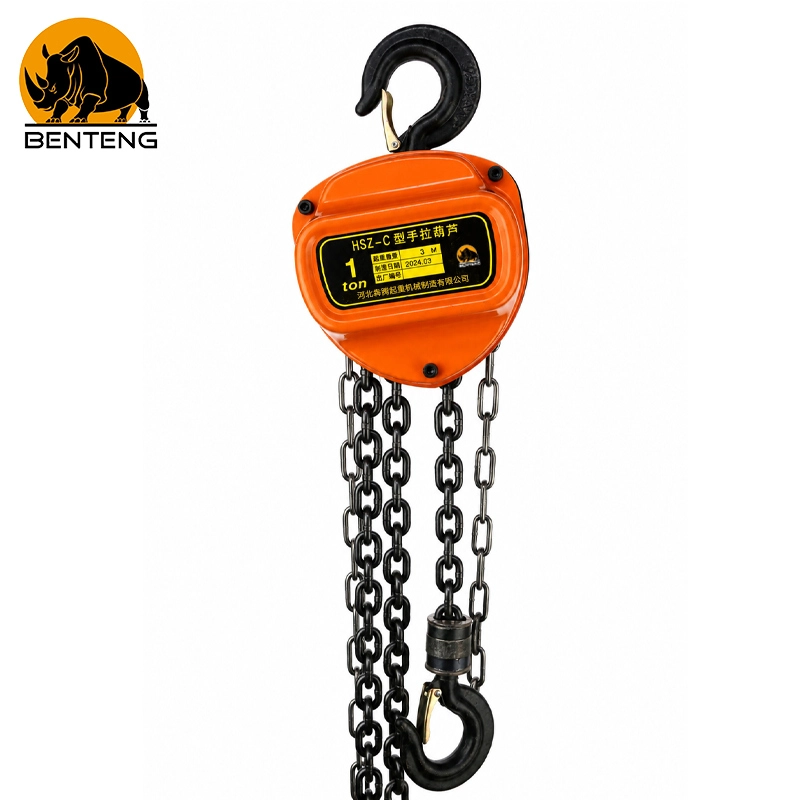

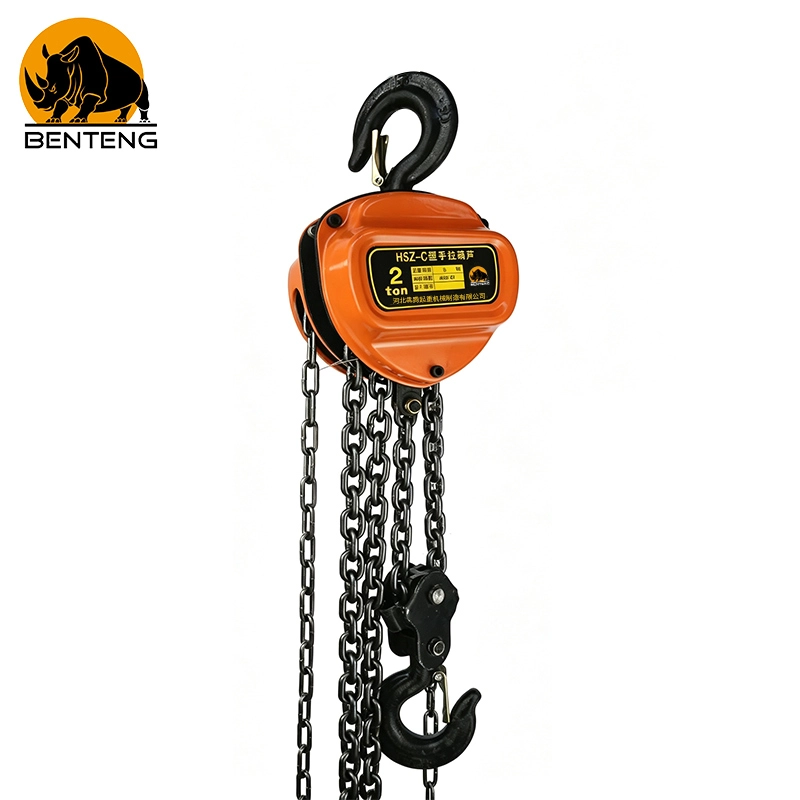

HS-C Manual Chain Hoist
Product Description
The product is equipped with high-strength alloy steel hooks and G80 grade lifting chains, with strong load-bearing capacity, safety and reliability. It is also equipped with a double pawl braking system, which is sensitive to braking and precise in positioning, effectively preventing heavy objects from slipping. The whole machine is easy to operate, labor-saving, easy to maintain, and can be used without a power source, making it an ideal choice for various material lifting and equipment maintenance operations. The product specifications are complete and can provide various tonnages and lifting heights ranging from 0.5T to 20T, meeting the needs of different working conditions.
Product Application
Widely applicable to various working environments without power supply or inconvenient use of electric lifting equipment, it can be used for factory workshop equipment installation and maintenance, construction site steel structure lifting, warehousing and logistics cargo loading and unloading, mechanical manufacturing production line assembly, bridge engineering construction, mining equipment maintenance, ship repair, as well as lifting operations in industries such as power and railway. The product can be used in conjunction with equipment such as I-beam trolleys and monorail cranes to achieve vertical lifting and short distance movement of heavy objects, especially suitable for working conditions such as limited space, field construction, and temporary lifting. With its characteristics of simple operation, safety and reliability, no need for power supply, and easy portability, it can effectively improve work efficiency and is an ideal manual lifting tool for equipment installation, maintenance, cargo handling, and engineering construction.
Product advantages
- Adopting the classic triangular structure design, the whole machine has uniform force distribution, compact structure, high stability and durability
- The product is equipped with high-strength alloy steel hooks and high-quality lifting chains, with strong load-bearing capacity, wear resistance and corrosion resistance, which can meet the long-term high-intensity operation needs
- Built in dual pawl braking system, sensitive, safe and reliable braking
- Easy to install and maintain, suitable for various indoor and outdoor work environments
Product Specifications
| MODEL | CAPACITY(T) | STANDARD LIFT(m) | RUNNING TEST(T) | CHAIN FALL NO. | LOAD CHAIN DIA(mm) |
| HS-C-0.5T | 0.5 | 3 | 0.75 | 1 | 6 |
| HS-C-1T | 1 | 3 | 1.5 | 1 | 6 |
| HS-C-1.5T | 1.5 | 3 | 2.25 | 1 | 8 |
| HS-C-2T | 2 | 3 | 3 | 2 | 6 |
| HS-C-3T -1 | 3 | 3 | 4.5 | 1 | 10 |
| HS-C-3T-2 | 3 | 3 | 4.5 | 2 | 8 |
| HS-C-5T | 5 | 3 | 7.5 | 2 | 10 |
| HS-C-10T | 10 | 3 | 15 | 4 | 10 |
| HS-C-15T | 15 | 3 | 22.5 | 6 | 10 |
| HS-C-20T | 20 | 3 | 30 | 8 | 10 |
| HS-C-30T | 30 | 3 | 45 | 12 | 10 |
Products Details

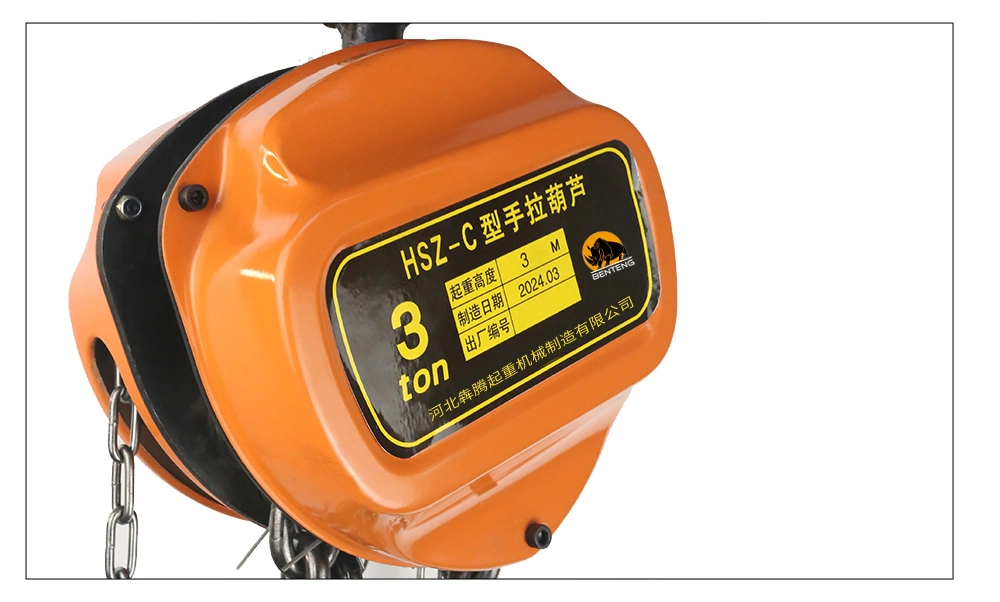

Alloy steel anti fall cover shell effectively protects the internal structure

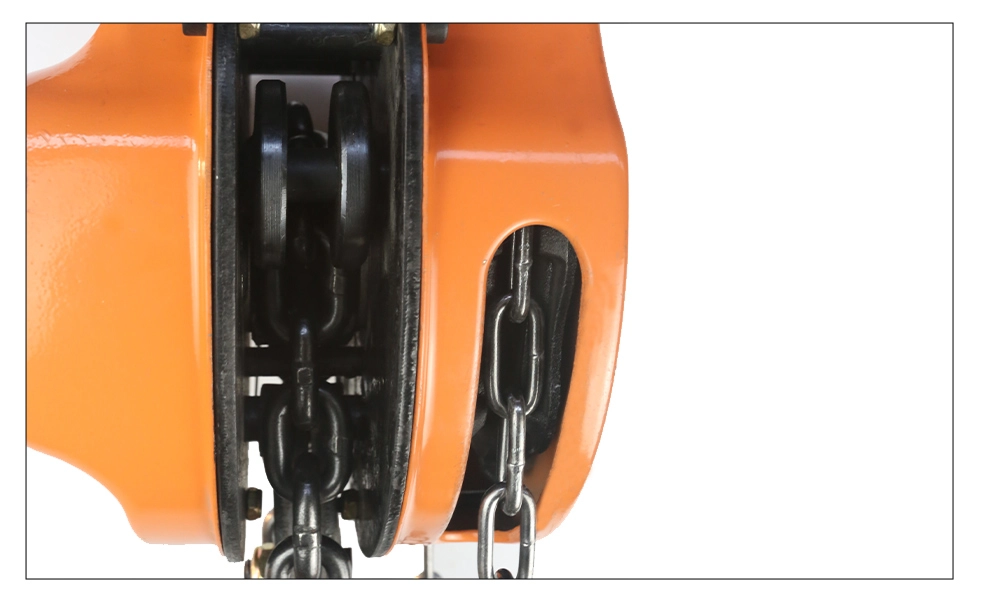

The double guide sprocket is smooth and does not get stuck in the chain

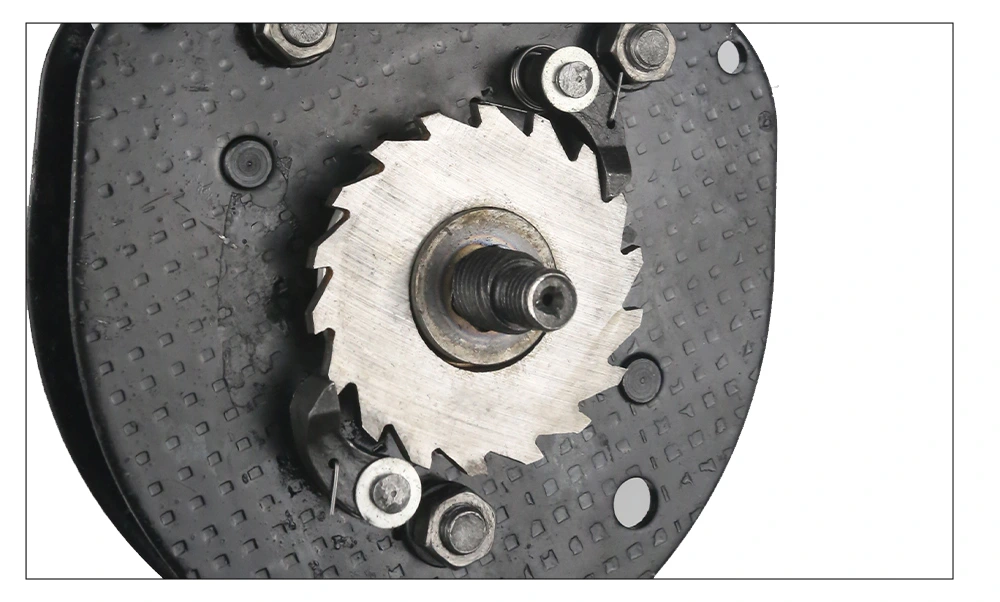

Double brakes prevent loss of control and are safer

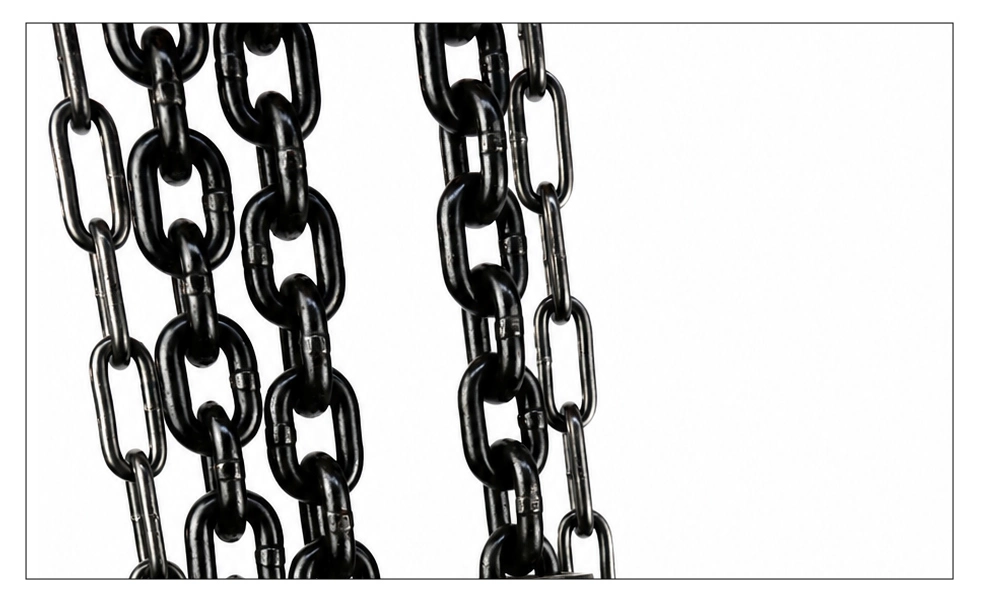

High temperature quenched manganese steel G80 chain
Internal structure
