Hydraulic Toe Jack
Product Description
Hydraulic Toe Jack a hydraulic lifting tool designed specifically for low-level lifting and handling of heavy objects. It adopts a sturdy and durable steel structure and efficient hydraulic system, and can be operated by bottom lifting or claw lifting. It is suitable for narrow and low clearance spaces that are difficult for traditional jacks to enter. The product has the characteristics of strong load-bearing capacity, smooth lifting, flexible operation, safety and reliability, and is a practical lifting tool for positioning, installation and maintenance of heavy equipment.
Product Application
Hydraulic Toe Jack are widely used in industrial equipment installation, mechanical maintenance, heavy equipment handling, and engineering construction. When the space at the bottom of large machinery, machine tools, steel structures, and equipment is narrow and it is difficult to place ordinary jacks, low position claws can be used for lifting and positioning, which facilitates equipment installation, adjustment, and displacement. During vehicle maintenance, mold replacement, bridge construction, and equipment maintenance, it can also be used for local lifting and height adjustment of heavy objects, improving operational efficiency and flexibility.
Product advantages
- Double lifting method
- Strong carrying capacity
- Easy to operate, stable and reliable
- Widely applicable scenarios
Product Specifications
| Toe Capacity (T) | Top Capacity (T) | Lifting Height (mm) | Overall Height (mm) | Extension Height (mm) | Main Shaft Diameter (mm) | Base Dimensions (mm) | Toe Height (mm) | Toe Dimensions (mm) |
| 2.5 | 5 | 117 | 228 | 345 | 29 | 130 × 125 | 16 | 69 × 45 |
| 5 | 10 | 147 | 282 | 459 | 42 | 235 × 186 | 22 | 98 × 53 |
| 10 | 20 | 152 | 310 | 462 | 55 | 251 × 241 | 25 | 123 × 60 |
| 15 | 30 | 155 | 330 | 486 | 62 | 273 × 262 | 48 | 149 × 60 |
| 25 | 50 | 155 | 370 | 528 | 85 | 280 × 340 | 40 | 190 × 75 |
Products Details

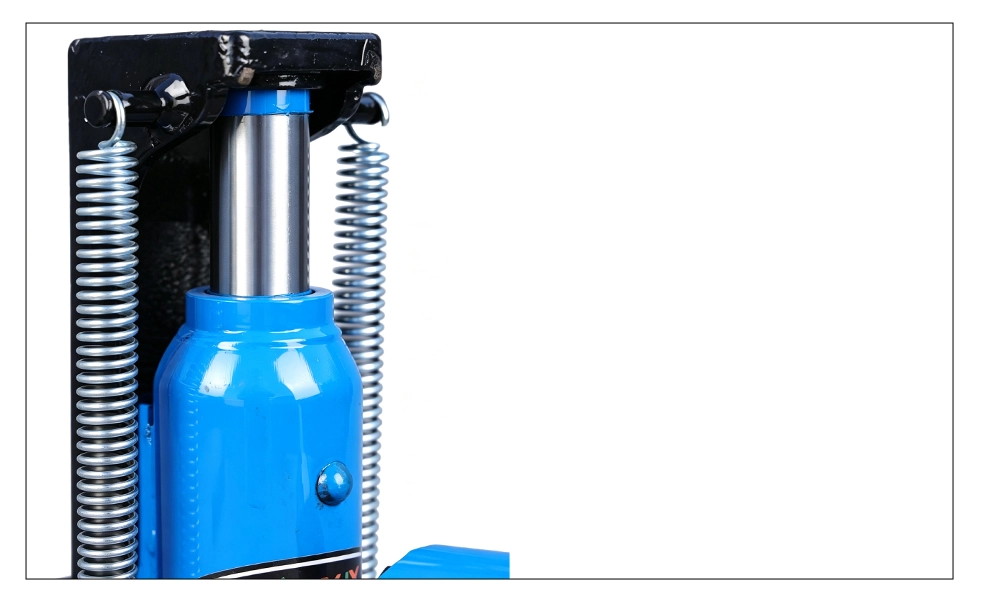

Wear resistant spindle has a longer lifespan

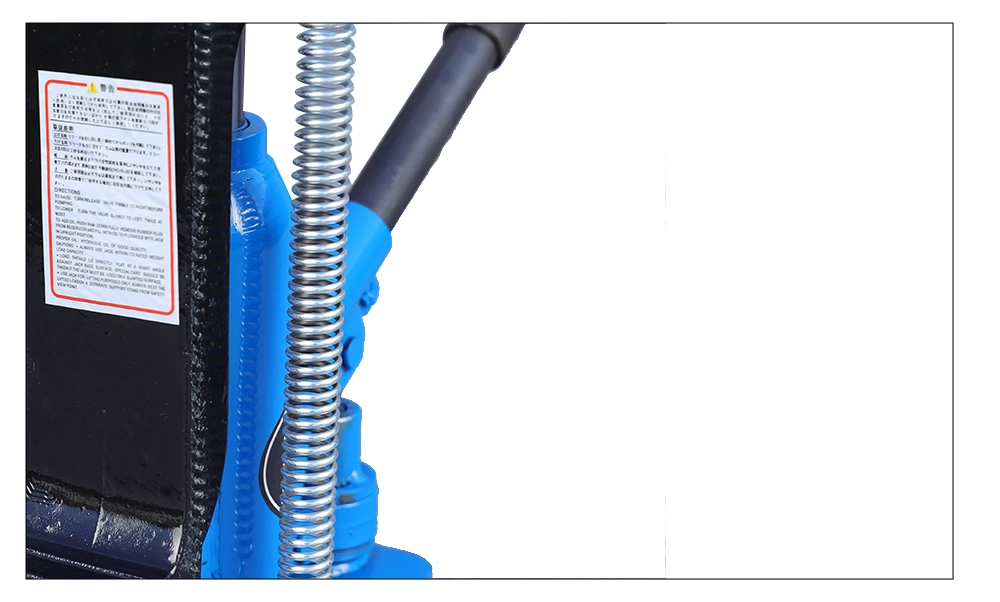

Precision springs have high elasticity, stability, and toughness
Integrated molding without fracture, alloy steel claws are not easily deformed
Bold and thickened quenched shaft

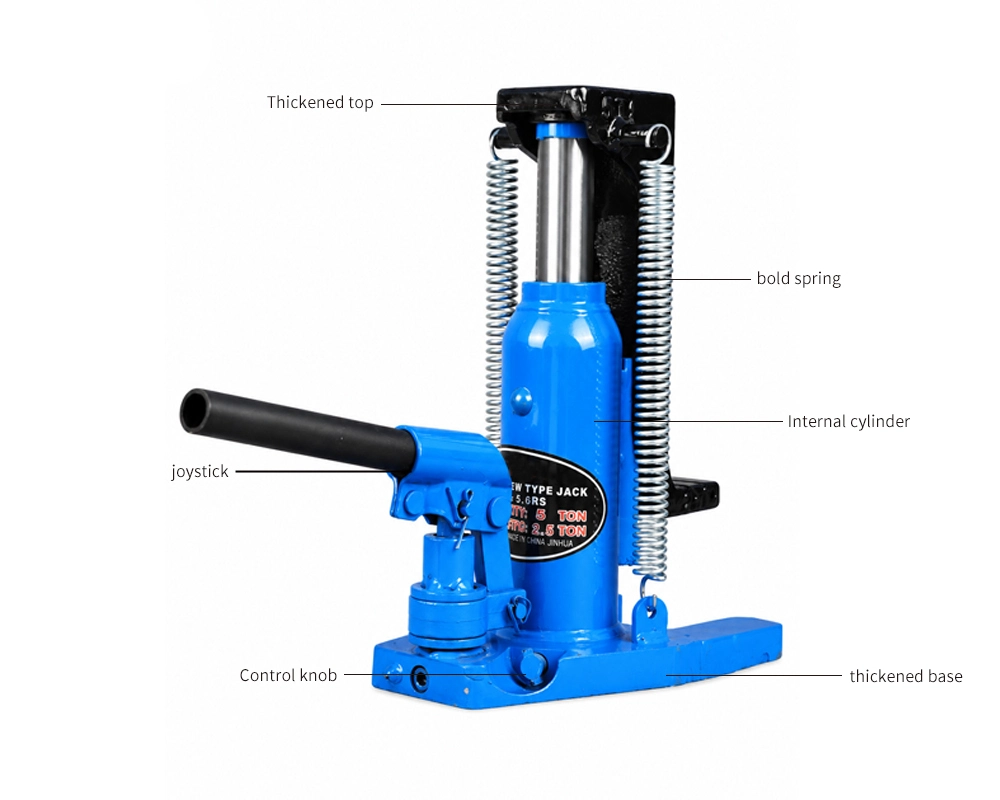

Internal structure
