Integrated Electric Chain Hoist
Product Description
The product is driven by a motor to lift and lower heavy objects, and can be transported horizontally in conjunction with a track system, effectively improving handling efficiency and saving labor costs. It is an ideal choice for lifting and handling industrial materials. In actual use, the appropriate model should be selected according to the rated load and working environment, and the operating specifications should be strictly followed to ensure the safe and stable operation of the equipment.
Product Application
Widely used in factory workshops, mechanical manufacturing, warehousing and logistics, automotive assembly, hardware processing, and equipment maintenance, it is suitable for lifting parts on production lines, loading and unloading processing equipment, transporting warehouse goods, and installing heavy workpieces. In a working environment equipped with corresponding track systems, the equipment can achieve vertical lifting and horizontal movement of goods, meeting the material conveying needs between different workstations. With its compact structure, flexible operation, and high operational efficiency, the connected chain electric hoist can effectively simplify the handling process, reduce manual labor intensity, improve production efficiency, and is suitable for industrial workplaces that require frequent lifting and material transportation. In practical applications, it should be ensured that the track, installation structure, and equipment load meet the usage requirements.
Product advantages
- Can cooperate with the track system to complete horizontal movement, improve the continuity and work efficiency of material handling
- Flexible operation and high lifting efficiency
- Save installation space and simplify equipment layout
- Reasonable structural design facilitates daily operation and maintenance
Product Specifications
220V：
| Model | 1t | 2t | 3t | 5t |
| Lifting weight (kg) | 1000 | 2000 | 3000 | 5000 |
| Lifting speed (m/min) | 2.25 | 1.85 | 1.1 | 0.9 |
| Lifting height (m) | 3~12 | 3~12 | 3~12 | 3~12 |
| Motor type | YEP.90-4 | YEP.90-4 | YEP.90-4 | YEP.90-4 |
| Motor power (w) | 1500 | 1500 | 1500 | 2200 |
| Motor speed (r/min) | 1450 | 1450 | 1450 | 1450 |
| voltage(v) | 220 | 220 | 220 | 220 |
380V：
| MODEL | 1T | 2T | 3T | 5T | 7.5T | 10T |
| Lifting weight (kg) | 1000 | 2000 | 3000 | 5000 | 7500 | 10000 |
| Lifting speed (m/min) | 2.25 | 1.85 | 1.1 | 0.9 | 0.6 | 0.45 |
| Lifting height (m) | 3-12M | 3-12M | 3-12M | 3-12M | 3-12M | 3-12M |
| Motor type | YHP500-4 | YHP750-4 | YHP750-4 | YHP750-4 | YHP750-4 | YHP750-4 |
| Motor power (W) | 500 | 750 | 750 | 750 | 750 | 750 |
| Motor speed (r/min) | 1380 | 1380 | 1380 | 1380 | 1380 | 1380 |
| Voltage (V) | 380 | 380 | 380 | 380 | 380 | 380 |
Products Details：

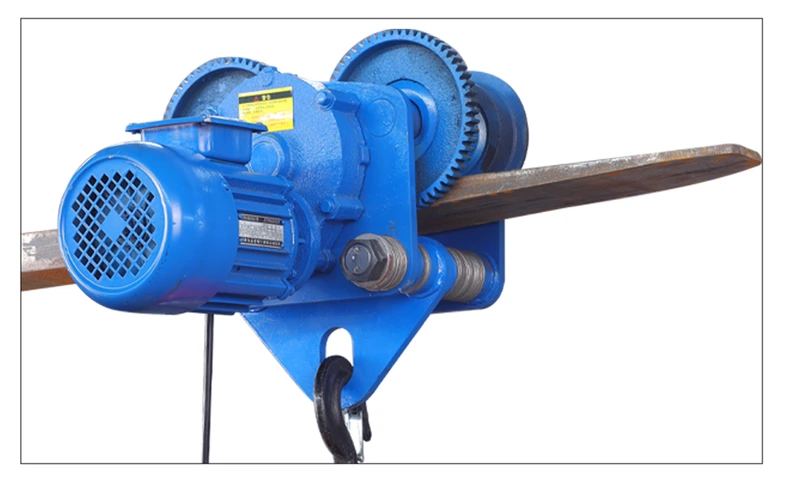

Paired with an Electric Trolley, it moves smoothly and saves time and effort

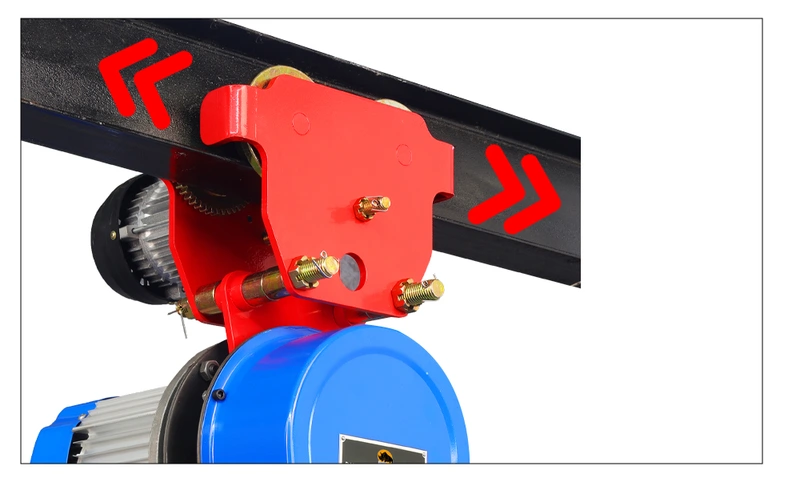

Electric Trolley is tightly integrated with I-beams, making it smoother and more labor-saving

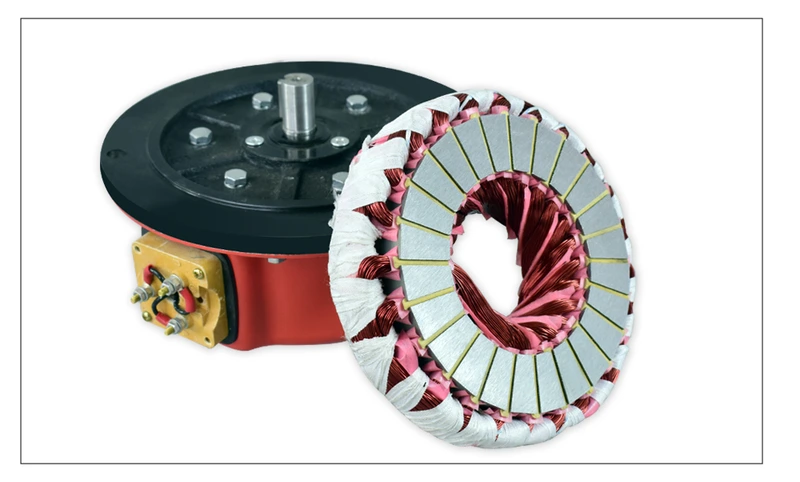

Pure copper motor has strong power and does not burn out

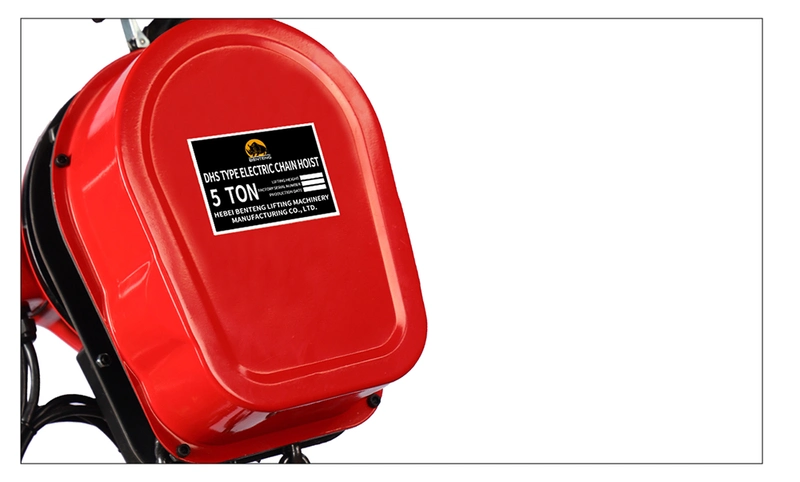

The thickened alloy steel casing is resistant to falling, sturdy, and effectively protects the internal structure

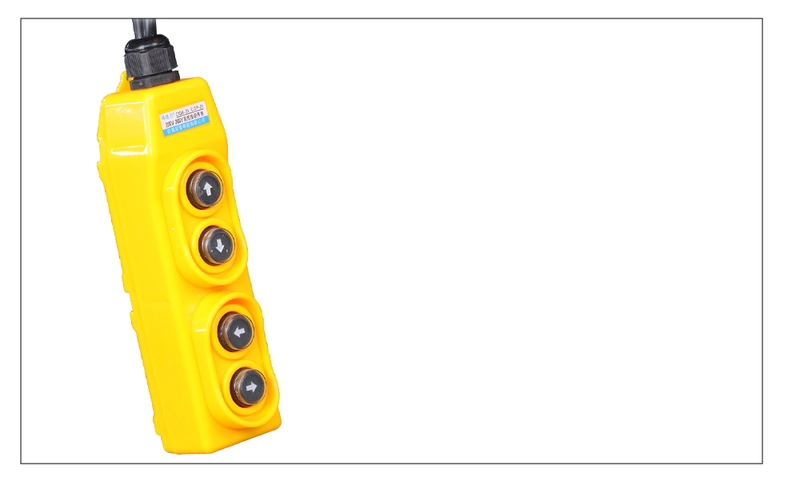

Industrial grade operating handle waterproof and drop resistant

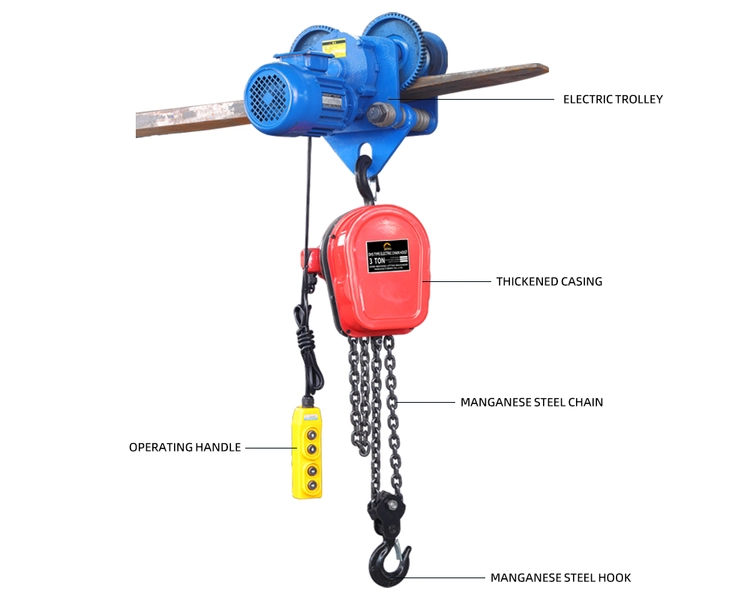

Product structure
