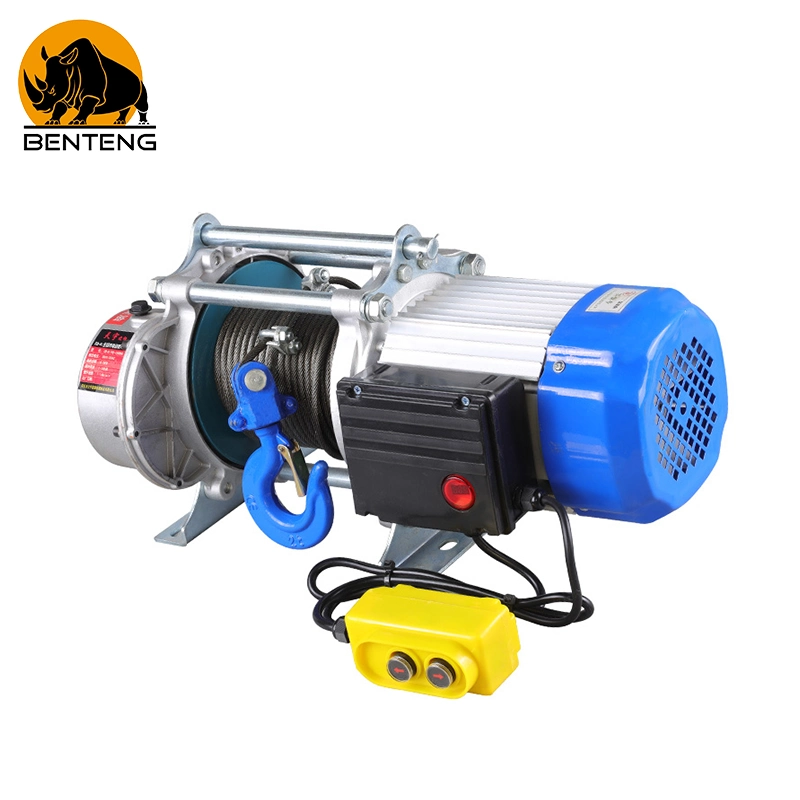

Multi-Function Electric Hoist 1000kg–2500kg

Multi-Function Electric Hoist Description

Multi-Function Electric Hoist is a highly adaptable, lightweight material handling engine designed for multi-angle lifting, horizontal traction, and high-altitude transport. Engineered to bridge the gap between heavy industrial cranes and compact portable winches, this versatile electric hoist delivers reliable performance across construction sites, manufacturing workshops, commercial warehouses, and agricultural operations.

Constructed with high-grade copper rotor motors, anti-rotation galvanized wire ropes, precision reduction gearboxes, and weatherproof pendant controls, this multi-purpose system supports dual-speed hoisting modes (7 m/min single fall and 14 m/min double fall). Available in standardized capacities from 1000 kg to 2500 kg with flexible 220V single-phase or 380V three-phase power options, this unit serves as a high-value alternative or complement to a traditional heavy duty wire rope hoist on mobile job sites.

Core Advantages & Operational Benefits

• Dual Voltage Compatibility (220V / 380V): Configurable for standard 220V household/light-industrial single-phase grids or 380V three-phase commercial power systems.

• Versatile Multi-Angle Operation: Engineered for vertical lifting, horizontal dragging, and inclined material hauling using various mounting brackets and scaffolding fixtures.

• 100% Pure Copper Motor: Built with high-efficiency copper windings to minimize power loss, generate high torque, and withstand heavy continuous duty cycles.

• Dual-Speed Hook Configuration: Supports 7 m/min line speed for heavy double-line lifting or 14 m/min high-speed single-line operation.

• Weatherproof & Dustproof IP Controls: Features an ergonomically designed rainproof handheld switch for safe and reliable control in harsh outdoor construction environments.

Product Specifications

Model number	power	Wire rope diameter	Lifting speed
220V 1000kg	2200w	6mm	7m/min;14m/min
220V 1200kg	3000w	6mm	7m/min;14m/min
220V 1500kg	4000w	7mm	7m/min;14m/min
220V 2500kg	5000w	10mm	7m/min;14m/min
380V 1000kg	2000w	6mm	7m/min;14m/min
380V 1200kg	2600w	6mm	7m/min;14m/min
380V 1500kg	3000w	7mm	7m/min;14m/min
380V 2500kg	5000w	10mm	7m/min;14m/min

Target Field Applications

• Commercial & Residential Building Construction: Rapid vertical hoisting of mortar bags, bricks, scaffolding pipes, and glass windows directly to upper floor levels.

• Light Industrial Workshops & Assembly Lines: Low-headroom lifting for motor repair, small mold positioning, and workstation parts delivery.

• Warehouse Cargo Handling & Mezzanines: Quick transfer of palletized goods and boxed equipment between floor levels and storage racks.

• Utilities, Renovation & Agricultural Installations: Ideal for solar panel roof hoisting, HVAC unit positioning, greenhouse assembly, and rural water conservancy maintenance.

Critical Engineering Components

• Low-Loss Pure Copper Motor: High-density copper coil structure provides stable power conversion with ultra-low electrical resistance and superior burnout resistance.

• High-Volume Multi-Blade Fan: Full-coverage cooling fan maintains forced-air circulation over the motor casing to prevent thermal shutdown during continuous duty.

• Anti-Twist Steel Wire Rope: Galvanized, non-rotating multi-strand steel cable prevents load spinning and cable fraying during high-altitude lifts.

• IP-Sealed Ergonomic Control Handle: Impact-resistant, rainproof pendant switch housing with an oversized emergency stop button for maximum operator safety.

• Instant-Response Brake Assembly: Electromagnetic holding brake automatically locks the drum immediately upon power release to prevent load creep.

Products Details

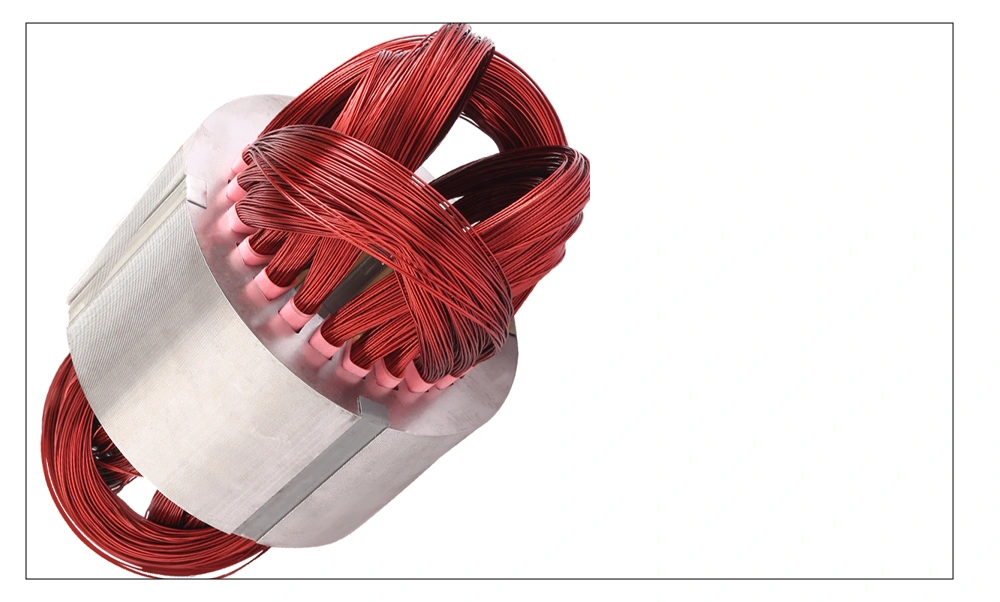

High-quality copper motors have low losses and high efficiency.

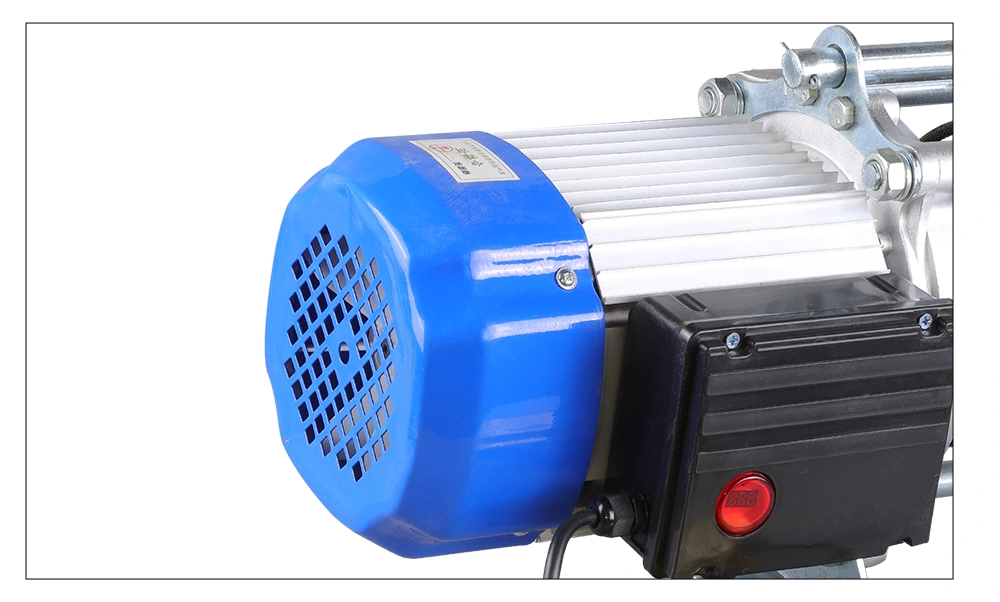

Full-size large fan for rapid heat dissipation without overheating

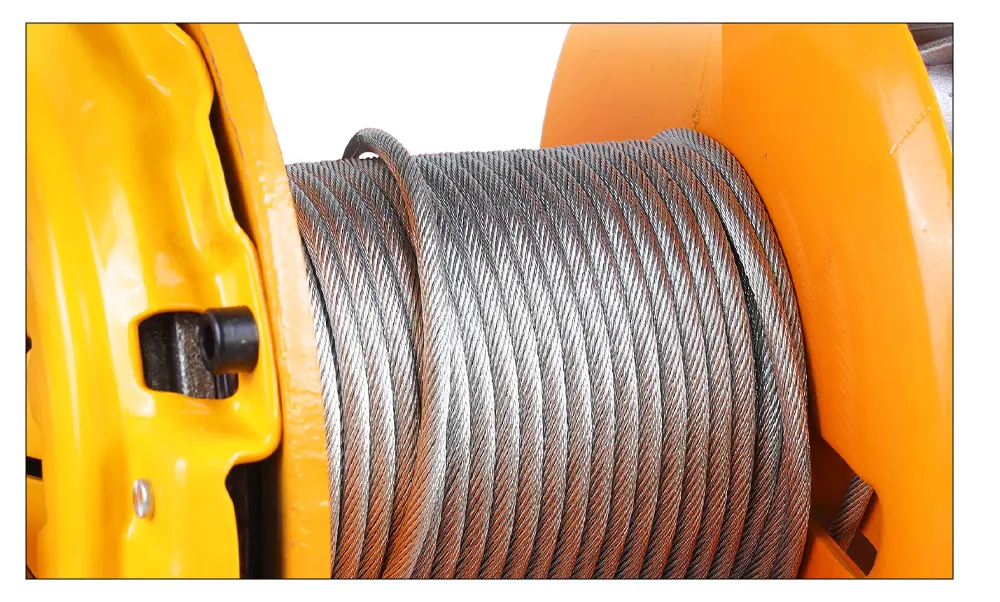

High-quality anti-rotation steel wire rope

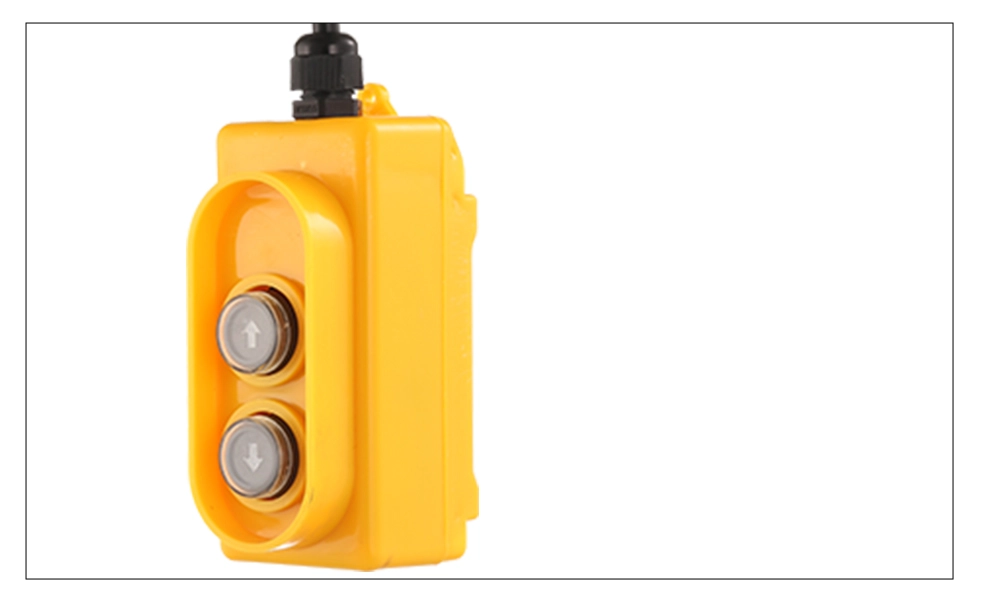

Rainproof and dustproof operating handle

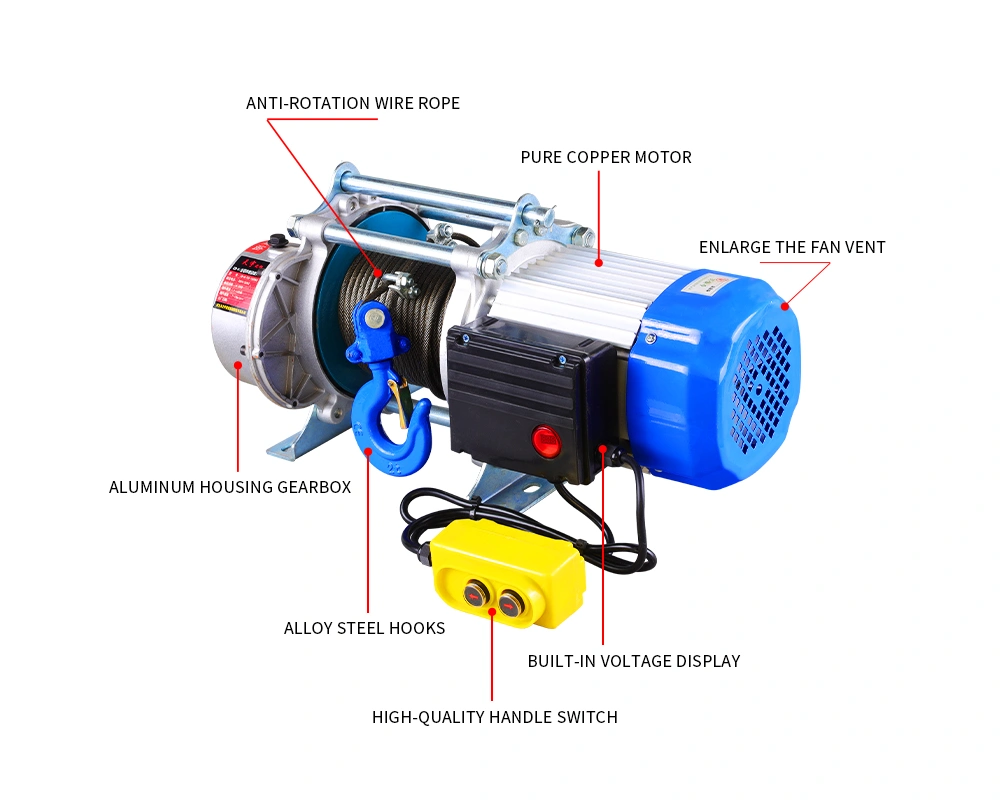

Internal Structure

• Anti-Twist Wire Rope: Galvanized steel rope designed to prevent spinning under load.
• Pure Copper Motor: High-torque copper motor built for low loss and long service life.
• Enlarged Cooling Vent: High-airflow fan cover for rapid thermal dissipation.
• Aluminum Gearbox: Lightweight die-cast casing for heat reduction and portability.
• Alloy Steel Safety Hook: Drop-forged heavy-duty hook with spring safety latch.
• Weatherproof Switch: Rainproof handheld pendant control with emergency stop.
• Built-In Voltage Display: Digital LED screen for real-time power voltage monitoring.

Global OEM & Wholesaler Custom Options

We support worldwide distributors with flexible customization packages:

• Universal Voltage Customization: Tailored motor windings for 110V, 220V, 230V, or 440V grids operating at 50Hz or 60Hz.

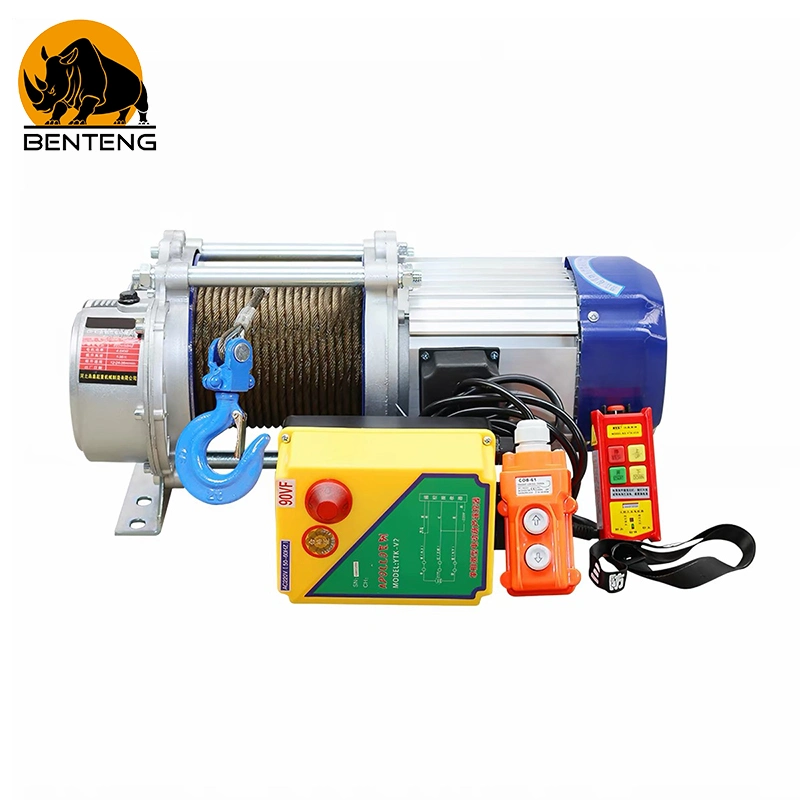

• Long-Range Wireless Control: Optional industrial radio transmitter allows remote operation up to 100 meters away from the load zone.

• Scaffolding & Wall Mount Brackets: Custom swing arms, clamping brackets, and mobile trolley kits for fast beam mounting.

• Extended Drum Configurations: Customized winding drums accommodating extended wire ropes up to 100 meters.

Frequently Asked Questions

Q1: How do I choose between the 220V and 380V models for my project?

A: Choose the 220V model if your job site relies on standard single-phase wall outlets or portable generators (e.g., residential construction or indoor remodeling). Choose the 380V model if you have access to three-phase industrial power for longer continuous operation in factories.

Q2: Can this unit be used for horizontal pulling as well as vertical hoisting?

A: Yes. The structural housing and secure mounting points permit vertical lifting, angled hauling, and straight horizontal pulling across flat surfaces.

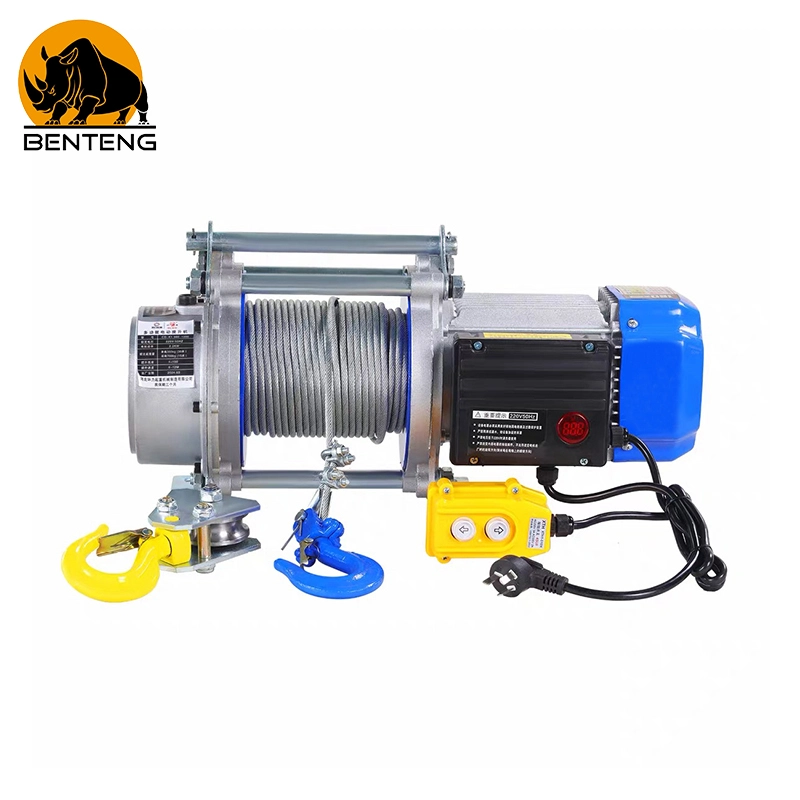

Q3: How does the single-line vs. double-line hook setup work?

A: In single-line mode, the wire rope runs directly to the load hook for maximum speed (14 m/min). In double-line mode, the rope loops through a pulley hook block back to the frame, doubling the weight capacity while halving the lifting speed (7 m/min).
