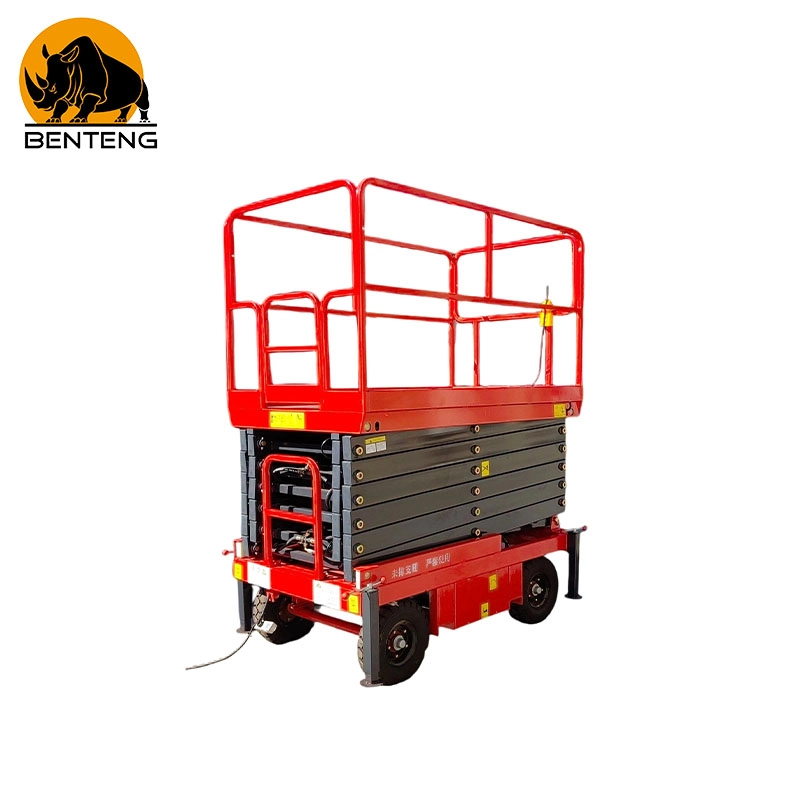

Self-Propelled Scissor Lift
Product Description
The equipment is equipped with a high-strength scissor lift structure, which has the characteristics of smooth lifting, strong load-bearing capacity, flexible operation, safety and reliability. Staff can directly stand on the work platform and complete forward, backward, turning, and lifting operations through the control system, greatly improving the efficiency of high-altitude operations and reducing the time for manual handling and frequent equipment movement. This device is suitable for various indoor and outdoor work environments, and is an ideal high-altitude work tool in fields such as construction, factory maintenance, warehousing and installation, and equipment inspection.
Product Application
Self-Propelled Scissor Lift are widely used in high-altitude work scenarios such as construction, factory maintenance, warehousing and logistics, equipment installation, and mall decoration. With electric walking and automatic lifting functions, operators can directly complete equipment movement and height adjustment on the platform, suitable for lighting installation, pipeline laying, line maintenance, ceiling construction, wall maintenance and other operations. In the factory workshop, it can be used for large-scale equipment maintenance, production line maintenance, and high-level material installation; In warehouses and logistics centers, it can be used for shelf maintenance, lamp replacement, and high-altitude cleaning operations. Its flexible mobility and stable lifting structure are particularly suitable for indoor and outdoor work environments that require frequent movement and continuous high-altitude operations.
Product advantages
- Self moving, flexible operation
- Smooth lifting and lowering, safe and reliable
- Easy and convenient operation
- Durable and sturdy structure
Product Specifications
| Modle | MK-SAP1 |
| Safe Working Load | 320kg |
| Safe Working Load on Extended Platform | 113kg |
| Platform Extension Size | 0.9m |
| Maximum Number of Persons | 2 |
| Maximum Working Height | 14m |
| Maximum Platform Height | 12m |
| Overall Length | 2600mm |
| Overall Width | 1170mm |
| Overall Height (Rails Unfolded) | 2640mm |
| Platform Size | 2400mm*1170mm |
| Minimum Ground Clearance (Stowed) | 0.1m |
| Minimum Ground Clearance (Raised) | 0.019m |
| Battery | 6V/200Ah*4 |
| Charger | 24v/30A |
| Machine Weight | 2600KG |
Products Details

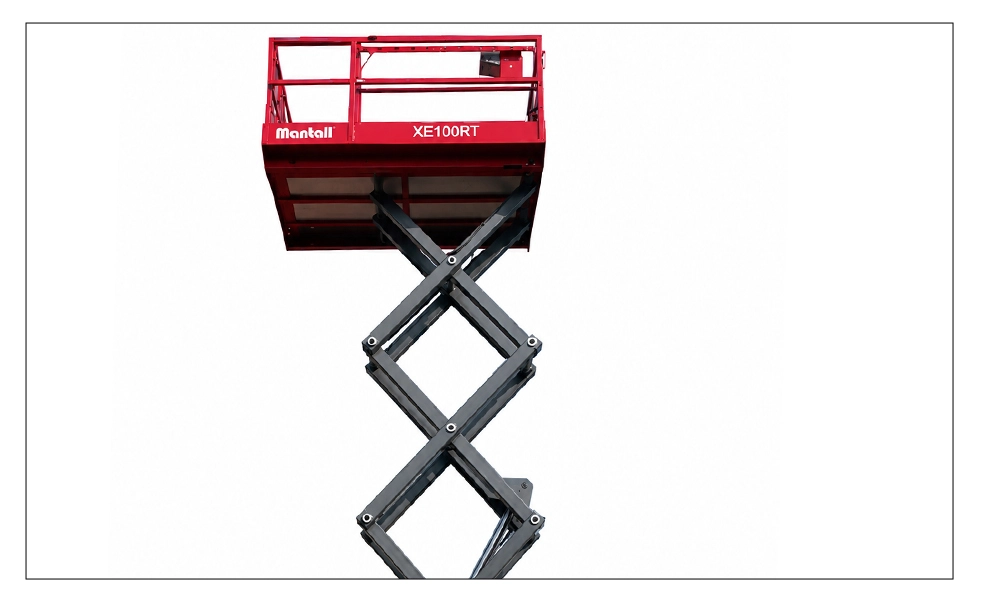

Scissor structure manganese steel rectangular steel pipe

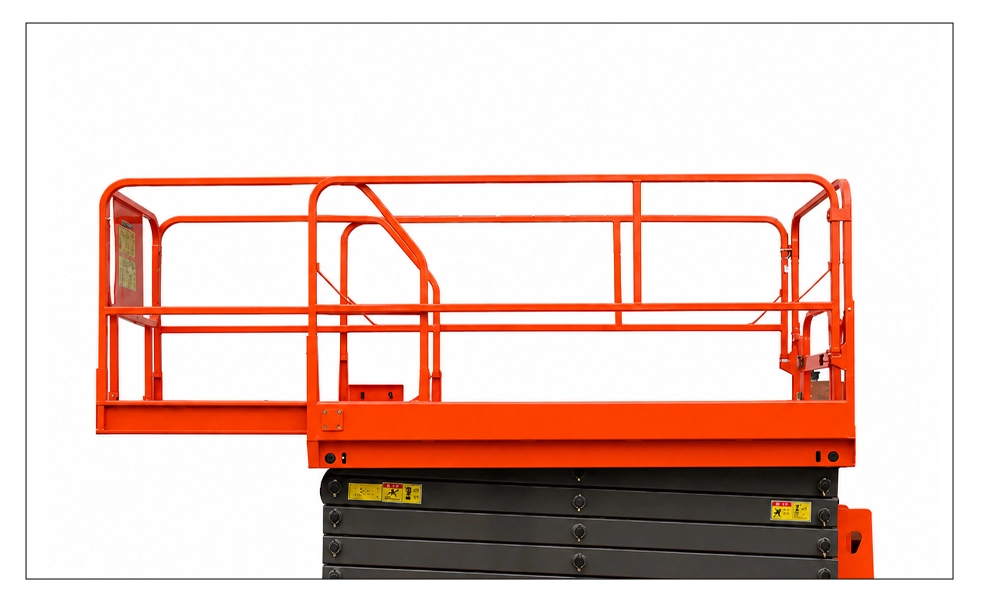

Expanding the working range of the telescopic table to meet special processing needs

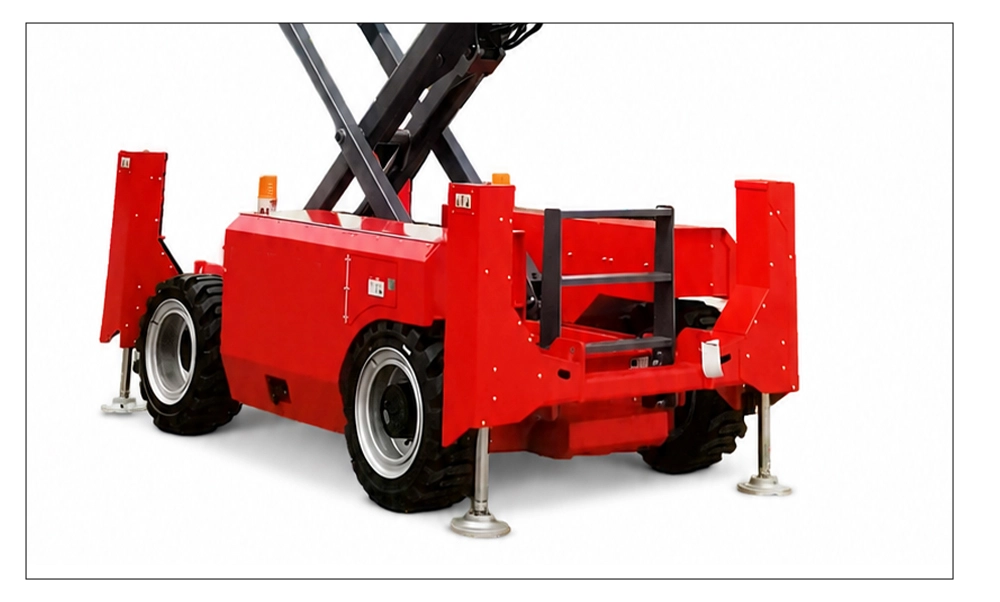

Rubber tire, seamless solid, silent tire

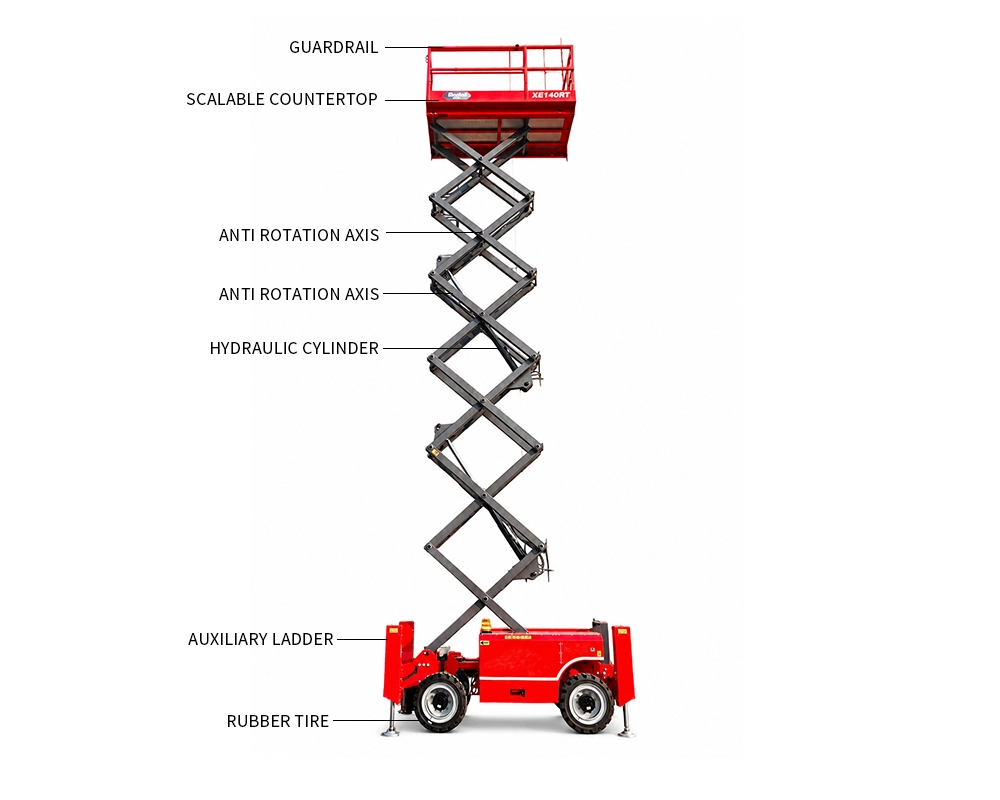

Internal structure
