VD Stamping Steel Manual Chain Hoist 0.5T–5T

Durable Triangular Structure: Integrated stamped alloy steel housing provides excellent strength, impact resistance, and deformation protection.
High Load Capacity: G80 heat-treated lifting chain and reinforced components ensure reliable lifting performance under heavy-duty conditions.
Smooth Manual Operation: Precision gear transmission and double ratchet braking system enable effortless pulling, stable lifting, and accurate positioning.
Wide Industrial Applications: Suitable for factories, warehouses, construction sites, shipyards, and other environments without power supply.

Product Detail

VD Stamping Steel Manual Chain Hoist Description

VD Series Stamping Steel Manual Chain Hoist from Benteng Hoist represents an advanced generation of compact lifting equipment, engineered with a precision cold-stamping manufacturing process. Unlike conventional thick-cast or heavy-welded housings, this lightweight manual chain block features an integrated, one-piece stamped alloy steel triangular shell. This structural innovation provides exceptional resilience against physical impacts and side compressions while significantly reducing the total dead weight of the unit.

Inside the anti-deformation casing, a high-precision involute gear drive mechanism works in tandem with a heat-treated G80 grade load chain and drop-forged manganese steel safety hooks. This optimized mechanical synergy allows a single operator to perform smooth vertical lifting and exact load positioning with minimal hand chain pull force. Compact, durable, and highly efficient, this versatile manual hoist is the ideal choice for assembly lines, logistics bays, scaffolding erection, and field equipment maintenance where portability and structural tough resistance are essential.

Structural Advantages of VD Stamping Series

One-Piece Cold-Stamped Casing: Integrated stamping technology eliminates weak weld seams and structural brittleness, absorbing sudden job site impacts without housing fracture.
Optimal Triangular Stress Distribution: The geometric triangular profile distributes mechanical load stresses evenly across the frame, preventing internal drive shaft misalignment during off-center pulls.
Low Drag Involute Gear Transmission: Precision-machined gear teeth optimize tooth mesh engagement, reducing mechanical energy loss and lowering operator pulling fatigue by up to 30%.
High Power-to-Weight Ratio: Delivers maximum load-bearing capacities (up to 5 Tons) within a streamlined, reduced-weight body structure for easy overhead mounting and transport.
Tough G80 Load Chain & Forged Hooks: Premium alloy steel chain combined with manganese steel hooks provides high tensile reserve, fatigue resistance, and extended service life under daily production cycles.

One-Piece Cold-Stamped Casing: Integrated stamping technology eliminates weak weld seams and structural brittleness, absorbing sudden job site impacts without housing fracture.
Optimal Triangular Stress Distribution: The geometric triangular profile distributes mechanical load stresses evenly across the frame, preventing internal drive shaft misalignment during off-center pulls.
Low Drag Involute Gear Transmission: Precision-machined gear teeth optimize tooth mesh engagement, reducing mechanical energy loss and lowering operator pulling fatigue by up to 30%.
High Power-to-Weight Ratio: Delivers maximum load-bearing capacities (up to 5 Tons) within a streamlined, reduced-weight body structure for easy overhead mounting and transport.
Tough G80 Load Chain & Forged Hooks: Premium alloy steel chain combined with manganese steel hooks provides high tensile reserve, fatigue resistance, and extended service life under daily production cycles.

Product Specifications

Model	0.5T	1T	2T	3T	5T
Lifting weight (T)	0.5	1	2	3	5
Lifting height (M)	3/6/9/12	3/6/9/12	3/6/9/12	3/6/9/12	3/6/9/12
Test weight (T)	0.75	1.5	2	4.5	7.5
Chain row number	1	1	1	2	2
Chain diameter (mm)	6	6	8	8	10

Primary Application Scenarios

The stamping steel manual chain hoist is tailored for industries requiring frequent equipment relocation, tight spatial maneuverability, and reliable unpowered lifting:

Light Industrial Manufacturing & Die Shops: Fast mounting and precision positioning for CNC tooling changeouts, plastic injection mold changes, and stamping press servicing.
Warehousing, Freight Depots & Container Handling: Unloading container freight, stacking heavy crates, and cargo handling in tight storage aisles without electrical infrastructure.
Building Construction & Scaffolding Support: Lifting steel joists, staging temporary rigging platforms, and hoisting building materials during bridge and civil works.
Shipyard Servicing & Mobile Field Repair: Serving as a lightweight portable hoist for service trucks, marine engine rooms, and emergency utility overhaul teams.

Products Details

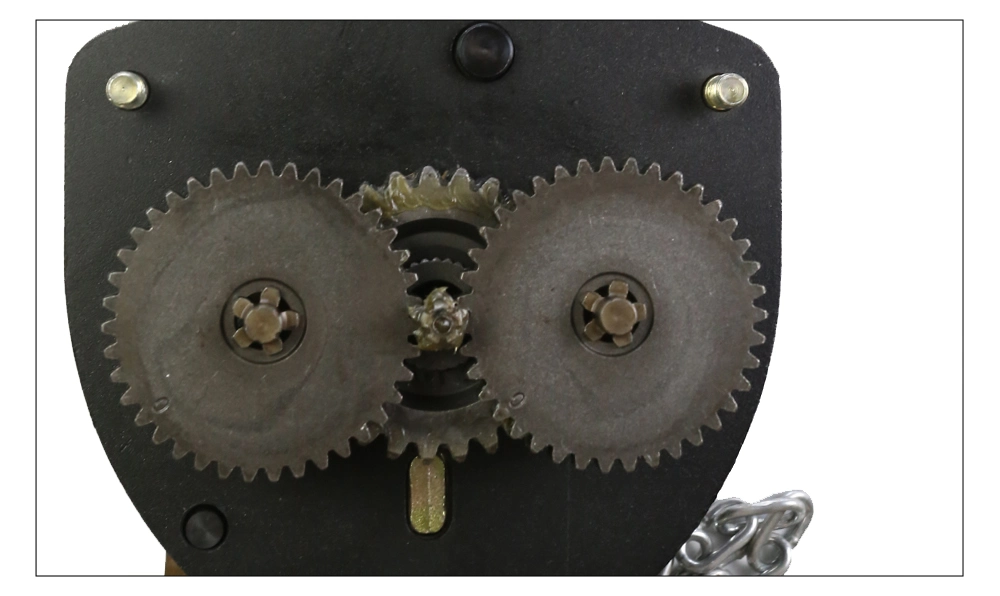

Adopting carburizing heat treatment for gears to increase work efficiency

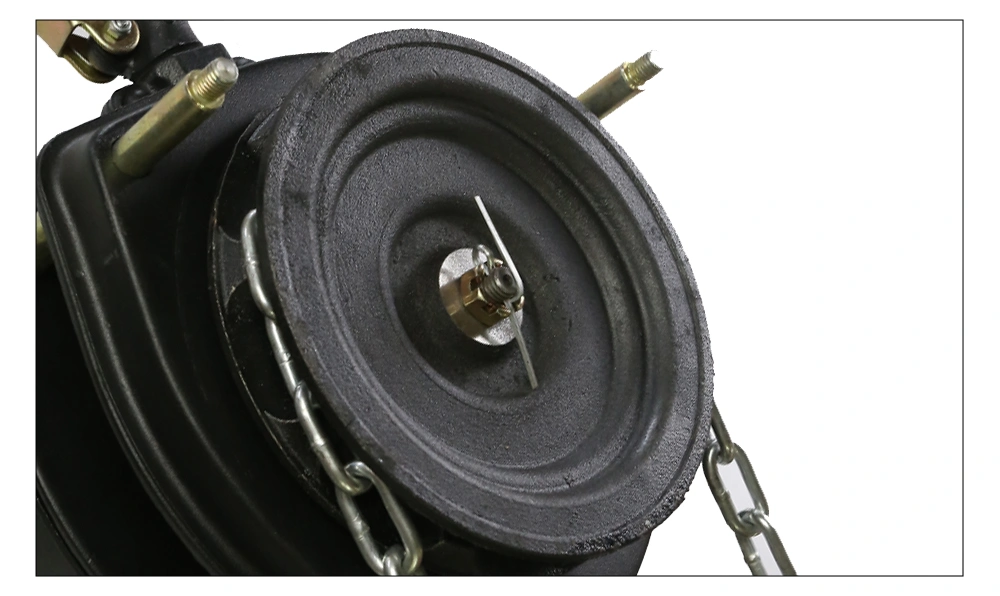

Streamlined large chain disk operation is smoother

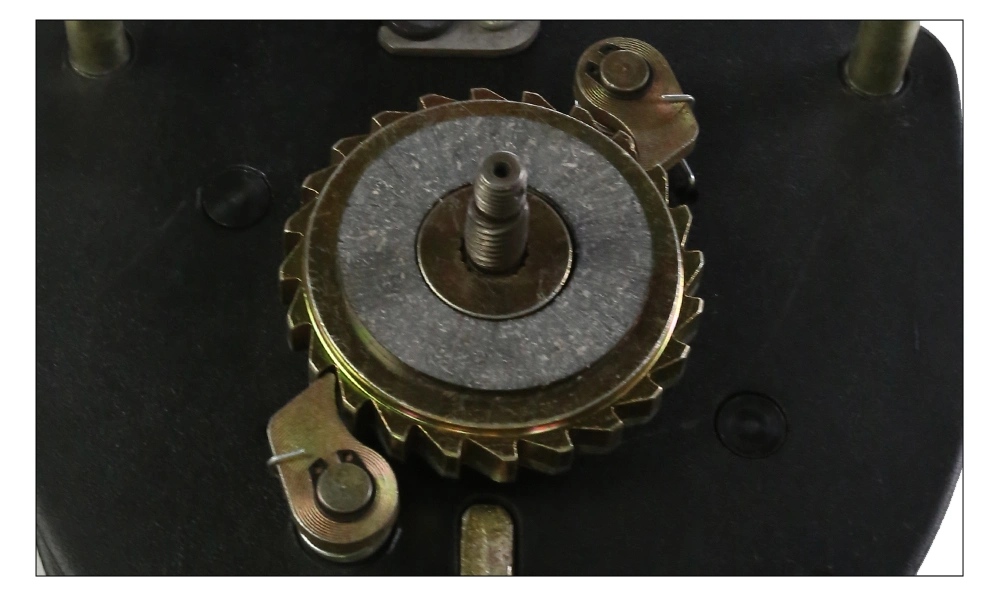

Double ratchet brakes for uniform lifting and lowering to prevent loss of control

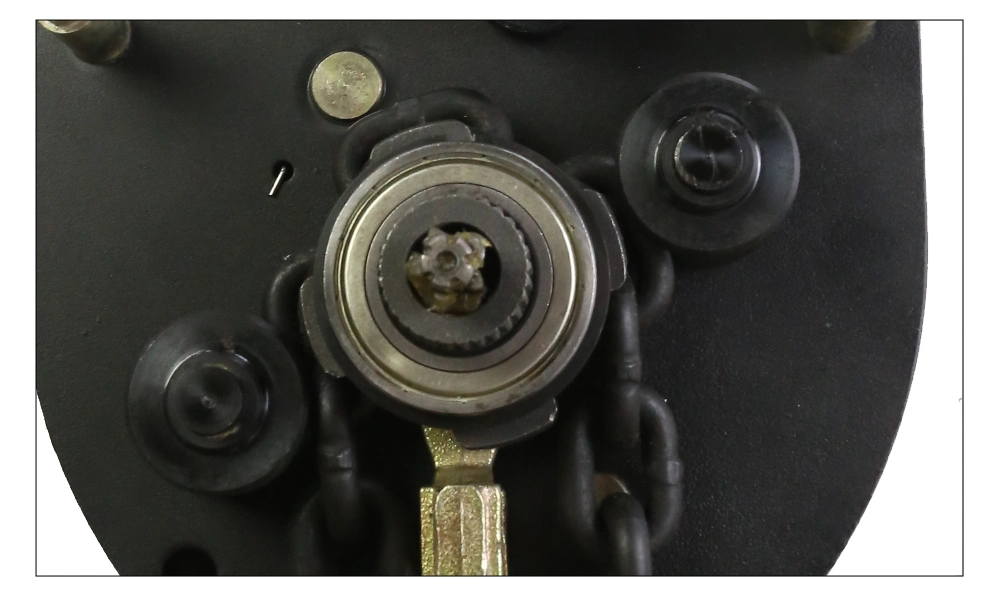

High quality guide chain wheel smoothly without jamming

Internal Structure

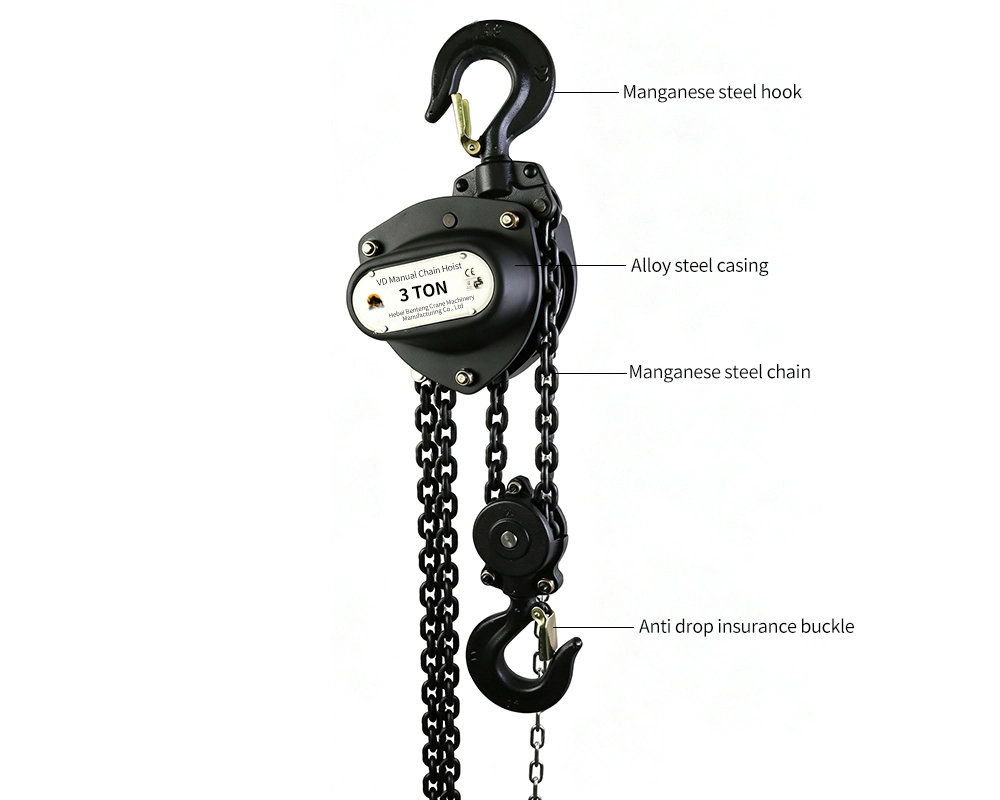

Manganese Steel Hook: Drop-forged top manganese steel safety hook designed to yield gradually under extreme overload conditions rather than suffer brittle fractures.
Alloy Steel Casing: Precision-stamped alloy steel triangular cover casing that protects internal spur drive gears from collision damage and dust accumulation.
Manganese Steel Chain: Quenched and tempered G80 manganese steel load chain engineered for high tensile strength, surface wear resistance, and smooth sprocket travel.
Anti Drop Insurance Buckle: Heavy-duty spring-loaded safety latch fitted on top and bottom hooks to lock slings securely and prevent accidental load disengagement.

Safety Testing & Quality Assurance

To guarantee compliance with global B2B procurement standards, Benteng Hoist subjects all VD series hoists to rigorous factory verification:

100% Proof Load Inspection: Every individual unit is tested under dynamic operation at 125% to 150% of rated capacity before entering final packaging.
Housing Impact & Deformation Test: Stamped steel covers are batch-tested to ensure structural integrity and gear alignment under thermal and mechanical strain.
Brake Slippage Verification: Automatic double-pawl friction brake systems undergo strict dynamic load-holding tests to ensure instant ratchet lockup.

B2B Customization & Wholesale Services

Benteng Hoist provides full OEM manufacturing and private-label distribution solutions for global lifting equipment importers:

Flexible Chain Lengths: Standard 3m, 6m, 9m, and 12m lifts, with custom-length G80 chains produced to order for high-bay operations.
Overload Protection Clutch: Optional mechanical friction limiter to prevent operation beyond maximum Working Load Limits.
Custom Finishes & Private Labeling: Custom powder-coating color options, laser-etched metal specification plates, and branded export packaging.
Beam Trolley Integration: Supplied as pre-assembled lifting kits paired with push or geared monorail beam trolleys.

Frequently Asked Questions

Q1: How does a stamped steel casing compare to a standard cast iron cover?

A: Stamped alloy steel casings offer higher ductility and impact resistance with lighter overall weight, preventing housing cracking or deformation when bumped in tight workspaces.

Q2: What capacity range is available for the VD stamping steel manual hoist?

A: The VD series covers standard working load limits from 0.5 Ton (500 kg) up to 5 Tons (5,000 kg).

Q3: Is this hoist suitable for single-operator use?

A: Yes. The high-precision involute gear ratio minimizes friction, allowing one worker to lift the rated load smoothly and comfortably.

Q4: Can the VD manual chain hoist be attached to an I-beam trolley?

A: Absolutely. The top manganese safety hook quickly attaches to manual push trolleys or geared trolleys for overhead beam travel.
