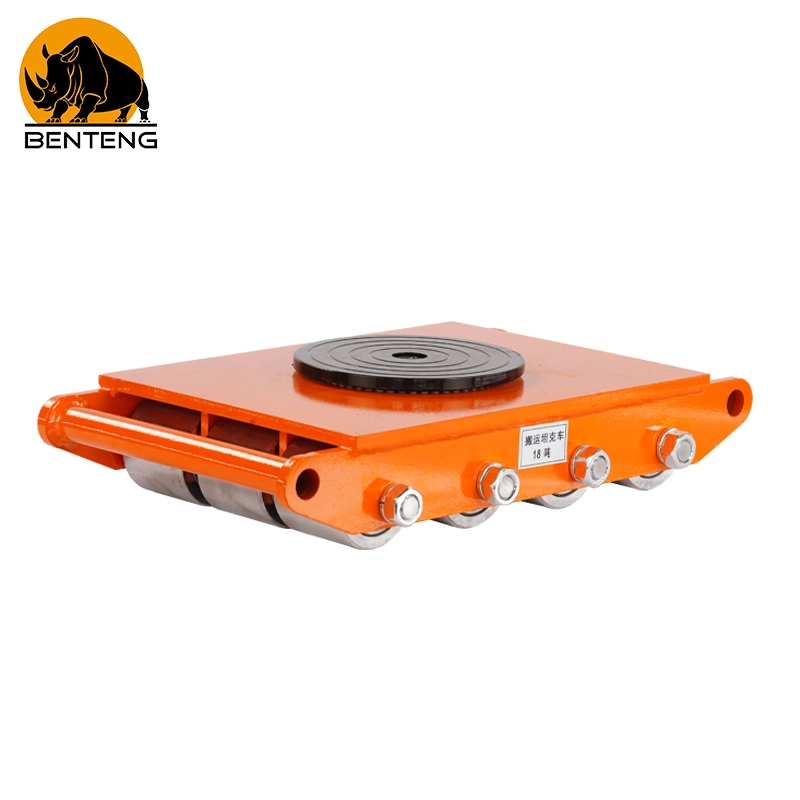

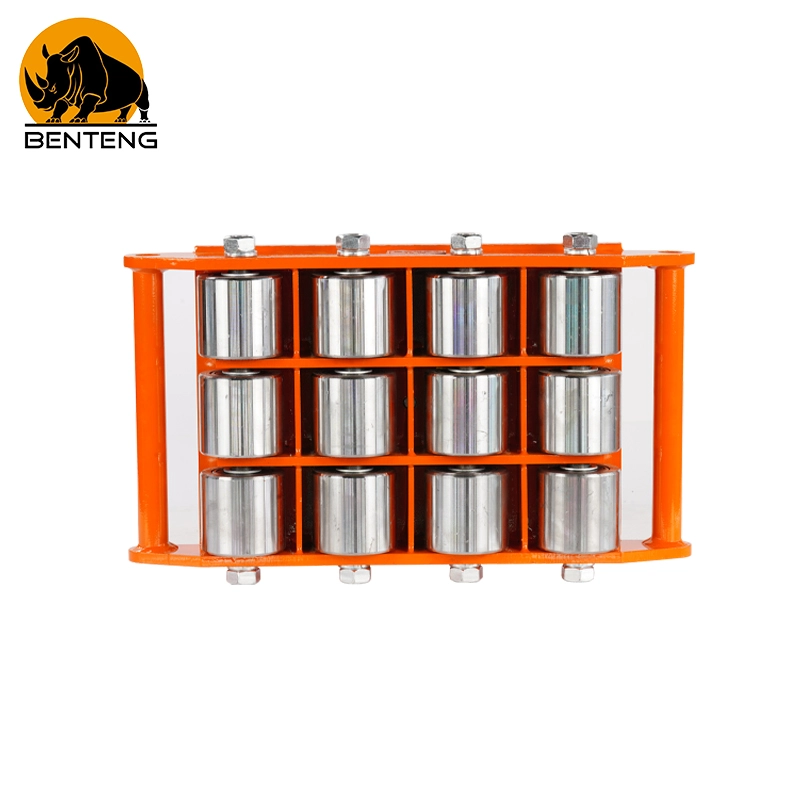

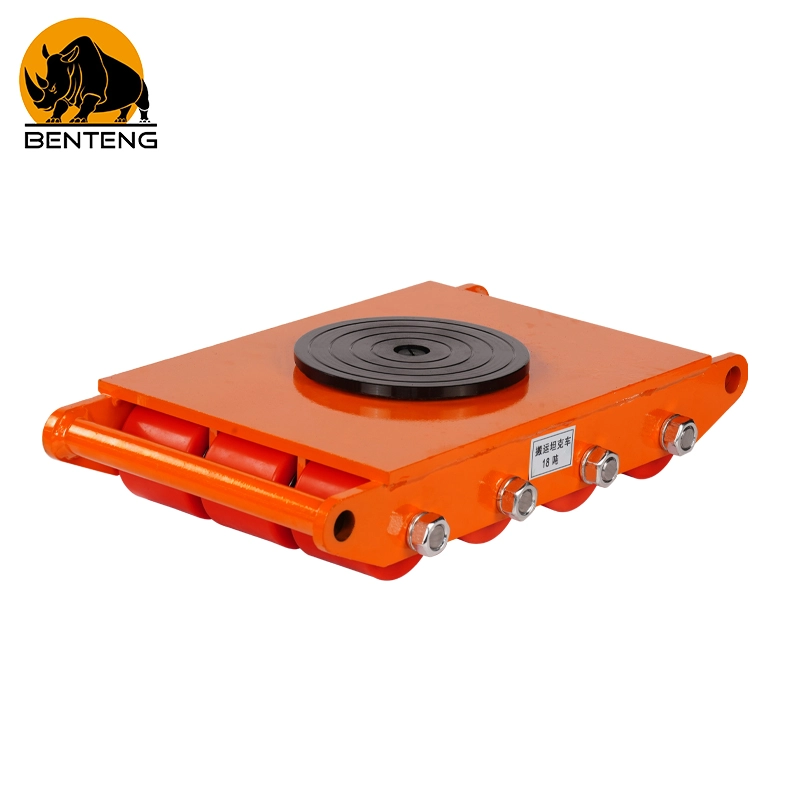

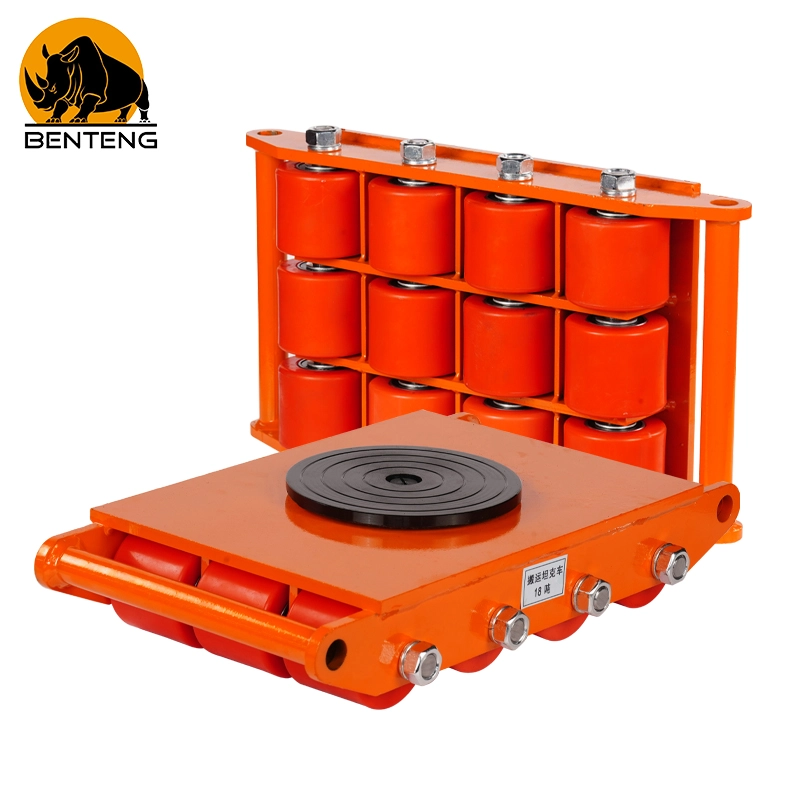

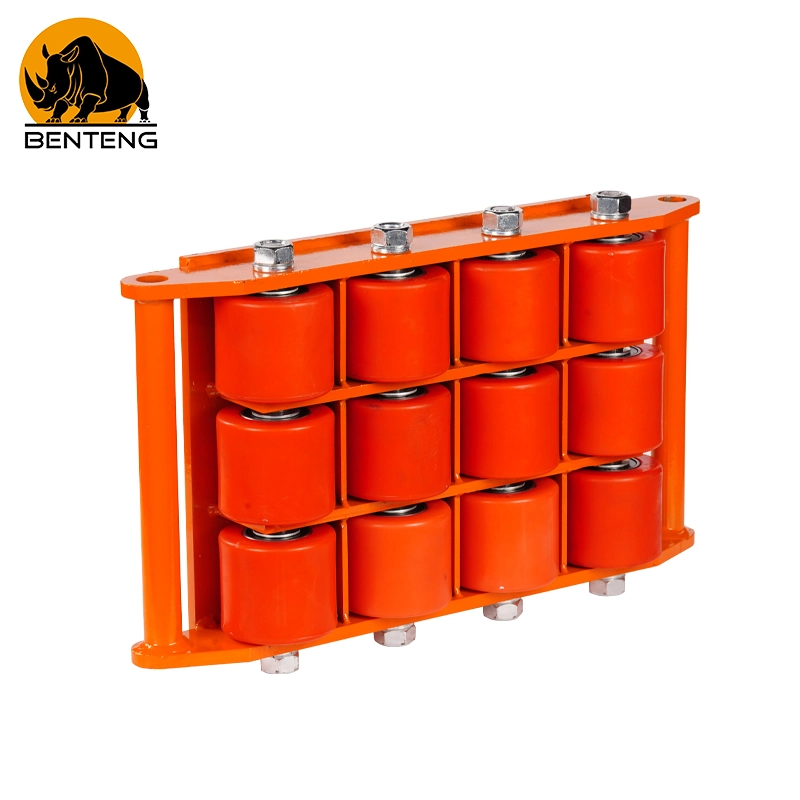

Heavy Duty Cargo Handling Trolley for Heavy Loads

Cargo Handling Trolley Description

The heavy duty cargo handling trolley is designed for the safe and efficient movement of large machinery, molds, industrial equipment, and heavy loads. Equipped with high-strength rollers and wear-resistant bearings, it provides smooth operation, low rolling resistance, and flexible steering for precise equipment positioning.

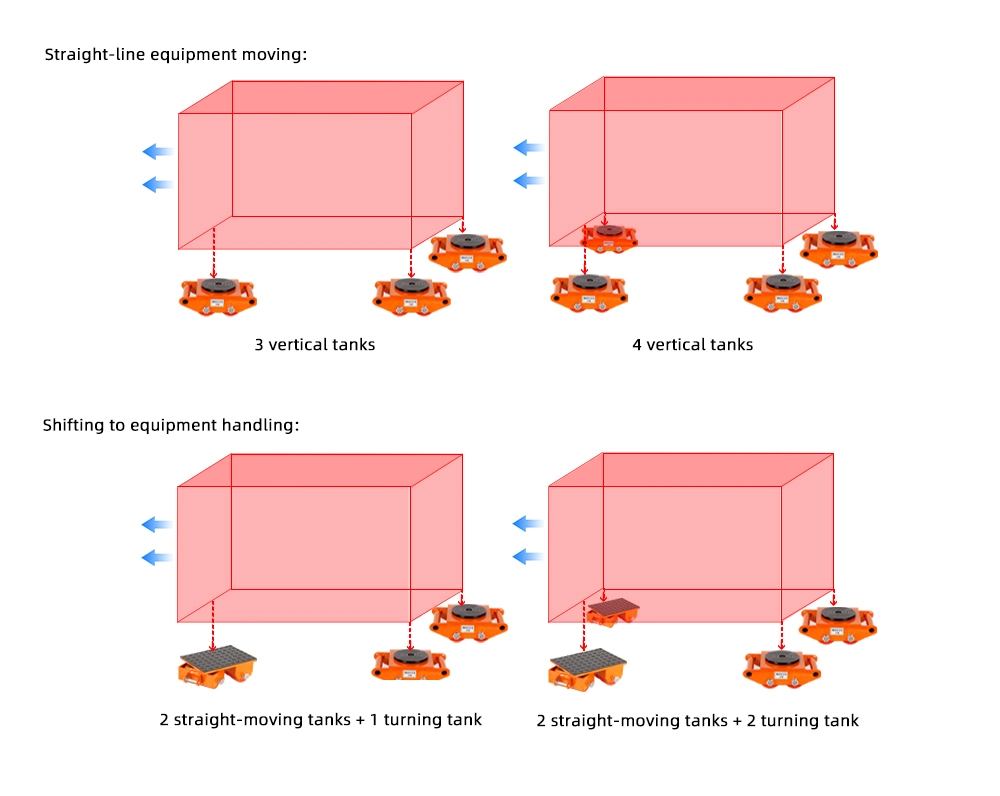

This industrial handling trolley can be used individually or combined with steering platforms to transport oversized equipment in factories, workshops, and installation sites. It is an ideal solution for machinery relocation, production line installation, and heavy load transportation where traditional lifting equipment is difficult to operate. For larger machinery relocation projects, these trolleys can work together with machinery moving skates to provide flexible heavy-load transportation solutions.

Advantages of Heavy Duty Cargo Handling Trolley

• High Load Capacity Structure: Manufactured from high-strength alloy steel, the reinforced frame provides reliable support for heavy equipment transportation.

• Smooth Movement with Low Resistance: Equipped with wear-resistant rollers and precision bearings, the trolley ensures:

  • Smooth operation

  • Reduced pushing force

  • Stable movement

• Flexible Configuration Options: Multiple units can be combined according to:

  • Equipment weight

  • Load distribution

  • Transportation route

• Safe and Easy Operation: The compact structure allows operation in limited spaces while reducing labor requirements and improving handling safety.

Product Specifications

Capacity	Plastic Wheel Net Weight (kg)	PU Wheel Net Weight (kg)	Steel Wheel Net Weight (kg)	Wheel Quantity	Product Size (mm)
3T	4.4	5.3	6.2	2	110 × 180 × 100
6T	8.6	10.4	12.2	4	208 × 300 × 110
8T	13.4	16.1	18.8	6	208 × 387 × 110
12T	17.5	21.1	24.7	8	208 × 483 × 110
15T	18.7	22.7	26.8	9	292 × 387 × 110
18T	24.4	32.5	35.2	12	392 × 483 × 110
24T	30.3	37.5	44.7	16	380 × 483 × 110
32T	38.1	47	56.1	20	380 × 577 × 112
40T	46	57.3	68.5	25	467 × 577 × 112
50T	60.4	74	87.4	30	467 × 670 × 112

Applications of Cargo Handling Trolley

• Factory Machinery Relocation

  • CNC machine tools

  • Production equipment

  • Industrial molds

• Industrial Equipment Installation

  • Transformers

  • Generators

  • Boilers

  • Pressure vessels

• Warehouse and Heavy Material Handling

  • Heavy components

  • Large mechanical parts

  • Oversized loads

• Restricted Space Operations

  • Suitable for areas where cranes or forklifts cannot access.

Combined with professional factory material handling solutions, these cargo handling trolleys help improve equipment installation efficiency and workplace safety.

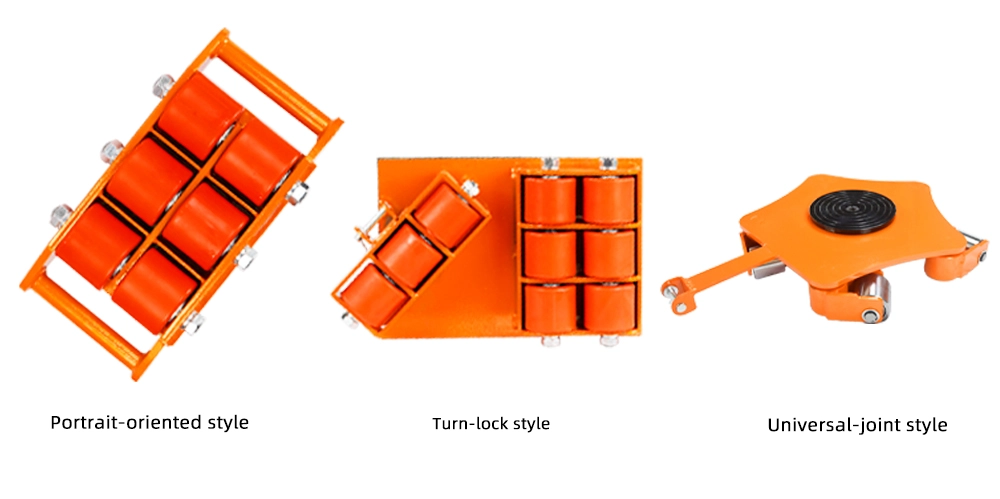

Products Details

Multi-Surface Adaptability: Engineered to perform smoothly across diverse industrial flooring conditions, ensuring effortless and stable transit.

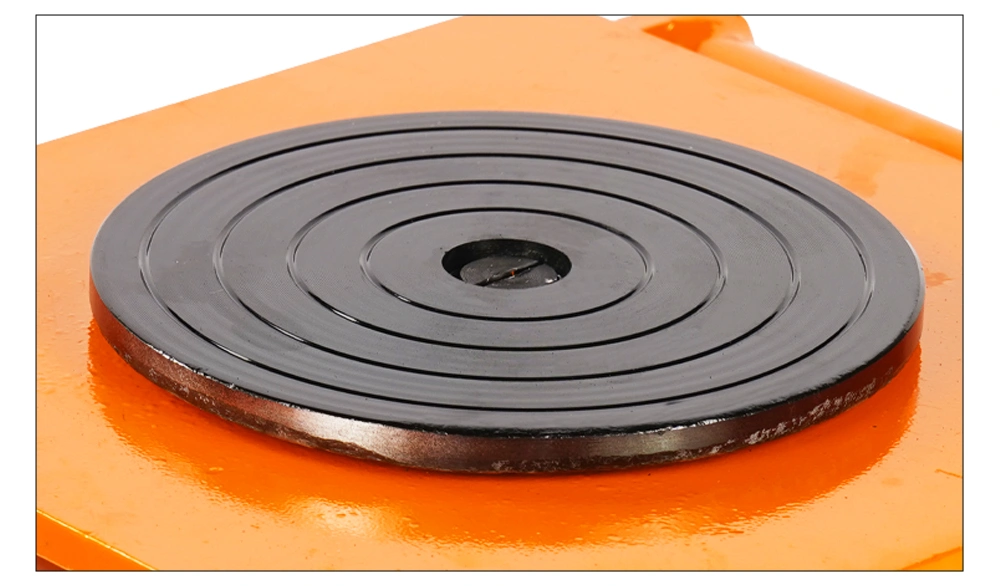

Secure Anti-Slip Grip: Features a wear-resistant, anti-skid surface pattern that fits snugly against heavy cargo, preventing shifting or detachment during transit.

Heavy-Duty Reinforced Body: Thickened overall structural framework designed to deliver maximum load-bearing capacity and long-term durability under extreme industrial conditions.

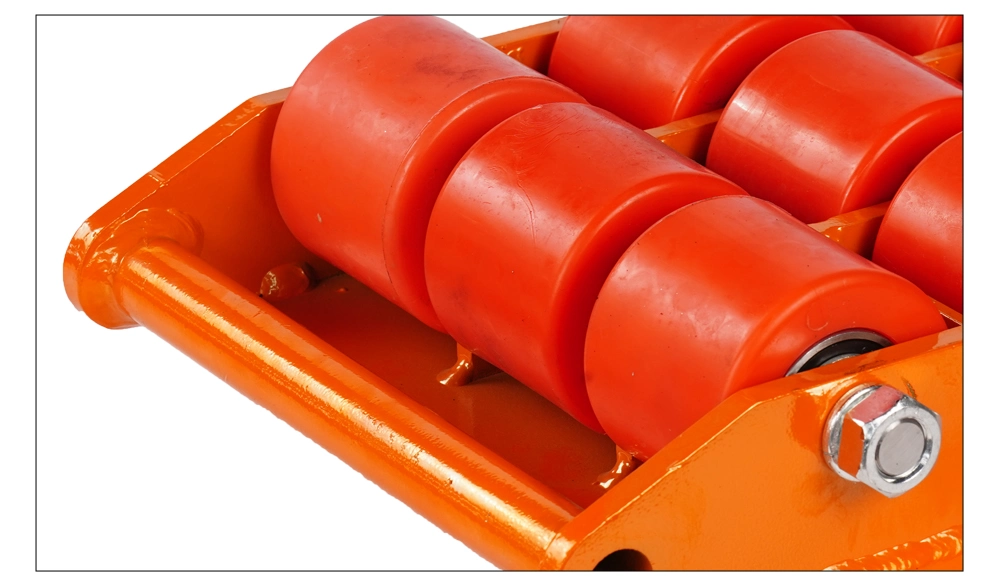

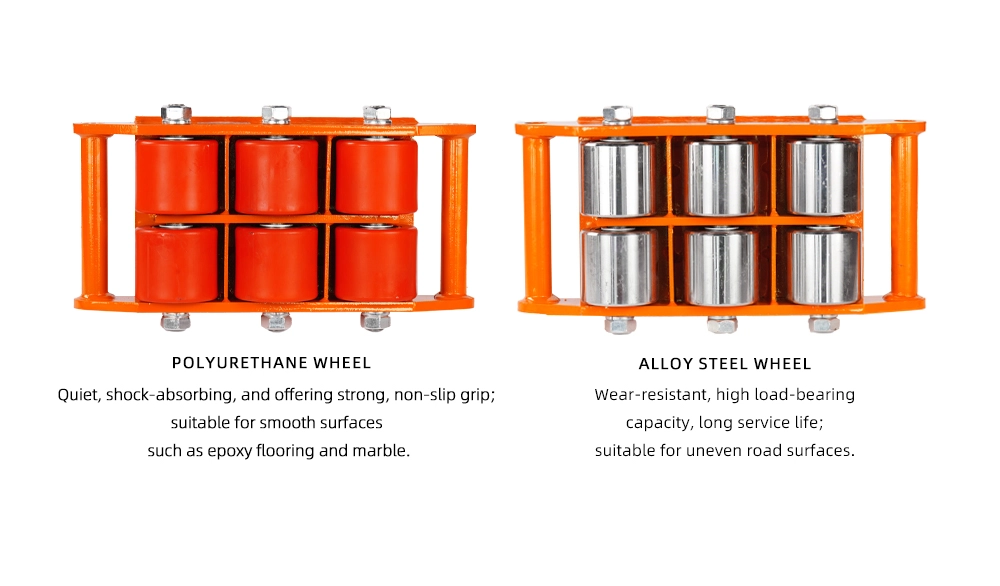

Customizable Wheel Configurations: Tailor your setup by selecting the optimal wheel material (PU, Steel, or Plastic) based on your cargo weight and route surface conditions.

Comprehensive Capacity Range: Available in a full spectrum of specifications from 3T to 50T to precisely match your exact operational requirements.

How to Choose the Right Cargo Handling Trolley?

Selection Factor	Recommendation
Load Capacity	Select a trolley with capacity higher than the actual equipment weight.
Wheel Type	Choose PU wheels for smooth indoor floors and steel wheels for heavy-duty environments.
Equipment Size	Use multiple units for oversized machinery.
Working Space	Select steering options for narrow or complex routes.

FAQ

Q1: What is a cargo handling trolley used for?

A: A cargo handling trolley is designed for moving heavy machinery, industrial equipment, and oversized loads in factories and installation sites.

Q2: How much weight can a heavy duty cargo trolley handle?

A: The load capacity depends on the selected model. Available options range from 3T to 50T.

Q3: Can the trolley be used with machinery moving skates?

A: Yes. Combining cargo handling trolleys with machinery moving skates provides flexible solutions for heavy equipment relocation.

Q4: Which wheel type should I choose?

A: PU wheels are suitable for smooth indoor floors, while steel wheels are recommended for higher loads and rough surfaces.
