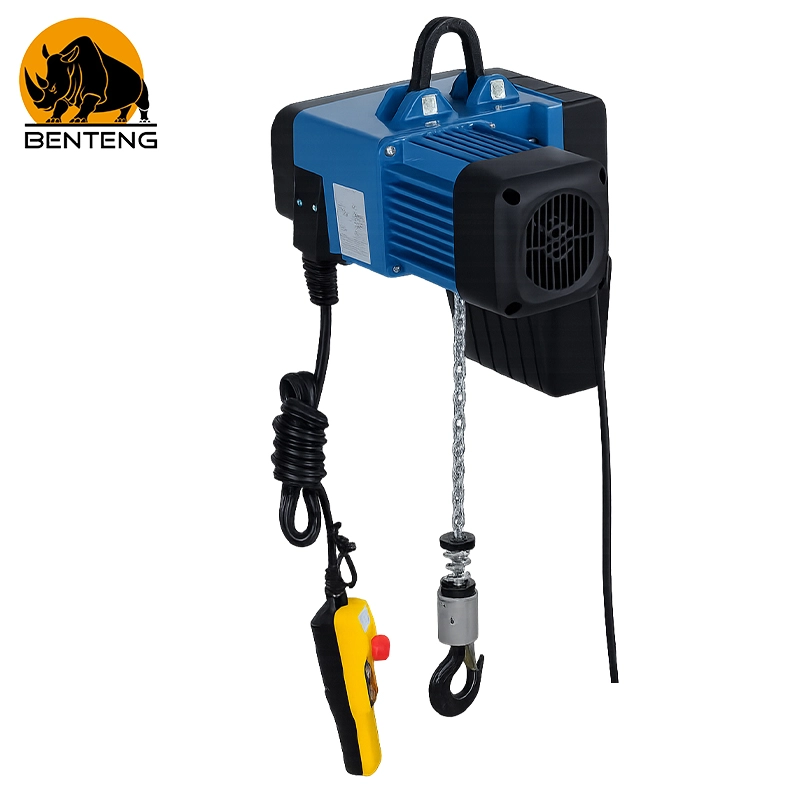

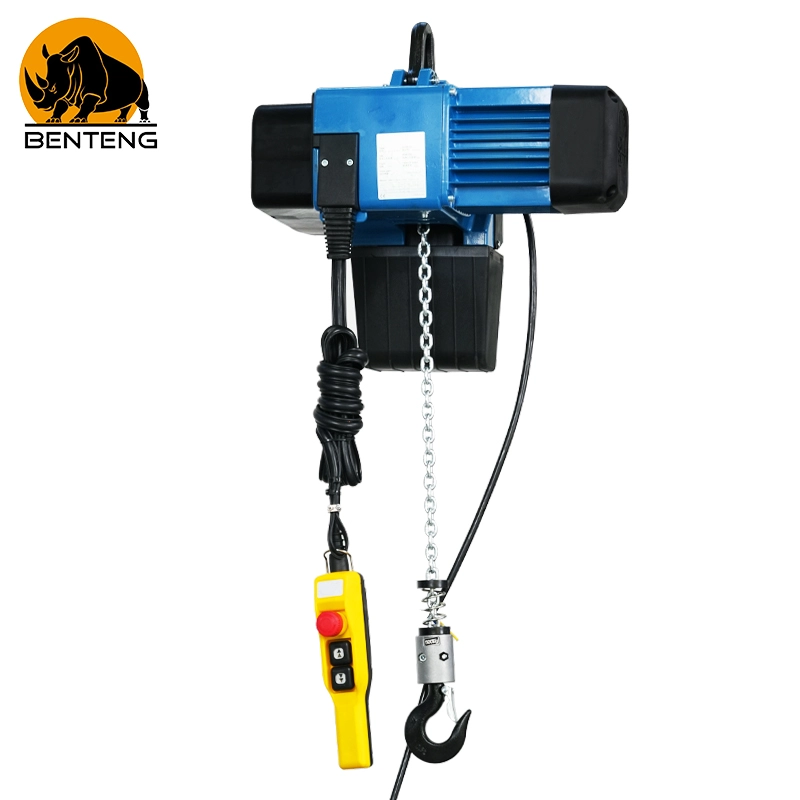

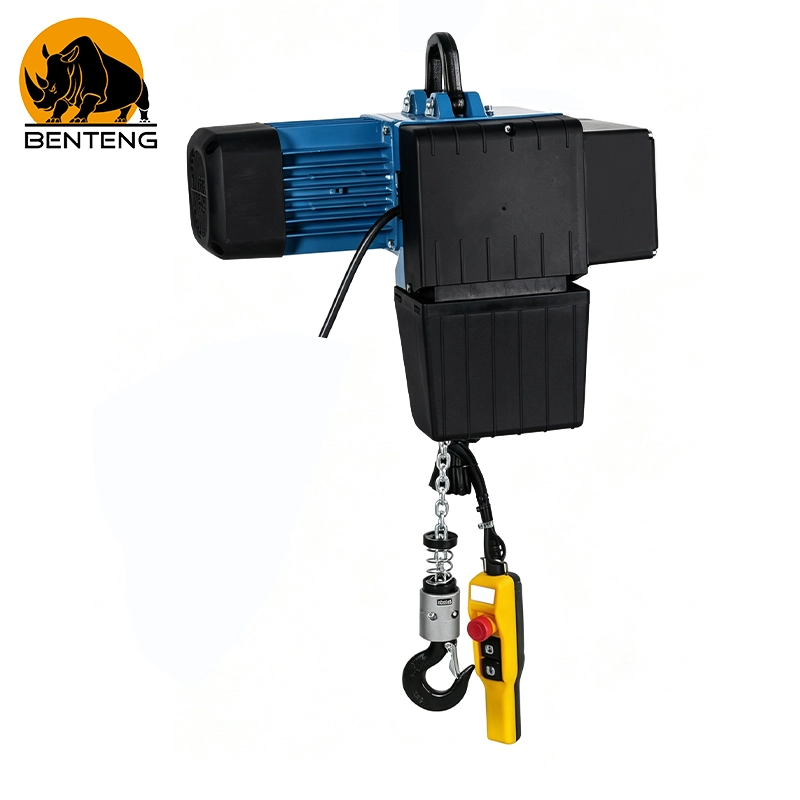

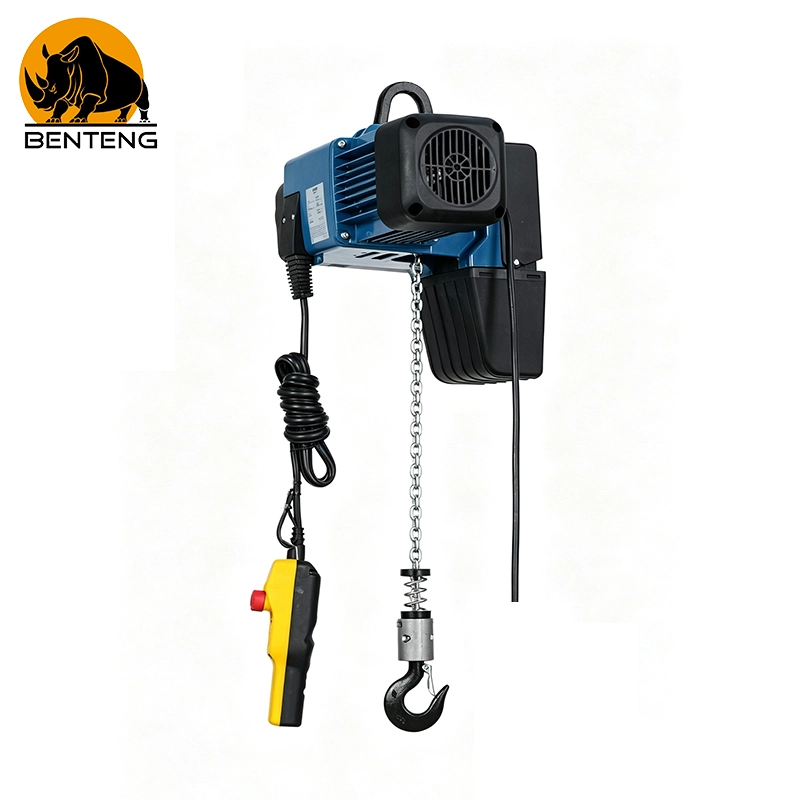

European Hook Suspension Electric Chain Hoist

European Hook Suspension Electric Chain Hoist Description

European Hook Suspension Hoist represents the next generation of modern material handling technology, built in accordance with advanced FEM and DIN European design directives. Featuring an ultra-compact modular architecture, low deadweight, and precision dual-speed mechanics, this high-performance heavy duty chain hoist maximizes usable headroom while delivering whisper-quiet vertical motion.

Engineered with high-strength aluminum housing and dual-chain saddle dynamics, the European series functions as an essential precision lifting engine for modern manufacturing plants, automated production bays, and high-frequency assembly line operations.

Core Advantages of European Modular Engineering

• Aviation-Grade Aluminum Body: Die-cast lightweight aluminum alloy casing provides superior thermal dissipation, IP55 environmental protection, and zero rust formation under tough working conditions.

• Dual-Speed Precision Control: Standard 2/8 m/min pole-changing motors enable rapid long-distance movement and creeping micro-speeds for millimeter-accurate workpiece positioning.

• Optimized Dual-Chain Saddle Design: Flexible suspension configuration utilizes vertical hook space to the absolute maximum, allowing closer approach limits under restricted headroom.

• Durable Powder-Coated Finish: Electrostatic powder coating delivers an aesthetic, modern industrial exterior with severe chemical resistance against workshop oils and moisture.

• Whisper-Quiet Transmission: Hardened precision helical gear train running in a continuous oil bath achieves ultra-low noise levels (<70 dB) and low mechanical wear.

Product Specifications

MODEL	Load Capacity	Lifting Speed (m/min)	Power (kW)	Speed (r/min)	Phase	Voltage	Frequency (Hz)	Shortest Distance
0.125-01	125 kg	2/8(m/min)	0.2/0.8	2880/720	3	380V	50/60	430 mm
0.25-01	250 kg	2/8(m/min)	0.2/0.8	2880/720	3	380V	50/60	430 mm
0.5-01	500 kg	2/8(m/min)	0.2/0.8	2880/720	3	380V	50/60	430 mm

Integrated Multi-Layer Safety Features

Safety and equipment longevity are central to European hoisting standards:

1. Integrated Friction Clutch Overload Protection: Built-in slipping clutch prevents structural deformation or gear damage caused by accidental dynamic overloading.

2. Fail-Safe Electromagnetic Brake System: Fast-acting disc brake engages automatically upon power loss, locking loads instantly without slipping.

3. Forged Anti-Detachment Hook: Heavy-duty drop-forged manganese steel hook with 360-degree rotation and reinforced safety latch prevents accidental sling disengagement.

4. Electronic Upper & Lower Limiters: Low-profile limit switches automatically disconnect motor power at maximum vertical travel thresholds.

5. Ergonomic Control & Portability: Features safe low-voltage control handles and portable mounting points for rapid deployment across multi-station gantries.

Industrial Applications for High-Precision Bays

The European hook suspension hoist serves as the primary lifting engine across modern, high-tech industrial environments:

• Automotive Production & Component Assembly: Millimeter-precise positioning during engine installation, chassis mating, and body Stamping die changes.

• Precision CNC & Mold Manufacturing: Smooth, vibration-free loading of heavy injection molds and CNC tooling onto high-precision machine beds.

• Warehousing & Logistics Hubs: Continuous, high-duty cycle sorting, stacking, and loading operations requiring low maintenance downtime.

• Steel Fabrication & Structural Assembly: Reliable station-to-station transfer of steel beams, tubing, and sub-assemblies.

Products Details

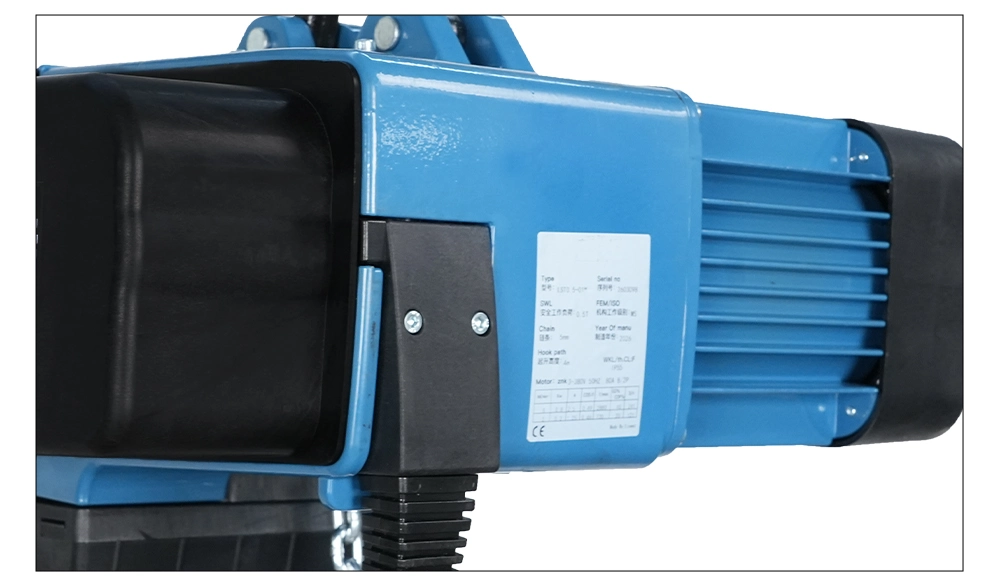

Aviation-grade aluminum housing: waterproof, rust-proof, and corrosion-resistant.

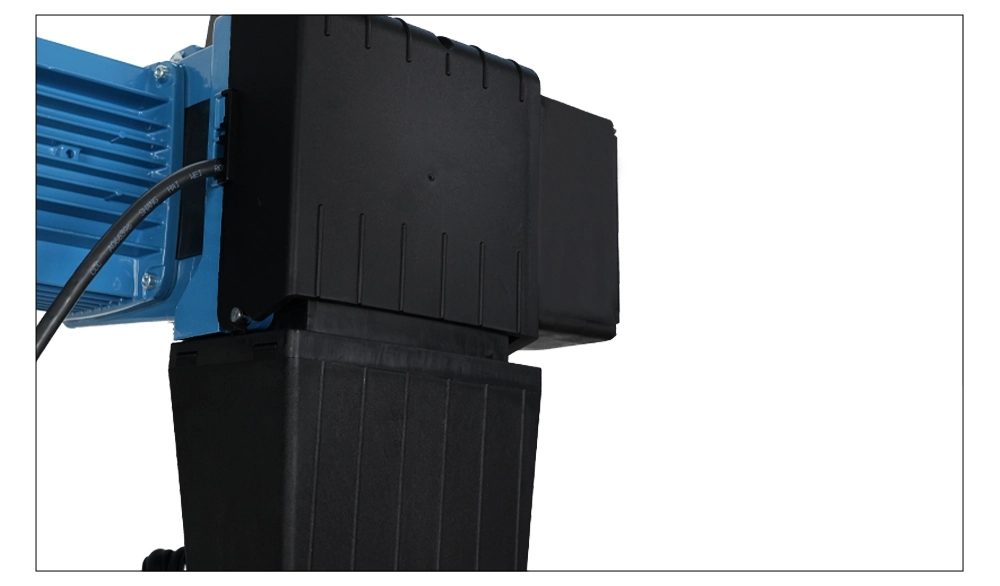

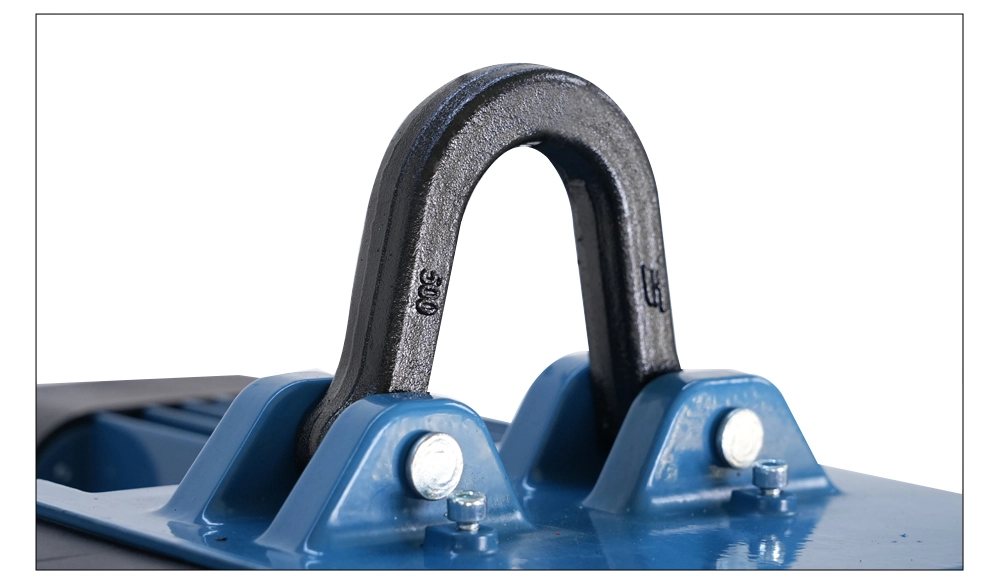

The dual-chain saddle design offers customers flexible suspension configurations, enabling full utilization of vertical space.

Powder-coated surface finish, modern industrial design, and high corrosion resistance.

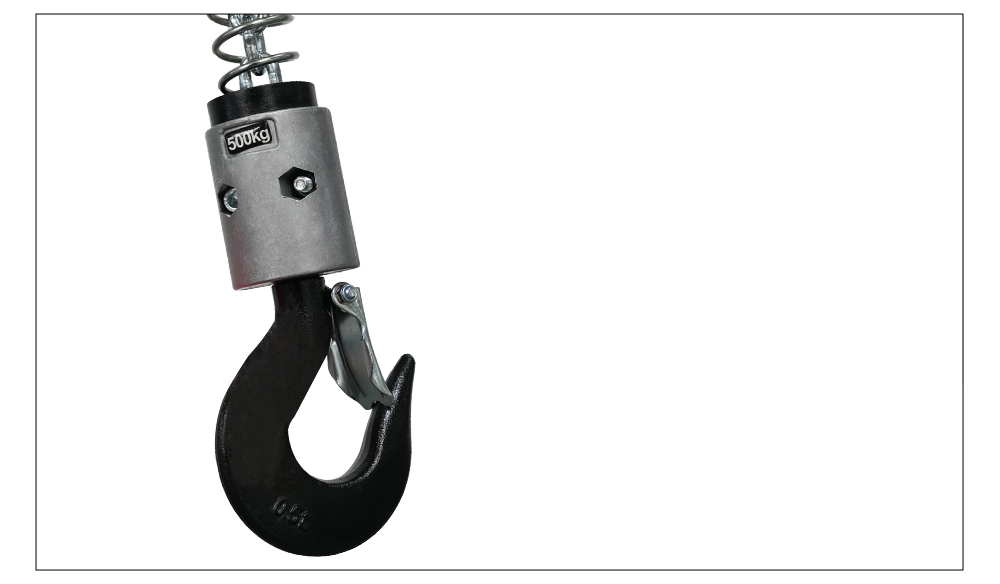

Forged anti-detachment hook: resists accidental detachment for greater safety.

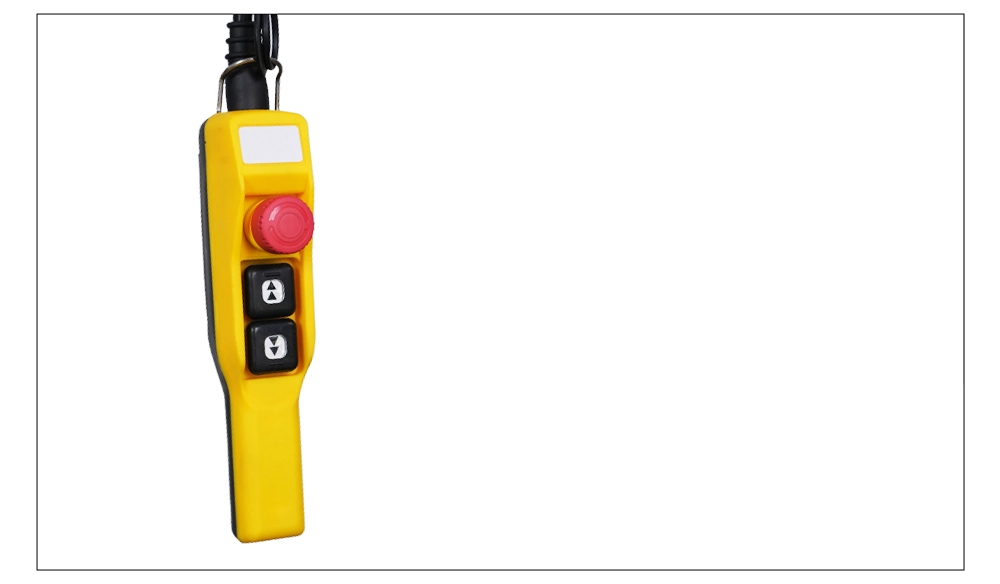

Ergonomic handle for portable use

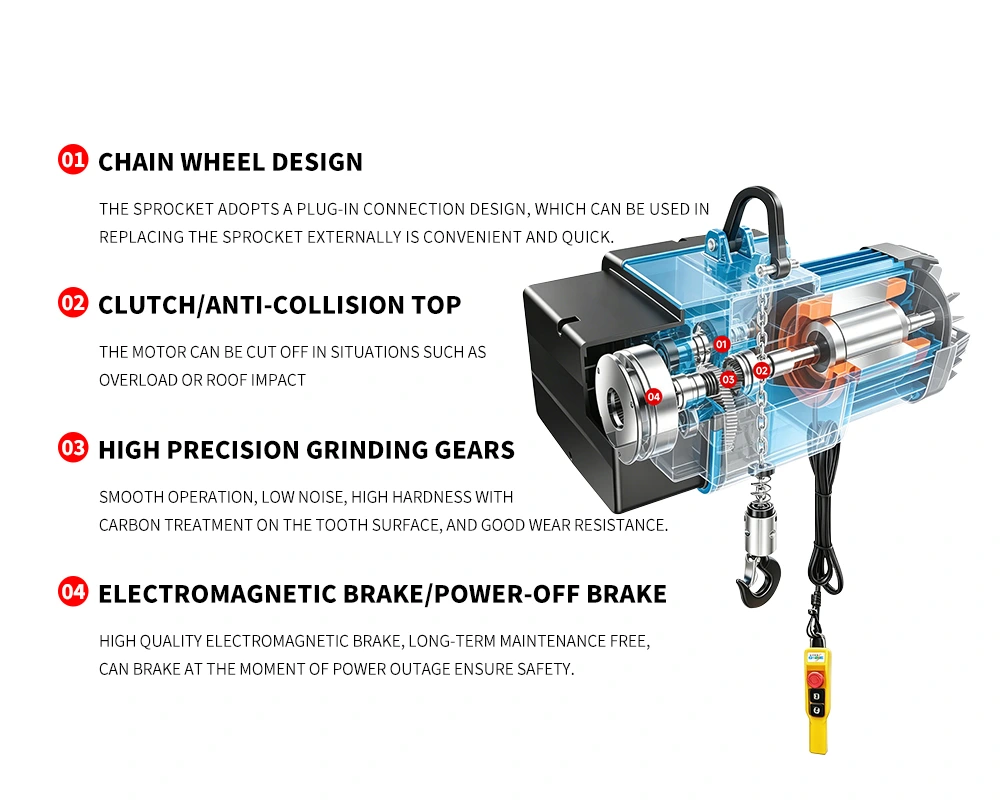

Internal structure

• Plug-In Chain Sprocket: Modular plug-in design enables fast external sprocket replacement, drastically reducing maintenance downtime.
• Overload Clutch & Top-Limit System: Instantly cuts off motor power during overloading or over-hoisting to protect structural components from damage.
• High-Precision Carburized Gears: Carburized and precision-ground gear teeth deliver exceptionally smooth rotation, minimal wear, and low-noise operation.
• Fail-Safe Electromagnetic Brake: Locks the suspended load immediately upon power loss, providing reliable protection and long-term maintenance-free operation.
