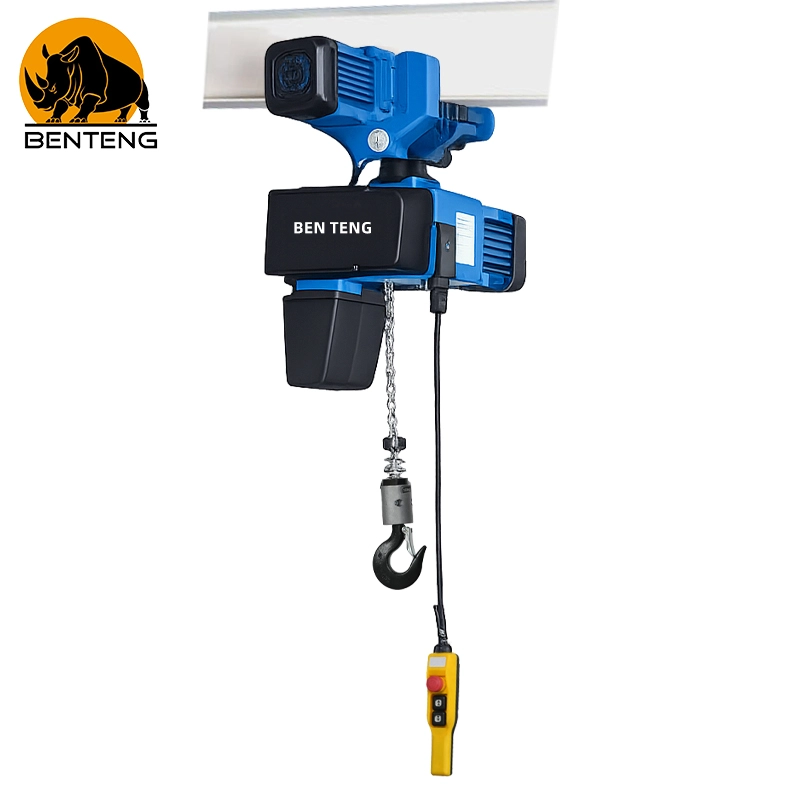

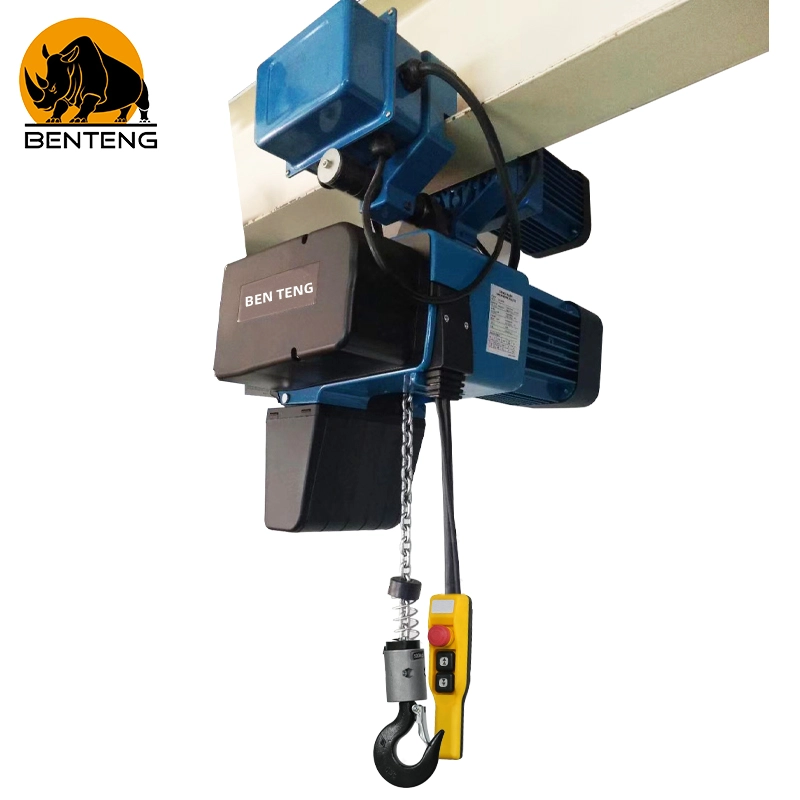

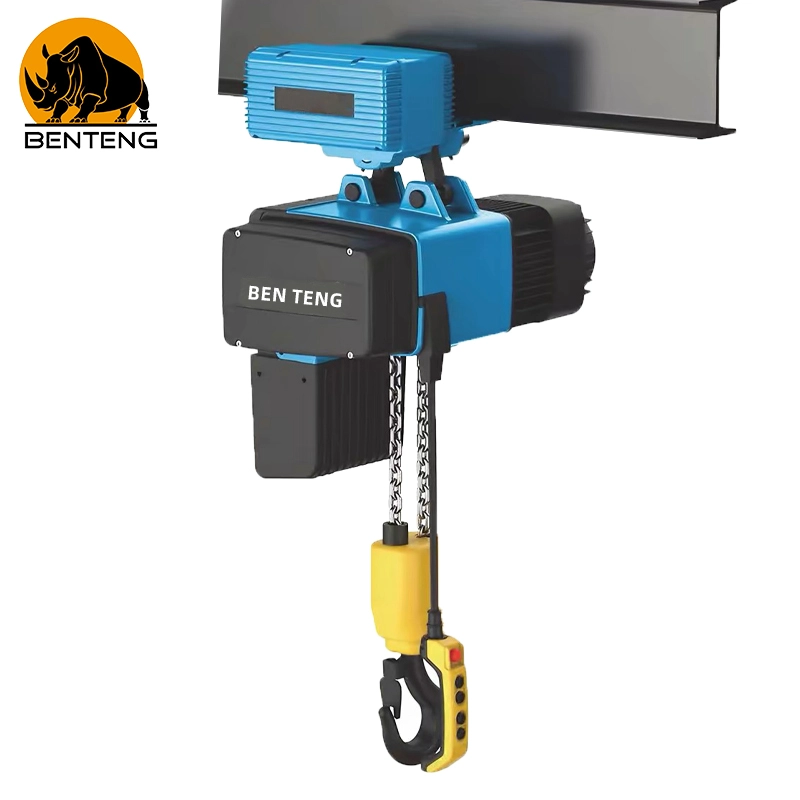

European Trolley Electric Chain Hoist

European Design Concept: Lightweight and compact structure delivers efficient, reliable, and modern lifting performance.
Smooth & Precise Operation: High-performance motor and braking system ensure stable lifting, low noise, and accurate positioning.
Durable Structure: High-strength alloy steel chain, corrosion-resistant housing, and safety hook provide long service life.
Flexible Trolley Movement: Integrated trolley system enables smooth horizontal travel and efficient material handling in various applications.

Product Detail

FEM Standard Trolley Electric Chain Hoist Description

European Trolley Electric Chain Hoist is an integrated 4-direction material handling engine engineered according to strict European FEM and DIN design directives. Combining a lightweight aluminum hoist body with a synchronized electric travel trolley, this advanced electric chain hoist delivers smooth vertical lifting and precise horizontal traversing along I-beams, H-beams, and single-girder crane rails.

As an established hoist manufacturer and global exporter, we supply the European trolley series for rated load capacities from 125 kg to 500 kg (expandable to higher tonnages). It serves as a superior solution for modern automated factories, precision assembly lines, and high-density logistics bays requiring minimal headroom loss and whisper-quiet operation.

Core Advantages of European Trolley Engineering

Aviation-Grade Aluminum Enclosure: Waterproof, rust-proof, and highly corrosion-resistant die-cast housing reduces deadweight while ensuring rapid thermal dissipation during continuous duty.
Dual-Chain Saddle Design: Optimized suspension geometry allows maximum vertical hook utilization, significantly reducing structural headroom loss under restricted ceiling heights.
High-Durability Powder-Coated Finish: Modern industrial powder coating offers severe resistance against environmental moisture, shop oils, and corrosive atmospheres.
Smooth Dual-Speed Positioning: Pole-changing motors provide two-speed controls for rapid long-distance travel and creeping micro-speeds for millimeter-exact load placement.
Quiet Precision Gearing: Hardened helical gear drive running in a sealed oil bath achieves ultra-low noise levels (<70 dB) and low maintenance wear.

Product Specifications

MODEL	Load Capacity	Lifting Speed (m/min)	Power (kW)	Speed (r/min)	Phase	Voltage	Frequency (Hz)	Shortest Distance
0.125-01	125 kg	2/8(m/min)	0.2/0.8	2880/720	3	380V	50/60	430 mm
0.25-01	250 kg	2/8(m/min)	0.2/0.8	2880/720	3	380V	50/60	430 mm
0.5-01	500 kg	2/8(m/min)	0.2/0.8	2880/720	3	380V	50/60	430 mm

Products Details

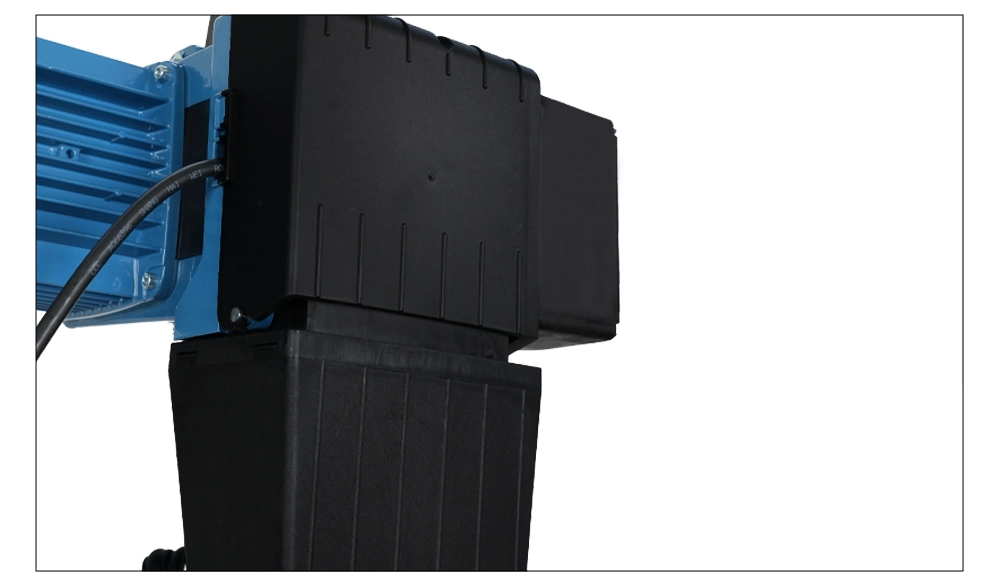

Aviation-grade aluminum housing: waterproof, rust-proof, and corrosion-resistant.

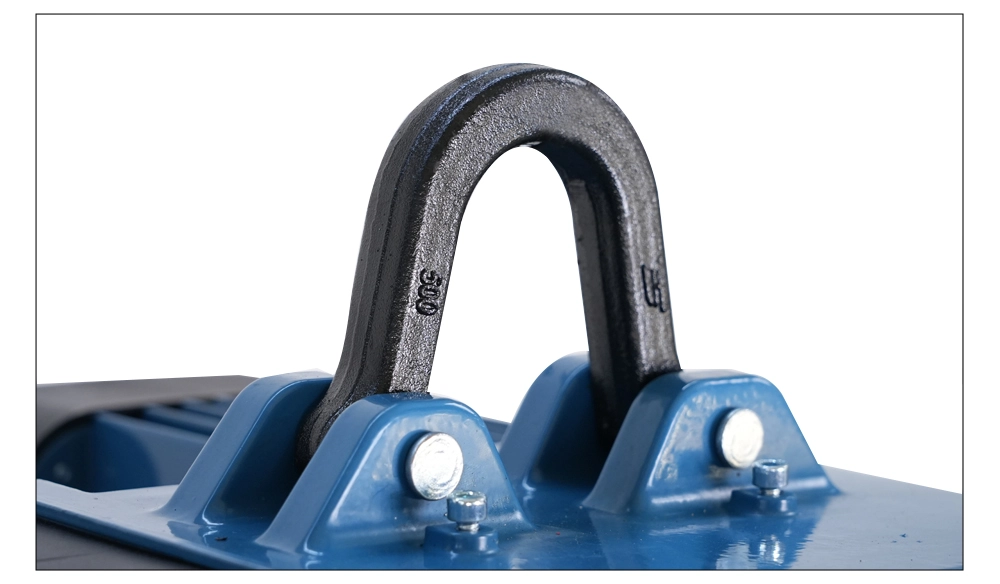

The dual-chain saddle design offers customers flexible suspension configurations, enabling full utilization of vertical space.

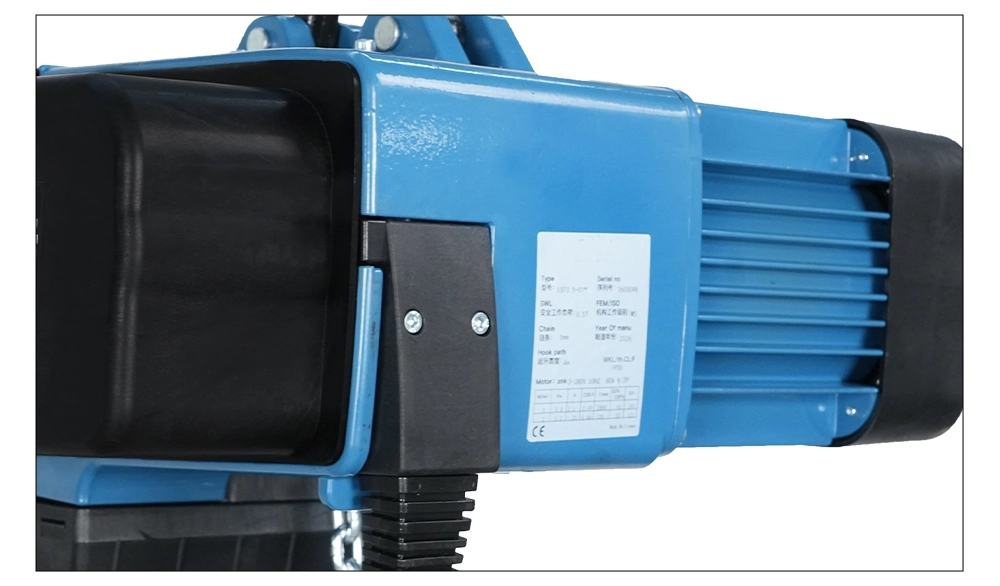

Powder-coated surface finish, modern industrial design, and high corrosion resistance.

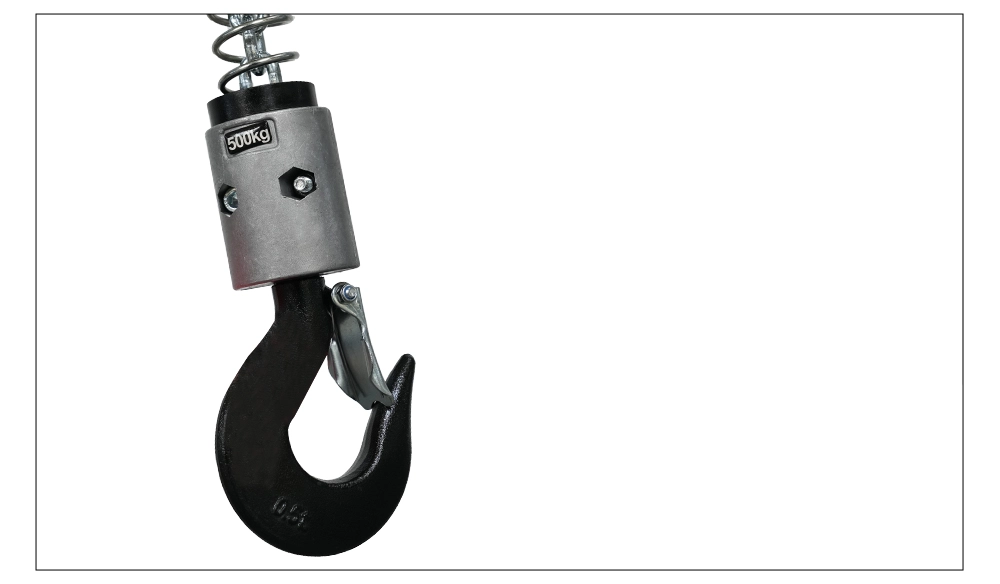

Forged anti-detachment hook: resists accidental detachment for greater safety.

Ergonomic handle for portable use

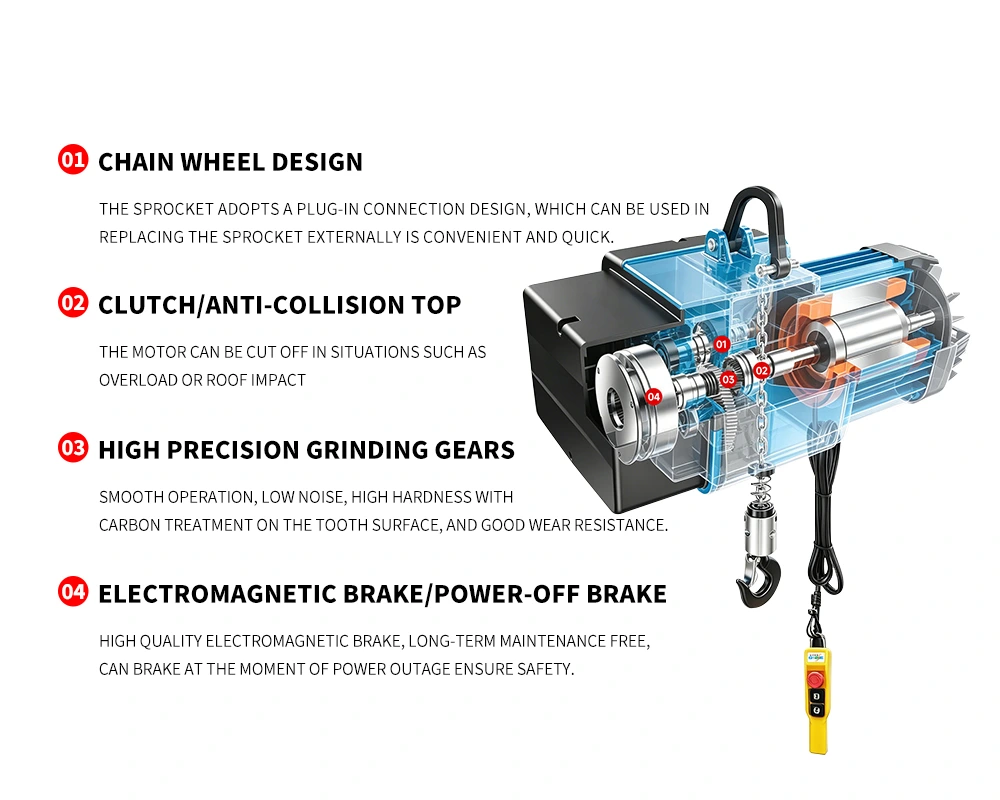

Internal structure

Quick-Change Sprocket: Plug-in design for fast external replacement, making routine servicing simple and efficient.
Dual Safety Protection: Integrated clutch automatically cuts power upon overload or over-hoisting, shielding the mechanism.
Heavy-Duty Hardened Gears: Precision-ground carburized gear teeth provide maximum durability, high load resistance, and low noise.
Instant-Action Brake: Fail-safe electromagnetic brake locks instantly in sudden power outages to ensure complete site safety.

Integrated Safety Protection for Monorail Operations

Operating a motorized hoist along elevated beam tracks requires rigorous safety controls:

Integrated Friction Clutch Overload Protection: Automatically prevents structural deformation or gear damage if accidental dynamic overloading occurs.
Fail-Safe Electromagnetic Braking System: High-performance disc brakes lock both lifting and travel movements instantly upon power interruption.
Forged Anti-Detachment Hooks: Drop-forged manganese steel hook with 360-degree rotation and a heavy-duty safety latch prevents accidental sling disengagement.
Upper & Lower Travel Limit Switches: Micro-switches cut motor power before the hook or trolley reaches structural end stops.

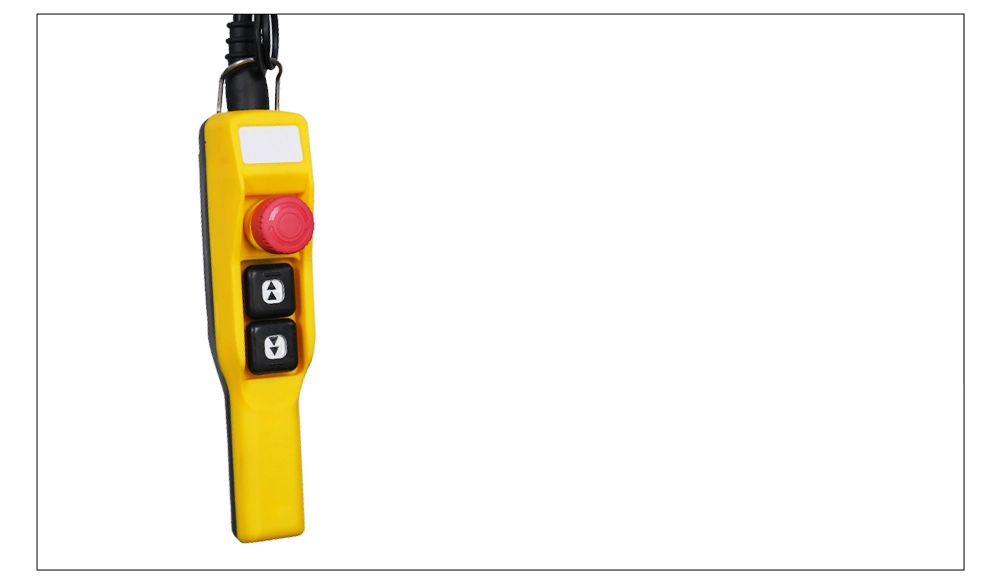

Ergonomic Control Integration: Safe low-voltage pendant controls with optional wireless radio integration for flexible cross-bay handling.

Industrial Applications for High-Precision Workstations

The European trolley electric chain hoist is ideal for industrial environments demanding high operational efficiency:

Automotive Bay & Engine Assembly: Delivers smooth, anti-sway transfers of engine blocks, transmissions, and heavy chassis components along assembly lines.
Machinery Manufacturing & Mold Processing: Enables precise loading and unloading of heavy injection molds and steel plates onto CNC machinery beds.
Warehousing & Automated Logistics: High-frequency, continuous loading, stacking, and lateral transfer across high-density storage bays.
Steel Structure Fabrication & Energy Sector: Reliable station-to-station positioning of sub-assemblies, power generators, and structural frames.

B2B Customization & OEM Project Support

We provide full engineering tailoring for crane builders, factory integrators, and equipment distributors seeking a customized motorized chain hoist configuration:

Stepless Inverter Control (VFD): Variable frequency drives on hoisting and travel motors for soft-start anti-sway positioning when moving fragile workpieces.
Beam Flange Adaptability: Trolley wheels and spacer washers adjusted to fit standard and wide-flange I-beam / H-beam profiles.
Wireless Remote Systems: Ergonomic multi-button radio controllers with emergency stop functions.
Global Power Adaptability: Supporting 220V, 380V, 415V, 440V, and 480V 3-phase regional industrial power grids.

Quality Assurance & European Compliance

FEM / ISO Standardized Production: Built in full compliance with European FEM 2M / ISO M5 duty ratings for continuous industrial service.
100% Dynamic Rail Testing: Every unit undergoes dynamic load lifting and horizontal travel inspections on calibrated test tracks prior to shipment.
Complete Factory Documentation: Shipped with ISO9001 quality certificates, CE compliance documentation, and comprehensive technical manuals.

Frequently Asked Questions

Q1: How does a European trolley electric chain hoist differ from standard trolley hoists?

A: European trolley hoists feature aviation-grade aluminum housings, lower deadweight, dual-chain saddle designs for shorter headroom loss, standard dual-speed positioning, and much lower operational noise levels.

Q2: Can the trolley width be adjusted for different I-beam flange sizes?

A: Yes. The motorized travel trolley uses adjustable spacer washers on the shaft axles, allowing quick field adjustment for various standard I-beam and H-beam widths.

Q3: Is the dual-speed function available for both hoisting and trolley travel?

A: Yes. Dual-speed pole-changing motors or Variable Frequency Drives (VFD) can be fitted on both the hoisting drive and horizontal travel trolley for precise micro-positioning.
