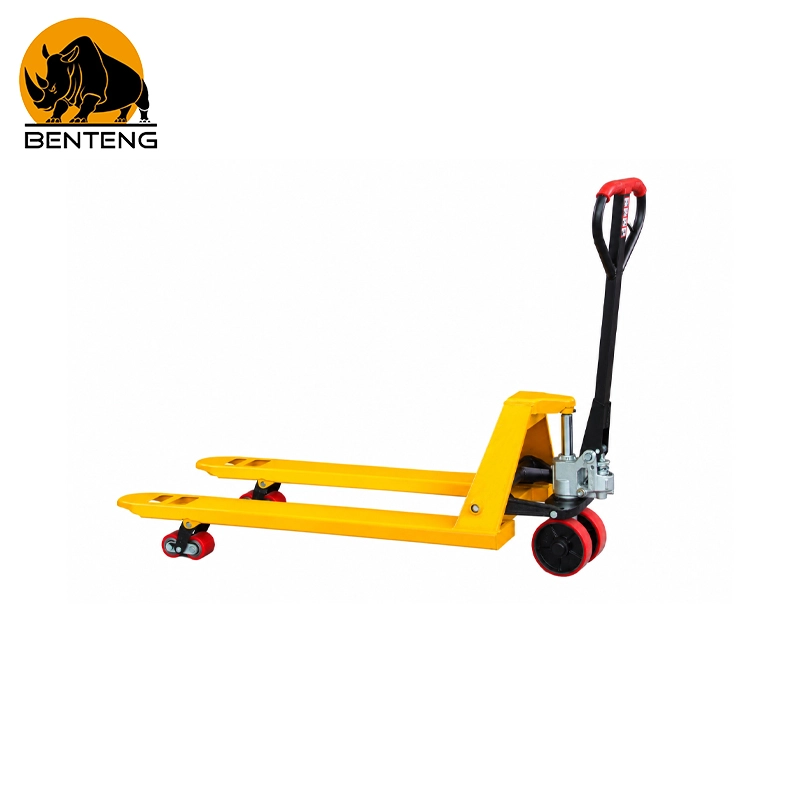

Hand Pallet Trucks
Product Description
By controlling the lifting and lowering of the handle, the rapid handling of palletized goods can be achieved, improving the efficiency of warehousing and logistics operations. Its compact structural design gives it good flexibility, making it easy to enter narrow spaces for operations. The product adopts a thick fork design, with strong load-bearing capacity and stable operation; Wear resistant wheels can adapt to different ground environments, reduce movement resistance, and improve service life. Manual ground oxen do not require power drive and have low maintenance costs, making them an economical and reliable ideal choice for modern warehousing and handling.
Product Application
Widely used in warehousing and logistics, factory workshops, production and manufacturing, supermarket distribution and other places, mainly for short distance handling and loading and unloading operations of palletized goods. In the warehouse, it can be used to transport cardboard boxes, raw materials, and finished goods, improving the turnover efficiency of goods; At logistics centers and distribution stations, the loading, unloading, and transportation of palletized goods can be quickly completed; On the factory production line, it can assist workers in moving parts, mechanical components, and production materials, reducing the labor intensity of manual handling. With its compact structure, flexible operation, and no need for power supply, manual ground oxen are particularly suitable for use in limited space channels, shelf areas, and frequent handling scenarios. We can provide stable, efficient, and safe handling solutions for both large storage environments and small shops and workshops.
Product advantages
- Strong carrying capacity
- Simple and effortless operation
- Flexible, convenient, durable, and reliable
- No need for power supply, low maintenance cost
Product Specifications
| Parameter | CBY.AC2.0 | CBY.AC2.5 | CBY.AC3.0 | CBY.AC5.0 |
| Rated Load (KG) | 2000 | 2500 | 3000 | 5000 |
| Lowered Fork Height (MM) | 80 | 80 | 80 | 80 |
| Raised Fork Height (MM) | 195 | 195 | 195 | 195 |
| Fork Size (MM) | 55*160 | 55*160 | 55*160 | 55*160 |
| Overall Fork Width (MM) | 55/685 | 55/685 | 55/685 | 685 |
| Fork Length (MM) | 1150 | 1150 | 1200 | 1200 |
| Load Wheel (MM) | 70*80 | 70*80 | 70*80 | 70*80 |
| Steering Wheel (MM) | 50*180 | 50*180 | 50*180 | 50*180 |
| Self-weight (KG) | 55/57.5 | 55/57.5 | 63.5/67.5 | 110-115 |

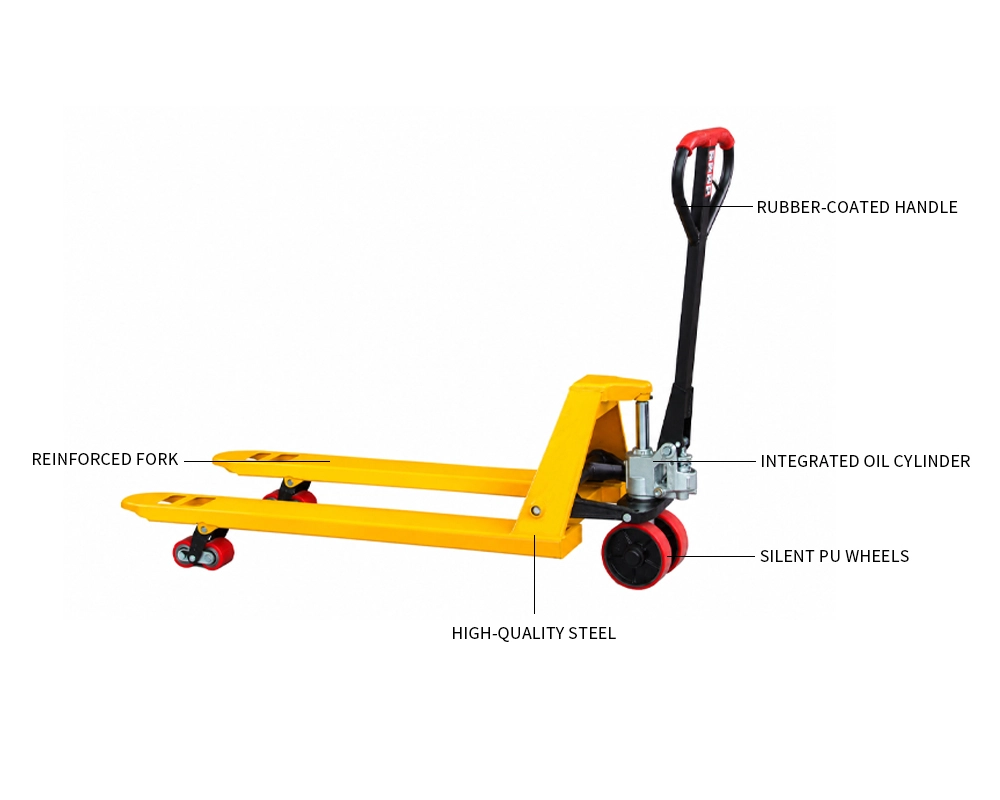

Products Details

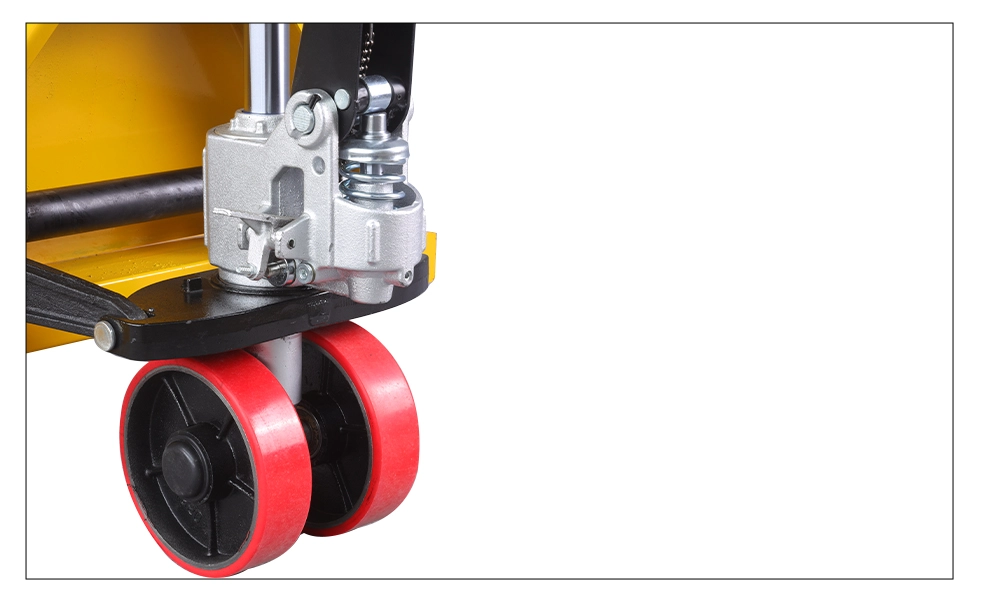

Widening the two wheels for quiet and steady driving

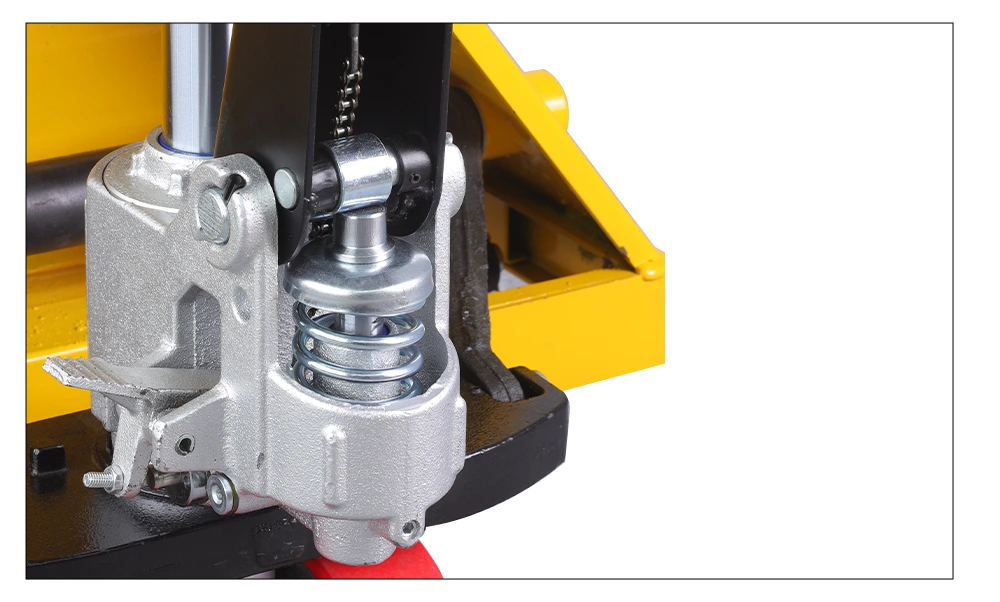

Bold and refined steel spring with easy rebound and long service life

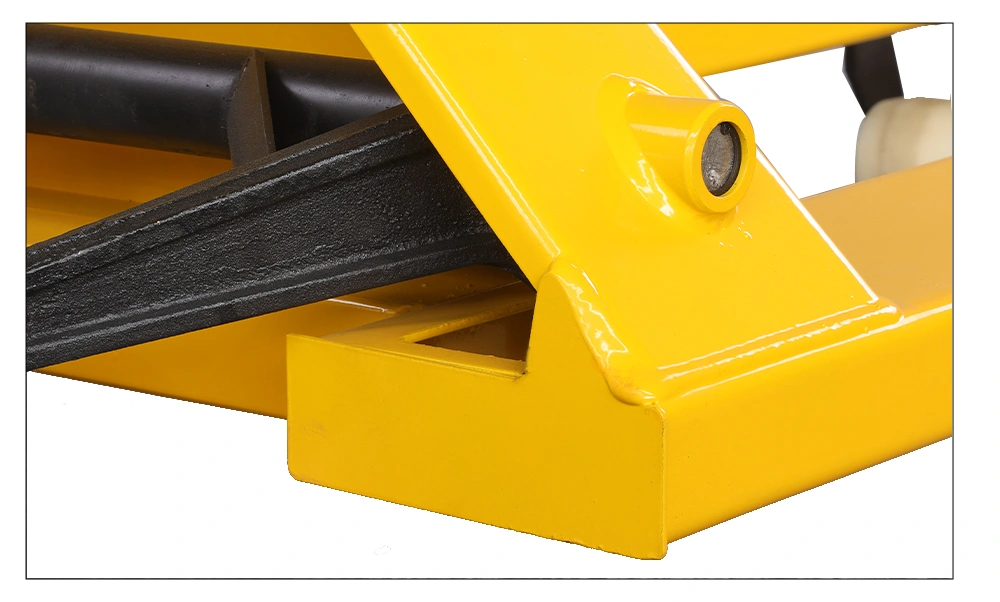

The design of reinforced ribs in a straight line has strong compressive strength
Seamless welding technology is more sturdy and safer

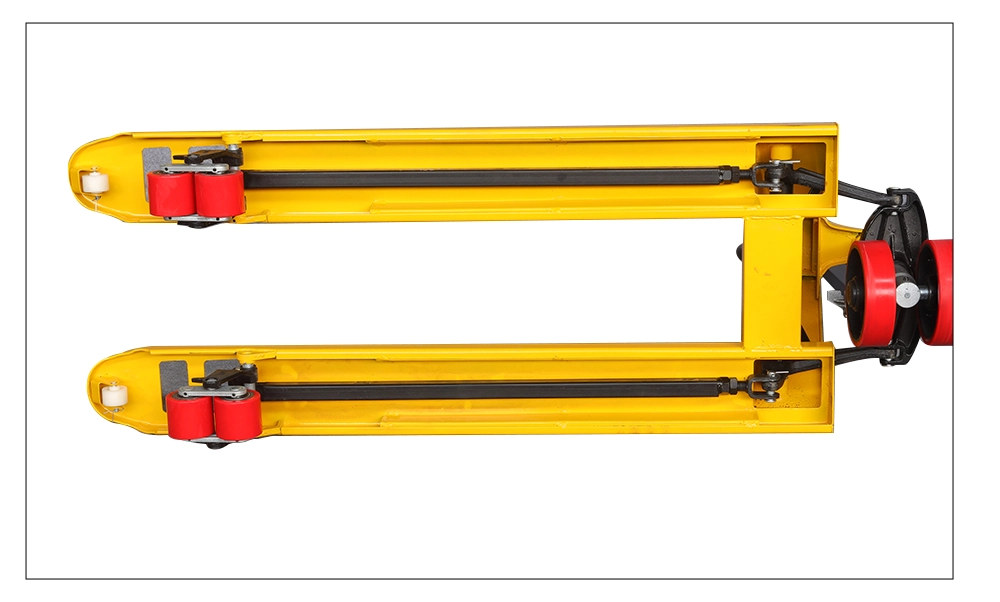

Internal structure
