Modular Machinery Skate System

Product Description

It facilitates the easy transport of large machinery, molds, equipment, and heavy loads. Equipped with high-strength rollers and wear-resistant bearings, the unit operates smoothly and steers flexibly, effectively reducing resistance and enhancing transport efficiency. Depending on operational requirements, it can be used individually or in combination with steering platforms to achieve the precise movement of large-scale equipment. It serves as an efficient solution for equipment relocation, production line installation, and heavy-load transport.

Structural Advantages of Machinery Skates

• High-Strength Alloy Steel Frame: Overall structure manufactured from robust alloy steel designed to withstand extreme load pressures and harsh industrial conditions.

• Diverse Structural Styles (Portrait, Turn-Lock & Universal): Available in specialized configurations to accommodate straight-line transit, angled positioning, and flexible 360-degree steering.

• Low Rolling Resistance & Agility: Equipped with high-quality, wear-resistant rollers and precision bearings that ensure smooth operation and agile steering.

• Modular & Combinable Deployment: Can be used individually or in coordinated sets with steering platforms to accommodate equipment of varying sizes and tonnages.

• Enhanced Safety in Confined Spaces: Eliminates the risks associated with manual shifting, making it an indispensable tool for positioning heavy machine tools, transformers, and generators.

Product Specifications

Model	Capacity	PU Wheel Net Weight (kg)	Steel Wheel Net Weight (kg)	Wheels	Product Dimensions (mm)
X4+Y4	4×4 / 8T	29	33	8	X4: 230 × 230 × 110
					Y4: 180 × 140 × 110
X8+Y8	8×8 / 16T	60	75	16	X8: 560 × 420 × 110
					Y8: 200 × 200 × 110
X12+Y12	12×12 / 24T	83	105	24	X12: 750 × 450 × 110
					Y12: 260 × 200 × 110
X16+Y16	16×16 / 32T	100	129	32	X16: 936 × 500 × 110
					Y16: 310 × 230 × 110
X18+Y18	18×18 / 36T	114	147	36	X18: 780 × 550 × 110
					Y18: 320 × 220 × 110
X24+Y24	24×24 / 48T	140	184	48	X24: 1000 × 580 × 120
					Y24: 340 × 320 × 120
X32+Y32	32×32 / 64T	187	245	64	X32: 1080 × 720 × 140
					Y32: 430 × 320 × 140

Products Details

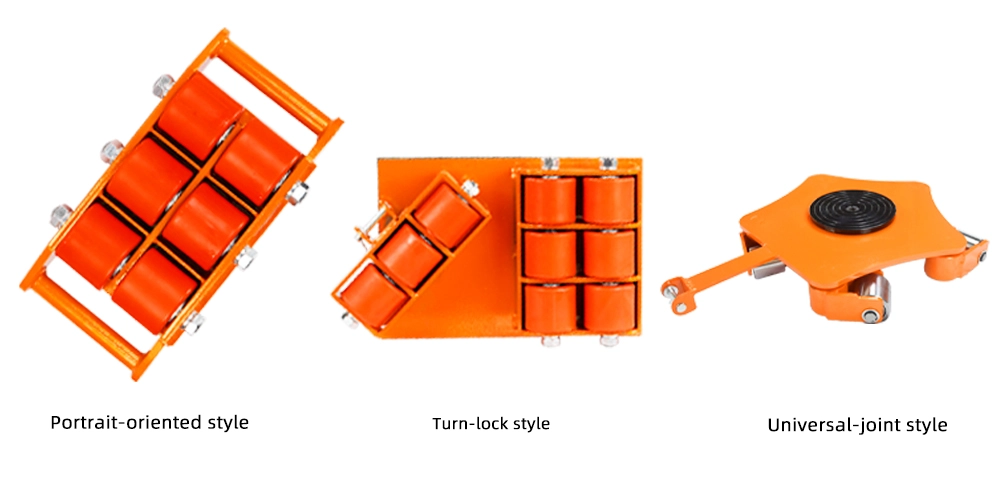

1. Core Product Styles & Configurations

• Portrait-Oriented Style:

  • Features: Features a standard parallel roller layout optimized for high-capacity, linear weight distribution and stable straight-line tracking.

  • Application: Primary load-bearing skate used in multi-point configurations for straight-line equipment hauling.

• Turn-Lock Style:

  • Features: Incorporates an adjustable locking mechanism allowing operators to lock or release directional steering angles on the fly.

  • Application: Essential for transitioning between straight transit and controlled cornering or curve maneuvers.

• Universal-Joint Style:

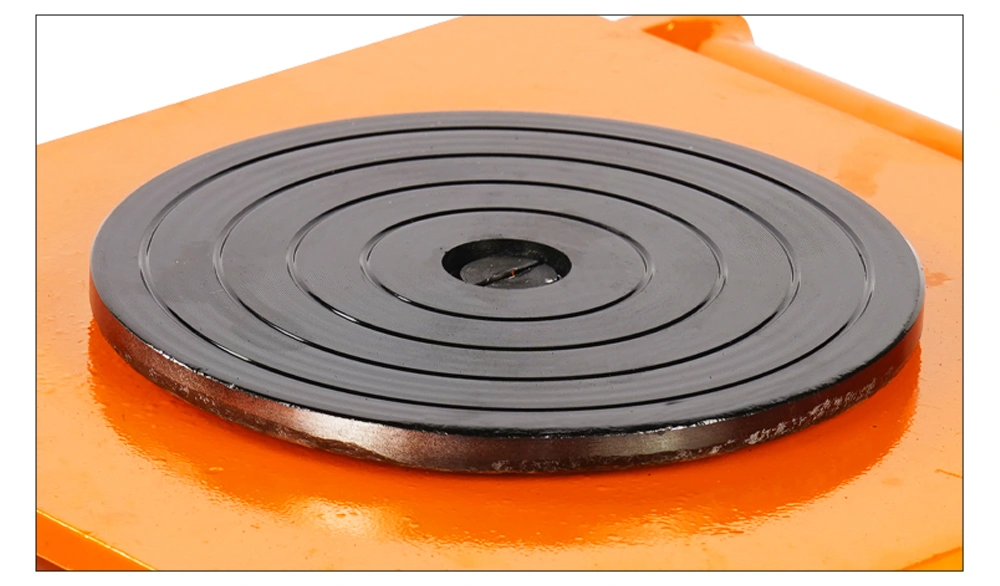

  • Features: Equipped with a rotating turntable disc and a pull-handle universal joint connector for multi-directional maneuverability.

  • Application: Positioned at the front or steering corners of heavy loads to guide precise turning trajectories.

2. Non-slip & Secure Fit

Non-slip, wear-resistant design; fits snugly against the cargo to prevent shifting or detachment.

3. Heavy-Duty Construction

Reinforced and thickened throughout for high load-bearing capacity.

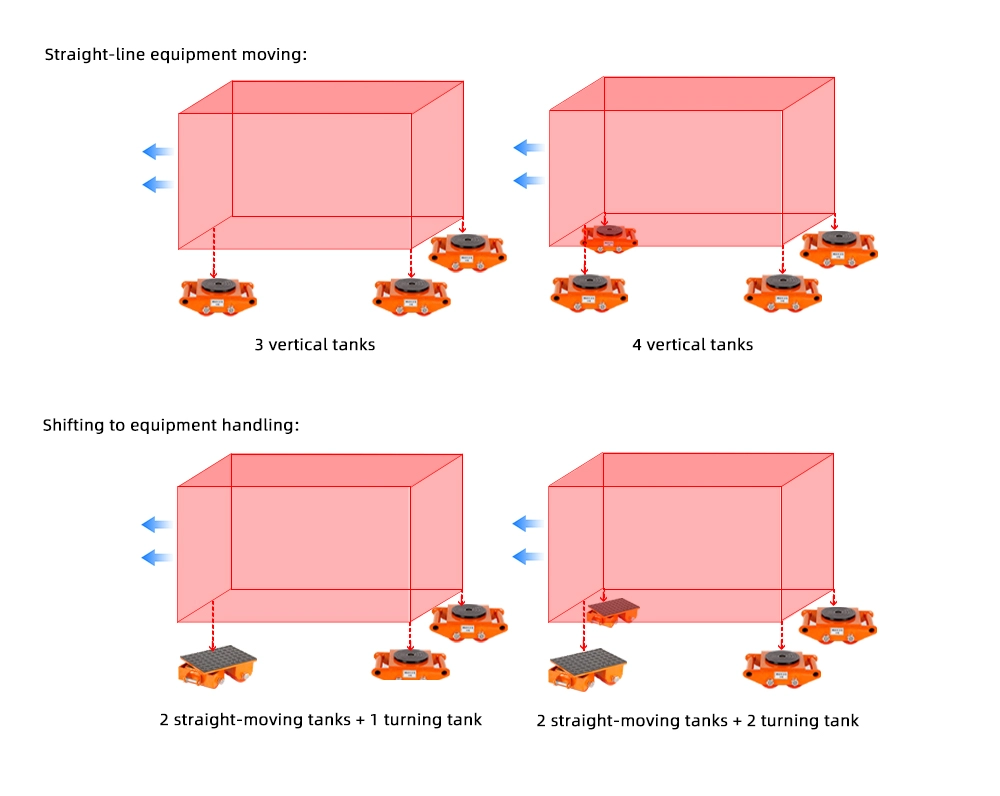

4. Operational Configurations: Straight-Line & Equipment Handling

To achieve optimal stability and maneuverability, these machinery skates can be configured into different structural layouts based on transport requirements:

Straight-Line Equipment Moving Configurations

• 3 Vertical Tanks Configuration: Utilizes three strategically placed skates under the heavy load to establish a stable triangular weight distribution for linear pulling.

• 4 Vertical Tanks Configuration: Deploys four skates (one at each corner) to provide balanced, maximum-capacity weight support for heavy, box-shaped machinery during straight-line travel.

Shifting & Steering Handling Configurations

• 2 Straight-Moving Tanks + 1 Turning Tank: Combines standard straight-line roller units with a single front turning/universal-joint tank to enable controlled steering and path corrections.

• 2 Straight-Moving Tanks + 2 Turning Tank: Features dual steering units paired with dual straight-moving skates for maximum directional flexibility, complex factory relocations, and tight corner navigation.

Roller Wheel Options & Surface Adaptation

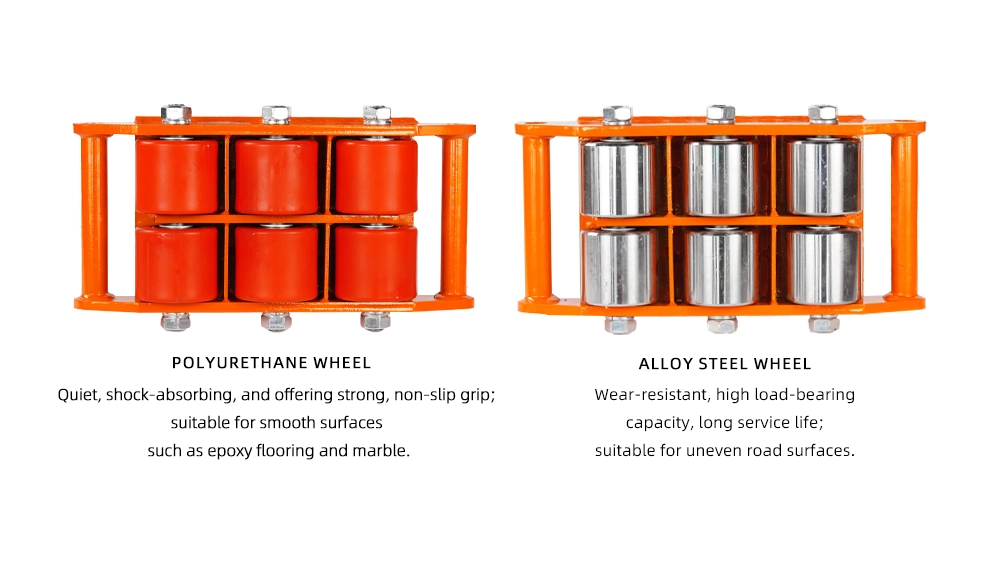

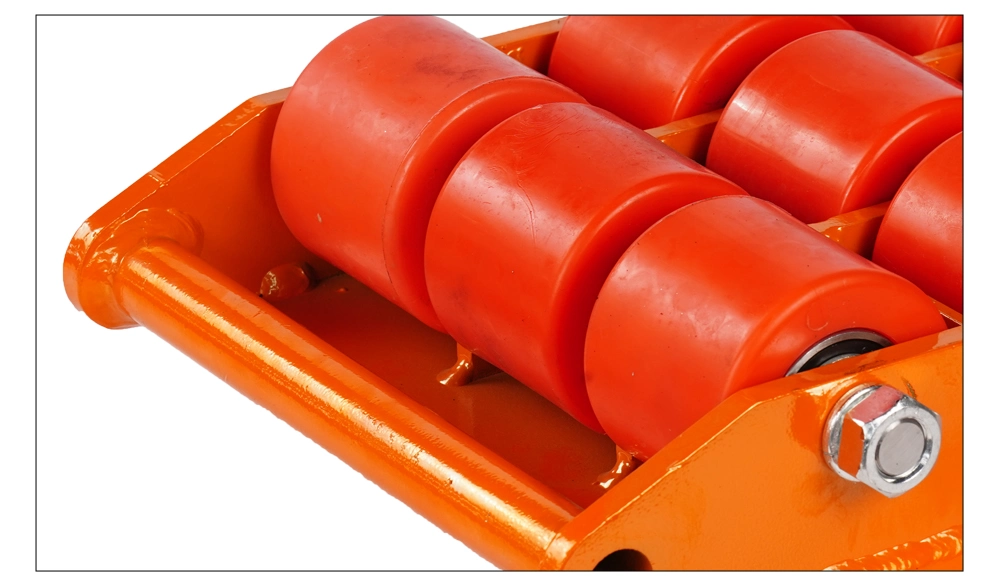

• Polyurethane wheel:

  • Features: Quiet, shock-absorbing, and offering a strong, non-slip grip.

  • Application: Ideal for smooth, finished indoor surfaces such as epoxy flooring, polished concrete, and marble, preventing surface scuffing or damage.

• Alloy steel wheel:

  • Features: Highly wear-resistant, high load-bearing capacity, and extended service life.

  • Application: Built tough for rough or uneven industrial road surfaces, outdoor concrete yards, and heavy-duty manufacturing floors.

Primary Application Scenarios

The machinery moving skates are widely deployed across multiple heavy industries for precise equipment installation and relocation:

• Machinery Manufacturing & Factory Relocation: Transporting large machine tools, stamping presses, production line machinery, and heavy industrial molds.

• Power Engineering & Petrochemicals: Moving heavy transformers, generators, boilers, and pressure vessels safely into position.

• Construction & Shipbuilding: Handling heavy structural components and machinery in confined spaces where large cranes cannot operate.

• Warehousing & Logistics: Temporary cargo shifting, heavy equipment staging, and plant maintenance operations

Quality & Safety Control Standards

As a trusted material handling equipment supplier, Benteng Hoist implements strict quality inspections across all roller skid lines:

• 100% Load-Bearing Verification: Every skate frame and roller assembly is tested under rated working loads to ensure structural safety.

• Bearing & Rotation Inspection: Precision bearings are checked for smooth, binding-free rotation under pressure.

• Surface Treatment Durability: High-visibility anti-corrosion paint finish applied to steel frames to resist rust and chemical wear in industrial plants.

B2B Customization & Wholesale Services

Benteng Hoist offers comprehensive OEM and custom manufacturing services for global industrial tool distributors and equipment rental companies:

• Custom Load Capacities: Tailored weight capacity ratings designed to match specific client handling requirements.

• Configuration Bundling: Flexible packaging of mixed sets containing portrait-oriented, turn-lock, and universal-joint styles to form complete handling kits.

• Private Labeling & Packaging: Custom brand stenciling, color powder coating, and heavy-duty export wooden crating.

Frequently Asked Questions

Q1: What is the difference between Portrait-oriented and Universal-joint styles?

A: Portrait-oriented styles are designed primarily for stable straight-line weight support, whereas universal-joint styles feature a rotating turntable and handle for flexible steering and guiding heavy loads around corners.

Q2: How many skates should I use for a heavy rectangular machine?

A: Typically, 4 vertical tanks (one under each corner) are used for maximum stability. For steering and maneuvering, a combination such as 2 straight-moving tanks and 1 or 2 turning tanks is recommended.

Q3: Can these machinery skates be combined with steering platforms?

A: Yes. Depending on operational requirements, they can be used individually or combined with multiple units and steering platforms to achieve precise multi-directional movement.
