360-Degree Steering Material Handling Cart

360 Degree Machinery Moving Skates Description

It facilitates the easy transport of large machinery, molds, equipment, and heavy loads. Equipped with high-strength rollers and wear-resistant bearings, the unit operates smoothly and steers flexibly, effectively reducing resistance and enhancing transport efficiency. Depending on operational requirements, it can be used individually or in combination with steering platforms to achieve the precise movement of large-scale equipment. It serves as an efficient solution for equipment relocation, production line installation, and heavy-load transport.

Product Advantages

• Robust Alloy Steel Construction: Built from high-strength alloy steel to ensure a rigid, durable, and impact-resistant framework for extreme industrial environments.

• Low Rolling Resistance & Agile Steering: Fitted with premium wear-resistant rollers and precision bearings that guarantee smooth movement, minimal friction, and flexible 360-degree turning.

• Modular & Versatile Deployment: Can be operated individually or combined with multiple units and steering platforms to accommodate diverse equipment tonnages and dimensions.

• Safe & Low-Maintenance Operation: User-friendly design that simplifies heavy-load handling, reduces physical strain on operators, and minimizes workplace safety risks.

Product Specifications

Specification	Net weight of plastic wheel（kg）	Net weight of PU wheel（kg）	Net weight of steel wheel（kg）	Number of wheels	Product Dimensions（mm）
3T	18	20	21	3	360×440×120
4T	29	31	33	4	360×670×120
5T	32	35	37	5	500×690×120
8T	33	36	38	8	390×505×120

Primary Application Scenarios

Our 360 degree machinery skates are widely deployed across heavy industries for precise equipment installation and relocation:

• Machinery Manufacturing & Factory Operations: Ideal for transporting large machine tools, stamping presses, production line machinery, and heavy industrial molds.

• Power Engineering & Petrochemicals: Designed for safe positioning of heavy transformers, industrial generators, boilers, and pressure vessels.

• Warehousing & Construction: Perfectly suited for confined spaces where large-scale cranes or forklifts cannot be deployed. When paired with hydraulic jacks, lifting tools, and rotating platforms, they guarantee safe, stable transport.

• Shipbuilding & Railway Maintenance: Trusted by global operators to boost handling efficiency, minimize manual labor intensity, and maximize operational safety during heavy equipment positioning.

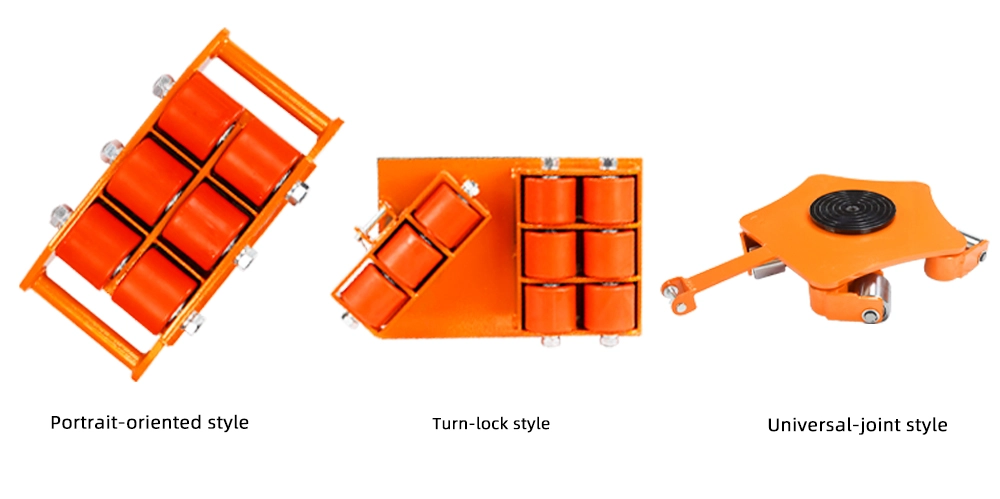

Key Structural Styles & Configurations

• Portrait-Oriented Style: Features a standard parallel roller layout optimized for high-capacity, linear weight distribution and stable straight-line tracking.

• Turn-Lock Style: Incorporates an adjustable locking mechanism allowing operators to lock or release directional steering angles on the fly.

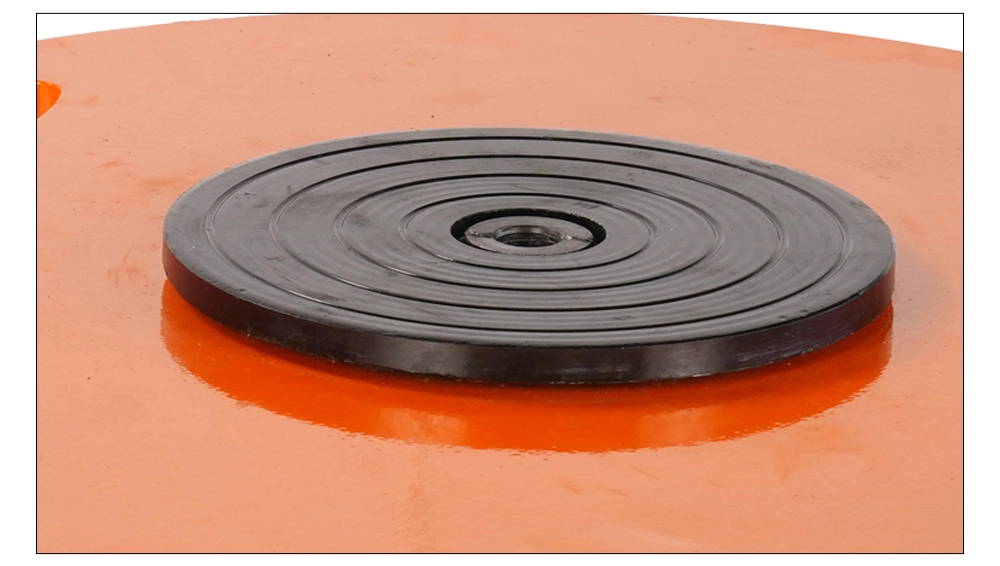

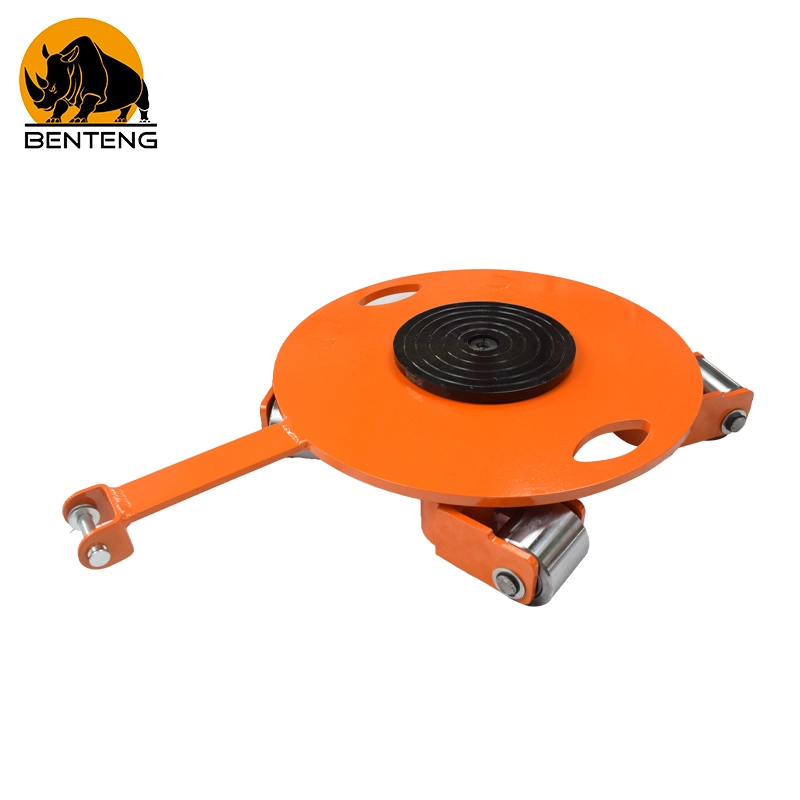

• Universal-Joint Style: Equipped with a rotating turntable disc and a pull-handle universal joint connector for multi-directional maneuverability.

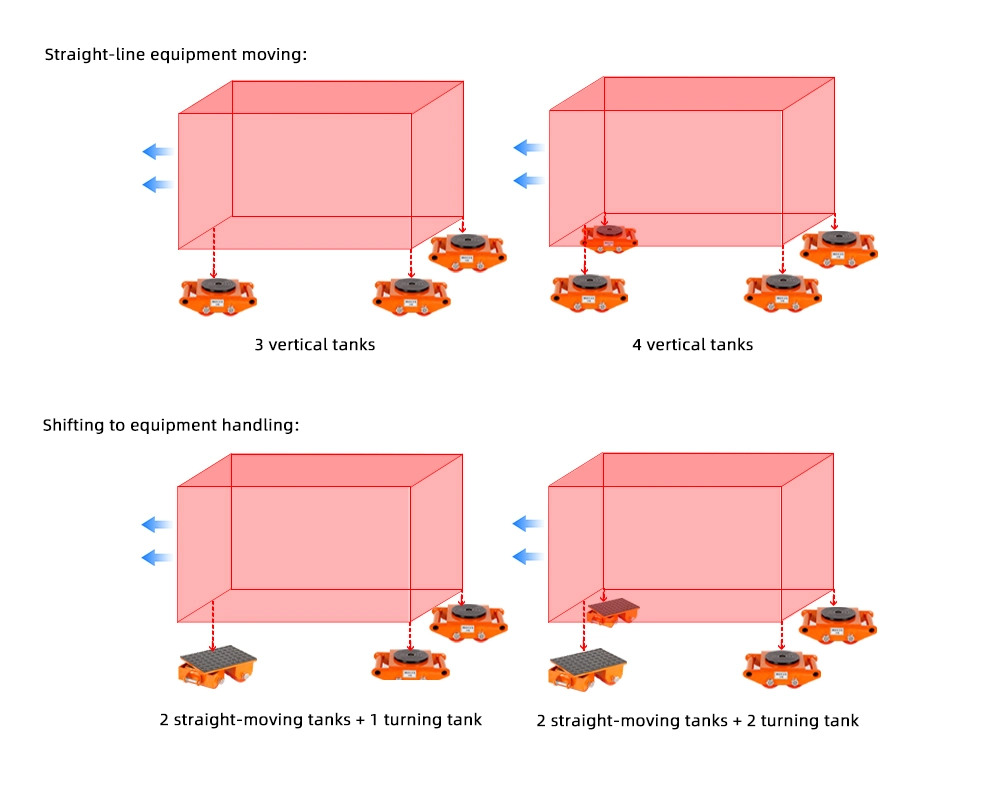

Operational Layouts: Straight-Line & Steering Handling

To achieve optimal stability and maneuverability, these machinery skates can be configured into different structural layouts based on transport requirements:

1. Straight-Line Equipment Moving

• 3 Vertical Tanks Configuration: Utilizes three strategically placed skates under the heavy load to establish a stable triangular weight distribution for linear pulling.

• 4 Vertical Tanks Configuration: Deploys four skates (one at each corner) to provide balanced, maximum-capacity weight support for heavy, box-shaped machinery during straight-line travel.

2. Shifting & Steering Handling

• 2 Straight-Moving Tanks + 1 Turning Tank: Combines standard straight-line roller units with a single front turning/universal-joint tank to enable controlled steering and path corrections.

• 2 Straight-Moving Tanks + 2 Turning Tanks: Features dual steering units paired with dual straight-moving skates for maximum directional flexibility, complex factory relocations, and tight corner navigation.

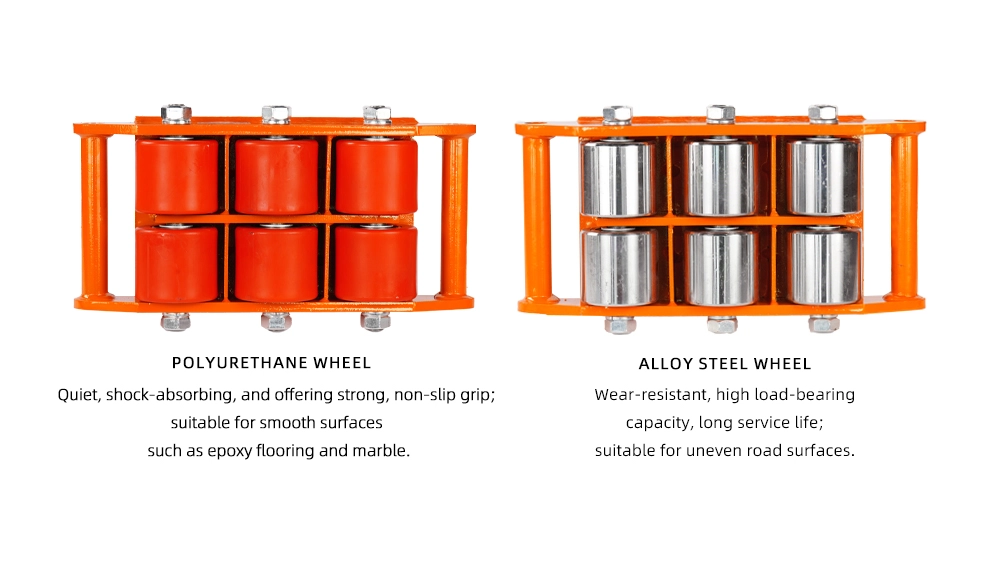

PU and Steel Wheel Options for Different Surfaces

Select the appropriate wheel configuration based on the weight of the goods and the surface conditions of the transport route:

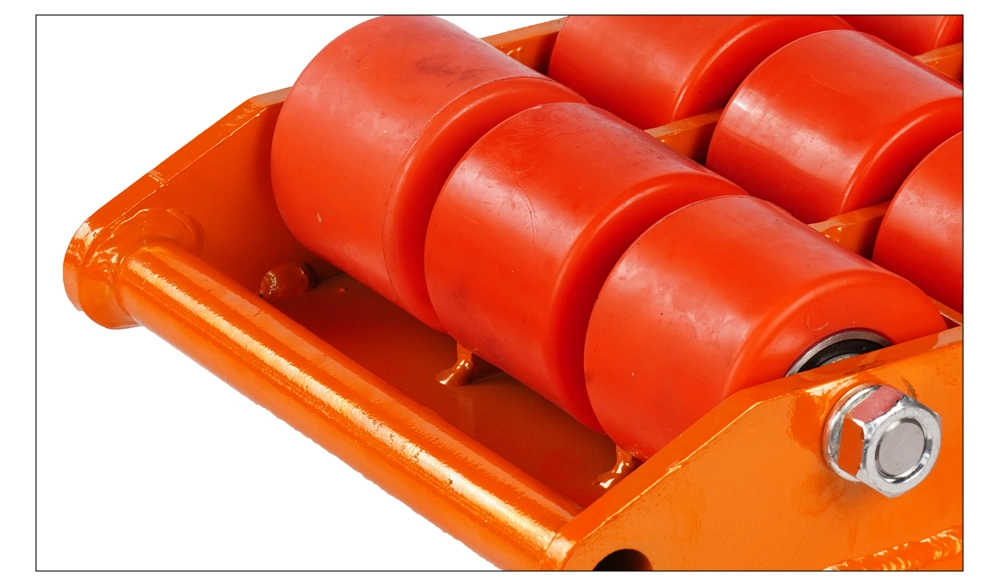

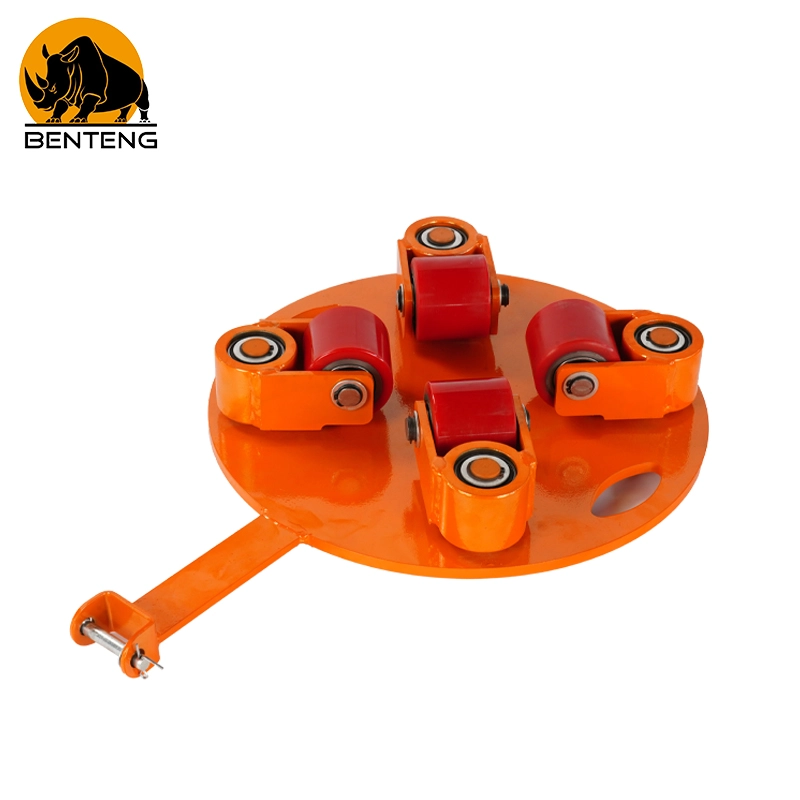

• PU Wheels for Indoor Industrial Floors: Quiet, shock-absorbing, and offering a strong, non-slip grip; ideal for smooth surfaces such as epoxy flooring, polished concrete, and marble.

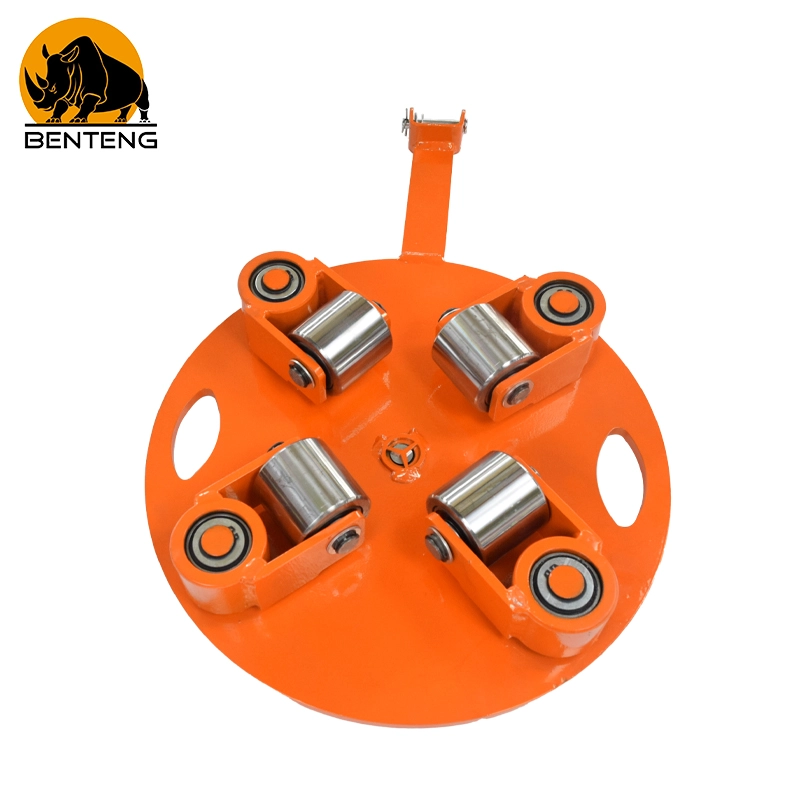

• Steel Wheels for Heavy-Duty Applications: Highly wear-resistant, high load-bearing capacity, and long service life; built tough for rough or uneven outdoor road surfaces.

Wheel Type	Recommended Application	Key Characteristics
PU Wheel	Factory floors, epoxy floors, warehouses	Quiet, shock-absorbing, floor-protecting
Steel Wheel	Outdoor areas, uneven surfaces, heavy loads	Highly wear-resistant, maximum durability

Products Details

• Surface Adaptation: Adapts to various floor surfaces for effortless, stress-free transport.

• Non-slip & Secure Fit: Non-slip, wear-resistant design; fits snugly against the cargo to prevent shifting or detachment.

• Heavy-Duty Construction: Reinforced and thickened throughout for high load-bearing capacity.

• Flexible Selection: Select one of the following configurations based on the weight of the goods and the surface conditions of the transport route.

• Complete Specifications: Complete range of specifications; select according to your needs.

How to Choose the Right Machinery Skates

Consideration	Recommendation
Load Weight	Select a weight capacity rating higher than the total equipment weight.
Moving Direction	Choose steering and universal-joint models for frequent direction changes.
Floor Condition	Opt for PU wheels for indoor finished floors; choose steel wheels for rough terrain.
Equipment Shape	Use multiple skates in a 3 or 4-point layout for oversized or rectangular loads.

Frequently Asked Questions

Q1: What are 360 degree machinery skates used for?

A: They are engineered for the safe, precise transport, positioning, and relocation of heavy machinery, industrial molds, and oversized equipment in restricted spaces.

Q2: How do machinery skates move heavy equipment?

A: They distribute heavy loads onto high-strength rollers and precision bearings, drastically reducing friction and allowing heavy objects to be pulled or steered smoothly across floors.

Q3: What is the difference between PU wheels and steel wheels?

A: PU wheels protect smooth indoor floors (like epoxy or marble) and provide quiet operation, while steel wheels offer maximum durability and wear resistance for rough or uneven surfaces.

Q4: Can machinery skates be used in confined spaces?

A: Yes. They are specifically designed for environments where large-scale lifting equipment like cranes or forklifts cannot operate.

Q5: How many skates are required for moving heavy machinery?

A: Typically, 3 skates form a stable triangular support, while 4 skates (one under each corner) provide balanced support for rectangular equipment. Steering models can be added for directional control.
