Heavy Duty Electric Hoist Winch 1T–5T

Heavy Duty Electric Hoist Winch Description

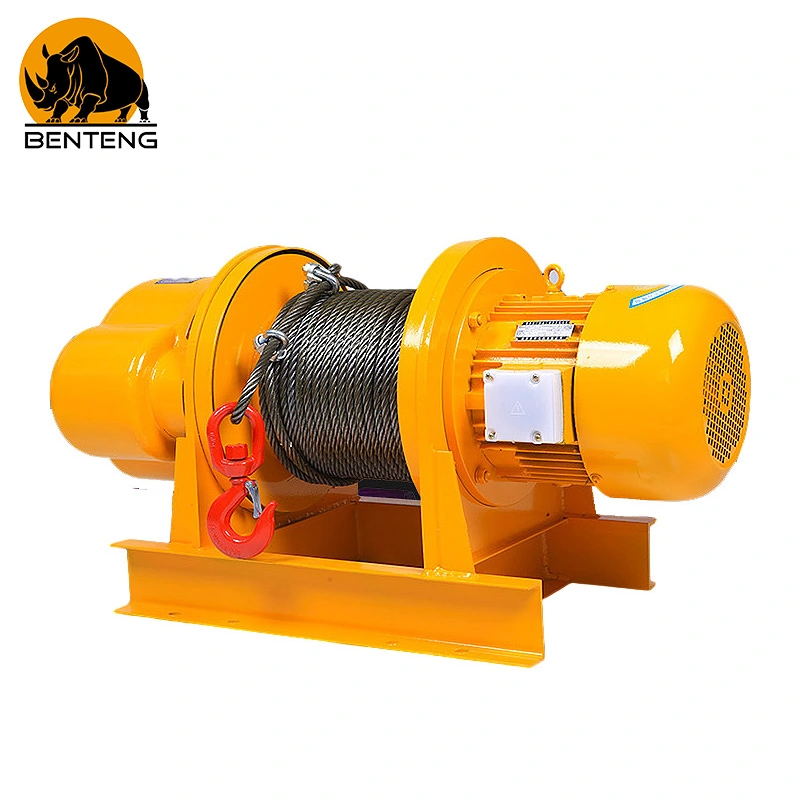

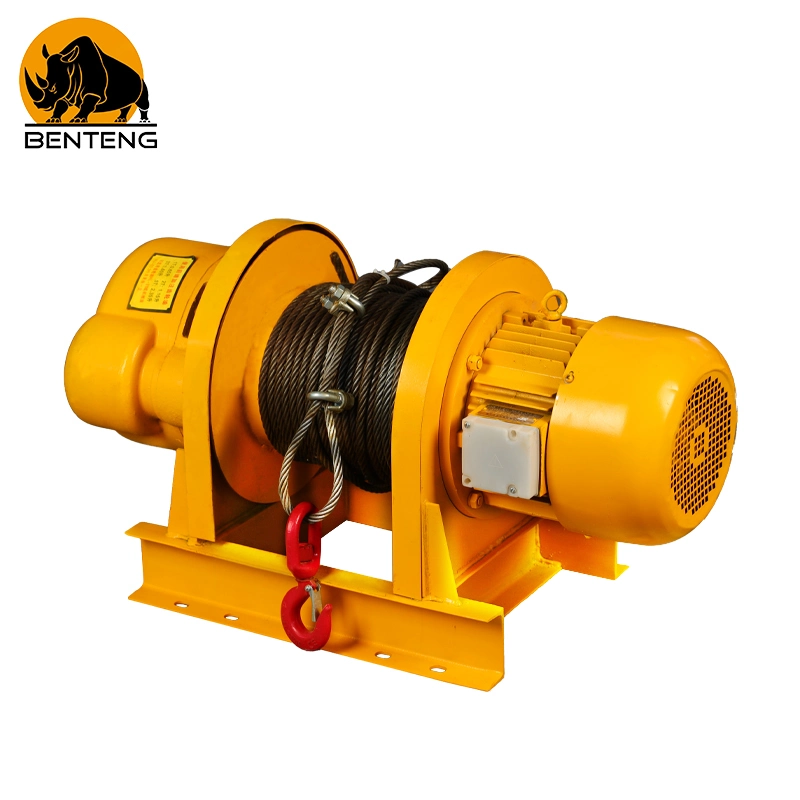

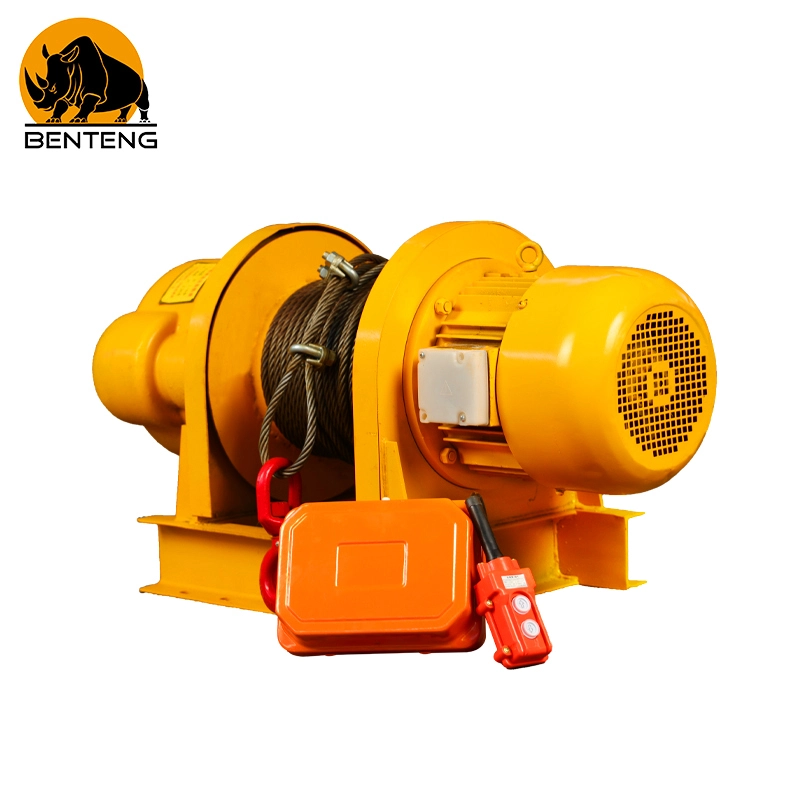

Heavy Duty Electric Hoist Winch is a heavy-duty electric traction system engineered for versatile vertical material hoisting, horizontal towing, and equipment positioning across challenging job sites. Designed with an inline straight-line mechanical architecture, this high-traction winch integrates a high-torque motor, a precision quenched reduction gearbox, a heavy-duty drum, and a reinforced structural steel base to deliver exceptional towing capacity, smooth operational stability, and minimal noise.

Unlike standard overhead hoists mounted exclusively on I-beams, this straight-line electric winch offers flexible ground or platform installation. Available in standardized rated capacities of 1 Ton, 2 Ton, 3 Ton, and 5 Ton, it serves as an ideal alternative or complement to a traditional heavy duty wire rope hoist. Whether pulling structural formwork on construction sites or moving heavy machinery across factory floors, this multi-angle industrial electric hoist winch delivers dependable power for heavy-duty material handling.

Core Advantages & Operational Benefits

• Dual-Functionality (Lifting & Towing): Engineered to execute vertical load lifting, straight-line horizontal pulling, and inclined equipment towing with high traction power.

• Reinforced Channel Steel Base: Built with a thickened steel groove base frame that absorbs vibration, ensures structural rigidity, and simplifies bolting to concrete floors, steel frames, or mobile trailers.

• High Efficiency & Dual-Speed Output: Provides configurable line speeds (8/16 m/min) powered by heavy-duty copper-wound motors (1.5 kW to 7.5 kW) for rapid duty cycles.

• Quenched Alloy Transmission System: Features heat-treated gear sets inside a fully sealed gear housing to maximize torque transfer and withstand extreme sudden shock loads.

• Continuous Thermal Dissipation: Equipped with an expanded 8-blade cooling fan that maintains stable operating temperatures during prolonged high-frequency pulling operations.

Product Specifications

Model	1T	2T	3T	5T
Rated Capacity	1 Ton	2 Ton	3 Ton	5 Ton
Voltage (V)	380	380	380	380
Motor Power (kW)	1.5	3	4.5	7.5
Lifting Speed (m/min)	8/16(m/min)	8/16(m/min)	8/16(m/min)	8/16(m/min)
Wire Rope Diameter (mm)	8	11	13	15
Overall Length (mm)	800	830	950	1100
Overall Height (mm)	390	510	520	600
Overall Width (mm)	320	430	460	530
Net Weight (kg)	80	130	160	260

Industrial Applications

The heavy duty electric hoist winch provides versatile traction and hoisting solutions across diverse engineering sectors:

• Civil & Commercial Construction Sites: Used for vertical transport and horizontal drag-positioning of steel reinforcement bars, concrete formwork, and scaffolding materials.

• Bridge, Highway & Infrastructure Engineering: Facilitates precast beam positioning, high-altitude component hoisting, cable tensioning, and heavy equipment towing.

• Mining, Docks & Heavy Logistics: Powers heavy machinery relocation, vessel mooring, dockside cargo dragging, and bulk material transfer in mining facilities.

• Manufacturing Facilities & Plant Maintenance: Supports heavy mold positioning, production line alignment, generator installation, and heavy component maneuvering.

• Shipbuilding, Water Conservancy & Power Projects: Delivers reliable pulling power for hull section assembly, dam maintenance, and power line installation under complex outdoor conditions.

Component Breakdown

• Thickened Structural Channel Steel Base: Heavy-gauge welded steel groove frame delivers a rock-solid mounting foundation, preventing base deformation during maximum traction loads.

• High-Torque Motor with 8-Blade Fan: Pure copper motor windings coupled with a large 8-blade cooling fan provide rapid heat dissipation, ensuring uninterrupted continuous operation.

• Quenched Hardened Gearbox: Precision-machined, oil-bathed gear transmission utilizes induction-hardened steel gears for high load capacity, silent meshing, and long wear life.

• Wear-Resistant Galvanized Steel Rope: Thickened high-tensile steel wire rope offers excellent abrasion resistance, high breaking strength, and minimal stretch during heavy towing.

• Fail-Safe Mechanical Brake System: Instantaneous automatic braking engages upon power disconnection to lock the drum securely and prevent load slippage.

Products Details

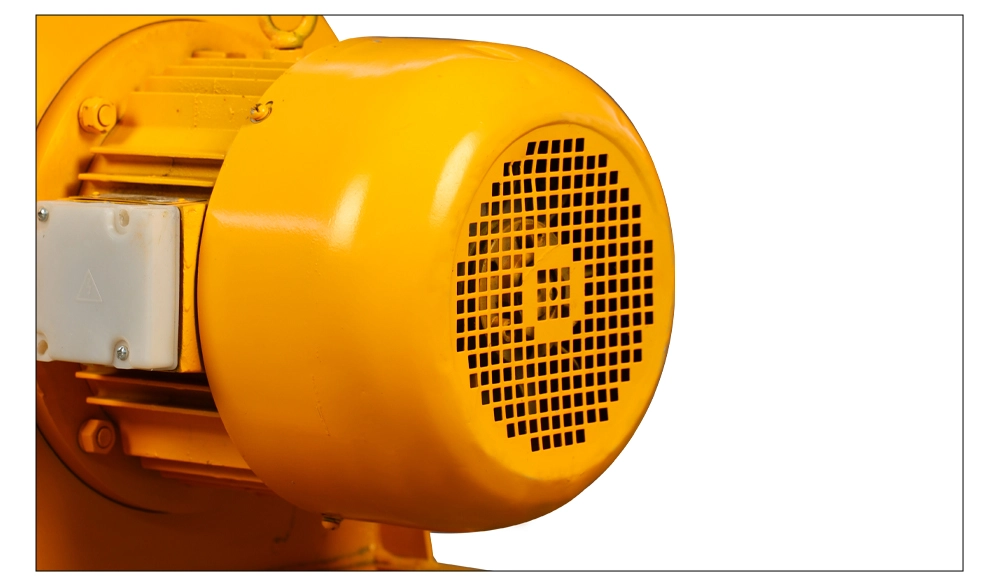

Full size 8-blade fan Fast heat dissipation

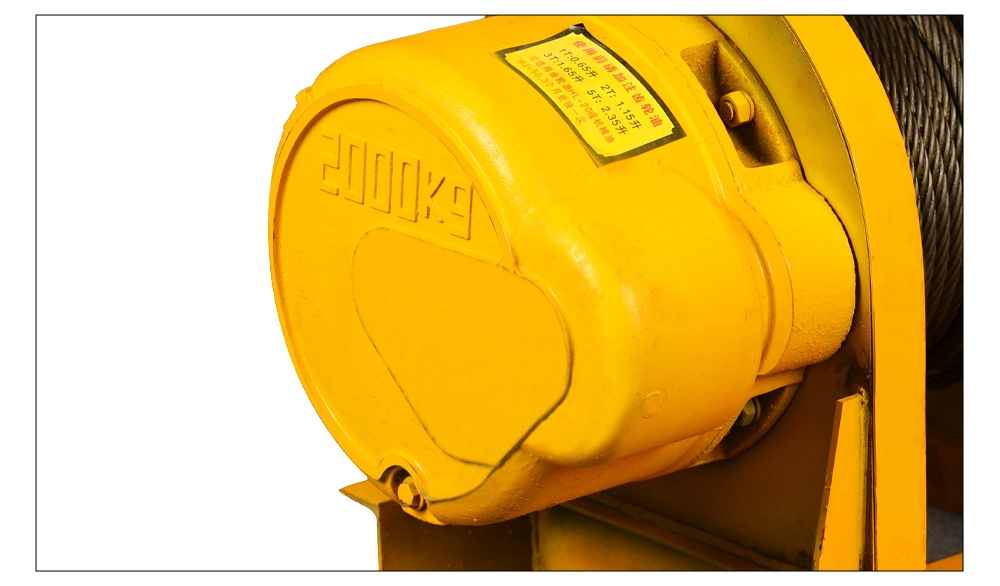

gear transmission box Quenched gears

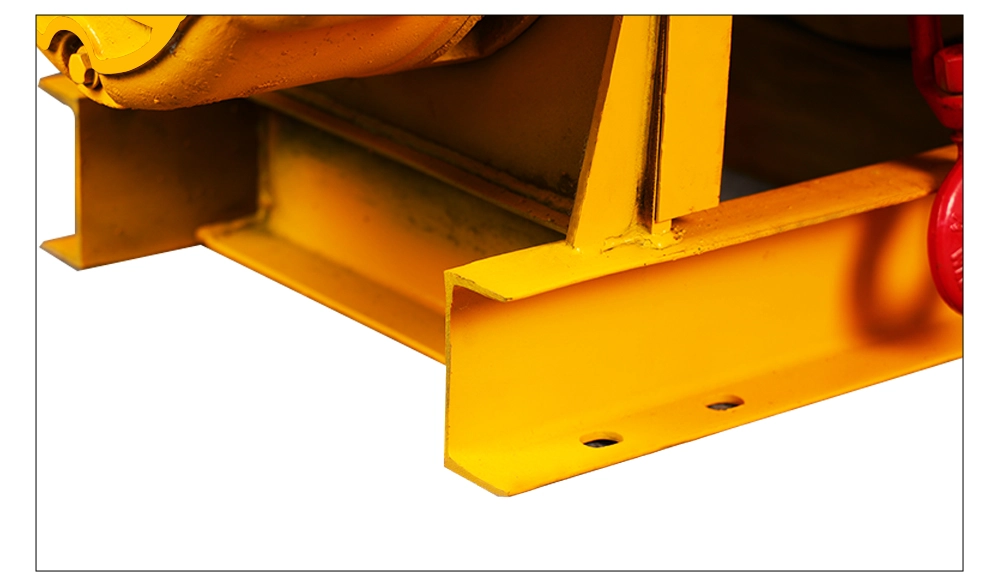

Thickened steel groove base

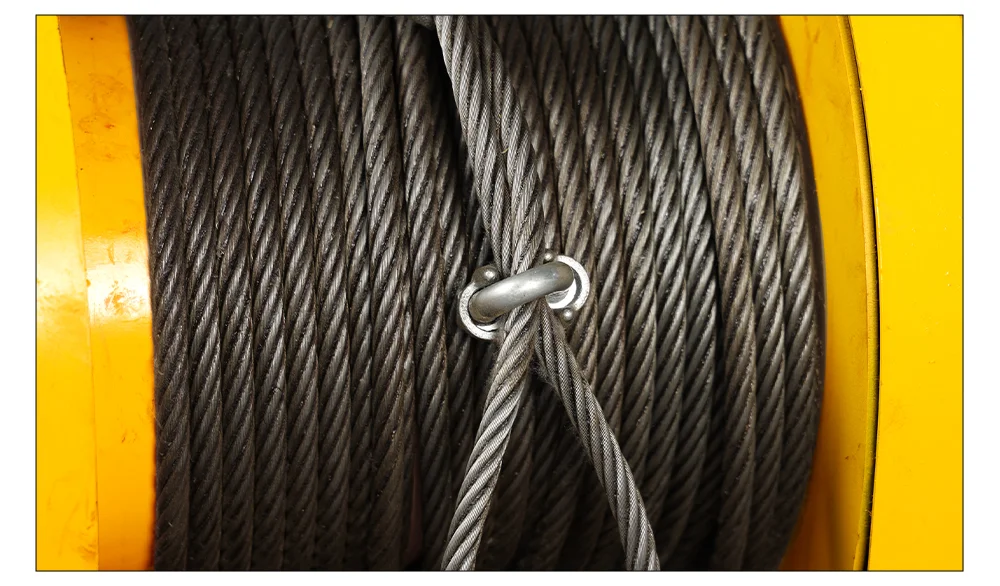

Thickened steel wire rope Wear-resistant

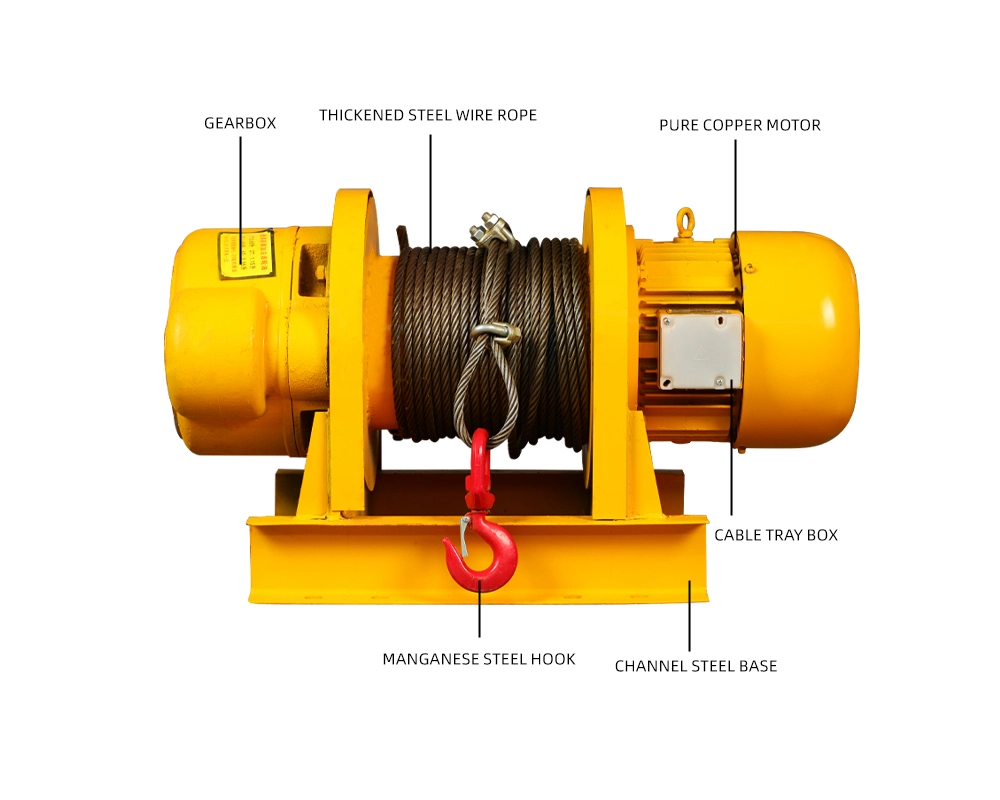

Internal Structure

• Hardened Gearbox: Sealed alloy gearbox for high torque transfer and low noise.
• Thickened Wire Rope: High-tensile galvanized steel rope resistant to wear and deformation.
• Pure Copper Motor: High-efficiency copper winding motor built for continuous operations.
• Sealed Terminal Box: Weatherproof enclosure protecting internal electrical connections.
• Channel Steel Base: Heavy-duty structural base frame for secure bolting and high shock resistance.
• Manganese Steel Hook: Drop-forged safety hook equipped with a spring protection latch.
