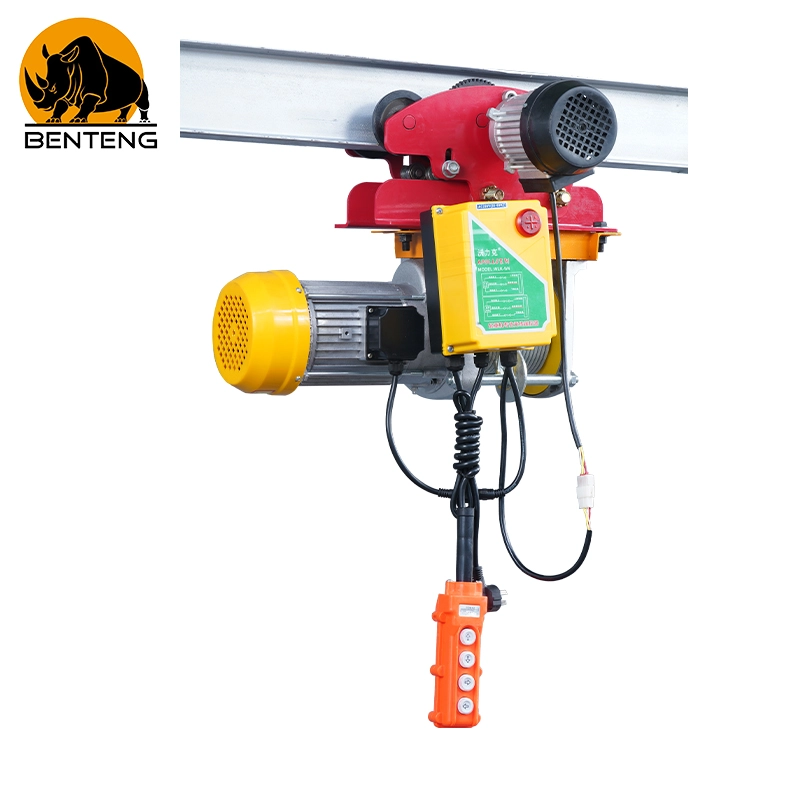

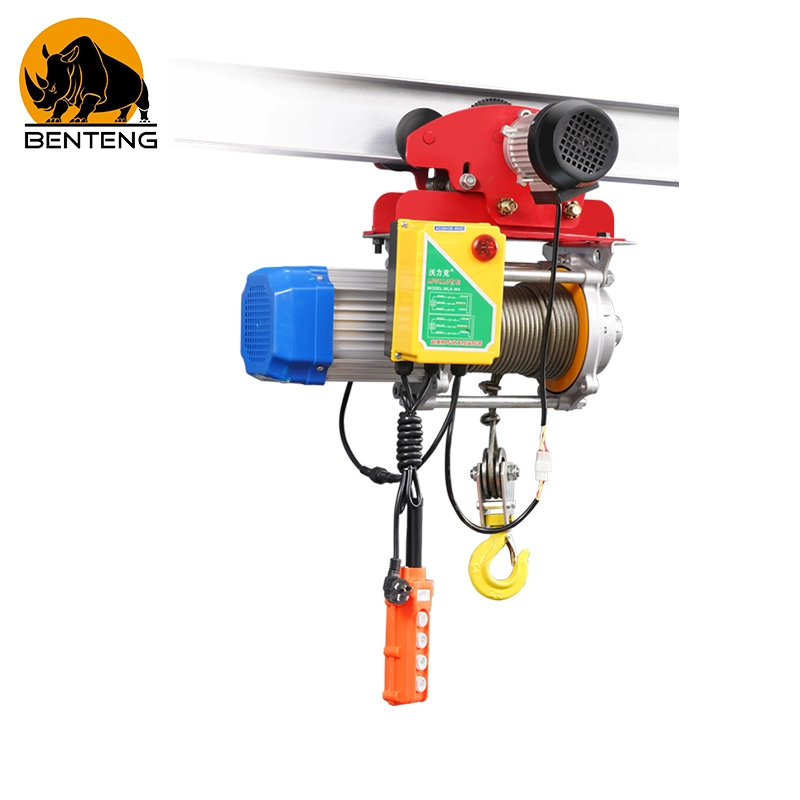

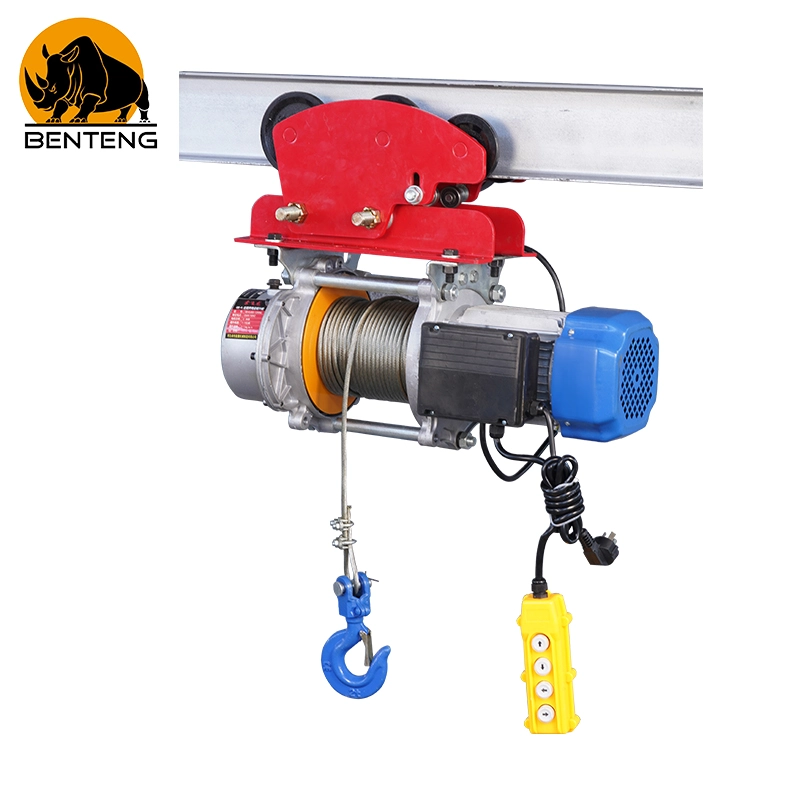

Multi-Function Electric Hoist with Trolley

Multi-Function Operation: Combines lifting, hoisting, traction, and trolley movement functions to meet diverse material handling requirements.
Powerful Performance: High-efficiency copper motor and precision reduction mechanism provide stable power, smooth operation, and reliable lifting.
Flexible Movement Design: Integrated trolley system enables convenient horizontal transportation and improves handling efficiency in various workplaces.
Durable & Safe Structure: High-quality wire rope, reliable braking system, and rainproof control handle ensure long service life and secure operation.

Product Detail

Multi-Function Electric Hoist with Trolley Description

Electric Trolley Multi-Function Hoist integrates vertical lifting efficiency with seamless motorized horizontal travel along I-beam and H-beam overhead tracks. Purpose-built for modern industrial facilities requiring both vertical elevation and lateral displacement, this dual-component system eliminates manual load pushing, drastically reducing worker fatigue and operational bottlenecking on high-volume production lines.

Constructed with an independent motorized traveling trolley, high-efficiency pure copper motors, non-rotating steel cables, and weather-sealed IP pendant switches, this system supports load capacities from 1000 kg up to 2500 kg. Powered by flexible 220V single-phase or 380V three-phase electrical configurations with dual-line hoisting speeds (14 m/min single fall and 7 m/min double fall), this automated unit delivers a high-flexibility solution compared to a stationary heavy duty wire rope hoist or fixed overhead crane.

Core Technical Advantages & Operational Value

Motorized Monorail Traverse System: Equipped with an integrated motorized trolley designed for smooth motorized travel across varied beam flange widths.
Dual Power Grid Engineering: Available in standard 220V single-phase for light commercial workshops or 380V three-phase for continuous heavy industrial plant environments.
Variable Mechanical Speed Configurations: Features a dual-hook setup allowing operators to choose between a fast 14 m/min single-line hoist or a heavy 7 m/min double-line pull.
Thermally Efficient Copper Windings: Premium copper motor stator reduces electrical resistance and heat buildup during continuous cross-factory shuttle transport.
Integrated Multi-Axis Controls: Single rainproof control pendant governs both vertical lifting/lowering and horizontal left/right trolley travel with built-in emergency stop functionality.

Product Specifications

Model number	power	Wire rope diameter	Lifting speed
220V 1000kg	2200w	6mm	7m/min;14m/min
220V 1200kg	3000w	6mm	7m/min;14m/min
220V 1500kg	4000w	7mm	7m/min;14m/min
220V 2500kg	5000w	10mm	7m/min;14m/min
380V 1000kg	2000w	6mm	7m/min;14m/min
380V 1200kg	2600w	6mm	7m/min;14m/min
380V 1500kg	3000w	7mm	7m/min;14m/min
380V 2500kg	5000w	10mm	7m/min;14m/min

Workstation Applications & Deployments

The electric trolley multi-function hoist is optimized for linear material transport across diverse sector environments:

Automotive & Machinery Assembly Lines: Moves engine blocks, heavy metal stamping dies, and vehicle components smoothly along overhead monorail tracks between assembly stations.
Commercial Warehouses & Logistics Hubs: Enables rapid loading, unloading, and cross-bay transfer of heavy wooden crates and palletized inventory across storage bays.
Construction Beam Installations & Scaffolding: Mounted to horizontal beam spans on building sites for hoisting and moving steel rebar, concrete forms, and masonry supplies laterally.
Maintenance & Equipment Service Depots: Suspends and maneuvers pump assemblies, heavy valves, electric generators, and machine parts into precise alignment during maintenance overhaul.

Component Level Engineering Details

Precision Motorized Traveling Trolley: Features hardened steel wheels and side guide rollers designed to track smoothly along I-beams without excessive flange binding or track wear.
Low-Loss Pure Copper Motor Core: High-grade copper winding design delivers maximum power efficiency with low energy consumption and heat dissipation.
High-Volume Motor Cooling Fan: Full-sized multi-blade cooling fan generates rapid airflow over the motor casing to maintain low operating temperatures during prolonged shifts.
Anti-Twist Galvanized Steel Cable: Multi-strand anti-rotation steel wire rope prevents load spinning, ensuring smooth vertical movement during elevated lifts.
Weatherproof Multi-Button Pendant: Impact-resistant, rainproof control handle controls both hoist lifting and trolley travel with immediate button response.

Products Details

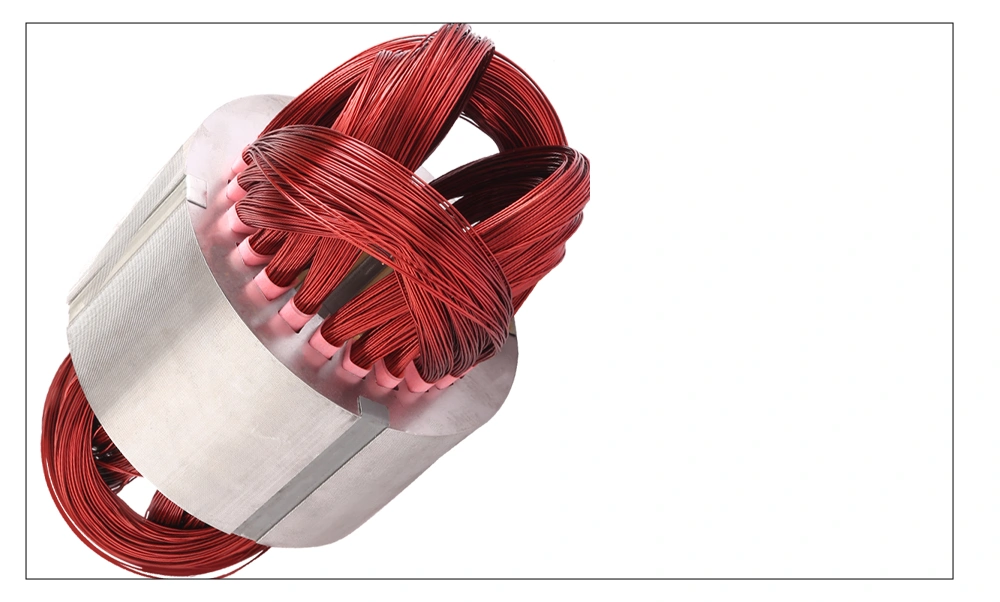

High-quality copper motors have low losses and high efficiency.

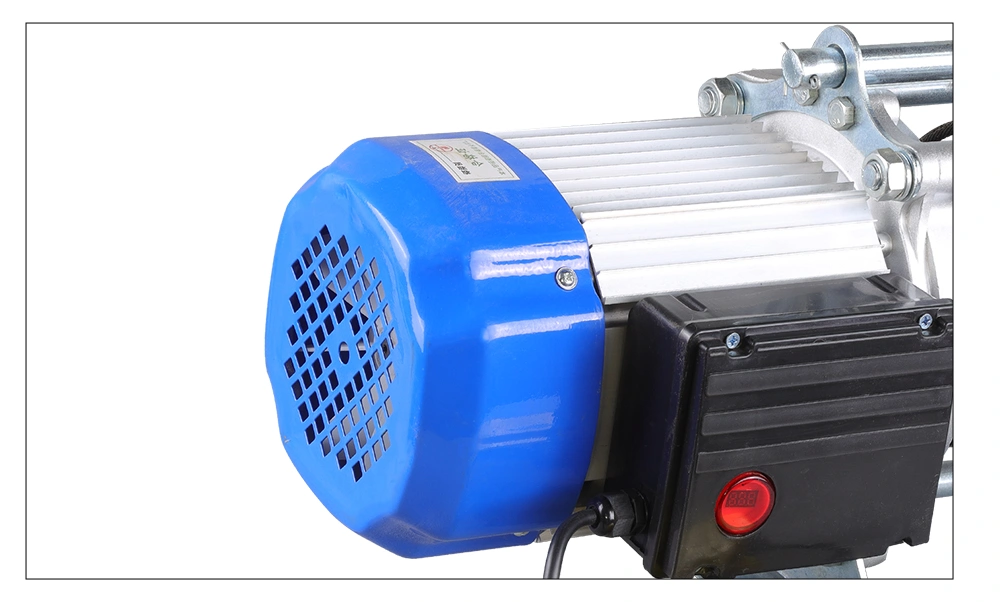

Full-size large fan for rapid heat dissipation without overheating

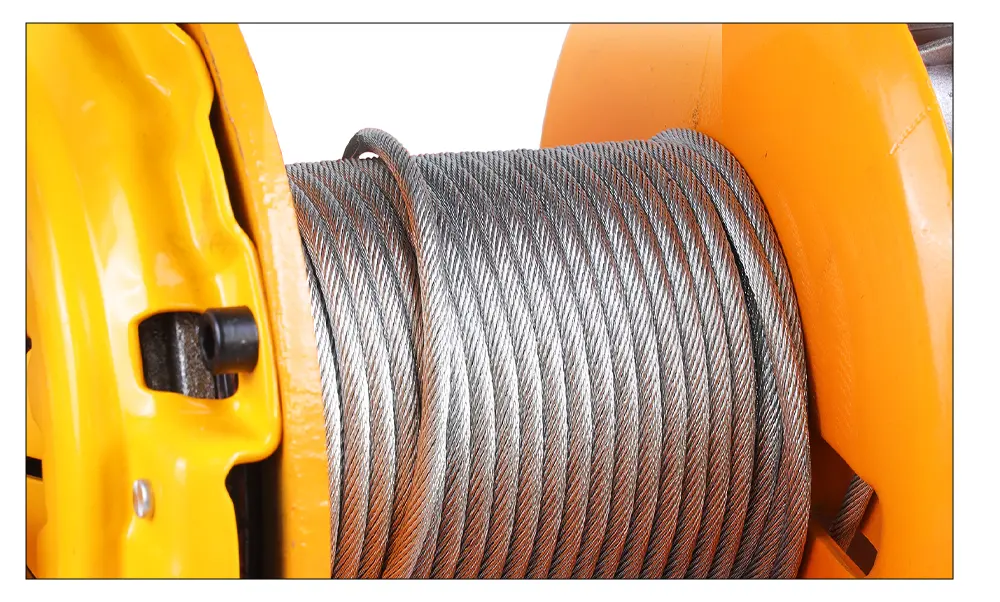

High-quality anti-rotation steel wire rope

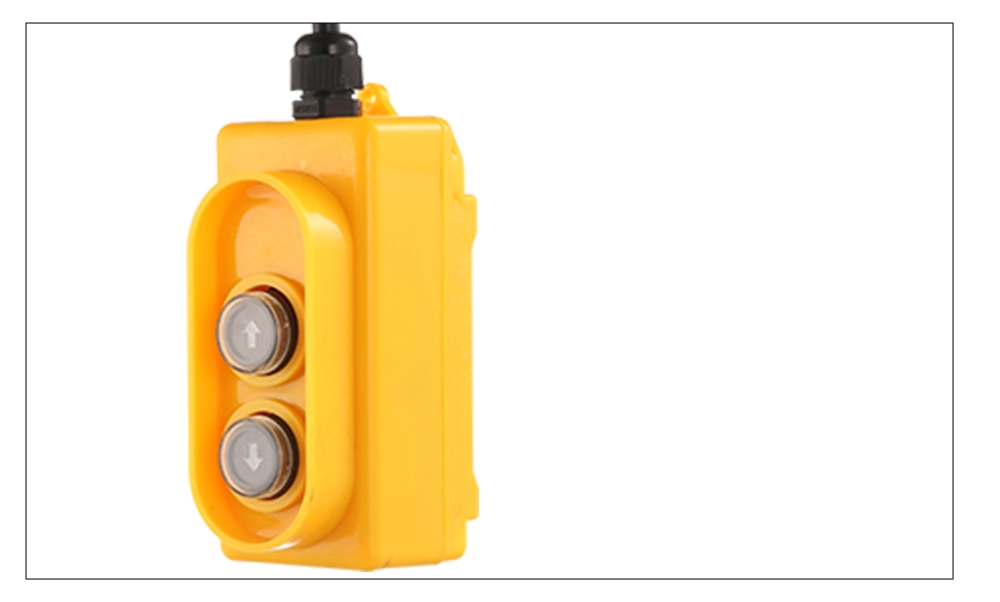

Rainproof and dustproof operating handle

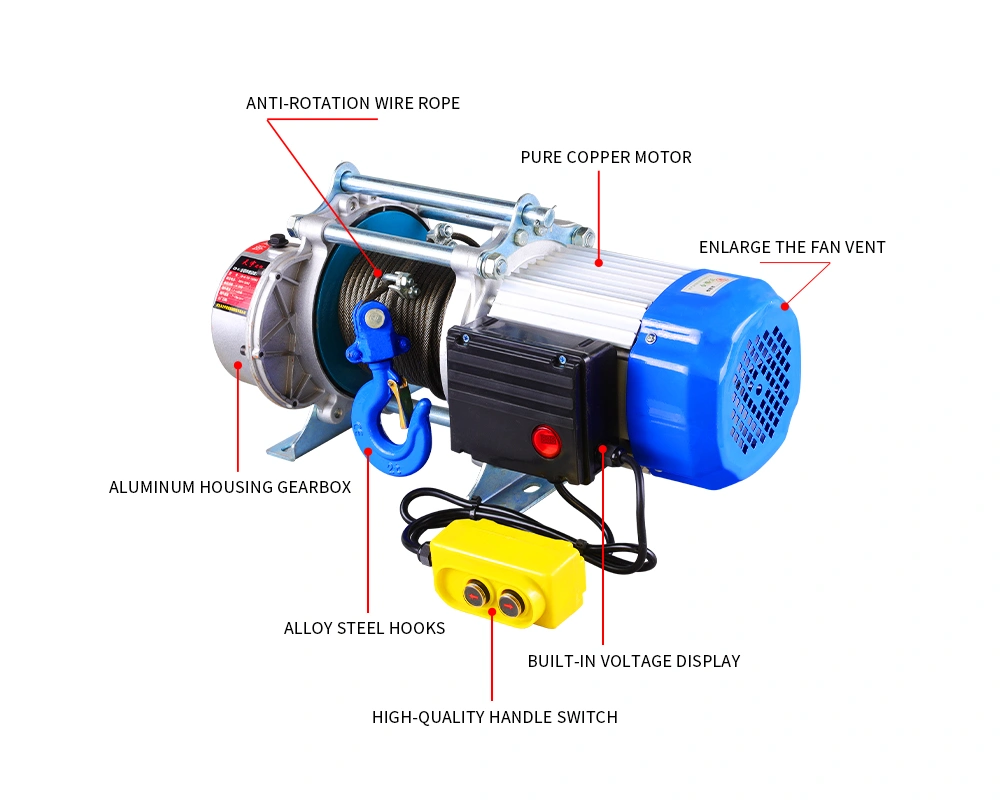

Internal structure

Non-Rotating Heavy-Duty Cable: High-tensile multi-strand wire rope ensures steady vertical ascent without dangerous load rotation on scaffolding sites.
Thermal-Protected Copper Core Motor: Delivers continuous power output with minimal heat generation, backed by internal thermal overload protection.
Forced-Air Rapid Cooling System: Enlarged ventilation shroud creates continuous forced-air cooling over aluminum housing to support high-frequency hoisting.
Heavy-Duty Portable Aluminum Frame: Rugged die-cast aluminum housing combines light overall weight with structural rigidity for fast single-person setup.
High-Strength Forged Safety Hook: Induction-hardened forged steel construction absorbs dynamic impact loads without cracking or structural deformation.
IP-Sealed Heavy-Duty Control Handle: Sealed enclosure prevents water and dust ingress, providing responsive button feedback even when operated with heavy work gloves.
Smart Real-Time Voltage Protection Indicator: Enables instant monitoring of input electrical current on temporary generators to prevent low-voltage motor burnouts.

OEM Customization Options for B2B Buyers

We provide full factory customization for equipment distributors, engineering contractors, and OEM partners worldwide:

Custom Beam Flange Adaptability: Adjustable trolley wheel spacings tailored to fit wide-flange H-beams or custom structural steel tracks.
Customized Input Voltages: Universal motor configurations tailored for 110V, 220V, 240V, 380V, 415V, or 440V grids operating at 50Hz or 60Hz.
Wireless Radio Remote Control: Optional long-range multi-channel wireless remote switch (up to 100-meter line-of-sight operation) replacing wired handheld switches.
Extended Cable Drum Lengths: High-capacity drum spools supporting extended wire rope capacities up to 100 meters for elevated high-rise work.

Frequently Asked Questions

Q1: What are the beam requirements for mounting this electric trolley multi-function hoist?

A: The motorized trolley is adjustable and can be mounted on standard I-beams and H-beams. Adjustable spacer washers allow the wheel gauge to be customized to fit your site's structural beam width.

Q2: How does the trolley control integrate with the hoist control?

A: The system includes a single 4-button (plus Emergency Stop) pendant handle. Two buttons control vertical lifting/lowering, while the other two govern left/right trolley movement along the beam for one-handed operation.

Q3: Is this trolley-mounted system suitable for outdoor monorail tracks?

A: Yes. The unit features IP54 weatherproof motor housing and a rainproof control handle suitable for outdoor job sites. However, installing an overhead protective canopy for outdoor installations is recommended to prolong service life.
