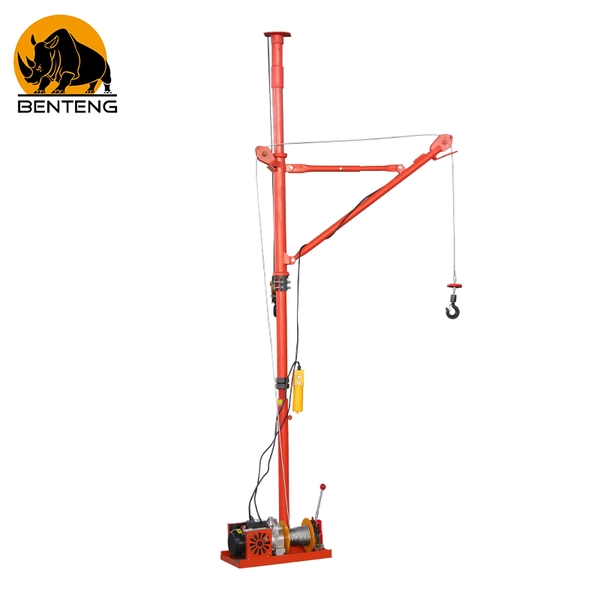

Indoor Crane
Product Description
The equipment adopts a sturdy and durable steel structure frame, combined with an electric lifting device, which can achieve smooth lifting and transportation of heavy objects, effectively reducing the labor intensity of manual handling. It is compact in size and occupies less space, especially suitable for lifting building materials, tools, and equipment between floors. Indoor cranes can improve handling efficiency and provide a more labor-saving and convenient solution for daily construction and material transportation. In actual use, the equipment should be operated according to the rated load and on-site installation conditions.
Product Application
Indoor cranes are widely used in home decoration, construction, warehouse logistics, indoor equipment installation, and small factories. During home decoration, it can be used for lifting materials such as cement, tiles, wood, and decoration tools between floors; At the construction site, it can assist in the transportation of sand, gravel, building materials, and various construction equipment; In warehouses and workshops, it can be used for lifting and transporting small machinery, components, and goods. In addition, indoor cranes are also suitable for work environments that require vertical material handling, such as store decoration, factory maintenance, and equipment repair. With its compact size, flexible installation, and convenient operation, it can effectively reduce the burden of manual handling and improve material transportation efficiency, especially suitable for indoor workplaces with limited space and frequent lifting of materials. In practical applications, it is necessary to ensure reliable installation and fixation, and strictly comply with the rated load requirements.
Product advantages
- compact structure
- compact footprint
- Flexible installation and easy operation
- Has good load-bearing capacity
Product Specifications
| Model | Motor Type | Voltage (V) | Power (W) | Rope Length (m) | Maximum Load (kg) | Operating Speed (m/min) | Wire Rope Diameter |
| W300 Model | Horizontal Clutch Type | 220 | 1800 | 30 | 150 | Single rope14M | 5MM |
| W300 Model | Horizontal Clutch Type | 220 | 1800 | 60 | 100 | Single rope14M | 5MM |
| W400 Model | Horizontal Clutch Type | 220 | 2200 | 30 | 200 | Single rope14M | 5MM |
| W400 Model | Horizontal Clutch Type | 220 | 2200 | 60 | 150 | Single rope14M | 5MM |
| W500 Model | Horizontal Clutch Type | 220 | 3000 | 30 | 300 | Single rope14M | 6MM |
| W500 Model | Horizontal Clutch Type | 220 | 3000 | 60 | 350 | Single rope14M | 6MM |
| W500 Model | Horizontal Clutch Type | 220 | 3000 | 100 | 300 | Single rope14M | 5MM |
| W800 Model | Horizontal Clutch Type | 220 | 4000 | 30 | 800 | Single rope14M | 6MM |
| W800 Model | Horizontal Clutch Type | 220 | 4000 | 60 | 500 | Single rope14M | 6MM |
| W800 Model | Horizontal Clutch Type | 220 | 4000 | 100 | 400 | Single rope14M | 6MM |
| W800 Model | Horizontal Clutch Type | 220 | 4000 | 120 | 400 | Single rope14M | 6MM |
| W1000 Model | Horizontal Clutch Type | 220 | 5000 | 30 | 500 | Single rope14M | 6MM |
| W1000 Model | Horizontal Clutch Type | 220 | 5000 | 60 | 500 | Single rope14M | 6MM |
| W1000 Model | Horizontal Clutch Type | 220 | 5000 | 100 | 500 | Single rope14M | 6MM |
| W1000 Model | Horizontal Clutch Type | 220 | 5000 | 120 | 500 | Single rope14M | 6MM |
| W1500 Model | Aluminum-Housing Hoist | 220 | 5000 | 30 | 700 | Single rope14M | 7MM |
| W1500 Model | Aluminum-Housing Hoist | 220 | 5000 | 60 | 700 | Single rope14M | 7MM |
| W1500 Model | Aluminum-Housing Hoist | 220 | 5000 | 100 | 700 | Single rope14M | 7MM |
| W1500 Model | Aluminum-Housing Hoist | 220 | 5000 | 120 | 700 | Single rope14M | 7MM |
Products Details：

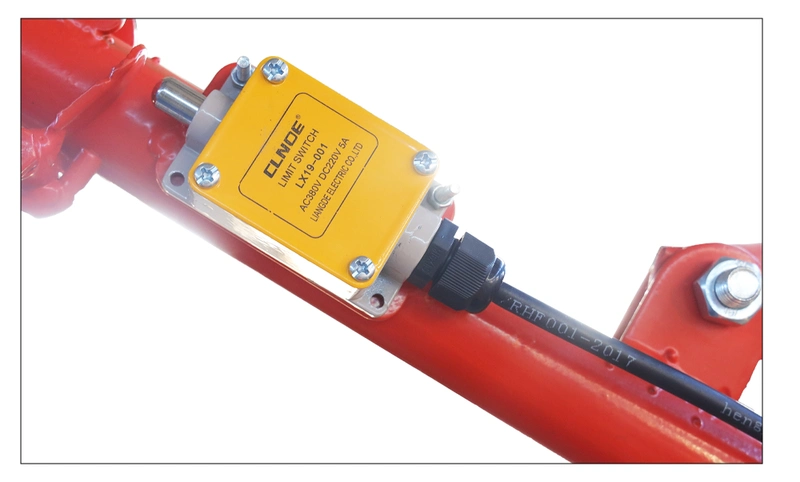

When the object reaches its limit position, the limiter switch will immediately stop

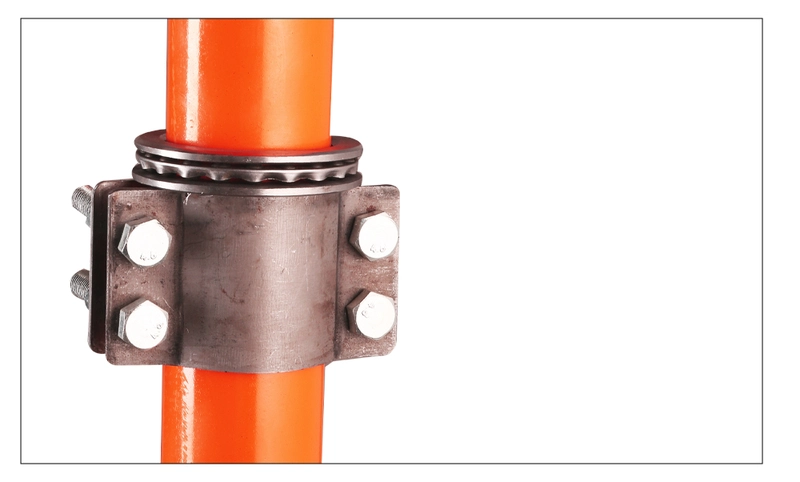

Built in dual bearing design easily withstands strong pressure

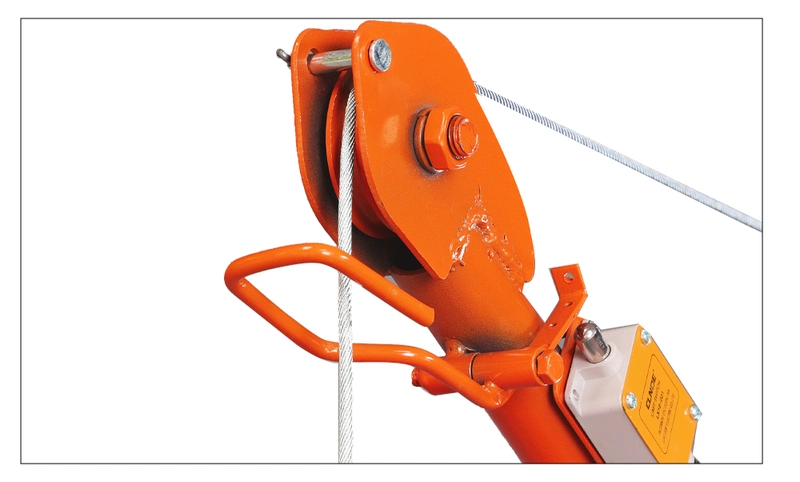

Double pulley design is sturdy and stable

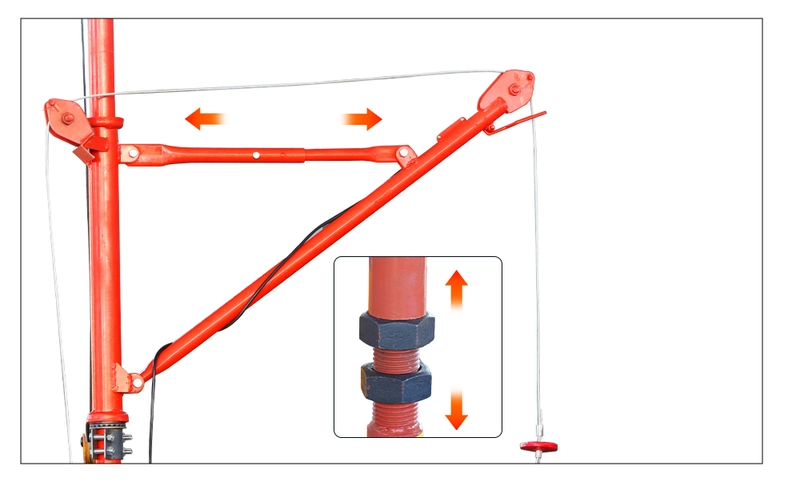

360 degree rotation height adjustable arm length

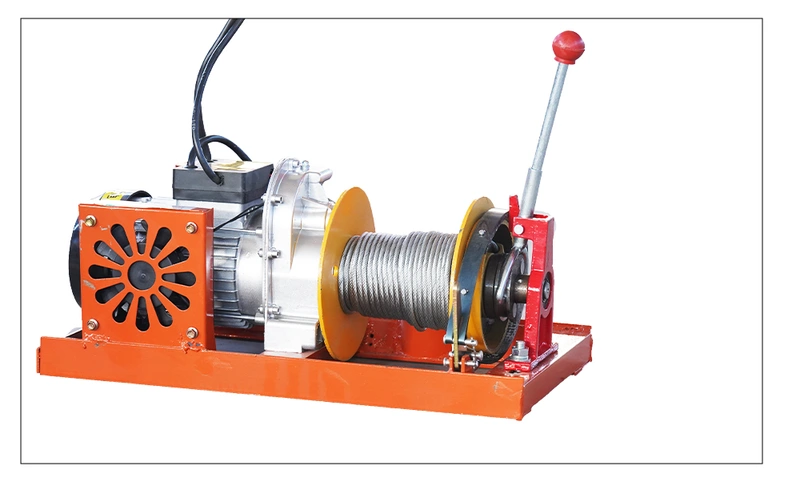

Newly upgraded pure copper motor

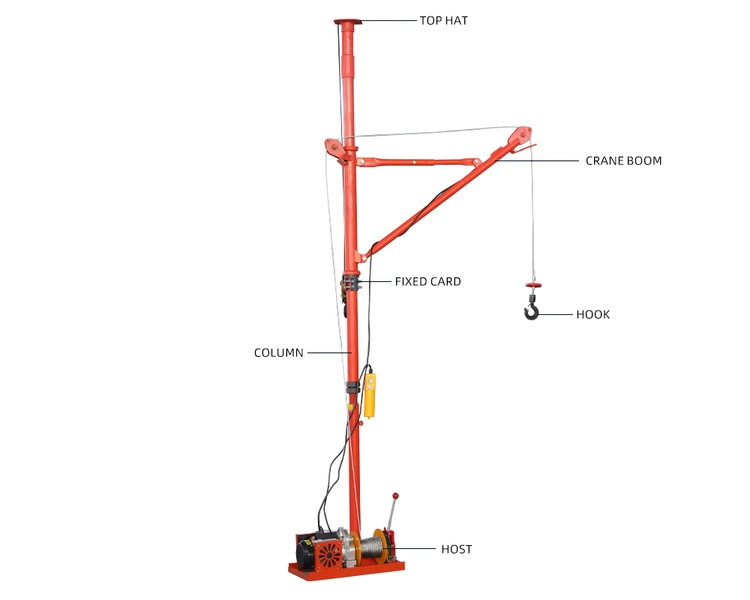

Internal structure
