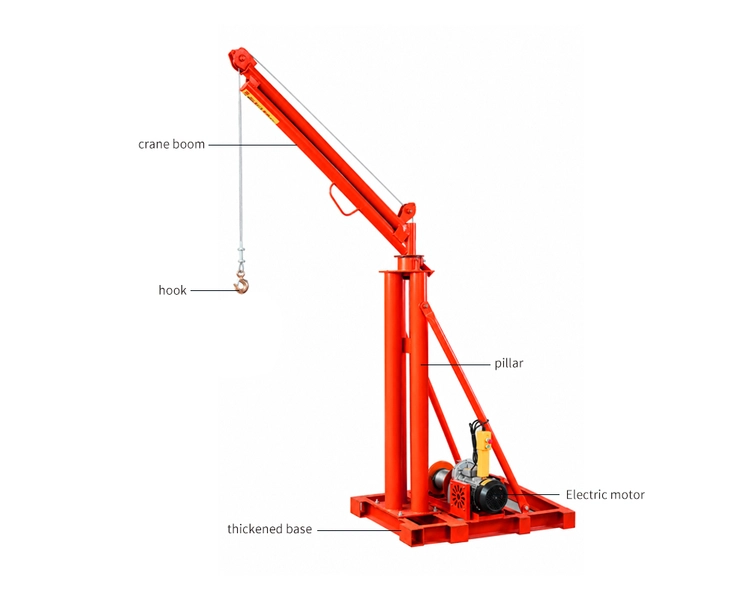

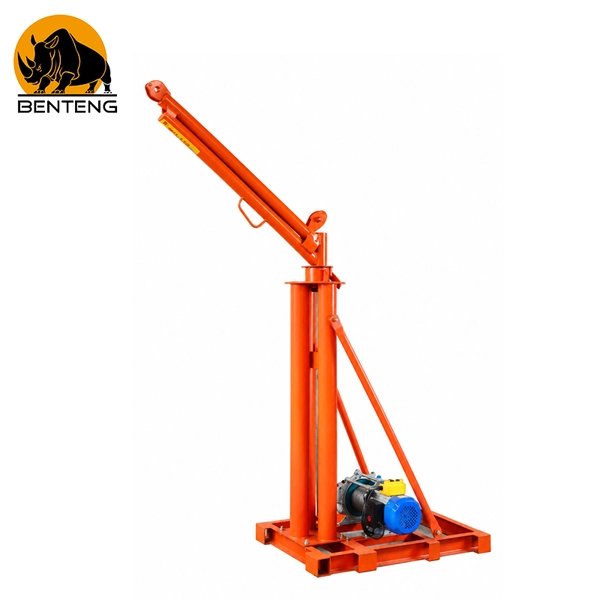

Three-Column Outdoor Jib Crane
Product Description
The main body of the equipment is made of sturdy and durable steel, with a reasonable structural design that can be matched with an electric lifting device to achieve smooth lifting and hoisting of heavy objects. It is suitable for factories, warehouses, construction sites, loading and unloading areas, and outdoor maintenance operations, effectively reducing the burden of manual handling and improving material transfer efficiency. The equipment is easy to operate and has strong applicability. Suitable lifting height, boom length, and load-bearing specifications can be selected according to actual operational needs. It is a practical equipment for outdoor heavy lifting and material handling.
Product Application
Widely used in factory workshops, warehouse loading and unloading areas, construction sites, outdoor maintenance sites, and equipment installation sites, it can be used for lifting and transporting steel, mechanical components, building materials, and various heavy materials. In outdoor work environments, equipment can assist in completing tasks such as cargo loading and unloading, equipment relocation, material positioning, and high-altitude lifting, reducing the burden of manual handling and improving work efficiency. The three column support structure is suitable for outdoor lifting operations that require stable support. It can be reasonably configured according to the site space, lifting distance, and load-bearing requirements, providing a convenient lifting solution for industrial production and outdoor material handling.
Product advantages
- Adopting a sturdy three column support structure
- Good overall stability and strong load-bearing capacity
- Suitable for various outdoor lifting operations
- High lifting efficiency
Product Specifications
| Model | Motor Type | Voltage (V) | Power (W) | Wire Rope Length (m) | Maximum Load Capacity (kg) | Wire Rope Diameter (mm) | Operating Speed (m/min) | Operating Duration | Application |
| 500 Type | Heavy-Duty Aluminum-Housing Motor | 220 | 3000 | 12 | 500 | 6 | 14 | 12 hours | Home Renovation |
| 500 Type | Heavy-Duty Aluminum-Housing Motor | 220 | 3000 | 20 | 450 | 6 | 14 | 12 hours | Home Renovation |
| 500 Type | Heavy-Duty Aluminum-Housing Motor | 220 | 3000 | 30 | 350 | 6 | 14 | 12 hours | Home Renovation |
| 500 Type | Heavy-Duty Aluminum-Housing Motor | 220 | 3000 | 60 | 250 | 6 | 14 | 12 hours | Home Renovation |
| 500 Type | Heavy-Duty Aluminum-Housing Motor | 220 | 3000 | 80 | 100 | 6 | 14 | 12 hours | Home Renovation |
| High-Speed 500 Type | Heavy-Duty Aluminum-Housing Motor | 220 | 3000 | 12 | 300 | 6 | 20 | 12 hours | Home Renovation |
| High-Speed 500 Type | Heavy-Duty Aluminum-Housing Motor | 220 | 3000 | 20 | 280 | 6 | 20 | 12 hours | Home Renovation |
| High-Speed 500 Type | Heavy-Duty Aluminum-Housing Motor | 220 | 3000 | 30 | 250 | 6 | 20 | 12 hours | Home Renovation |
| High-Speed 500 Type | Heavy-Duty Aluminum-Housing Motor | 220 | 3000 | 60 | 100 | 6 | 20 | 12 hours | Home Renovation |
| High-Speed 500 Type | Heavy-Duty Aluminum-Housing Motor | 220 | 3000 | 80 | 50 | 6 | 20 | 12 hours | Home Renovation |
| High-Speed 500 Type | Heavy-Duty Aluminum-Housing Motor | 220 | 3000 | 12 | 300 | 8 | 20 | 12 hours | Home Renovation |
| High-Speed 500 Type | Heavy-Duty Aluminum-Housing Motor | 220 | 3000 | 20 | 280 | 8 | 20 | 12 hours | Home Renovation |
| High-Speed 500 Type | Heavy-Duty Aluminum-Housing Motor | 220 | 3000 | 30 | 250 | 8 | 20 | 12 hours | Home Renovation |
| High-Speed 500 Type | Heavy-Duty Aluminum-Housing Motor | 380 | 3000 | 12 | 300 | 6 | 20 | 12 hours | Home Renovation |
| High-Speed 500 Type | Heavy-Duty Aluminum-Housing Motor | 380 | 3000 | 20 | 280 | 6 | 20 | 12 hours | Home Renovation |
| High-Speed 500 Type | Heavy-Duty Aluminum-Housing Motor | 380 | 3000 | 30 | 250 | 6 | 20 | 12 hours | Home Renovation |
| High-Speed 500 Type | Heavy-Duty Aluminum-Housing Motor | 380 | 3000 | 60 | 100 | 6 | 20 | 12 hours | Home Renovation |
| High-Speed 500 Type | Heavy-Duty Aluminum-Housing Motor | 380 | 3000 | 80 | 50 | 6 | 20 | 12 hours | Home Renovation |
| High-Speed 500 Type | Heavy-Duty Aluminum-Housing Motor | 220 | 4000 | 12 | 500 | 7 | 20 | 12 hours | Home Renovation |
| High-Speed 500 Type | Heavy-Duty Aluminum-Housing Motor | 220 | 4000 | 20 | 450 | 7 | 20 | 12 hours | Home Renovation |
| High-Speed 500 Type | Heavy-Duty Aluminum-Housing Motor | 220 | 4000 | 30 | 400 | 7 | 20 | 12 hours | Home Renovation |
| High-Speed 500 Type | Heavy-Duty Aluminum-Housing Motor | 220 | 4000 | 60 | 250 | 7 | 20 | 12 hours | Home Renovation |
| High-Speed 500 Type | Heavy-Duty Aluminum-Housing Motor | 220 | 4000 | 80 | 150 | 6 | 20 | 12 hours | Home Renovation |
Products Details：

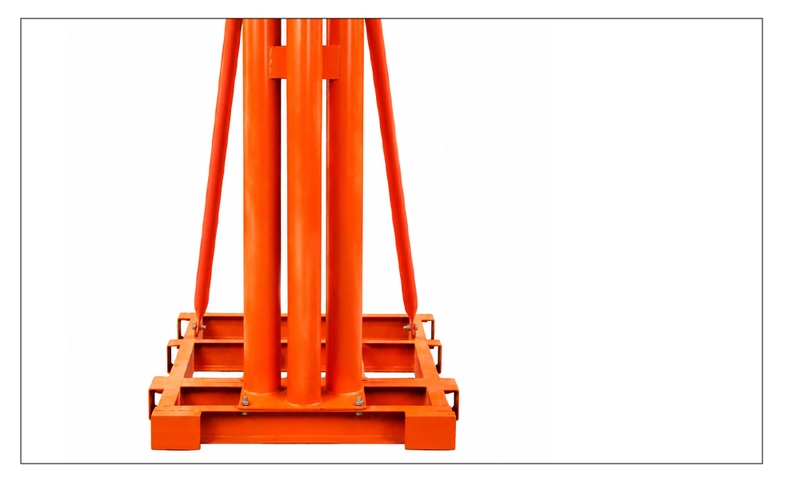

Three column reinforced design is sturdy and durable

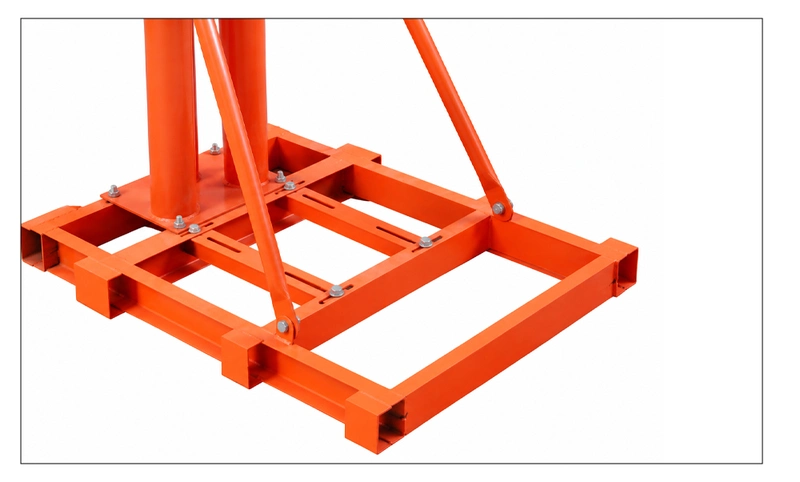

Thickened and enlarged base for greater safety

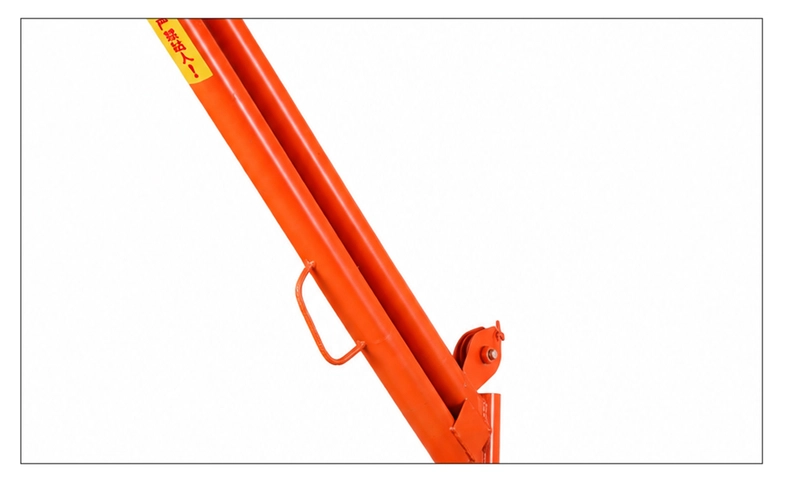

Bold and thickened double wall tube, safe and efficient

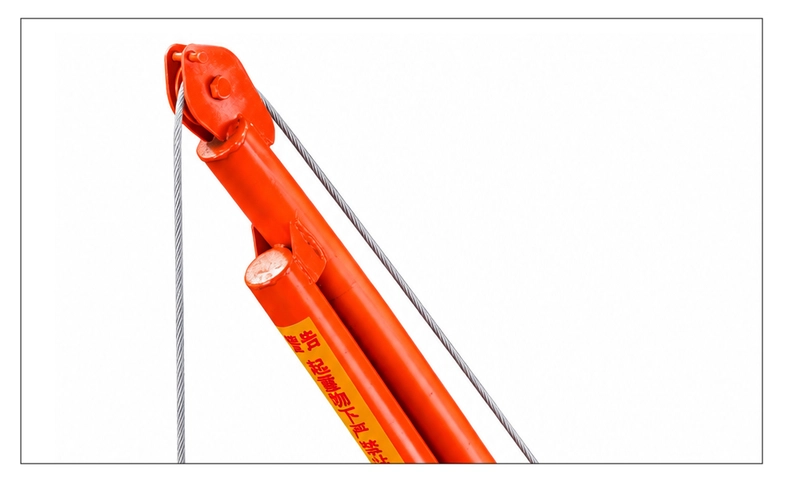

High quality forearm pulley with smooth and stable operation
Internal structure
