Mini Electric Chain Hoist with Electric Trolley
Product Description
The mini electric hoist is a small electric lifting device designed specifically for light lifting and daily handling operations. It features compact size, light weight, easy installation, and simple operation. The product uses a high-performance motor, high-quality wire rope, and a reliable braking system, offering advantages such as smooth operation, low noise, fast lifting speed, and high safety. Its compact structure allows for flexible installation via hooks, brackets, or fixing devices.
Product Application
Mini electric hoists, due to their small size, flexible installation, and convenient operation, are widely used in various light lifting and material handling scenarios. In home and personal use, they can be used for garage hoisting, moving construction materials, and lifting small equipment. In factory workshops, they can be used for moving mechanical parts, equipment maintenance, and auxiliary hoisting on production lines, improving work efficiency and reducing manual labor intensity. In warehousing and logistics, they can be used for loading and unloading goods, transferring small items, and moving items on shelves. Mini electric hoists also play an important role in construction and decoration, advertising installation, agricultural production, and garden maintenance, facilitating the lifting of tools, materials, and equipment. With their lightweight, high efficiency, and safety features, mini electric hoists are particularly suitable for working environments with limited space and moderate lifting capacity requirements, making them an ideal choice for daily light lifting operations.
Product advantages
- Compact size
- Easy to install
- Powerful performance
- Rapid improvement
Product Specifications
| Product Model | Lifting weight (kg) | Lifting height (m) | Lifting speed (m/min) | Rated input power (W) | Rated voltage (V) | Rated frequency (Hz) | Net weight (kg) | Matching capacity (uf) | Wire rope diameter (mm) |
| PA200 | 100/200 | 12/6m | 10/5(m/min) | 510 | 220 | 50 | 11 | 16 | 3 |
| PA300 | 150/300 | 12/6m | 10/5(m/min) | 600 | 220 | 50 | 11.5 | 20 | 3 |
| PA400 | 200/400 | 12/6m | 10/5(m/min) | 980 | 220 | 50 | 16 | 30 | 4 |
| PA500 | 250/500 | 12/6m | 10/5(m/min) | 1020 | 220 | 50 | 16 | 35 | 4 |
| PA600 | 300/600 | 12/6m | 10/5(m/min) | 1200 | 220 | 50 | 17 | 40 | 4.5 |
| PA800 | 400/800 | 12/6m | 10/5(m/min) | 1300 | 220 | 50 | 18.5 | 45 | 5 |
| PA1000 | 500/1000 | 12/6m | 10/5(m/min) | 1600 | 220 | 50 | 31 | 70 | 6 |
Products Details

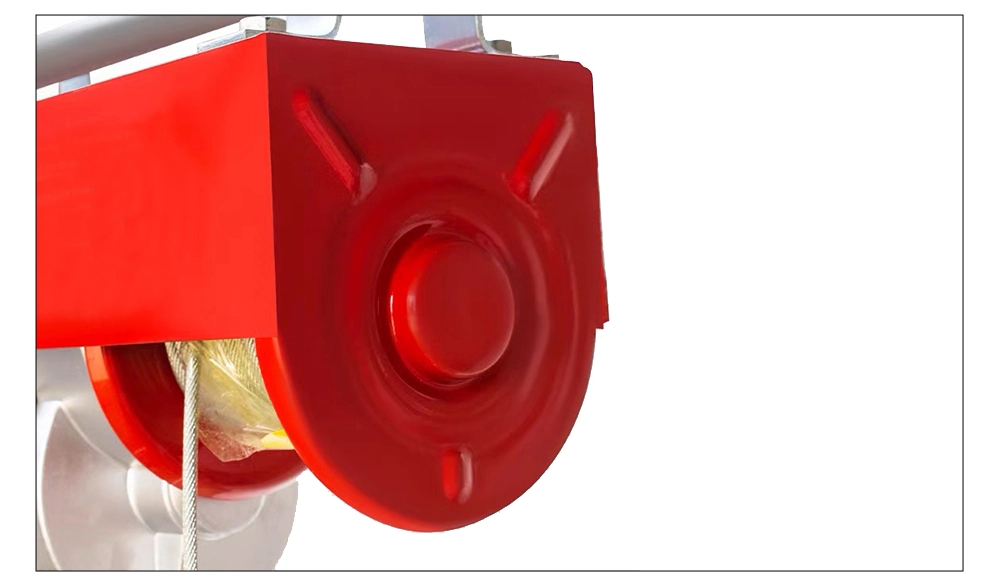

The alloy casing is resistant to drops and impacts.

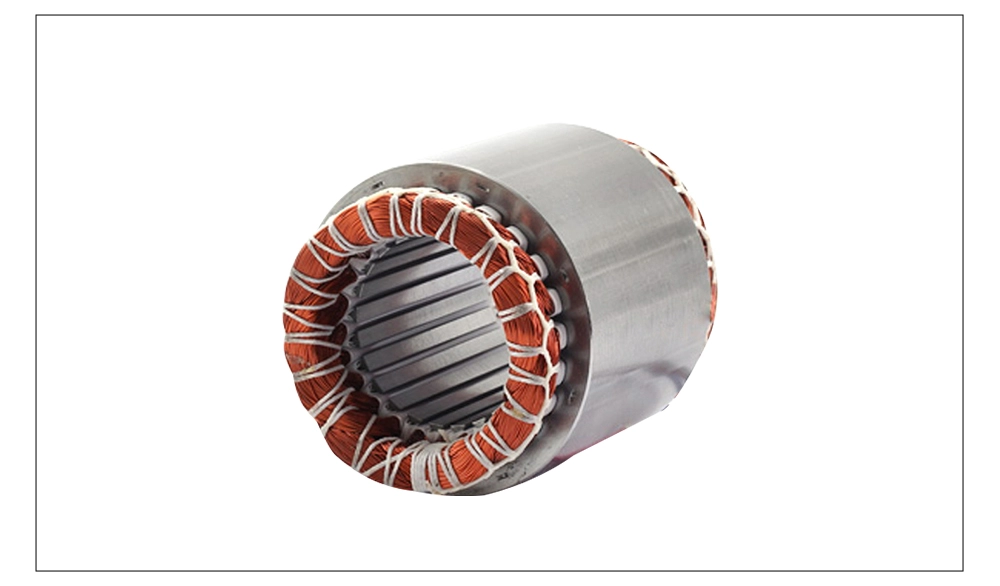

Pure copper motor for rapid conductivity and greater power.

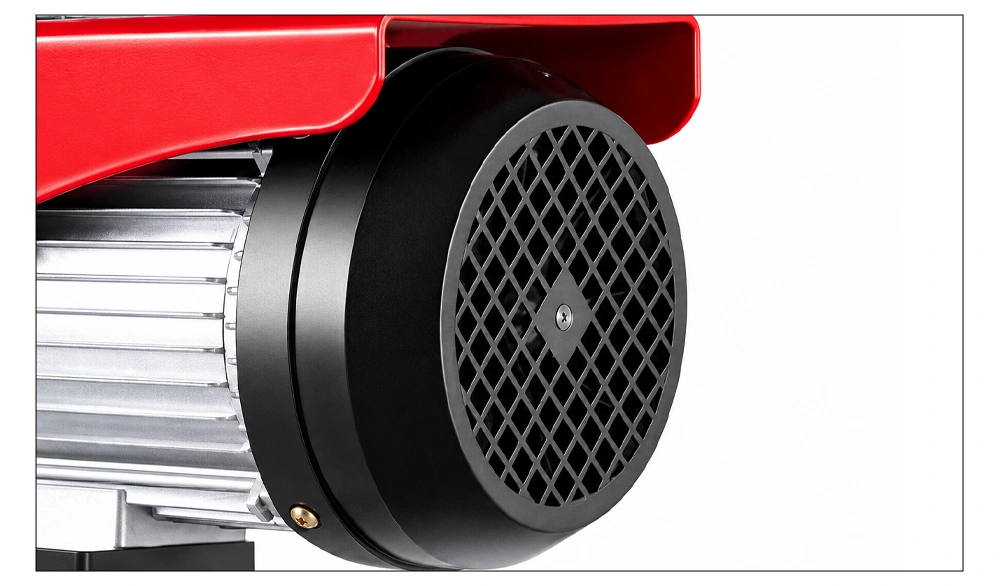

High-speed, 8-blade powerful fan enhances heat dissipation and cooling efficiency.

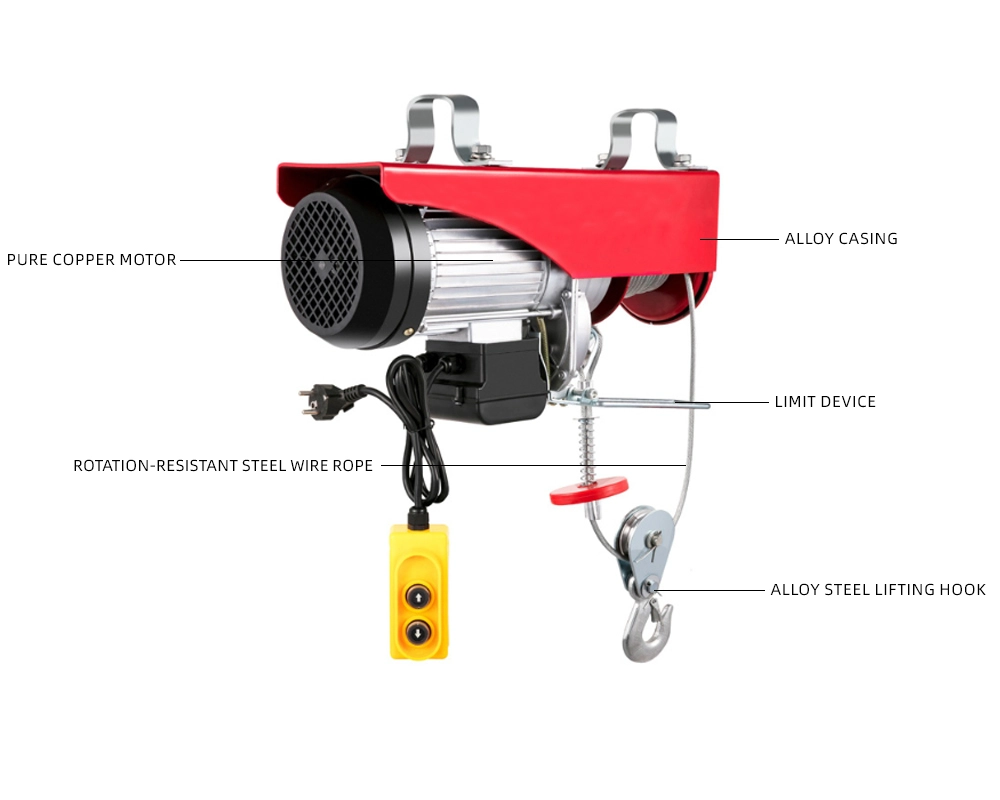

Internal structure
