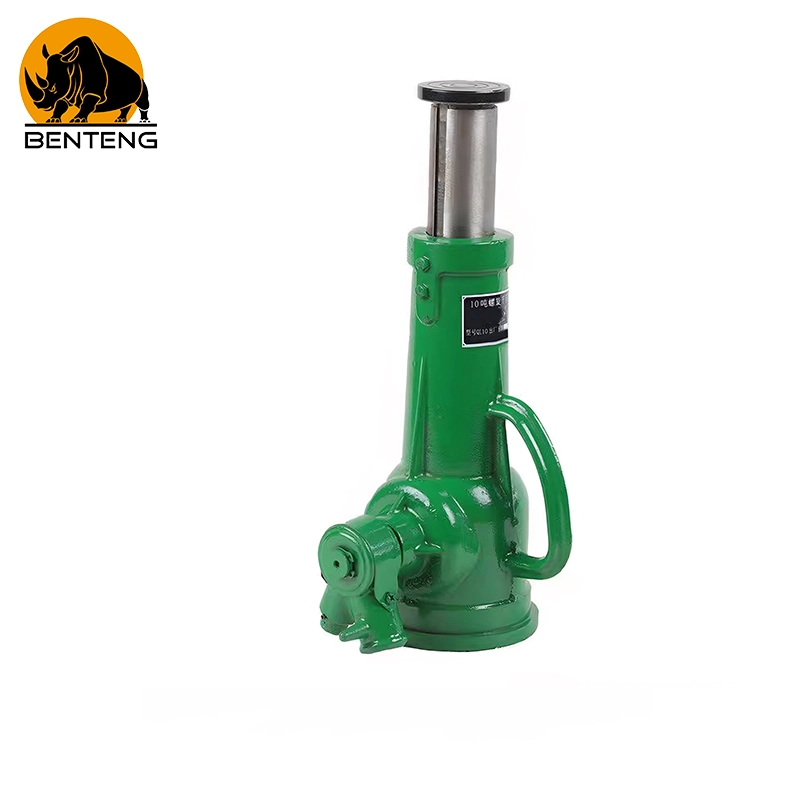

Screw Jack
Product Description
It is made of high-quality steel, with a compact overall structure, good stability and load-bearing capacity, and can complete safe and reliable lifting operations in unpowered environments.
The screw jack is easy to operate, and the screw mechanism is driven by the handle to achieve smooth lifting and precise control of the lifting height of heavy objects. The product has strong self-locking performance, long service life, and easy maintenance, making it an ideal manual lifting and support tool.
Product Application
Widely used in industrial and engineering work scenarios that require heavy lifting, support, and precise adjustment. During the installation and maintenance of mechanical equipment, it can be used for equipment positioning, horizontal adjustment, and component disassembly and assembly; In the field of automobile maintenance, it can be used for vehicle jacking and chassis maintenance; In construction, bridge engineering, and steel structure installation, it can be used for temporary support, structural adjustment, and height adjustment.
In addition, spiral jacks are also suitable for factory production line equipment installation, mold adjustment, heavy machinery maintenance, and warehousing and handling. With the characteristics of no power supply, flexible operation, and stable support, it can meet the safety lifting needs in various environments.
Product advantages
- Strong carrying capacity
- Smooth and precise lifting and lowering
- Easy and convenient operation
- Compact and durable structure
Product Specifications
| Specification | Weight (KG) | Base Diameter (MM) | Top Cap Diameter (MM) | Sleeve Diameter (MM) | Body Height (MM) | Lifting Height (MM) | Total Height (MM) |
| 3.2T | 4.85 | 100 | 41 | 35 | 220 | 117 | 330 |
| 5T | 5.5 | 115 | 49 | 40 | 250 | 137 | 370 |
| 8T | 5.62 | 112 | 49 | 40 | 250 | 132 | 368 |
| D10T | 5.43 | 115 | 53 | 44 | 200 | 75 | 255 |
| 10T | 7.29 | 118 | 53 | 44 | 200 | 75 | 255 |
| 16T | 9.52 | 120 | 56 | 47 | 330 | 183 | 495 |
| D20T | 8.73 | 128 | 61 | 52 | 220 | 100 | 310 |
| 20T | 10.68 | 128 | 61 | 52 | 330 | 183 | 495 |
| 25T | 9.85 | 128 | 61 | 52 | 280 | 131 | 390 |
| D32T | 14.5 | 143 | 71 | 62 | 325 | 150 | 455 |
| 32T | 16.48 | 140 | 71 | 62 | 395 | 220 | 585 |
| D50T | 25.58 | 183 | 104 | 81 | 325 | 160 | 475 |
| 50T | 31.52 | 183 | 94 | 81 | 450 | 255 | 685 |
| 100T | 63.53 | 203 | 94 | 81 | 452 | 200 | 652 |
Products Details

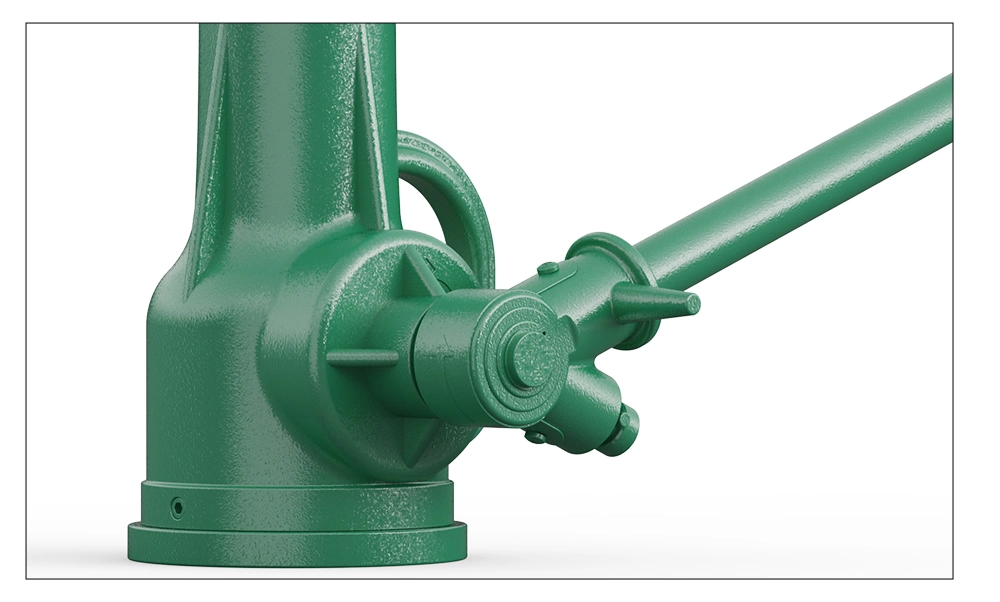

Extend the joystick to easily improve work efficiency

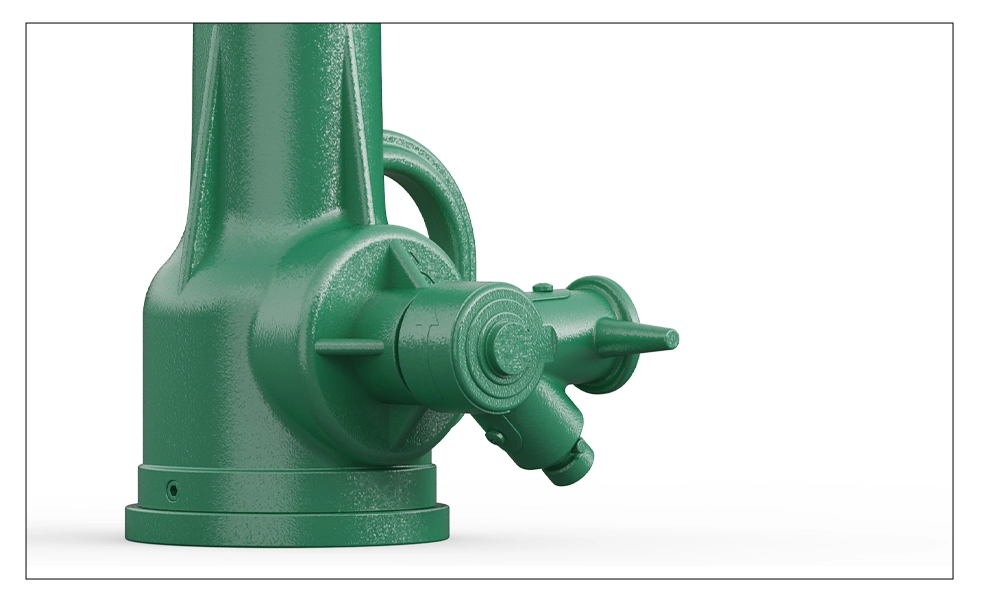

Hand cranked rotation, clockwise rotation for lifting, counterclockwise rotation for lowering

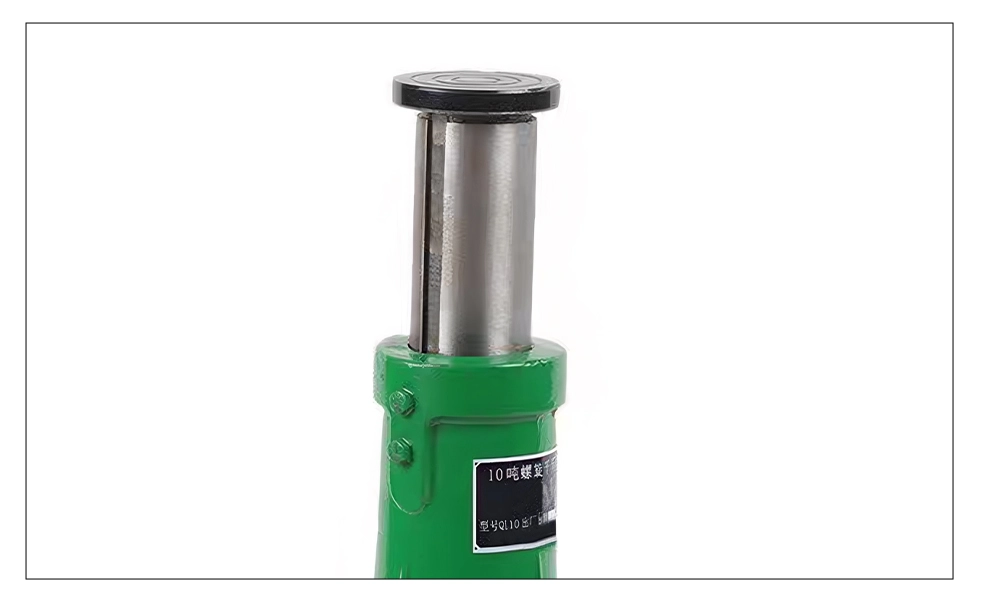

The lifting sleeve has high hardness and is resistant to compression without deformation

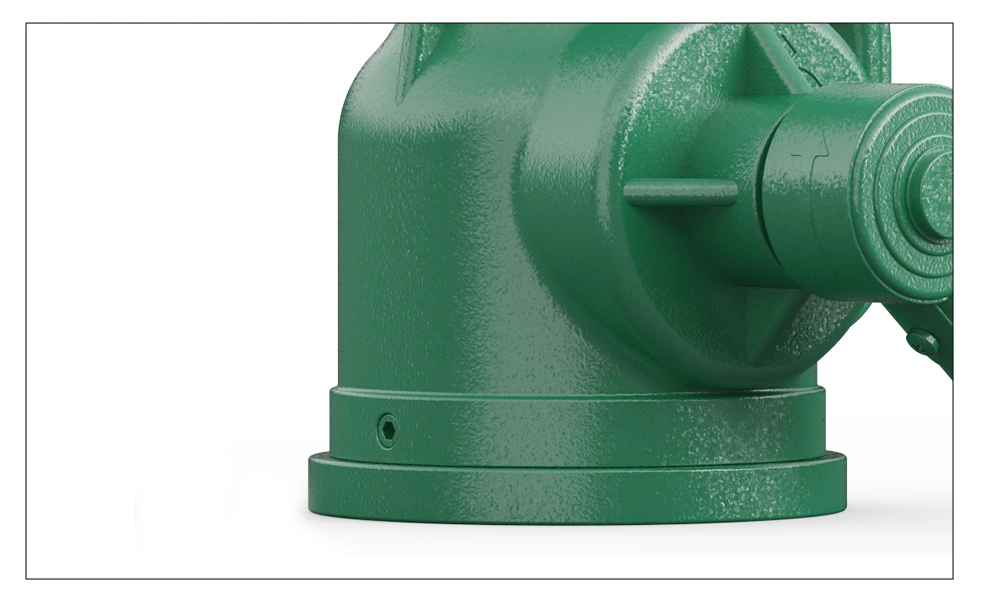

Thickened base provides stronger and more stable load-bearing capacity

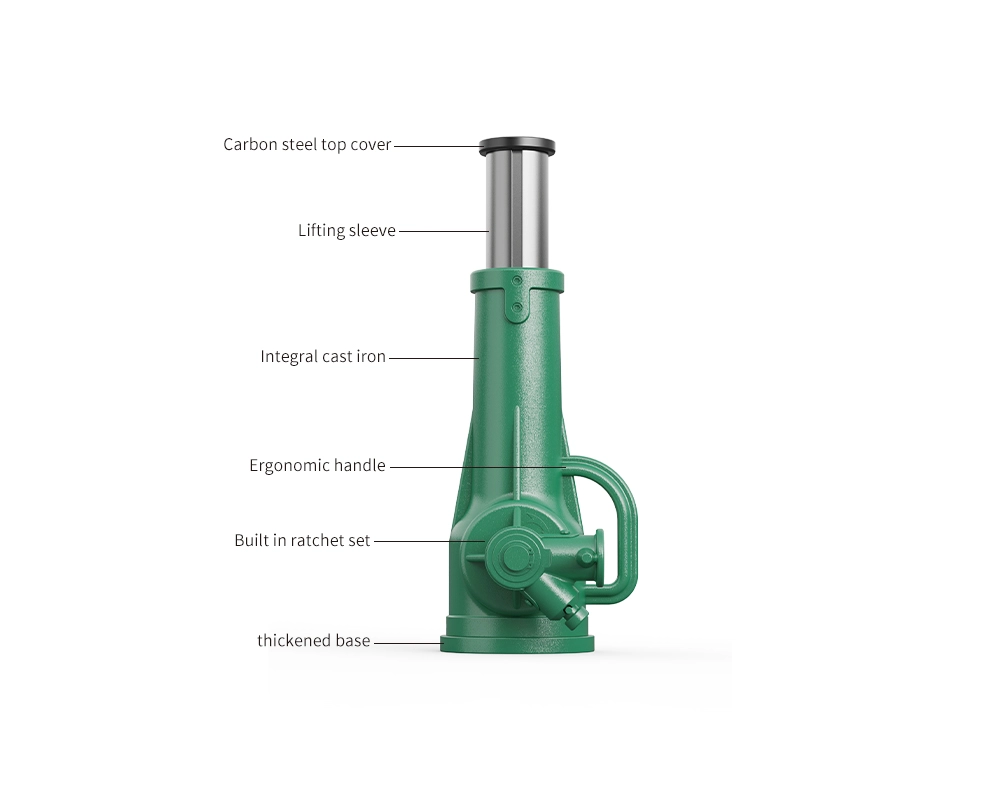

Internal structure
