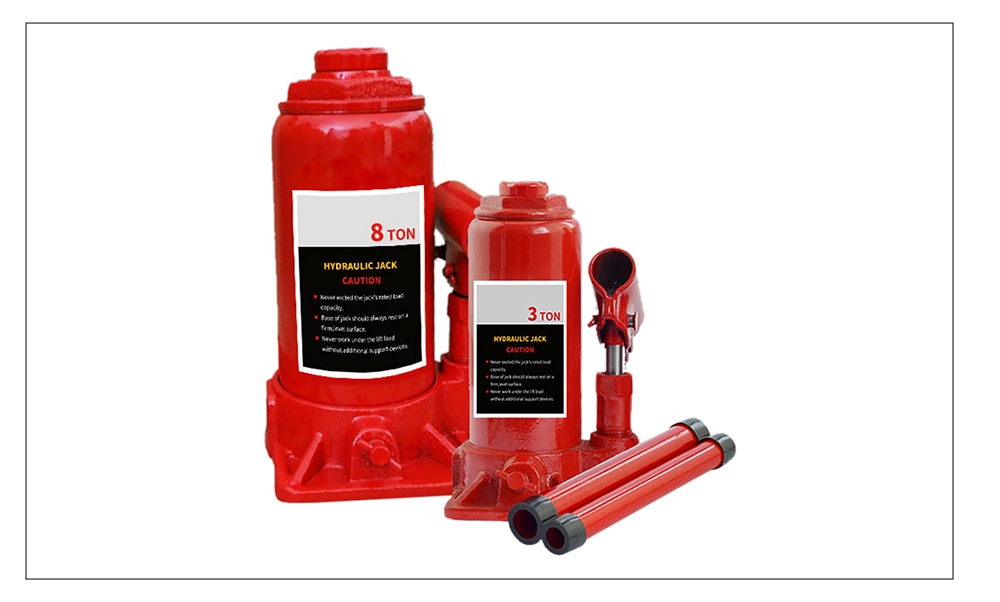

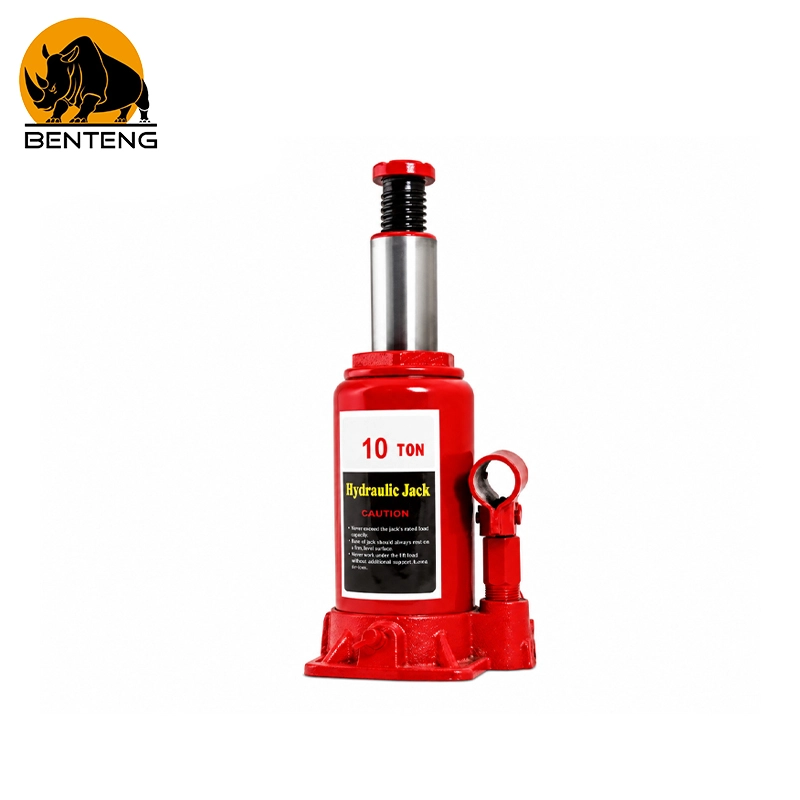

Hydraulic Jack
Product Description
The product is made of high-strength steel, with a sturdy and reliable overall structure. It is equipped with a high-performance hydraulic system, which can provide strong lifting capabilities and achieve smooth and efficient lifting operations.
Hydraulic jacks have the characteristics of easy operation, strong load-bearing capacity, stable lifting, and high safety. They can lift heavy objects with minimal operating force. Its compact design is easy to carry and use, making it a commonly used lifting auxiliary equipment in the industrial and maintenance fields.
Product Application
Hydraulic jacks are widely used in fields such as automobile maintenance, mechanical equipment installation, industrial maintenance, engineering construction, and logistics handling. In the process of automobile maintenance, it can be used for tasks such as vehicle jacking, tire replacement, chassis maintenance, etc; In the factory and machinery manufacturing industry, it can be used for the installation, adjustment, disassembly, and daily maintenance of large equipment. Hydraulic jacks can be used for lifting heavy components, adjusting positions, and providing temporary support in construction projects, bridge construction, and steel structure installation. At the same time, it is also applicable to scenarios such as road rescue, storage equipment maintenance, and ship repair. With strong load-bearing capacity, stable lifting performance, and convenient operation, hydraulic jacks can meet various heavy-duty lifting operation needs.
Product advantages
- Strong lifting capability
- Smooth and safe lifting and lowering
- Compact size, easy to carry
- Excellent sealing performance
Product Specifications
| Model | Capacity (ton) | Min. Height (mm) | Lifting Height (mm) | Adjust. Height (mm) | Qty of Package |
| QYL0201 | 2 | 148 | 80 | 50 | 10 |
| QYL0301 | 3 | 170 | 100 | 60 | 10 |
| QYL0501 | 5 | 180 | 110 | 50 | 5 |
| QYL0801 | 8 | 195 | 110 | 60 | 5 |
| QYL1001 | 10 | 200 | 100 | 60 | 5 |
| QYL1201 | 12 | 200 | 115 | 60 | 4 |
| QYL1601 | 16 | 210 | 130 | 60 | 4 |
| QYL2001 | 20 | 230 | 140 | 60 | 2 |
| QYL3201 | 32 | 255 | 145 | - | 2 |
| QYL3201D | 32 | 255 | 145 | 60 | 2 |
| QYL5001 | 50 | 255 | 150 | - | 1 |
| QYL5001D | 50 | 255 | 150 | 60 | 1 |
Products Details

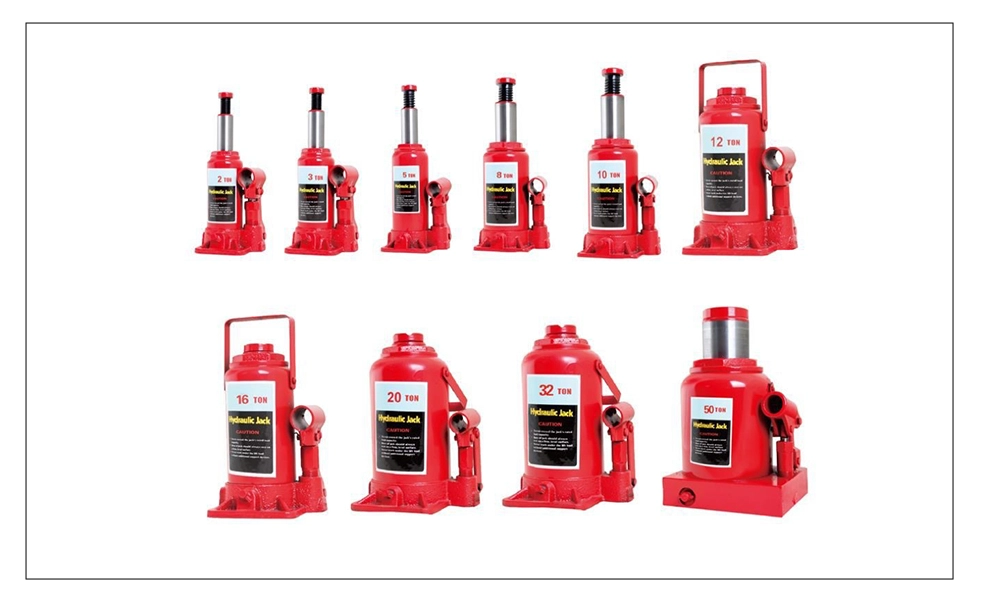

Complete specifications and models

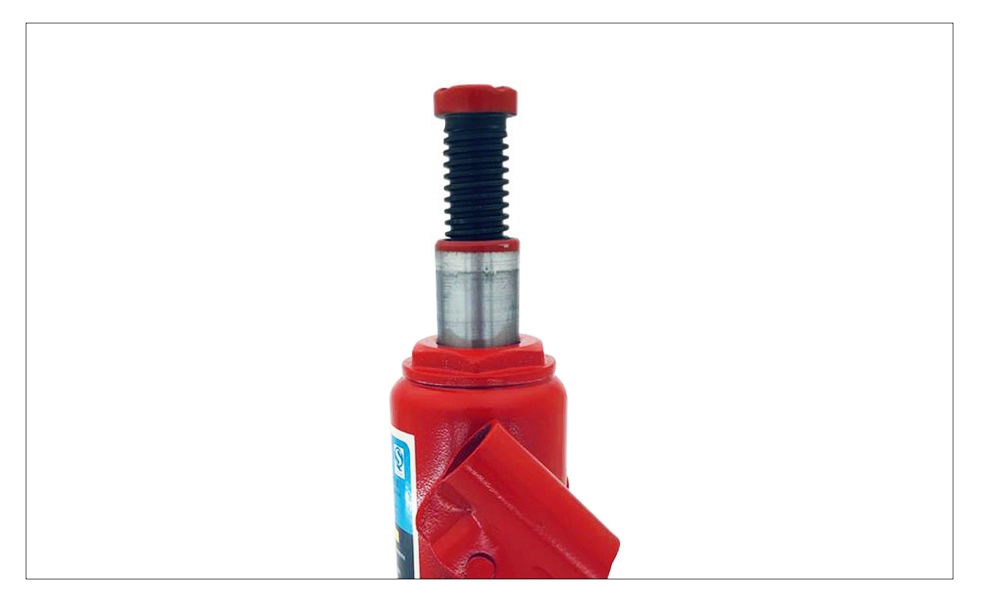

High quality spiral rod with flexible height adjustment
Spliceable joystick saves time and effort

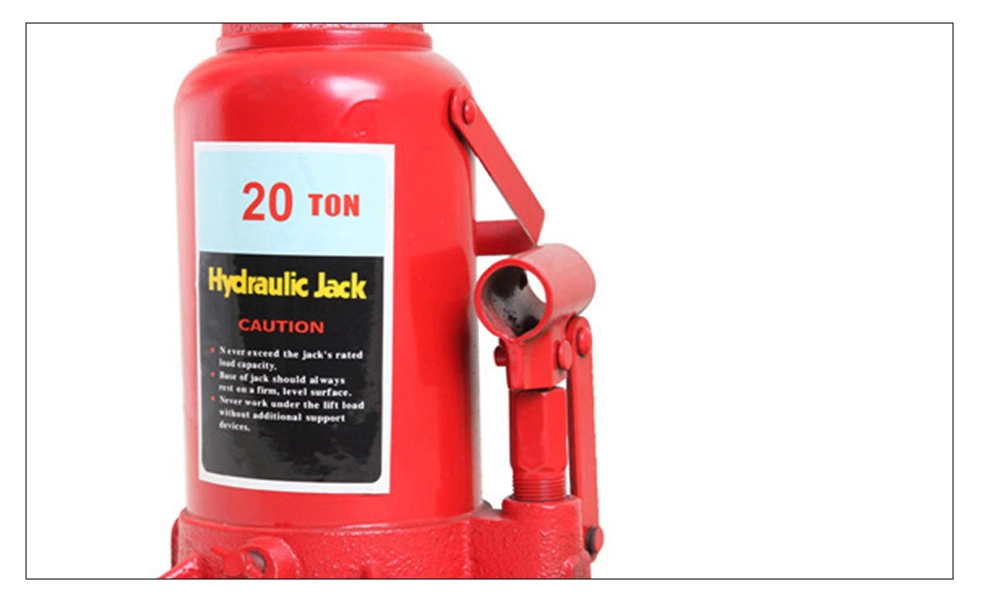

Convenient and durable alloy handle
Internal structure
