Ultra Low Profile Mechanical Jack
Product Description
The overall height of the product is low, the structure is compact, and it can complete lifting and support operations in limited spaces that ordinary jacks cannot enter. This product is made of high-strength steel and has the characteristics of strong bearing capacity, high stability, and long service life. The precision designed spiral mechanism can achieve smooth lifting and height adjustment, while also having good self-locking performance, ensuring safer and more reliable support for heavy objects. It is an ideal lifting tool for low space and high load work environments.
Product Application
Mainly used in low clearance, high load lifting and support work environments. During the installation and maintenance of mechanical equipment, it can be used for positioning adjustment, foundation leveling, component disassembly and height correction of large equipment; Its ultra-low body design allows for easy access to narrow spaces, meeting the needs of situations where ordinary jacks cannot operate. The product is widely used in automobile maintenance, heavy machinery maintenance, steel structure installation, bridge construction, shipbuilding, industrial assembly and other fields. During equipment handling and installation, it can be used for temporary support, precise adjustment, and lifting of heavy objects, improving operational efficiency and safety. With its low height design, strong load-bearing capacity, and stable support performance, ultra-thin mechanical jacks are particularly suitable for engineering work environments with limited space and heavy weight.
Product advantages
- Ultra low height design
- Strong carrying capacity
- Easy and convenient operation
- Compact and durable structure
Product Specifications
| Model | Tonnage (T) | Effective Area (cm²) | Outer Diameter (mm) | Inner Diameter (mm) | Travel (mm) | Collapsed Height (mm) | Plunger Diameter (mm) |
| FPY-5 | 5 | 9.61 | 64×50 | 35 | 7 | 41 | 30 |
| FPY-10 | 10 | 15.9 | 83×65 | 44 | 11 | 53 | 38 |
| FPY-20 | 20 | 33.16 | 99×85 | 64 | 13 | 61 | 52 |
| FPY-30 | 30 | 50.24 | 123×105 | 78 | 14 | 66 | 64 |
| FPY-50 | 50 | 78.5 | 148×130 | 98 | 18 | 77 | 80 |
| FPY-100 | 100 | 143.06 | 198×175 | 135 | 21 | 93 | 100 |
| FPY-150 | 150 | 226.8 | 208 | 168 | 21 | 88 | 135 |
| FPY-200 | 200 | 302.5 | 248 | 196.3 | 21 | 101 | 158 |
Products Details

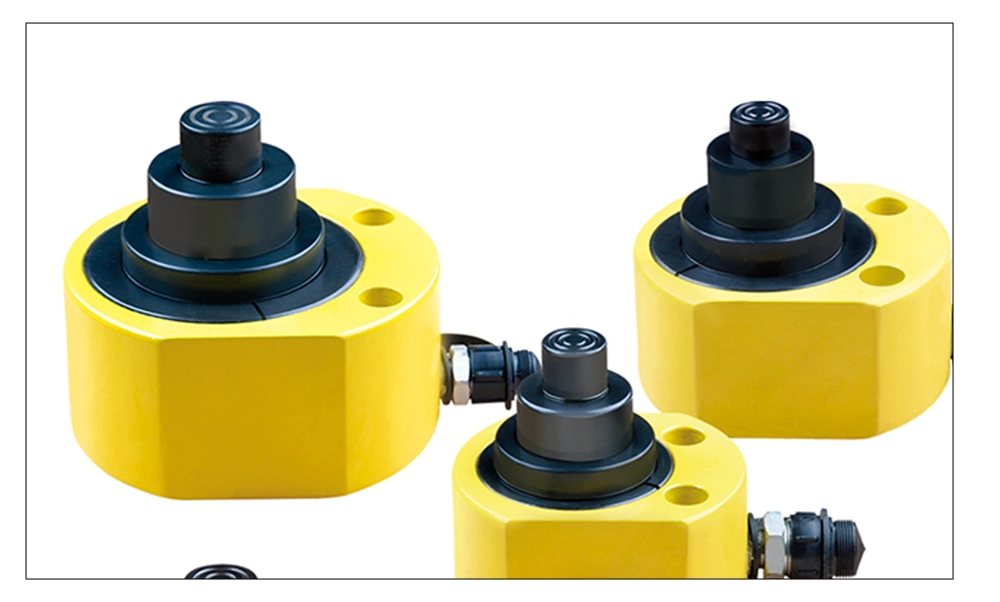

Flexible lifting design

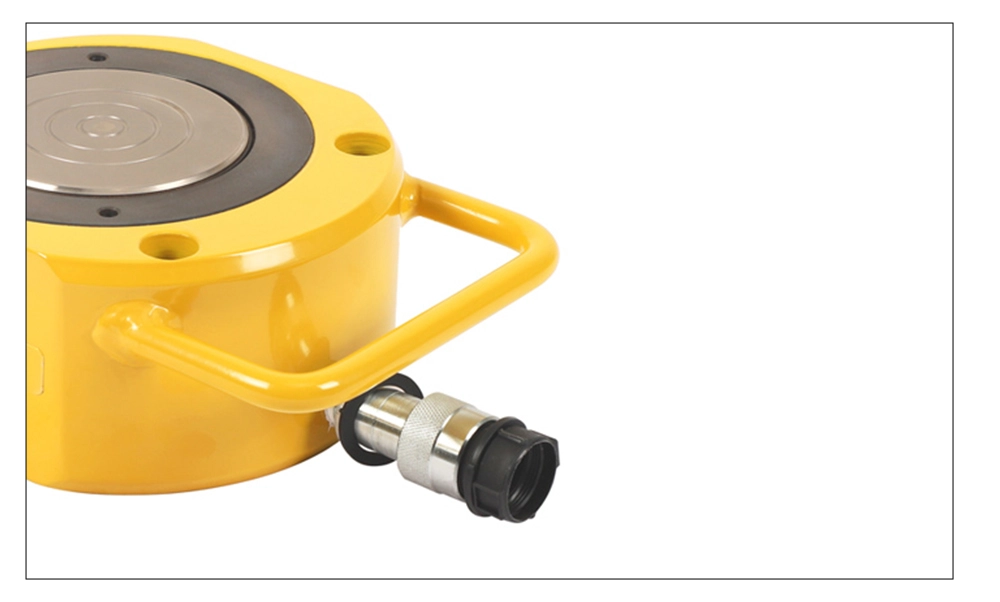

Anti oil leakage quick connector

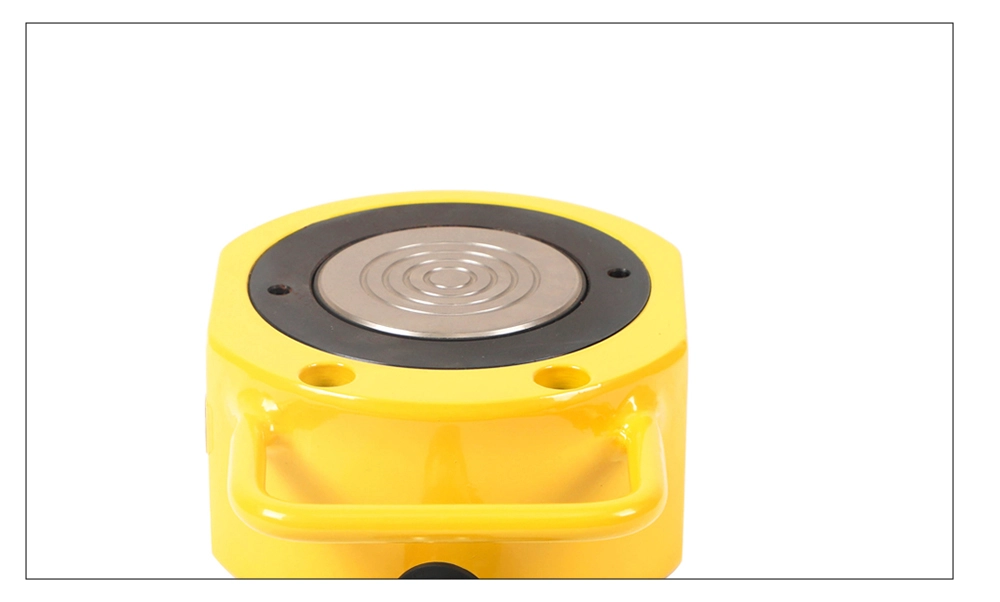

Ultra thin series with fixed holes

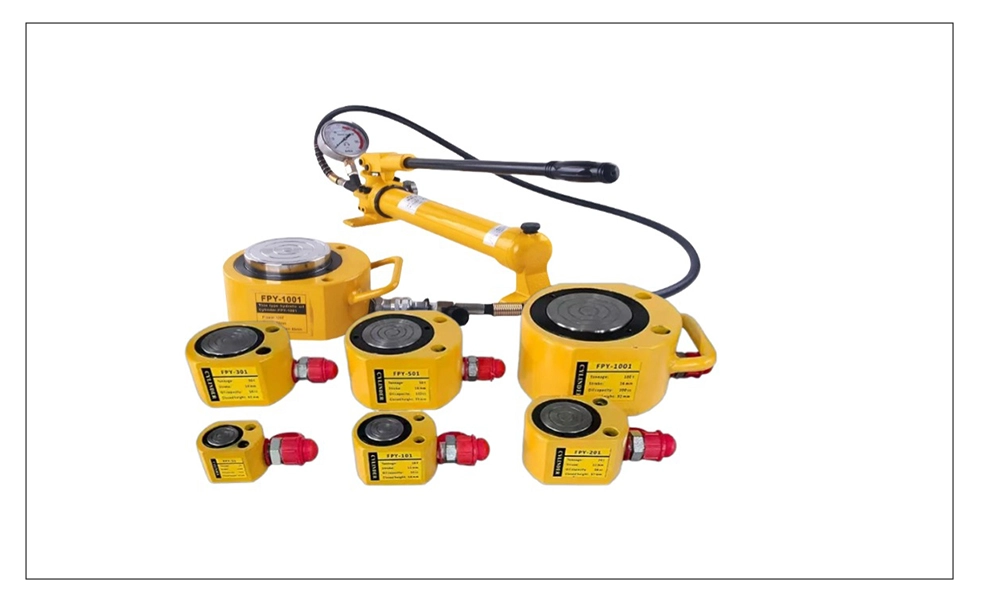

Multiple models suitable for a wide range of scenarios

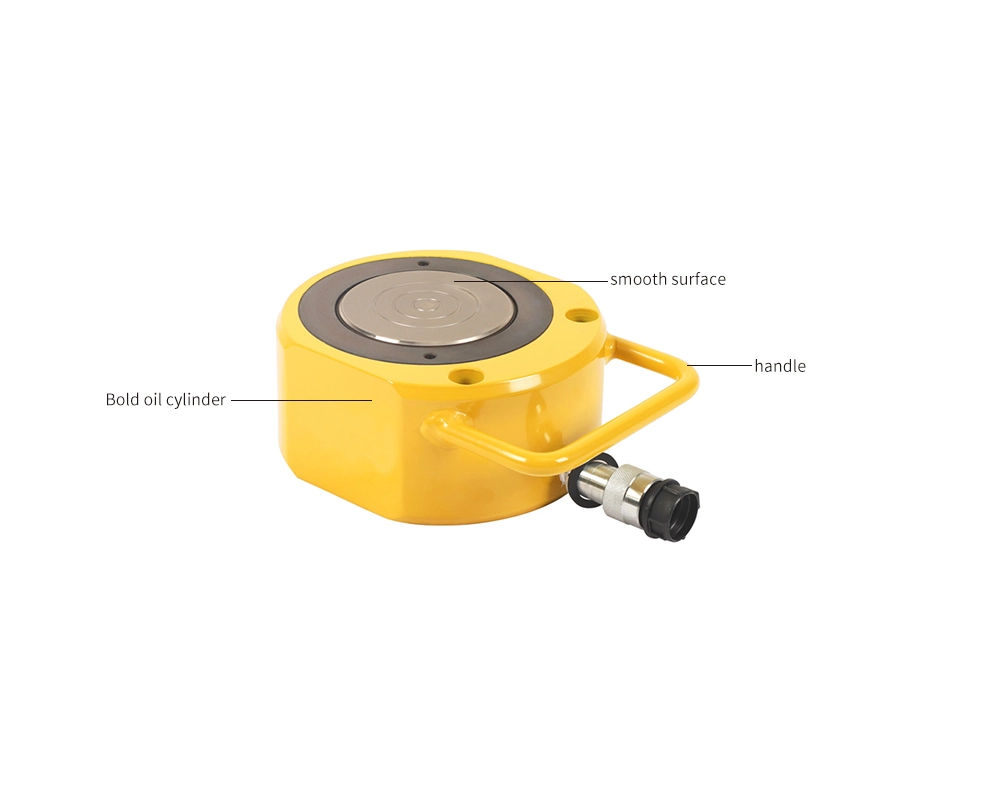

Internal structure
