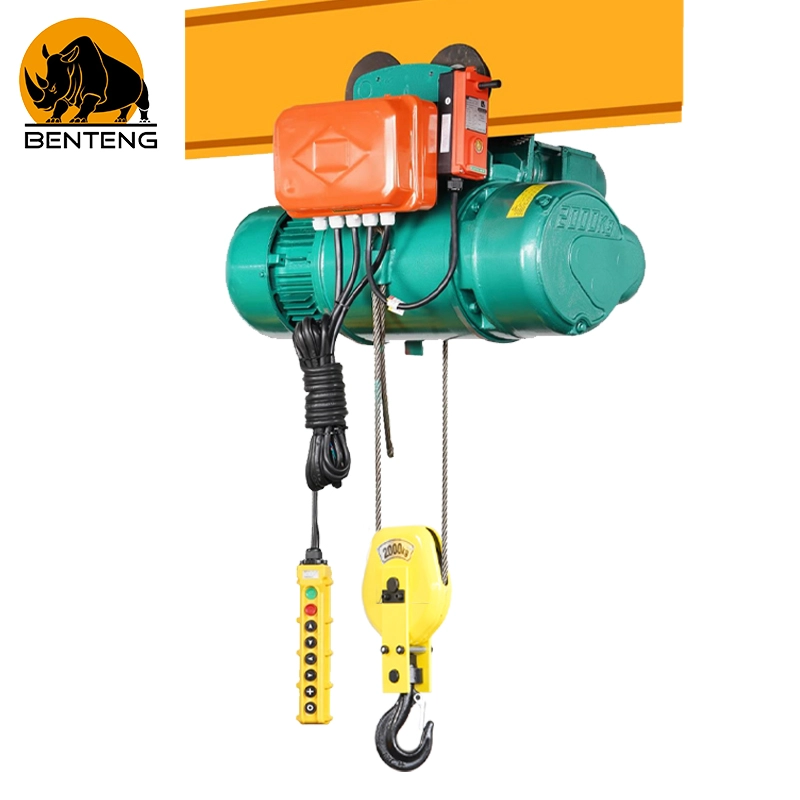

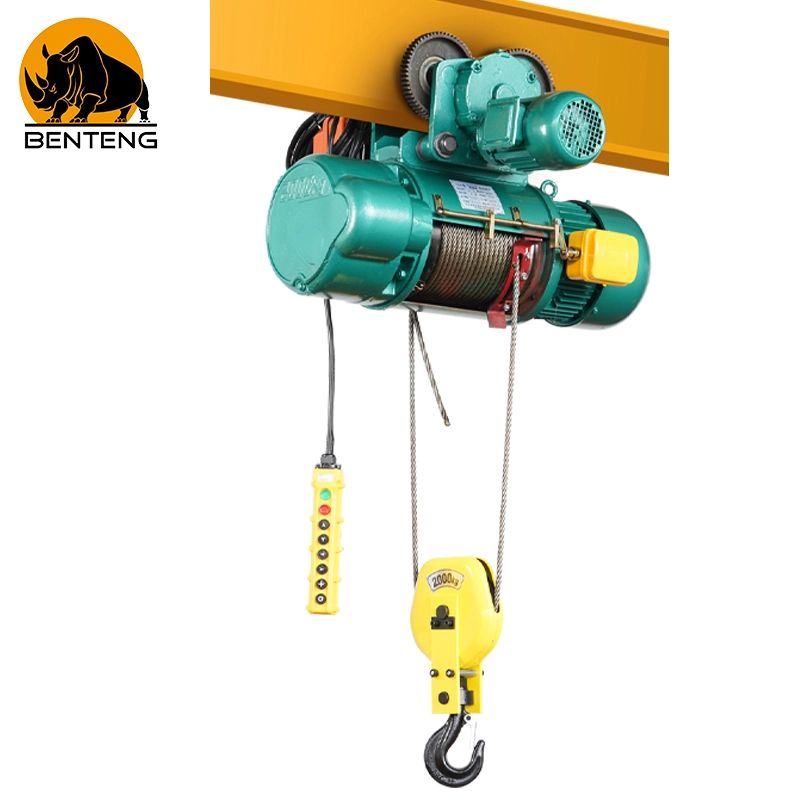

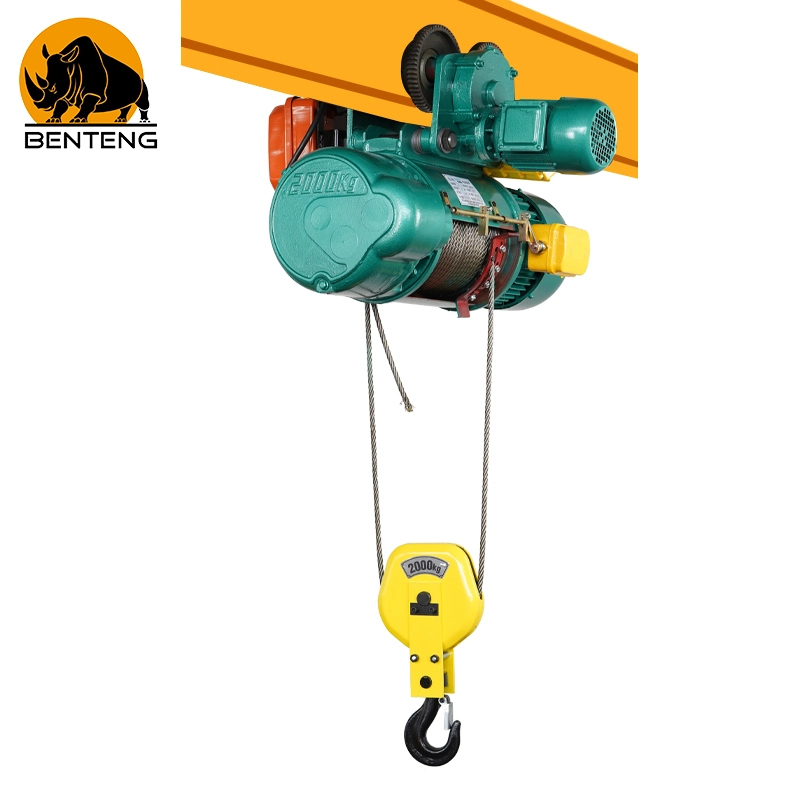

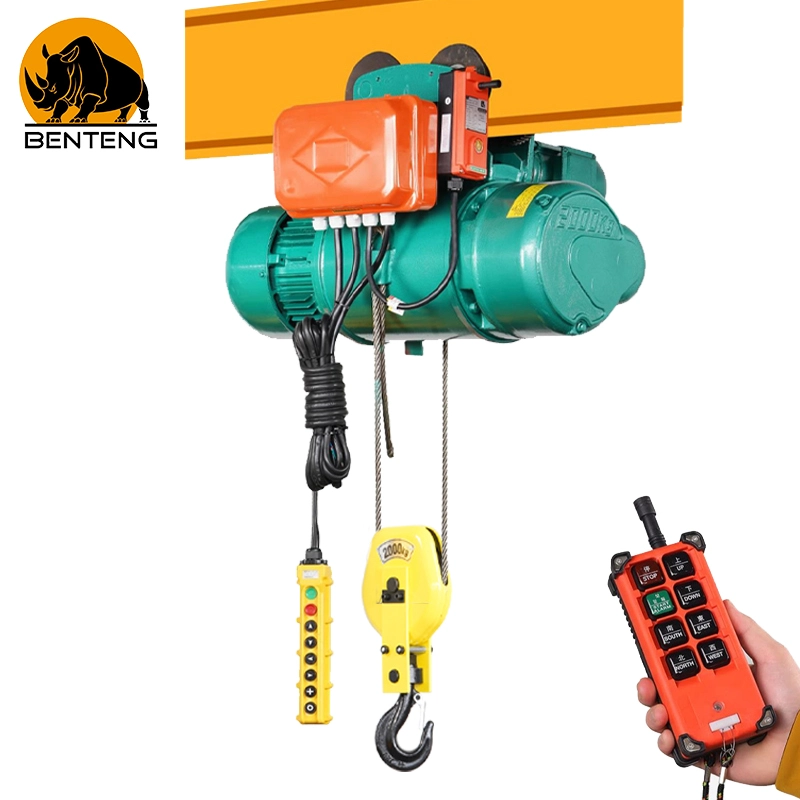

CD1 Wire Rope Electric Hoist 0.5T-10T

Heavy-Duty Lifting Performance: High-strength steel wire rope and powerful motor provide excellent load capacity for heavy material handling operations.
Efficient & Precise Operation: Precision reduction mechanism ensures fast lifting speed, smooth running, and accurate positioning with low noise.
Safe & Reliable Design: Equipped with overload protection, limit protection, and emergency braking systems for secure lifting operations.
Wide Industrial Applications: Ideal for factories, warehouses, ports, construction sites, and heavy machinery manufacturing environments.

Product Detail

CD1 Wire Rope Electric Hoist Description

CD1 Wire Rope Electric Hoist is a heavy-duty, high-performance material handling engine engineered for demanding factory, warehouse, steel processing, and heavy engineering applications. Powered by a high-torque ZD-series conical rotor motor, a precision reduction gearbox, and durable anti-rotation galvanized steel wire rope, this versatile wire rope electric hoist delivers a stable single-speed lifting output of 8 m/min and smooth horizontal trolley travel at 20 m/min under continuous duty cycles.

Engineered across standardized rated lifting capacities ranging from 0.5 Ton to 10 Ton, the CD1 series supports extended lifting heights from 6 to 30 meters. Built for seamless industrial integration, this heavy-duty motorized hoist operates as an independent monorail lifting unit on I-beam tracks (16b to 63c) or serves as the core hoisting mechanism on single-girder overhead cranes, gantry cranes, and jib cranes.

Core Advantages & Operational Benefits

Engineered for Heavy Industrial Loads: CD1 model is specifically built for high-duty operations requiring high lifting speeds (8 m/min) and extended lifting heights (up to 30m).
High-Strength Galvanized Wire Rope: Constructed with anti-rotation 6*37 galvanized steel wire rope, delivering high tensile strength, excellent fatigue resistance, and long service life.
Superior Thermal Dissipation: Features an integrated full-size 8-blade cooling fan and an aluminum alloy motor housing to ensure stable temperature control during continuous operation.
Comprehensive Safety System: Integrates upper and lower limit switches, a fail-safe mechanical brake, and optional electronic overload limiters to prevent over-travel and operator hazards.
Smooth Monorail & Crane Compatibility: Equipped with a heavy-duty motorized trolley designed for smooth travel across I-beam and H-beam track profiles (16b to 63c).

Product Specifications

model	0.5T	1T	2T	3T	5T	10T
lifting capacity(t)	0.5	1	2	3	5	10
lifting height(m)	6-30	6-30	6-30	6-30	6-30	6-30
Lifting speed(m/min)	8	8	8	8	8	8
running speed(m/min)	20	20	20	20	20	20
Wire rope model	6*37 4.8-180	6*37 7.4-180	6*37 11-155	6*37 13-170	6*37 15-200	6*37 15-200
I-beam track model	16-28b	16-28b	20a-32c	20a-32c	25a-63c	28a-63c
Crane motor model	ZD21-4	ZD22-4	ZD31-4	ZD32-4	ZD41-4	ZD51-4
Motor capacity (kW)	0.8	1.5	3	4.5	7.5	13
Motor speed (r/min)	1380	1380	1380	1380	1380	1380

Industrial Applications

The CD1 wire rope electric hoist is built to power critical material handling operations across diverse industrial sectors:

Steel Mills & Heavy Manufacturing: Handles heavy steel billets, large welded structures, raw castings, and machinery components with high continuous duty cycles.
Ports, Logistics & Infrastructure Construction: Facilitates component lifting in bridge building, wind turbine installation, and high-bay warehouse cargo handling.
Factory Workshops & Assembly Lines: Functions as standard equipment for mold changes, equipment maintenance, and station-to-station material transfers.

Component Breakdown

High-Strength Galvanized Steel Wire Rope: Anti-corrosive, wear-resistant steel wire rope designed to withstand extreme dynamic tensile loads without snapping or fraying.
Forged Manganese Steel Safety Hook: Heavy-duty drop-forged hook that swivels 360 degrees, featuring a spring-loaded latch to prevent sling detachment during travel.
Hardened Alloy Gearbox Housing: Rugged, sealed alloy casing provides impact resistance while protecting high-precision reduction gears from airborne dust and moisture.
High-Torque Conical Rotor Motor: Features 100% pure copper core windings and an internal mechanical disc brake that automatically engages instantly upon power disruption.
Dual-Travel Limit Protection: Mechanical upper and lower limit switches automatically cut off motor power at terminal travel points to protect the rope drum and housing.

Products Details

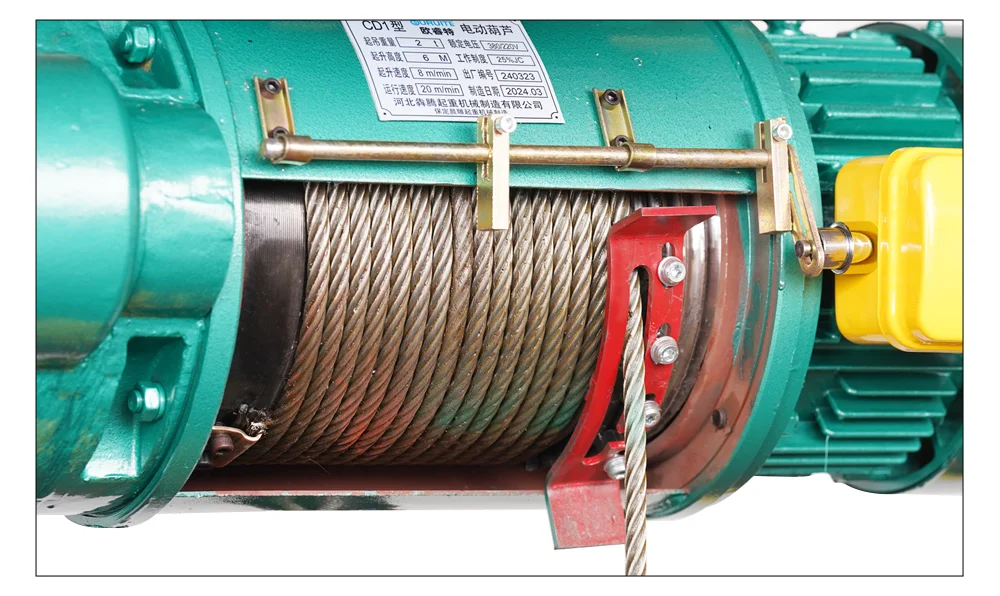

Strong and durable galvanized steel wire rope is not easy to break

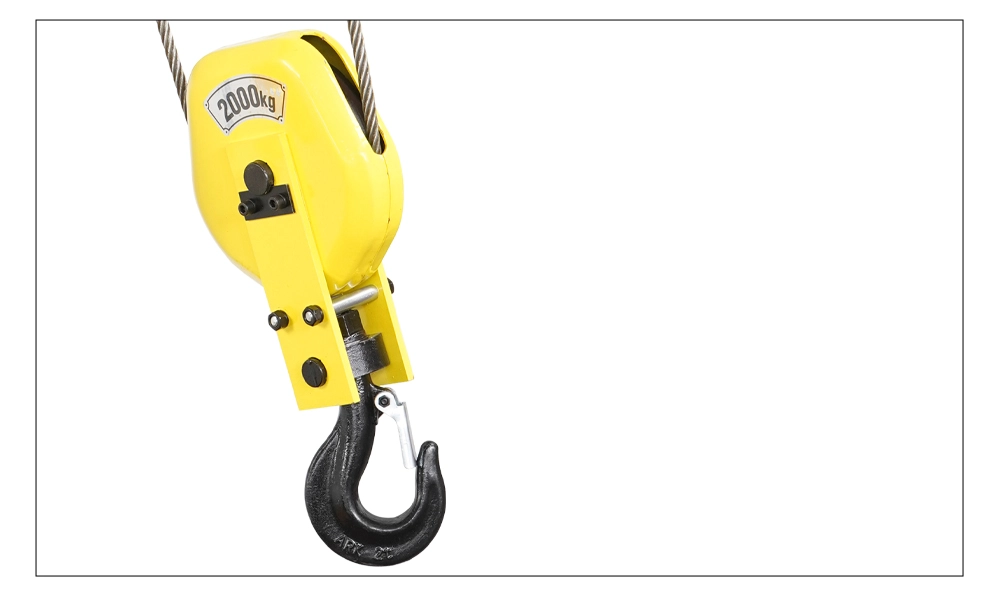

Manganese steel hook with strong anti fracture and tensile strength

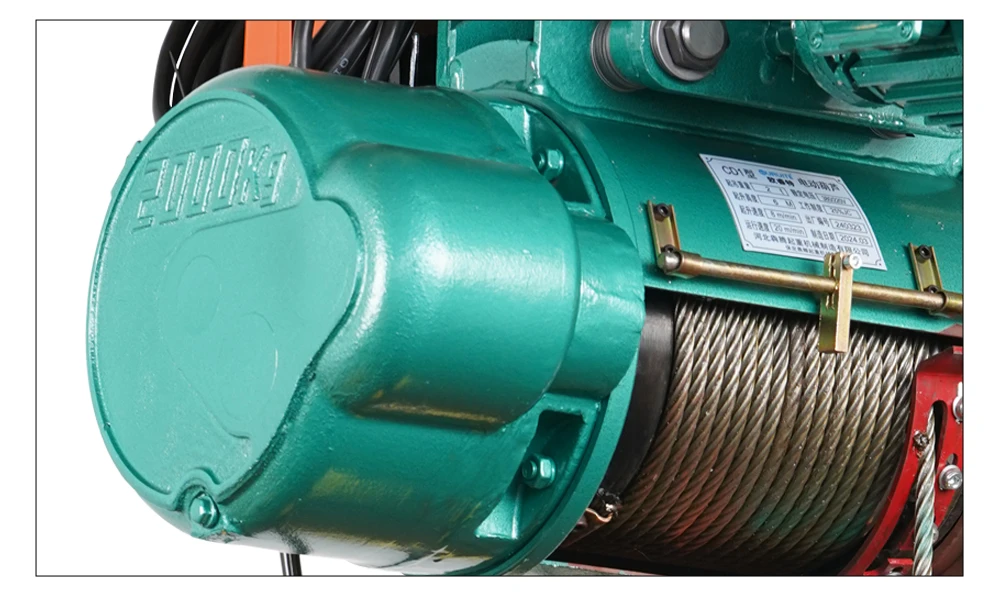

Alloy casing, impact resistant, sealed and waterproof

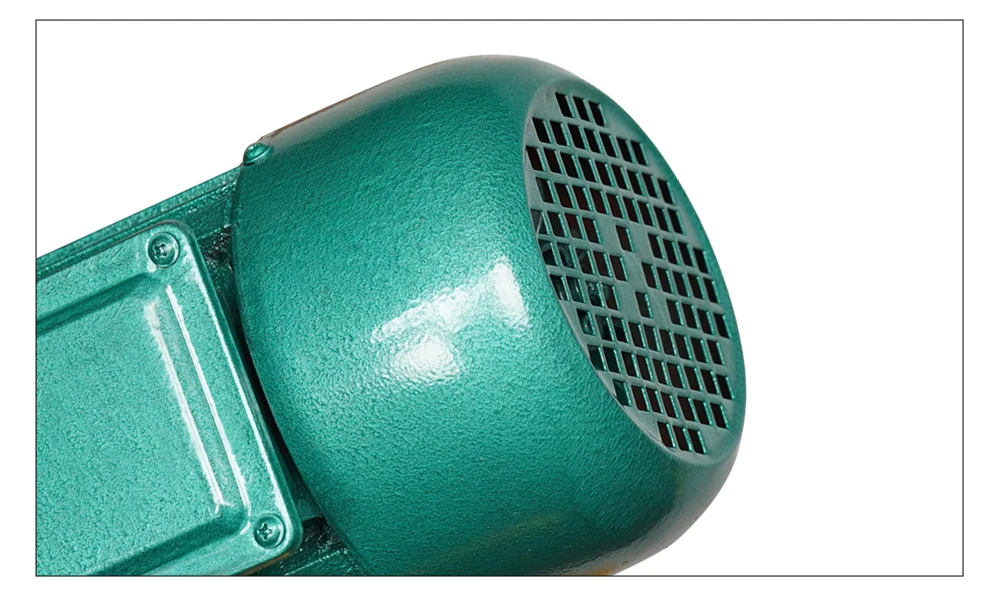

Full size 8-page fan with stronger heat dissipation effect

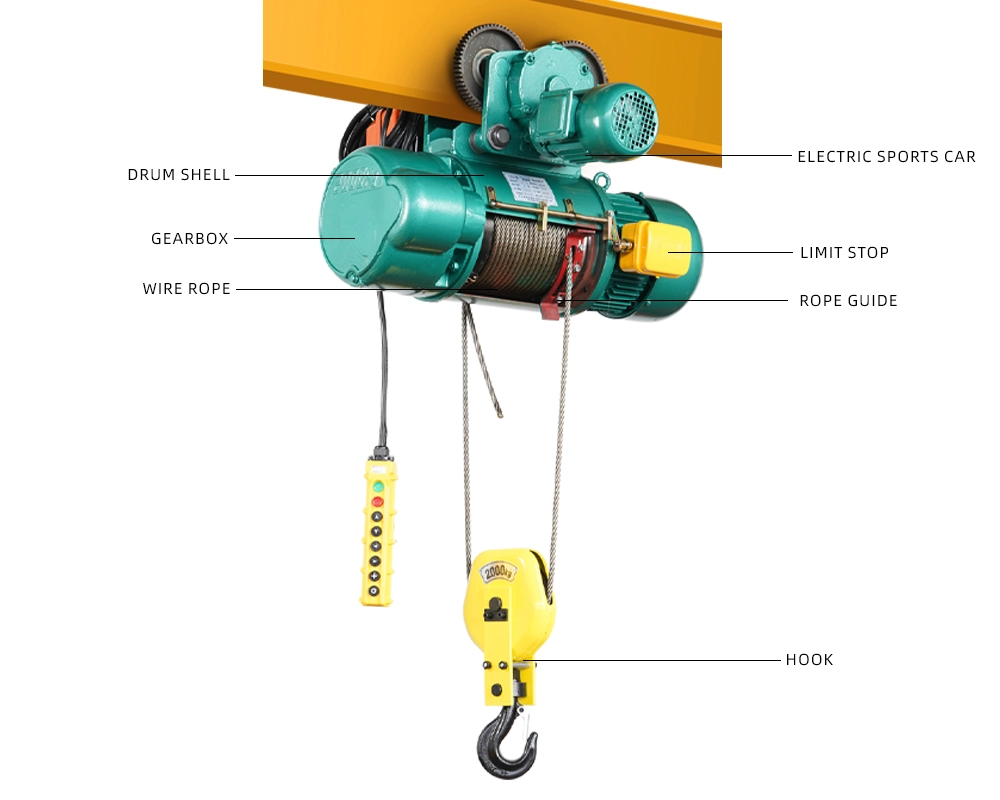

Internal Structure

Motorized Trolley: Provides smooth horizontal motorized travel on overhead beams.
Steel Rope Drum Shell: Durable structural casing protecting the inner wire rope drum.
Precision Gearbox: Hardened alloy reduction gear set for smooth power transmission.
Galvanized Wire Rope: High-strength, wear-resistant steel rope for continuous heavy loads.
Travel Limit Switch: Safety cut-off device preventing over-hoisting and over-lowering.
Anti-Tangle Rope Guide: Ensures orderly rope spooling into drum grooves to prevent jamming.
Swivel Hook Assembly: Drop-forged safety hook with 360° rotation and safety latch.

B2B Customization & OEM Engineering Options

To support specific global project site requirements, we provide comprehensive engineering customization for every CD1 unit:

Dual-Speed Configuration (MD1 Upgrade Option): Dual-speed hoisting (8 m/min main speed + 0.8 m/min slow speed) for precision mold positioning and equipment assembly.
Custom Voltage & Frequency: Configurable for 220V, 415V, 440V, or 480V electrical grids at 50Hz or 60Hz.
Harsh Environment Upgrades: Explosion-proof (Ex d II BT4 / CT4) enclosures, corrosion-resistant marine coatings, and high-temperature thermal shields.
Advanced Control Packages: Wireless industrial radio remote controls, variable frequency drives (VFD) for stepless speed control, and electronic load limiters.

Frequently Asked Questions

Q1: What is the main difference between CD1 and MD1 wire rope hoists?

A: The CD1 model features single-speed hoisting (8 m/min), making it ideal for standard industrial material handling. The MD1 model features dual-speed hoisting with a 1/10th precision speed ratio, designed for applications requiring micro-positioning such as mold installation and equipment assembly.

Q2: Can the CD1 wire rope hoist operate on curved I-beam tracks?

A: Yes. The motorized traveling trolley can be adjusted to fit various standard I-beam and H-beam track widths, and can negotiate curved monorail tracks based on the minimum turning radius for each tonnage capacity.

Q3: What safety mechanisms are included standard on the CD1 series?

A: Standard safety configurations include automatic fail-safe power-off brake systems, mechanical upper and lower limit switches, safety latches on drop-forged hooks, and low-voltage pendant controls (24V/36V).
